Products

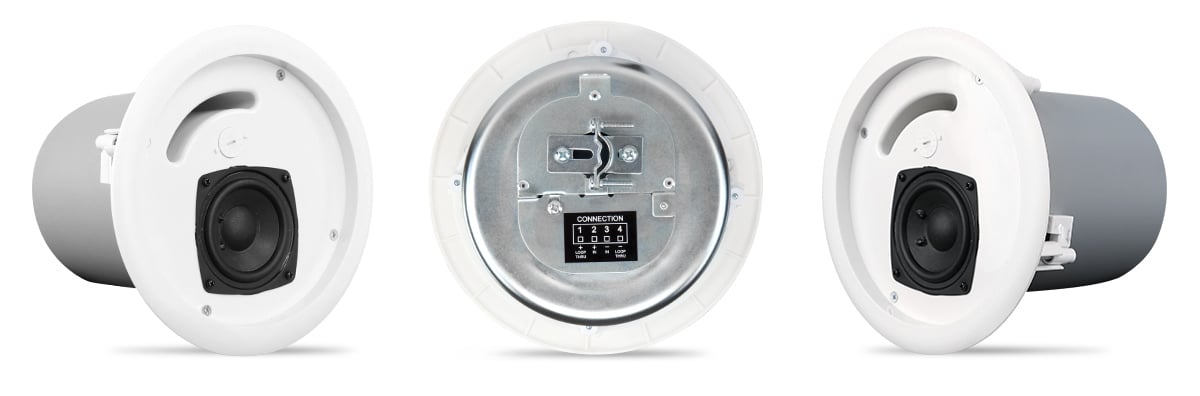

AC-C2T

2.75-inch Full-range, 170° conical

• High quality 2.75-inch full-range transducer provides exceptional clarity through the critical voice range.
• Low-saturation 70V/100V transformers with 8-ohm bypass.
• 4-pole Euroblock connector for easy system wiring.

AC-C2T-LP

2.75-inch, low-profile, 170° conical

• Low-profile enclosure ensures no obstructions during installation
• High-quality 2.75” full-range transducer
• Low frequency extension down to 75 Hz
• Designed for voice-reinforcement or background music applications

AC-C4T

Ceiling-mount Loudspeaker

• High quality 4.5-inch full-range transducer provides exceptional clarity through the critical voice range.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low-saturation 70V/100V transformers with 8-ohm bypass.

AC-C6T

Ceiling-mount Loudspeaker

• High quality 6.5-inch 2-way system provides exceptional clarity through the critical voice range.
• Low-saturation 70V/100V transformers with 8-ohm bypass.
• 4-pole Euroblock connector for easy system wiring.

AC-C8T

8-inch 2-way Ceiling-mount Loudspeaker

• High quality transducers provide exceptional clarity
• Ported baffle for increased low frequency extension
• Low saturation 70/100V transformers with 8 ohm bypass
• Advanced voicing via QSC Intrinsic Correction™
• Improved musicality

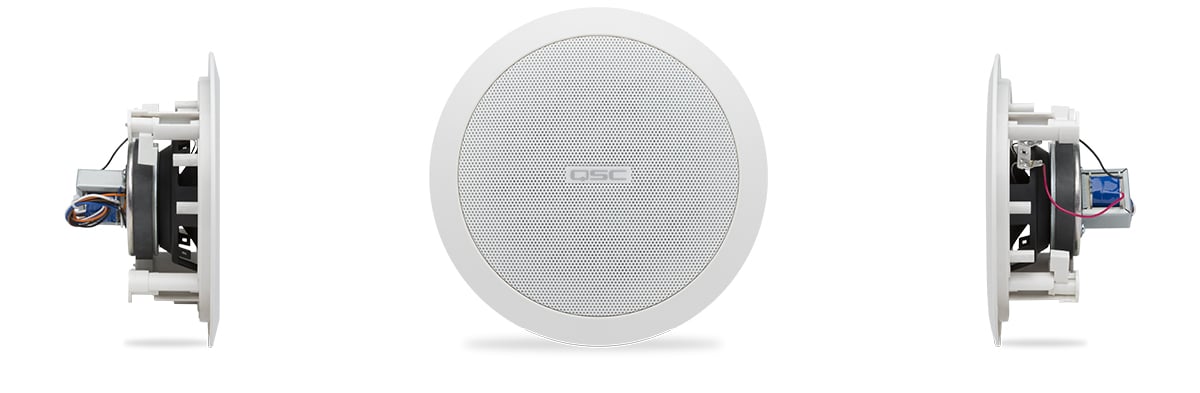

AC-C4T-nb

Ceiling-mount Loudspeaker

• High quality 4.5-inch full-range transducer provides exceptional clarity through the critical voice range.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low-saturation 70V/100V transformers with 8-ohm bypass.

AC-C4T-nb

Ceiling-mount Loudspeaker

• High quality 8-inch full-range transducer provides exceptional clarity through the critical voice range.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low-saturation 70V/100V transformers with 8-ohm bypass.

AD-C4T

Ceiling-mount Loudspeaker

• Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
• Directivity Matched Transition^® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
• Snap-fit magnetic grille

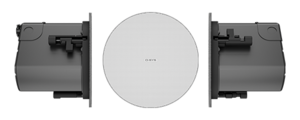

AD-C4T-ZB

4.5-inch, 2-way, zero bezel

• Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
• Directivity Matched Transition^® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
• Snap-fit magnetic grille

AD-C4T-LP

4.5-inch, 2-way, low profile, 150° conical DMT

• Consistent tonal characteristics across the entire AcousticDesign™ family
• Directivity Matched Transition^® (DMT) waveguide
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

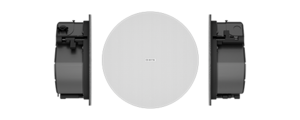

AD-C4T-LPZB

4.5-inch, 2-way, low profile, zero bezel

• Consistent tonal characteristics across the entire AcousticDesign™ family
• Directivity Matched Transition^® (DMT) waveguide
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

AD-C6T

6.5-inch, 2-way, 135° conical DMT

• Consistent tonal characteristics across the entire AcousticDesign™ family
• Directivity Matched Transition^® (DMT) waveguide
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

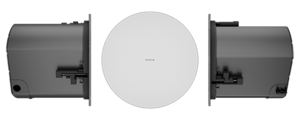

AD-C6T-ZB

6.5-inch, 2-way, zero bezel

• Consistent tonal characteristics across the entire AcousticDesign™ family
• Directivity Matched Transition^® (DMT) waveguide
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

AD-C6T-LP

6.5-inch, 2-way, low profile, 135° conical DMT

• Consistent tonal characteristics across the entire AcousticDesign™ family
• Directivity Matched Transition^® (DMT) waveguide
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

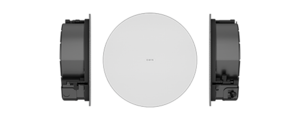

AD-C6T-LPZB

6.5-inch, 2-way, low profile, zero bezel

• Consistent tonal characteristics across the entire AcousticDesign™ family
• Directivity Matched Transition^® (DMT) waveguide
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

AD-C6T-HC

6.5-inch, 2-way ceiling-mount loudspeaker, 75° coverage

• Ceiling-mount loudspeaker for high ceilings or reverberant spaces
• Consistent tonal characteristics across the entire AcousticDesign™ family
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

AD-C6T-HP

6.5-inch, 2-way ceiling-mount loudspeaker, 120° coverage

• Increased power handling at standard ceiling heights to meet the challenge of a higher noise environment
• Consistent tonal characteristics across the entire AcousticDesign™ family
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms

AD-C8T-ZB

8-inch, 2-way, zero bezel

• Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
• DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
• Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers

AD-C8T-SWZB

8-inch, ceiling-mount subwoofer

• Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
• DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
• Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers

AD-C10T-HPZB

10-inch, two-way, zero-bezel

• Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
• DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
• Intrinsic Correction™ voicings available via the Q-SYS Platform including CX-Q amplifiers

AD-C820

8-inch 2-way, 90° conical DMT

• 8-inch low-frequency woofer
• 1.4-inch diaphragm compression driver
• 200 watt continuous power rating
• 70V/100V multi-tap transformer included

AD-C821

8-inch 2-way, 90° conical DMT

• 8-inch low-frequency woofer
• 1.4-inch diaphragm compression driver
• 200 watt continuous power rating
• 70V/100V multi-tap transformer included

AD-C1200

High Power, 12-inch 2-way, 85° conical DMT

• 12-inch low-frequency woofer
• 1.75-inch diaphragm compression driver
• 300-watt continuous power rating
• 70V/100V multi-tap transformer included

AD-C81Tw

8-inch subwoofer

• 8-inch polypropylene cone woofer
• Large port area for extended low-frequency performance
• Defeatable passive 120 Hz low-pass filter with impedance compensation
• 100 watts continuous power handling, 400 watts peak
• 70/100 V multitap transformer with 8 ohm bypass

AD-C.SAT

2.75-inch Small Format Ceiling Satellite Loudspeaker

The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

• Inverted aluminum dome dust cap
• Rated at 16 Ω
• Locking 2-pole Euroblock connectors
• Snap-fit magnetic grilles
• Removable conduit cover plate
• 2x long travel dog-ear blind mount system

AD-C.SUB

6.5-inch Dual Voice Coil, Small Format Ceiling Subwoofer

The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

• Dual voice-coil for improved thermal dissipation and higher output
• Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
• 4x built-in high-pass filtered outputs
• Locking 4-pole Euroblock connectors
• 4x double stepped, long travel dog-ear blind mount system

AC-S4T

4.5-inch 2-way, 130° conical

• High quality transducers provide exceptional clarity through the critical voice range
• Improved musicality
• Ported baffle for increased low frequency extension
• Low saturation 70/100V transformers with 8 ohm bypass.
• Advanced voicing via QSC Intrinsic Correction™

AC-S6T

6.5-inch 2-way, 130° conical

• High quality transducers provide exceptional clarity through the critical voice range
• Improved musicality
• Ported baffle for increased low frequency extension
• Low saturation 70/100V transformers with 8 ohm bypass.
• Advanced voicing via QSC Intrinsic Correction™

AD-S4T

4.5-inch 2-way, 120° conical DMT

• 4 inch weather treated woofer; 0.75 inch silk dome tweeter
• 120° conical Directivity Matched Transition^® (DMT) coverage
• X-Mount™ system
• Advanced voicing filter sets using QSC Intrinsic Correction™
• Lightweight ABS enclosures

AD-S5T

5.25-inch 2-way, 115° conical DMT

• 5.25 inch weather treated woofer; 1 inch silk dome tweeter
• 115° conical DMT™ coverage
• 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
• Maximum peak SPL 116 dB (8 ohm bypass)
• Directivity Matched Transition^® (DMT) ensures smooth, uniform frequency response over the coverage area

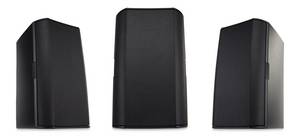

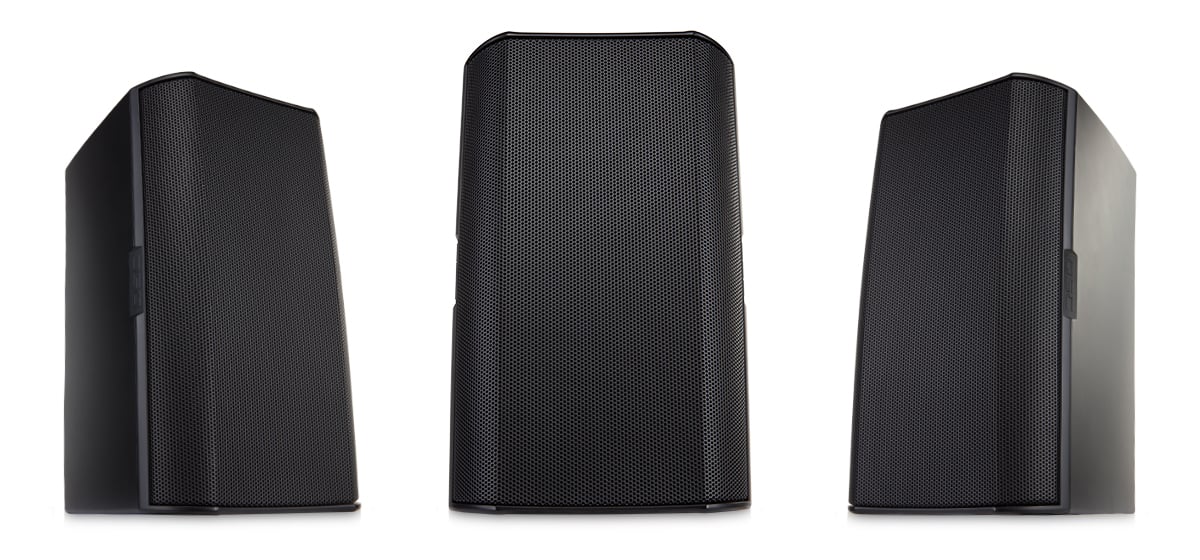

AD-S6

6.5-inch 2-way, 105° conical DMT

• 6.5-inch weather treated woofer
• 105° conical DMT™ coverage
• Maximum peak SPL 116 dB (16 ohm)
• Directivity Matched Transition^® (DMT) ensures smooth, uniform frequency response over the coverage area
• X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time

AD-S6T

6.5-inch 2-way, 105° conical DMT

• 6.5-inch weather treated woofer; 1-in silk dome tweeter
• 105° conical DMT™ coverage
• 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
• Maximum peak SPL 116 dB (8 ohm bypass)
• Directivity Matched Transition^® (DMT) ensures smooth, uniform frequency response over the coverage area

AD-S8T

8-inch 2-way, 105° conical DMT

• 8-inch weather treated woofer; 1.4-inch compression driver
• 105° conical Directivity Matched Transition^® (DMT) coverage
• X-Mount™ system
• Advanced voicing filter sets using QSC Intrinsic Correction™
• Lightweight ABS enclosures

AD-S10T

10-inch 2-way, 90° conical DMT

• 10-inch weather treated woofer; 1.4-inch compression driver
• 90° conical Directivity Matched Transition^® (DMT) coverage
• X-Mount™ system
• Advanced voicing filter sets using QSC Intrinsic Correction™
• Lightweight ABS enclosures

AD-S12

Surface-mount Loudspeaker

• 12-inch weather treated woofer; 1.4-inch compression driver
• 75° conical Directivity Matched Transition^® (DMT) coverage
• X-Mount™ system
• Advanced voicing filter sets using QSC Intrinsic Correction™
• Lightweight ABS enclosures

AD-S112sw

12-inch Subwoofer

• 12-inch weather treated woofer
• TFR™ (Turbulent Flow Reduction)
• Maximum peak SPL 121 dB
• Lightweight ABS enclosures

AD-S28Tw

Dual 8-inch Subwoofer

• Dual 8-inch polypropylene cone woofers
• Large port area for extended low-frequency performance
• Dual-chamber ported bandpass cabinet
• Defeatable passive 120 Hz low-pass filter with impedance compensation

AD-S.SAT

2.75-inch Small Format Surface Satellite Loudspeaker

The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

• Inverted aluminum dome dust cap
• Rated at 16 Ω
• Locking 2-pole Euroblock connectors
• X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag

AD-S.SUB

6.5-inch Dual Voice Coil, Small Format Surface Subwoofer

The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

WL2082i

Installation Line Array System

• Installation-optimized design brings affordable and uncompromised line array performance to a broader range of venues
• Compact and attractive appearance
• Wide 140° horizontal coverage
• Economical and easy-to-install suspension system

WL118-sw

18-inch Subwoofer

• Single 18-inch subwoofer in a bass-reflex enclosure
• 850 watt continuous power capacity
• May be suspended at the top, or behind the WL2082-i array

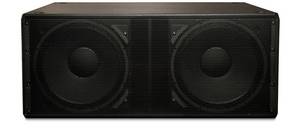

Wideline Series

• Dual 8-inch & 10-inch version
• Tour Class Performance
• Enclosure: Baltic Birch

Wideline Series

• Dual 8-inch & 10-inch version
• Tour Class Performance
• Enclosure: Baltic Birch

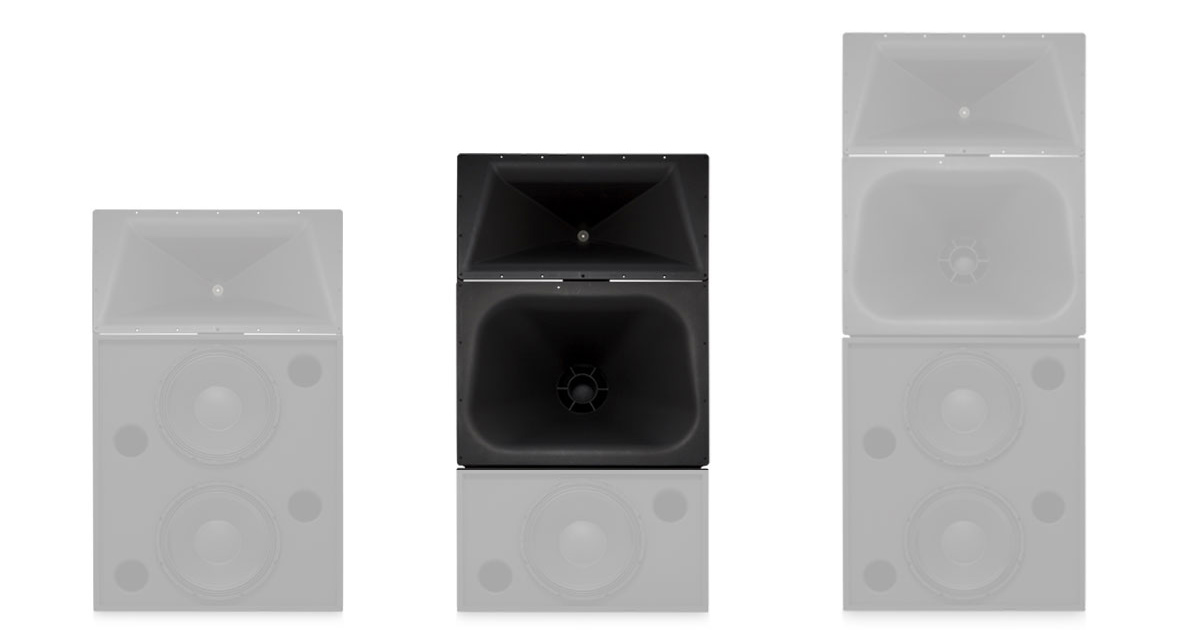

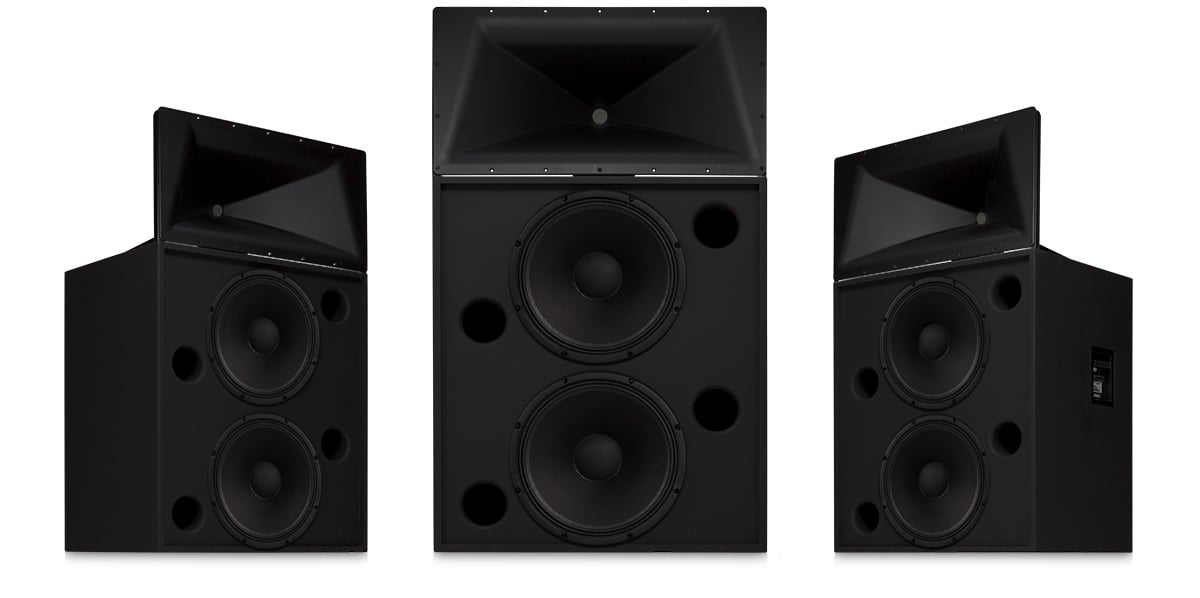

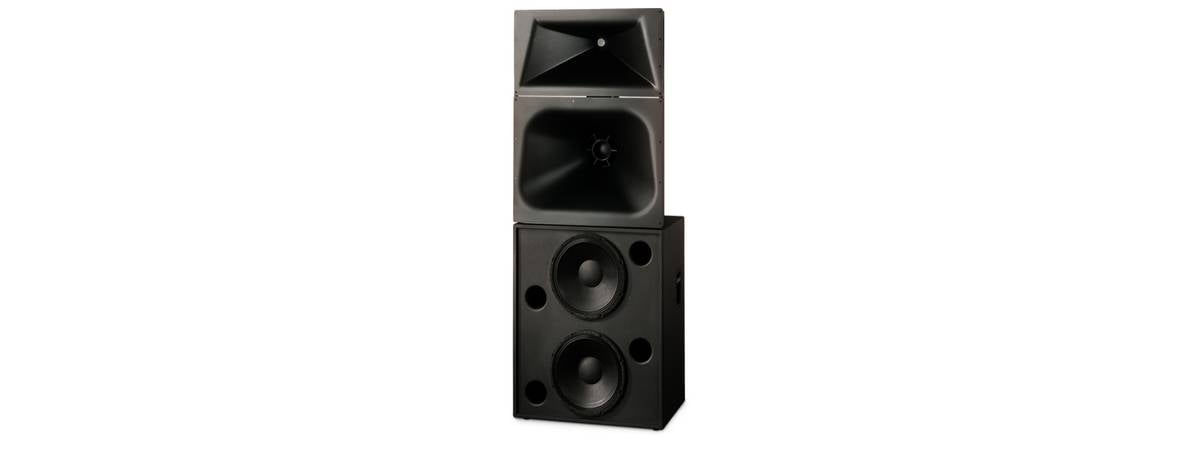

SC-222X

Cinema Loudspeaker System

• Passive, 2-way, screen channel system
• HF-75CX2 provides 90° horizontal by +20° to -35° vertical coverage
• LF-2215 is constructed of MDF and features single woofer chambers
• Low-distortion waveguide provides highly articulate dialogue

SC-1120

2-Way Small Room Screen Channel Loudspeaker, Passive

• Optimized design for smaller cinemas—up to 35 ft (11 m) in length
• Single enclosure, two-way screen channel loudspeaker
• 90° Axisymmetric horn
• 12-inch (305 mm) woofer with 2.5-inch (63 mm) voice coil
• 1.75-inch (44 mm) voice coil HF compression driver

SC-1150

2-Way Small Room Screen Channel Loudspeaker, Passive

• Optimized design for smaller cinemas—up to 45 ft (14 m) in length
• Single enclosure, two-way screen channel loudspeaker
• 90° Axisymmetric horn
• 15-inch (380 mm) woofer with 3-inch (76 mm) voice coil
• 1.75-inch (44 mm) voice coil HF compression driver

SC-222

Cinema Loudspeaker System

• Two-way, bi-amplified screen channel system
• HF-75C provides 90° horizontal by +20° to -35° vertical coverage
• LF-2215 is constructed of MDF and features single woofer chambers
• Low-distortion waveguide provides highly articulate dialogue

SC-412C

2-Way Screen Channel Loudspeaker, Bi-amp

• Two-way, bi-amplified screen channel system
• SC-412C provides 90° horizontal by +20° to -30° vertical coverage
• Low-distortion waveguide provides highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

SC-422C

2-Way Screen Channel Loudspeaker, Bi-amp

• Two-way, bi-amplified screen channel system
• HF-75C provides 90° horizontal by +20° to -30° vertical coverage
• LF-4215 enclosure is constructed of MDF and features two single woofer chambers
• Low-distortion waveguide provides highly articulate dialogue
• Shallow depth (20 in) facilitates ease of installation

SC-2150

3-Way Screen Channel Loudspeaker, Passive or Bi-amp

• Optimized design for smaller cinemas - up to 55 ft (16.6 m) in length
• 3-way selectable, bi-amplified or full passive screen channel system
• 6.5-inch horn loaded midrange driver
• Advanced crossover circuitry

SC-223

3-Way Screen Channel Loudspeaker, Passive or Bi-amp

• 3-way bi-amplified screen channel system
• MH-1060 provides 90° horizontal by +20° to -30° vertical coverage
• LF-2215 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialouge
• Shallow depth (20-inch) facilities installation

SC-223X

3-way bi-amplified or passive screen channel system

• MH-1060X provides 90° horizontal by +20° to -30° vertical coverage
• LF-2215 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20”) facilitates installation

SC-413C

3-Way Screen Channel Loudspeaker, Bi- or Tri-amp

• Three-way selectable, bi or tri- amplified screen channel system
• MH-1075C provides 90° horizontal by +20° to -30° vertical coverage
• LF-4115 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation
• THX approved

SC-423C

3-Way Screen Channel Loudspeaker, Bi- or Tri-amp

• Three-way selectable, bi- or tri- amplified screen channel system
• MH-1075C provides 90° horizontal by+20° to -30° vertical coverage
• LF-4215 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

SC-423C-F

Flyable 3-Way Screen Channel Loudspeaker, Bi- or Tri-amp

• Three-way, bi- or tri-amplified screen channel system
• SC-312 provides 90° horizontal by +20° to -30° vertical coverage
• Low-distortion waveguide provides highly articulate dialogue
• Can be flown or suspended in vertical or horizontal orientation
• Suspension hardware not included; must be supplied by installer

SC-433C

3-Way Screen Channel Loudspeaker, Bi- or Tri-amp

• Three-way selectable, bi or tri- amplified screen channel system
• MH-1075C provides 90° horizontal by +20° to -30° vertical coverage
• LF-4315 is constructed of MDF and features three single woofer chambers
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

SC-443C

3-Way Screen Channel Loudspeaker, Bi- or Tri-amp

• Three-way selectable, bi or tri- amplified screen channel system
• MH-1075C provides 90° horizontal by +20° to -30° vertical coverage
• Two LF-4215 enclosures, constructed of MDF each features two single woofer chambers
• Low-distortion waveguides
• Shallow depth (20-inch) facilitates installation

SC-414

4-Way Screen Channel Loudspeaker, Tri- or Quad-amp

• Four-way selectable, tri or quad- amplified screen channel system
• Unique HF/VHF diaphragm
• LF-4115 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

SC-424

4-Way Screen Channel Loudspeaker, Tri- or Quad-amp

• Four-way selectable, tri or quad- amplified screen channel system
• Unique HF/VHF diaphragm
• LF-4215 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

SC-424-8F

4-Way Screen Channel Loudspeaker, Tri- or Quad-amp

• Flyable 4-way tri-amplified screen channel speaker system
• Common dimensions of Mid/High and LF enclosures facilitate easy installation in vertical or horizontal arrays
• Unique HF/VHF diaphragm
• Low-distortion waveguides

SC-434

4-Way Screen Channel Loudspeaker, Tri- or Quad-amp

• Four-way selectable, tri or quad- amplified screen channel system
• Unique HF/VHF diaphragm
• LF-4315 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

SC-444

4-Way Screen Channel Loudspeaker, Tri- or Quad-amp

• Four-way selectable, tri or quad- amplified screen channel system
• Unique HF/VHF diaphragm
• Two LF-4215 enclosures, constructed of MDF each features two single woofer chambers
• Low-distortion waveguides
• Shallow depth (20-inch) facilitates installation

LF Components

Designed not only to deliver, but to thrive on today’s pushed-to-the-max soundtracks, QSC low-frequency components bring out the full richness of screen channel sound.

Mid-Hi Components

QSC mid-high components are all about intelligibility. The midrange element — a 10-inch, high-output, horn-loaded cone driver — places nearly the entire dialog range on a single element, helping audiences hear every word clearly.

HF Components

DCS high-frequency components are an ideal match for the LF enclosures in our bi-amped and passive 2-way screen channel systems.

MP-A20V

Multi-Channel Amplifier

• 200 W x 2 Channels
• Class-D output circuitry and switchmode power supply
• Selectable 80 Hz highpass filter

MP-A40V

Multi-Channel Amplifier

• 200 W x 4 Channels
• Class-D output circuitry and switchmode power supply
• Selectable 80 Hz highpass filter

MP-A80V

Multi-Channel Amplifier

• 200 W x 8 Channels
• Class-D output circuitry and switchmode power supply
• Selectable 80 Hz highpass filter

SPA2-60

EnergyStar Power Amplifier
60 W per channel into 8Ω

SPA4-60

EnergyStar Power Amplifier
60 W per channel into 8Ω

• Up to 60 watts per channel into 4 and 8 ohms
• ENERGY STAR® qualified amplifier
• Bridgeable outputs for higher power
• Auto-Ramp provides quiet startup and power-down

SPA2-200

EnergyStar Power Amplifier
200 W per channel into 8Ω

• Up to 200 watts per channel into 4 and 8 ohms
• ENERGY STAR® qualified amplifier
• Bridgeable outputs for higher power
• Auto-Ramp provides quiet startup and power-down

SPA4-100

EnergyStar Power Amplifier
200 W per channel into 8Ω

• Up to 200 watts per channel into 4 and 8 ohms
• ENERGY STAR® qualified amplifier
• Bridgeable outputs for higher power
• Auto-Ramp provides quiet startup and power-down

MP-M40

Music and Paging Mixer

• 4 x mic/line input channels

• 4 x line input channels

• 4 x output zones + 1 music-on-hold output

MP-M80

Music and Paging Mixer

• 8 x mic/line input channels

• 8 x line input channels

• 8 x output zones + 1 music-on-hold output

MP-MFC Controller

Wall mount controller for MP-M Series mixers

The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer.

• Up to 250 m cable length (CAT5)
• Zone select, source select, scene recall, volume control
• Ability to daisy chain up to four MP-MFC controllers
• Up to eight MP-MFC controllers per MP-M Series mixer
• Available in NA and EU sizes
