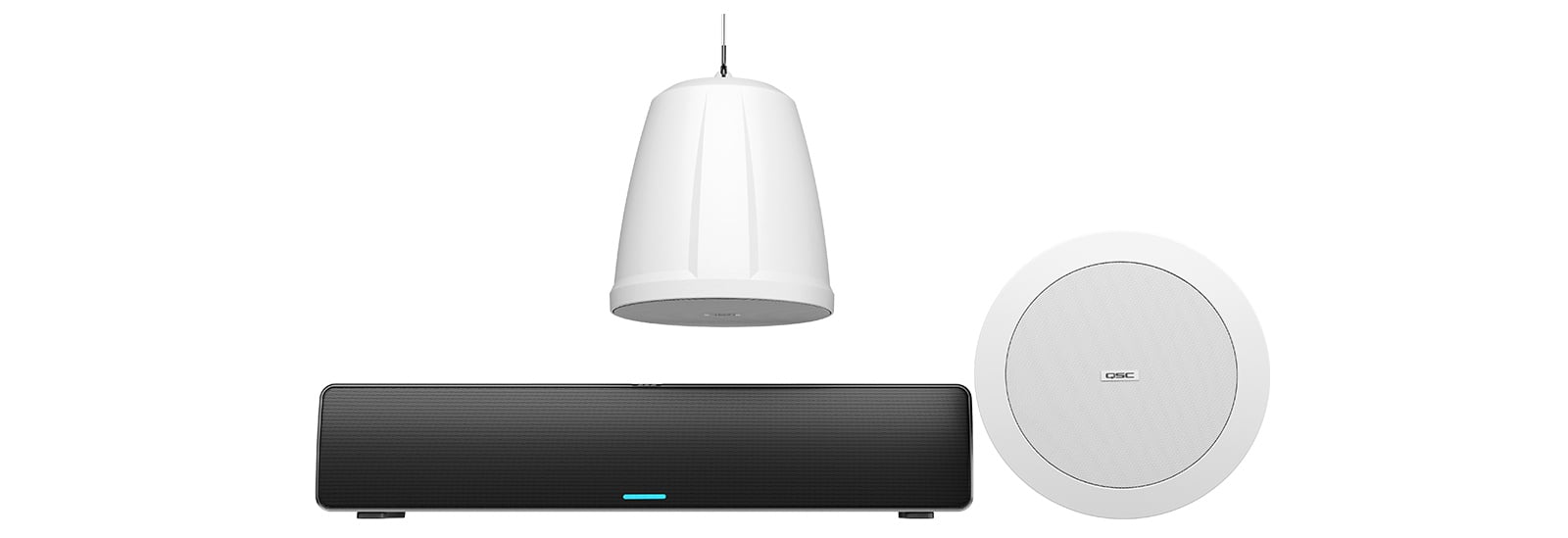

• Image of NL series hardware
  • Image of front of NL series hardware
Q-SYS Audio logo

Q-SYS NL Series network PoE loudspeakers deliver clear speech and music reproduction to the modern collaboration space. As native Q-SYS Products, the NL Series help enable true end-to-end network-based audio, video and control solutions driven by the Q-SYS OS. NL Series network loudspeakers integrate into your space with a single Ethernet cable to reduce the overall hardware footprint and lower system cost. They are available in three form factors (speakerbar, pendant mount and ceiling mount) to enable a wide range of room types, and take full advantage of the drag-and-drop integration and simple control capabilities offered by Q-SYS.



Certified for Microsoft Teams badge
  • The right loudspeaker for your space: The Q-SYS NL-SB42 is a 3.5-inch, two-way soundbar, while the Q-SYS NL-P4 is a 4-inch pendant-mount loudspeaker for open ceiling installations, and the Q-SYS NL-C4 is a 4-inch ceiling-mount loudspeaker. All NL Series loudspeakers are designed for low distortion to improve system level AEC performance and optimize audio intelligibility.
Image of people in conference room
  • Mix and Match: NL Series network loudspeakers are built on the same design principles as the Q-SYS AcousticDesign™ Series, featuring a sleek, unobtrusive design along with the same sonic characteristics that allow integrators to mix-and-match form factors to fit the unique needs of any space.
  • Go easy: NL Series network loudspeakers are powered-over-Ethernet (PoE), which means native Q-SYS audio data, power and control and are delivered over a single cable, greatly simplifying installation and deployment while reducing rack space requirement.
Image of someone plugging in back of Q-SYS hardware
  • Intrinsic Correction: To simplify the tuning process, Q-SYS automatically integrates loudspeaker voicing for NL Series loudspeakers.
  • Q-SYS Call Sync: Automatically sync onboard controls and LED status indicators on select Q-SYS devices (NM-T1 microphone, TSC Series Gen 3 touchscreens & NL-SB42 PoE speakerbar) keeping the state of all in-room endpoints in sync with connected UC platforms.
  • Remote Monitoring and Management: NL Series network loudspeakers are the first loudspeakers that can be automatically monitored and managed by Q-SYS Reflect Enterprise Manager every step of the way, from the audio source all the way through the loudspeaker driver.
  • Designed for Q-SYS: NL Series integrate seamlessly into Q-SYS, a cloud-manageable audio, video, and control platform, built to deliver flexible, scalable AV solutions well into the future. Learn more about Q-SYS.
Image text: Activate Winter 2022, Watch Webinar Recording

SELECT A MODEL

  NL-C4 NL-P4 NL-SB42
Loudspeaker type Network PoE ceiling-mount loudspeaker for Q-SYS Network PoE pendant-mount loudspeaker for Q-SYS Network PoE soundbar for Q-SYS
Driver 4-in full-range 4-in full-range 3.5-in woofer & 0.75-in tweeter
Effective frequency range 100 Hz – 20 kHz 90 Hz – 20 kHz 110 Hz - 20 kHz
Rated noise power / voltage (W rms) 12 W (PoE), 24 W (PoE+) 12 W (PoE), 24 W (PoE+) 12 W (PoE), 24 W (PoE+)
Rated coverage (-6 dB) 120° 100° 150° horizontal, 160° vertical
Directivity factor 3.8 5.3 2.7
Directivity index 5.8 dB 7.2 dB 4.2 dB
Maximum continuous SPL 94 dB (PoE), 97 dB (PoE+) 90 dB (PoE), 93 dB (PoE +)
Maximum peak SPL 108 dB (PoE), 111 dB (PoE+) 106 dB (PoE), 107 dB (PoE +)
Input connector type RJ45, Q-LAN RJ45
Enclosure material ABS baffle on powder steel back can ABS baffle and enclosure ABS
Grille material Powder coated steel Powder-coated steel
Net Weight 3.5 lb (1.6 kg) 2.88 lb (1.31 kg) 3.86 lbs (1.75 kg)
Product dimensions (diameter x height) 8.46 x 4.13 in (215 x 105 mm) 6.81 x 7.83 in (173 x 199 mm) 20.4 x 3.97 x 2.87 in (518.1 x 101 x 73 mm)
Power requirements PoE (Type 1 Class 3) or PoE+ (Type 2 Class 4)
  Details Details Details



All specifications are subject to change without notice.
