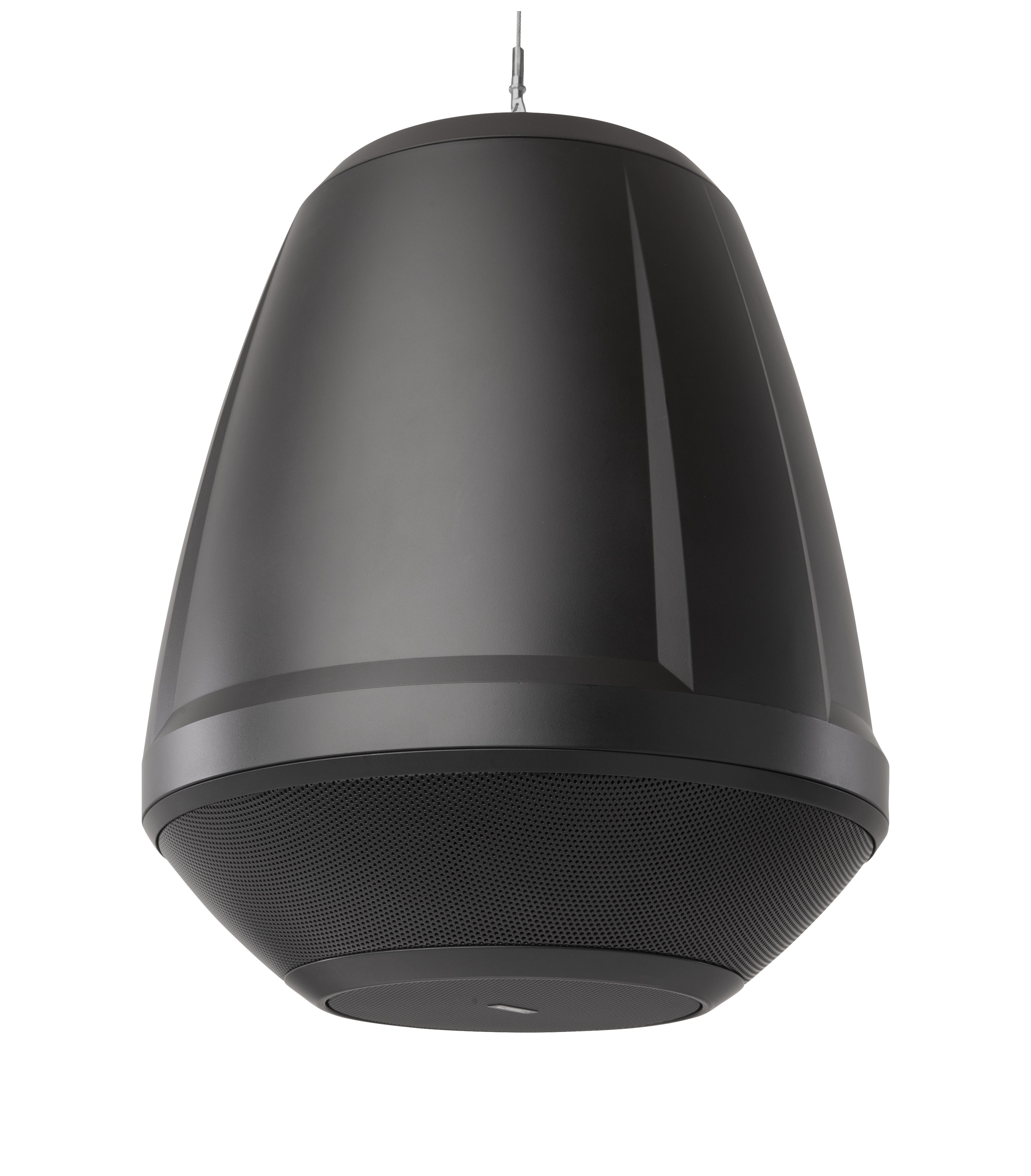

The AD-P.HALO is a purpose-built, integrated SUB/SAT pendant loudspeaker system, featuring an integrated 6.5" subwoofer and four 2.75" satellite transducers in a single enclosure that is ready to install out of the box. Designed for business music installations where music drives the atmosphere, it features a 200 W RMS power rating with significant dynamic headroom that far surpasses the performance of traditional two-way, pendant-mount loudspeakers.
Think outside the boxes.
Features & Benefits
- All-in-one solution, no assembly required: The AD-P.HALO is purpose-designed and fully integrated in a single-enclosure pendant that is ready to hang right out of the box. This hassle-free design simplifies and expedites the installation process, lowering the overall project costs and allowing the integrator to focus on the sound.

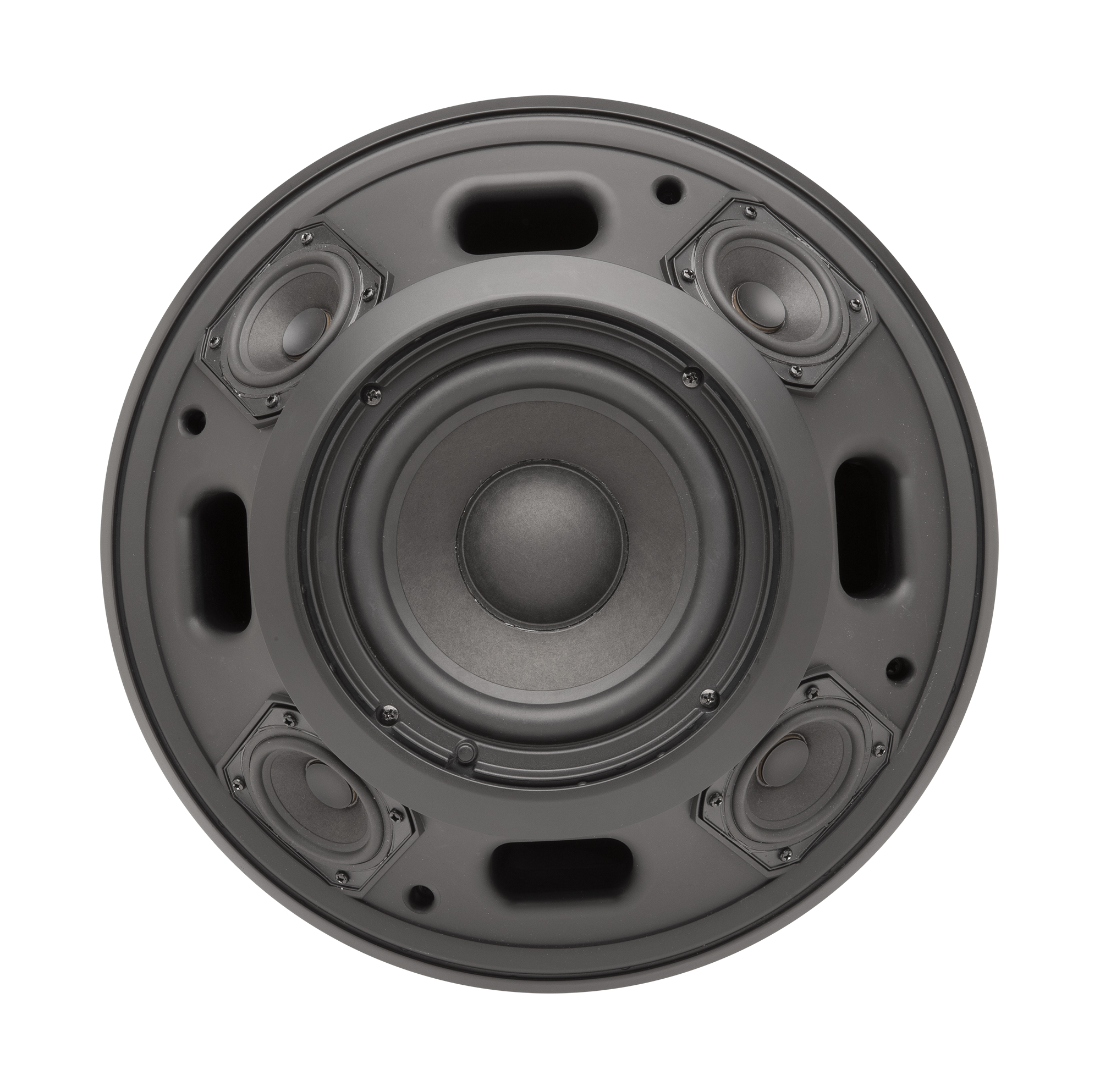

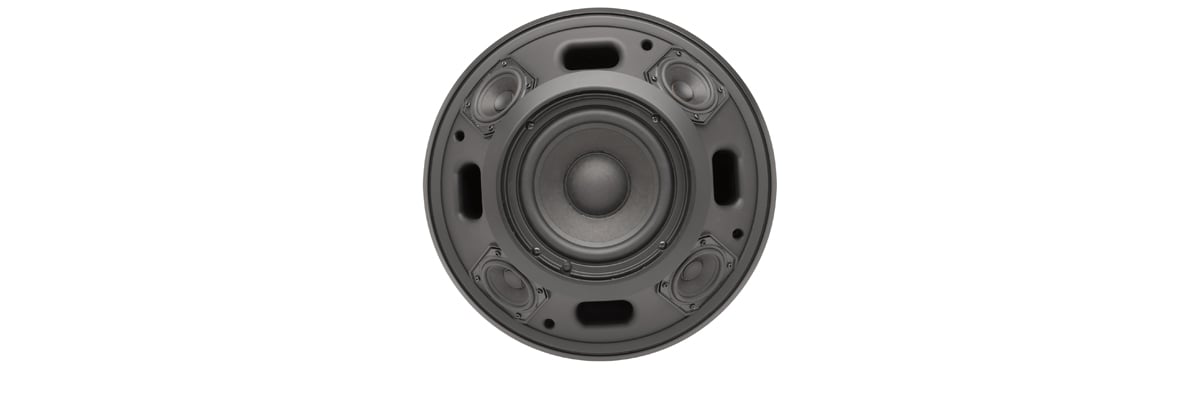

- Designed for performance and musicality: Featuring a 6.5" subwoofer and four 2.75" transducers in a single, pendant-mount enclosure, the AD-P.HALO brings high-performance and musicality to high-end retail and hospitality applications where sound drives the atmosphere. The 200 W RMS power rating provides significant dynamic headroom that far surpasses the background music performance of traditional two-way pendant-mount loudspeakers.
- Perfect AcousticDesign™ Series companion: The AD-P.HALO joins the AcousticDesign Series portfolio of loudspeakers, which offer sleek aesthetic design and high-quality sound across multiple form factors (ceiling-mount, pendant-mount and surface-mount).
|Systems type||Integrated SUB/SAT|
|LF Transducer||6.5 in (165.1 mm)|
|HF Transducer||4x 2.75 in (69.85 mm)|
|Frequency range||40 Hz - 20 kHz|
|Rated noise power||100 W|
|Max noise voltage||24.5 V RMS|
|Directivity index||8 dB|
|Maximum SPL (continuous/peak)||105 / 111 dB|
|Nominal impedance||6 Ω|
|Crossover frequency||250 Hz (2nd order low-pass + 3rd order high-pass filters)|
|Transformer Taps||70 V : 12.5, 25, 50, 100 |
100 V : 25, 50, 100
|Port Tuning||50 Hz|
|Input connectors||4-pin male/female Euroblock with pass-thru and locking screws|
|Enclosure material||Injection-molded ABS baffle and enclosure|
|Grille material||Stamped steel, perforated and powder-coated|
|Product dimensions||Diameter: 339.8 (mm) (13.37 in) |
Height: 433 (mm) (17.04 in)
|Shipping Dimensions (W x D x H)||535 x 445 x 435 (mm) |
(21.06 x 17.52 x 17.13 in)
|Net weight||10.2 kg (22.5 lbs)|
|Shipping Weight||12.5 kg (27.6 lbs)|
