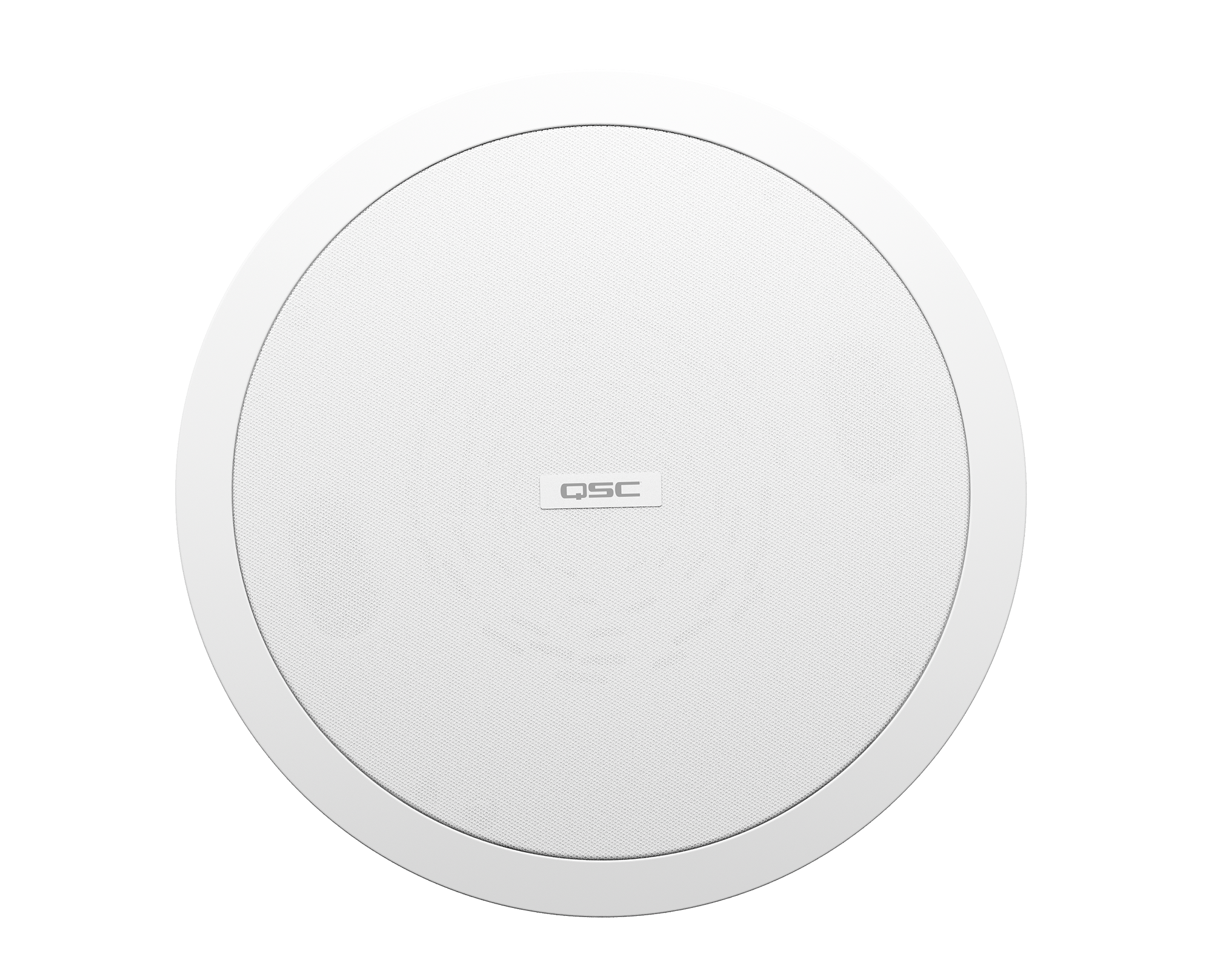

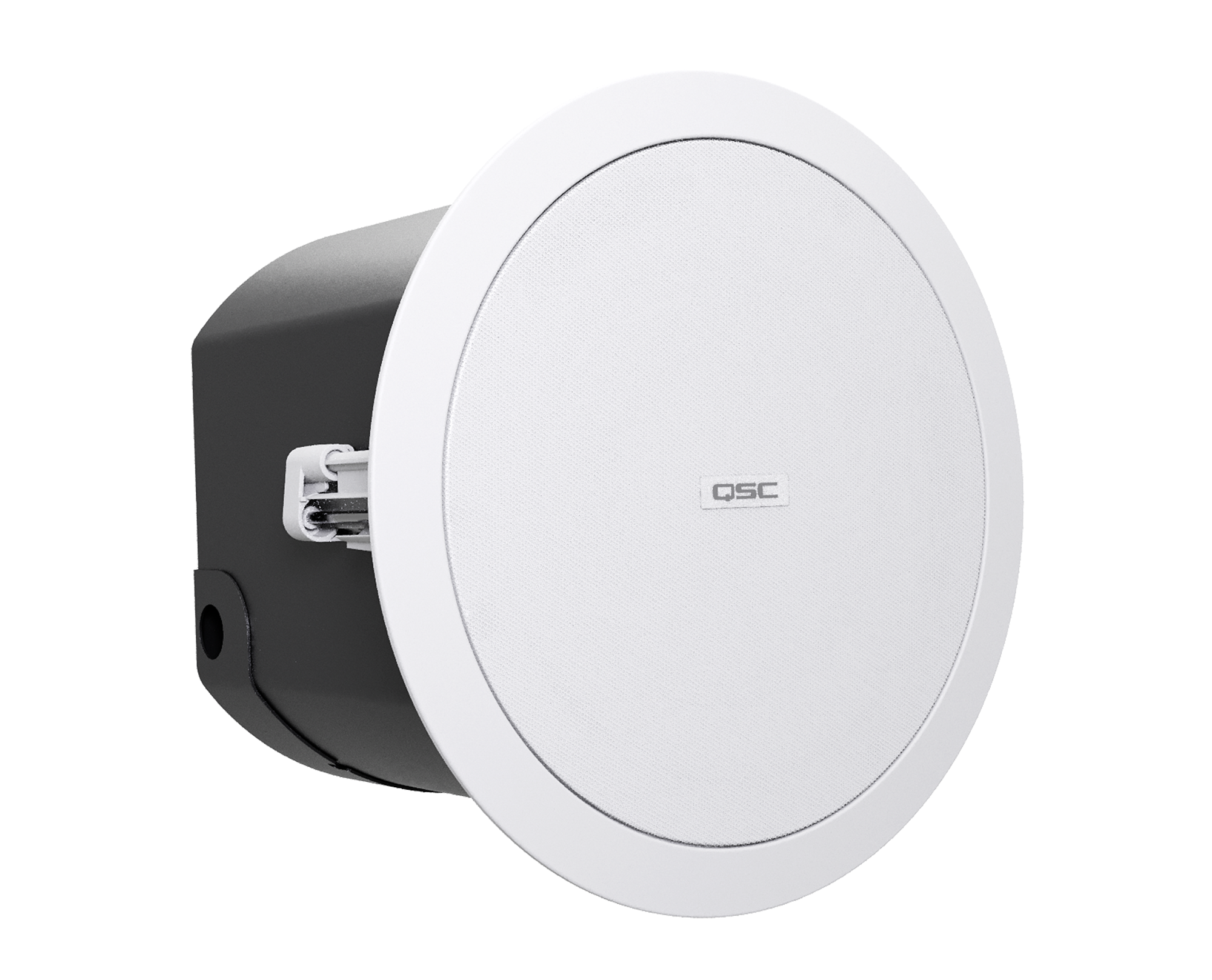

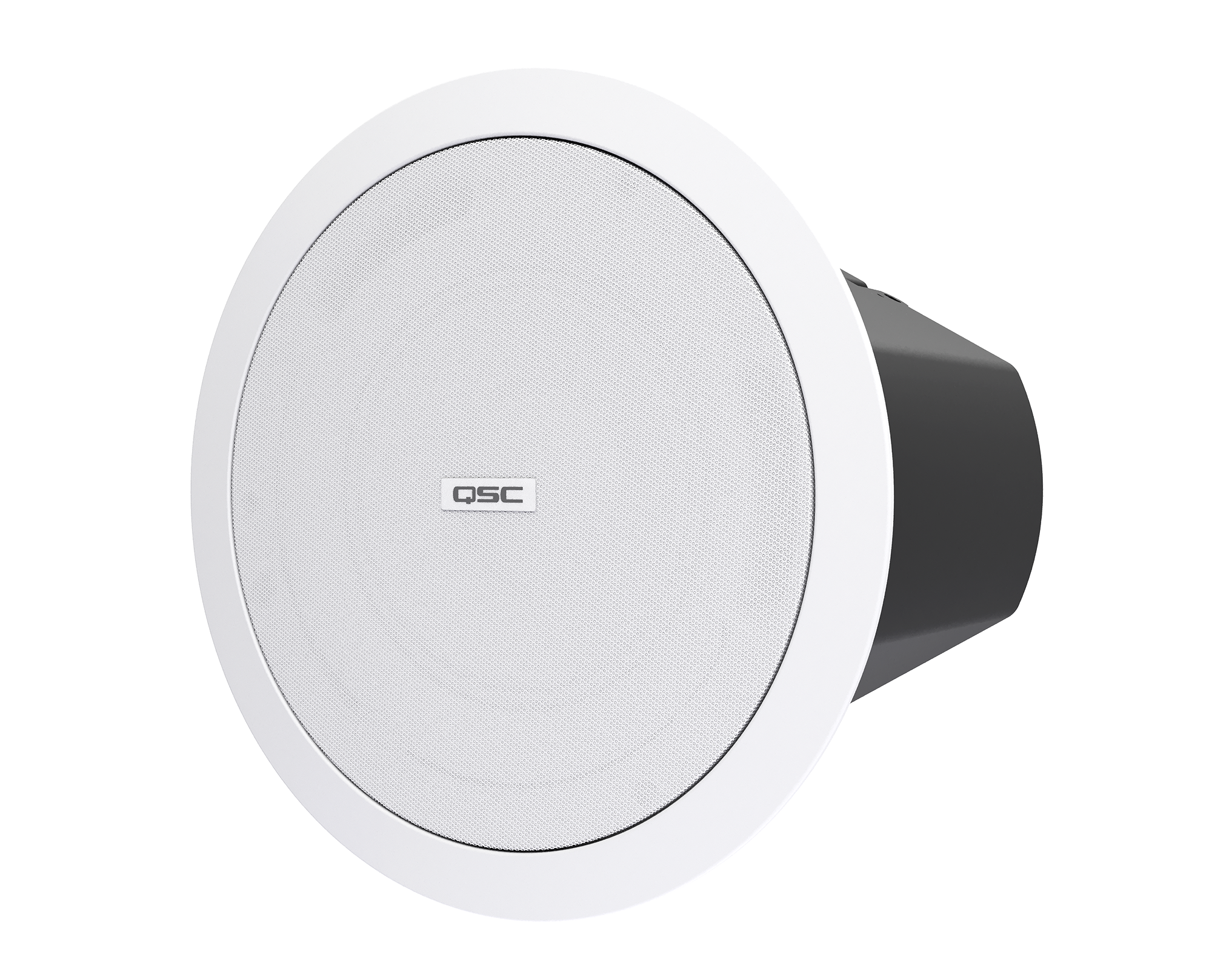

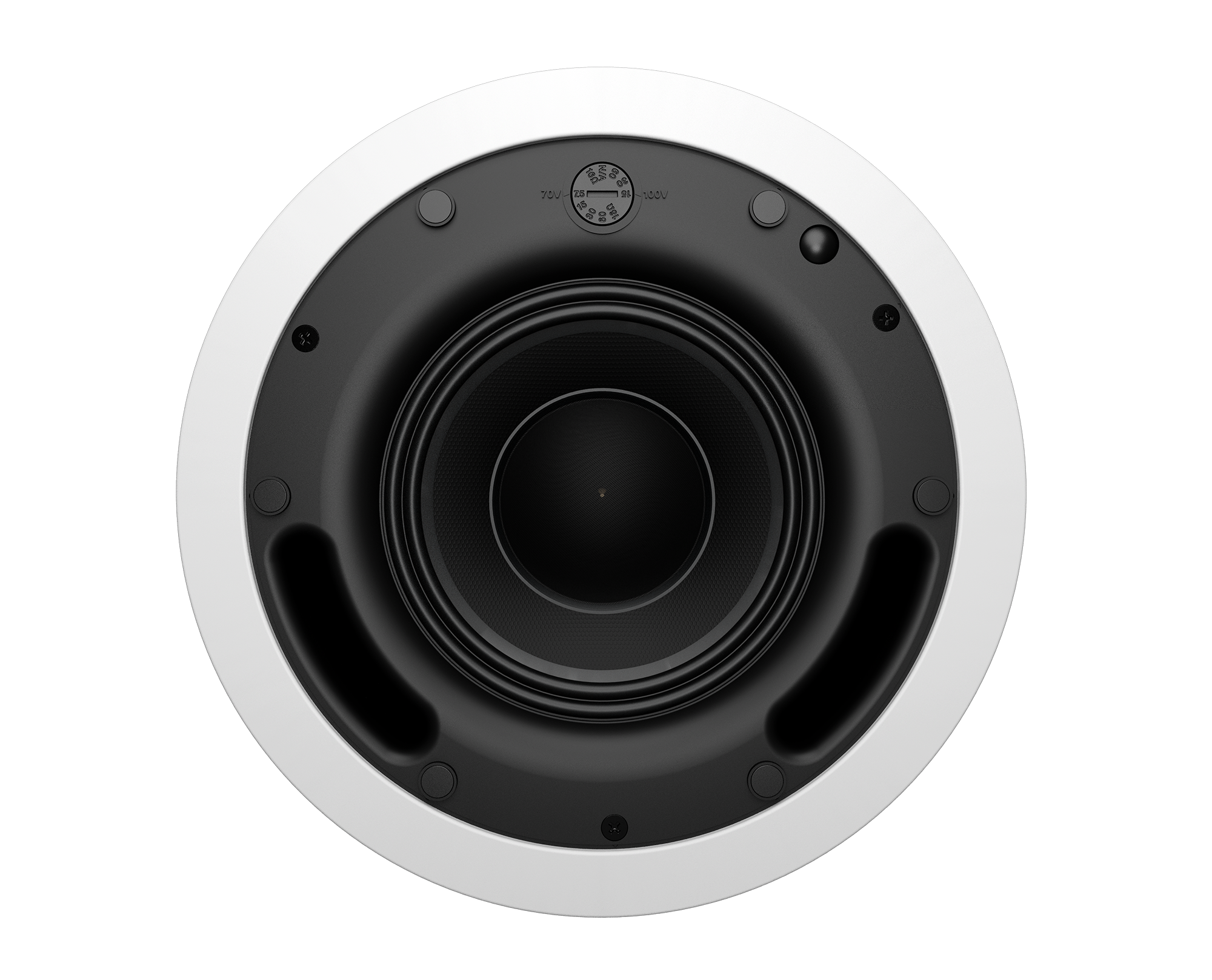

AD-C6T-HP

6.5-inch, 2-way ceiling-mount loudspeaker, 120° coverage


Features

  • Higher power handling at standard ceiling heights to enable high-energy venues
  • Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
  • Snap-fit magnetic grille

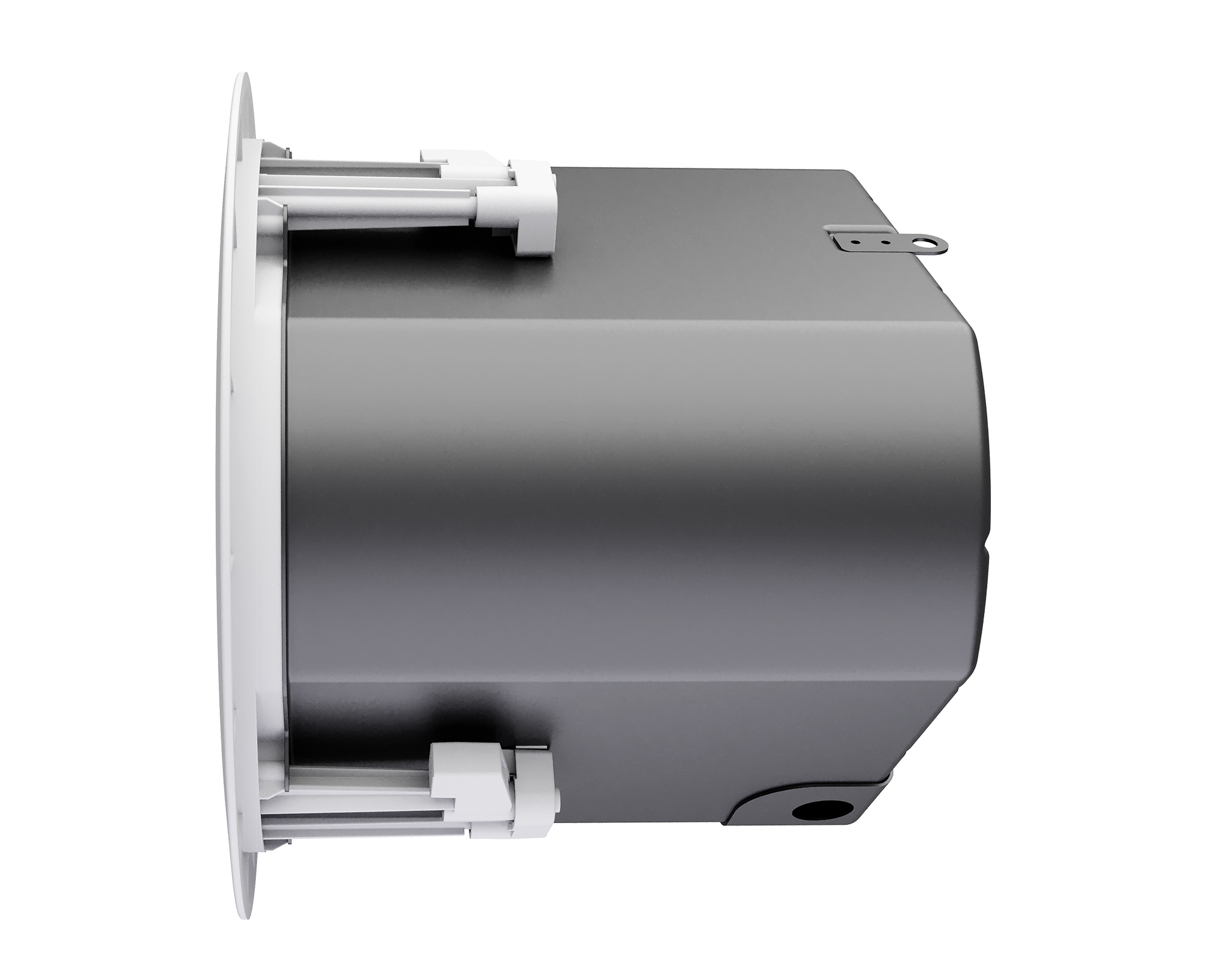

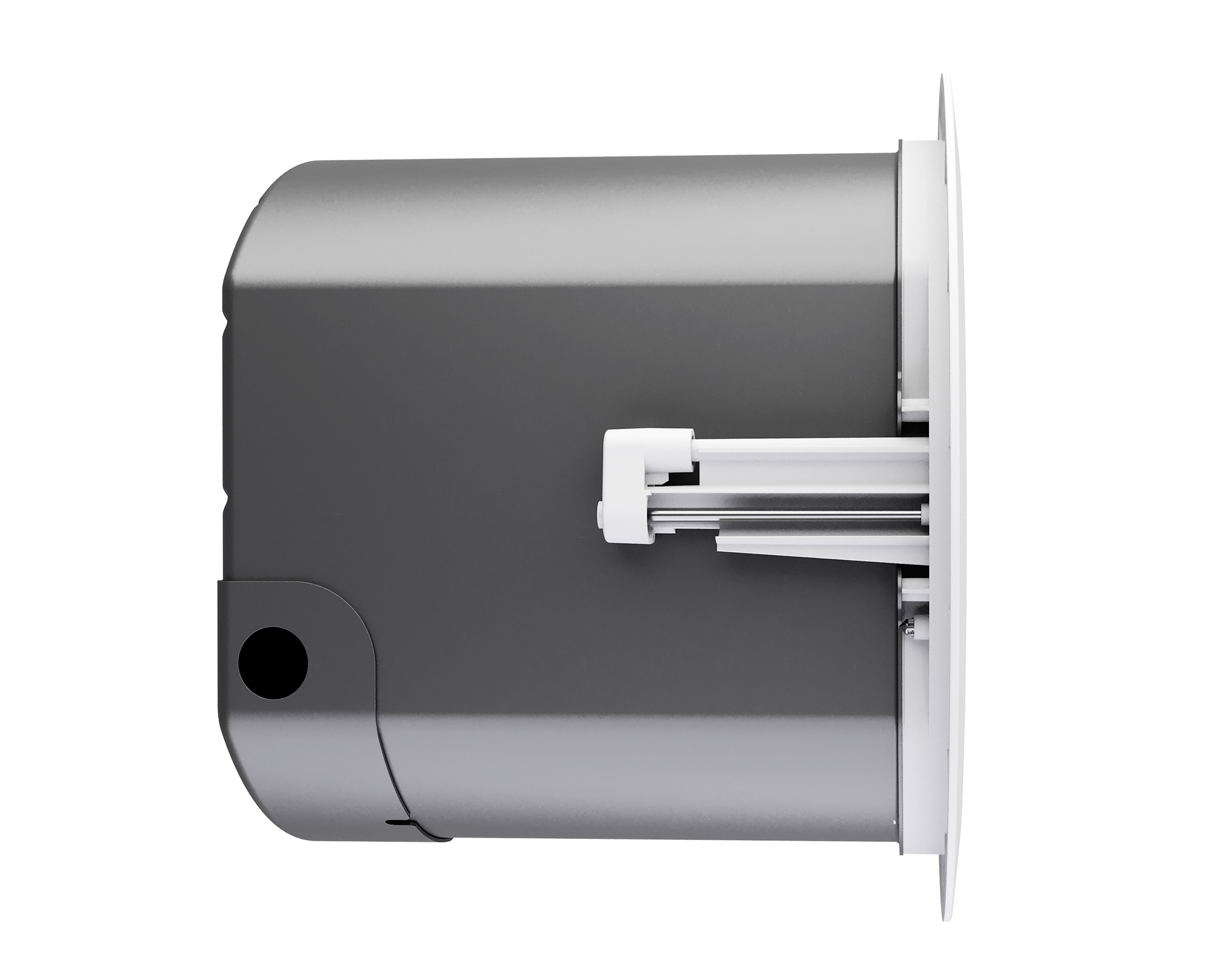

  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™
  • 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
  • 120° coverage pattern
  • Available in white (RAL 9010)

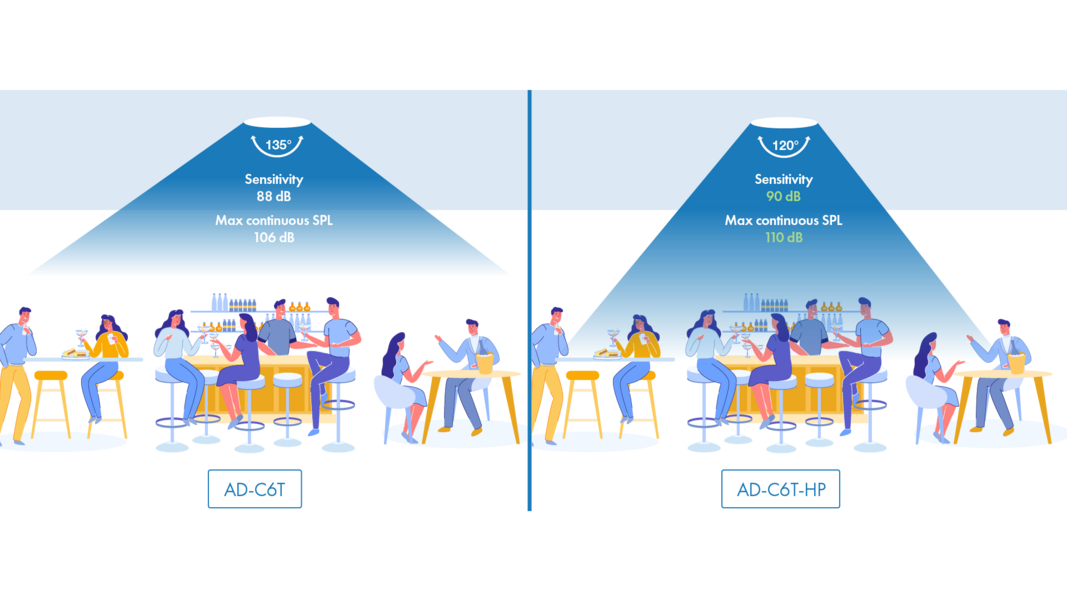

Coverage Comparison

SPECIFICATIONS AD-C6T-HP
Description 6.5 in, two-way ceiling-mount loudspeaker with transformer

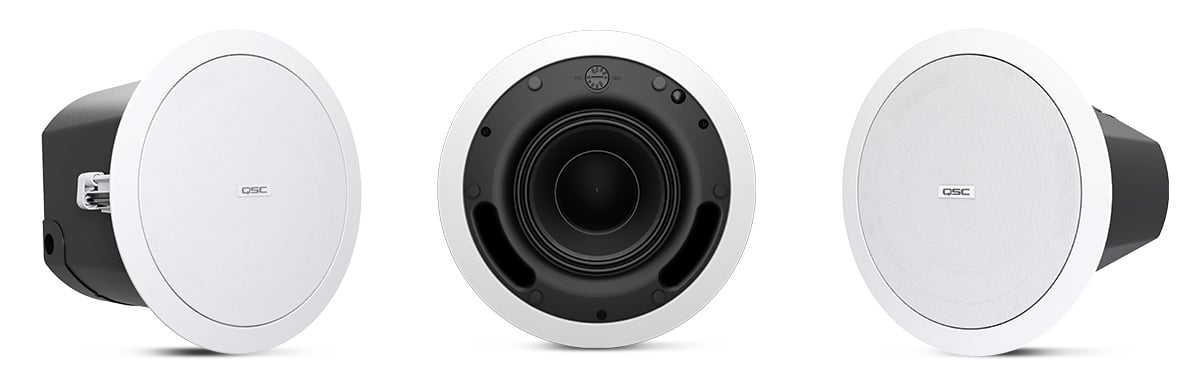

Transducers 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet
1.4 in (35.6 mm) kapton dome compression tweeter
Sensitivity 90 dB @ 1 W, 1 m
Freq. range (-10 dB) 58 Hz - 20 kHz
Rated noise power (@16 Ω bypass) 120 W
Coverage (-6 dB) 120°
Directivity factor 3.6
Directivity index 5.6 dB
Max SPL (continuous/peak) 110 dB / 116 dB @ 1 m
Taps (70 V/100 V) 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
Bypass impedance 16 Ω
Min impedance 15.4 Ω @ 281 Hz
Crossover frequency 2.6 kHz
Input 4-pin Euroblock connector with parallel output
Net weight 13.39 lbs (6.07 kg)
Product dimensions (HxWxD) 9.3 x 11 x 11 in (235 x 280.5 x 280.5 mm)
