QIO Series
Q-SYS Network I/O Expanders
The Q-SYS QIO Series network I/O expanders extend your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked audio and control devices. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. Each of the six models supports a different, specific connectivity type, from mic/line audio I/O to control (IR, Serial, or GPIO).
The Right I/O Where You Need It
Provide your Q-SYS system with greater flexibility to deploy mic/line audio or control connectivity where it’s most convenient. Each of the six models offers a single connectivity type in a compact form factor that can be rack- or surface-mounted.
Expanded I/O Customization
Add network I/O connectivity to Q-SYS systems and decouple the physical location of the I/O from processing hardware to support distributed or centralized processing architectures.
Expand Native Q-SYS Mic/line Audio Connectivity
Three audio I/O expanders models offer professional mic/line level inputs with +48 VDC phantom power and/or line outputs for high-performance and compatibility.
Expand Control Connectivity For Non-native Q-SYS Devices
Add IR, Serial, or GPIO connectivity to integrate control for a wide range of devices into your Q-SYS system.
Simplicity & Scalability
Daisy-chain up to four QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are PoE-capable, providing simple single cable connectivity (when devices arent daisy-chained).
SELECT A MODEL

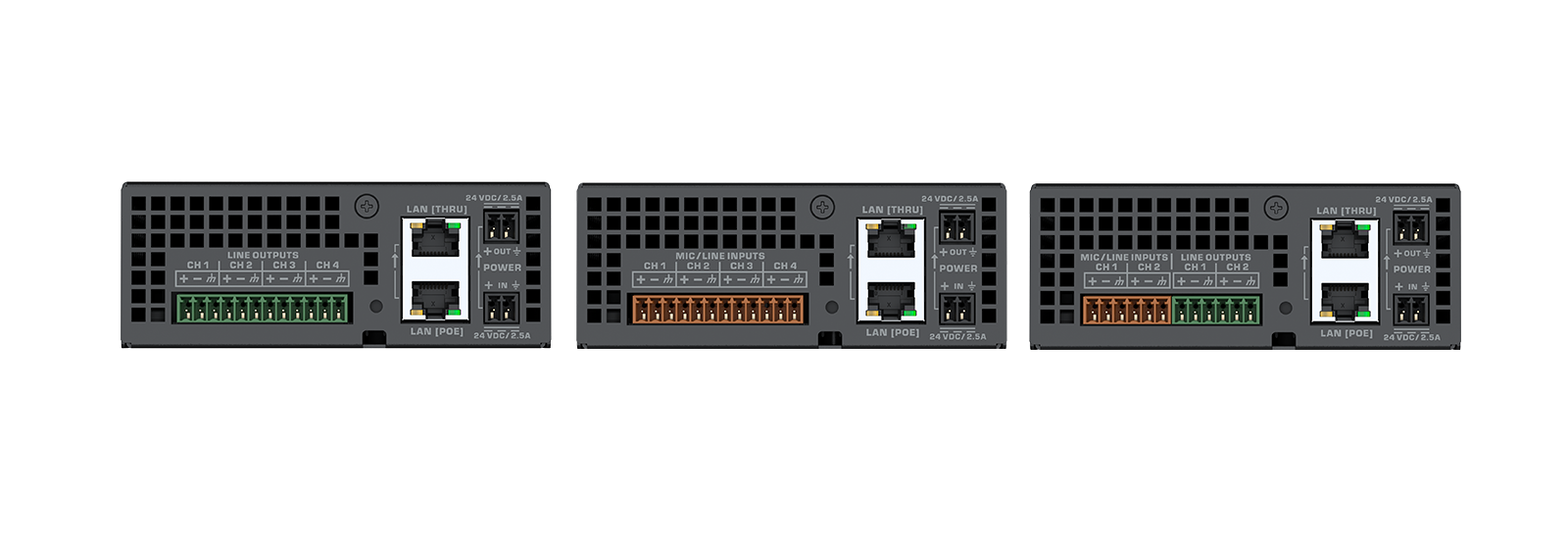

Mic Line Connectivity
| QIO-ML4i | QIO-ML2x2 | QIO-L4o | |||
| Connectivity | Four (4) mic/line inputs | Two (2) mic/line inputs and two (2) line outputs | Four (4) line outputs | ||
|---|---|---|---|---|---|
| Mic/Line Inputs | |||||
| Maximum input level | +24 dBu | - | |||
| Preamplifier gain range | 0 dB to 60 dB | - | |||
| Input sensitivity range | - 36 dBu to +24 dBu | - | |||
| Phantom Power | +48 VDC | - | |||
| Input impedance | 5 kΩ single-ended, 10 kΩ balanced | - | |||
| Line Outputs | |||||
| Output audio range level | - | -36 dBu to +24 dBu | |||
| Output dynamic range | - | 108 dB | |||
| Output Impedance | - | 150 Ω to 300 Ω | |||
| Sample rate | 48 kHz | ||||
| Bit depth | 24 bit | ||||
| Other Connectors | |||||
| External power supply | 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) | ||||
| LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE | ||||
| PoE specification | Conforms to IEEE 802.3af Type 1 | ||||
| LAN (Thru) | Ethernet daisy-chaining | ||||
| General | |||||
| Dimensions | 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm) | ||||
| Weight | 1.72 lb (0.78 kg) | ||||
| Mounting options | Surface- and wall-mountable (hardware included) Rack-mountable, 1RU, quarter-rack width (QIO-RMK rack kit sold separately) | ||||
All specifications are subject to change without notice.

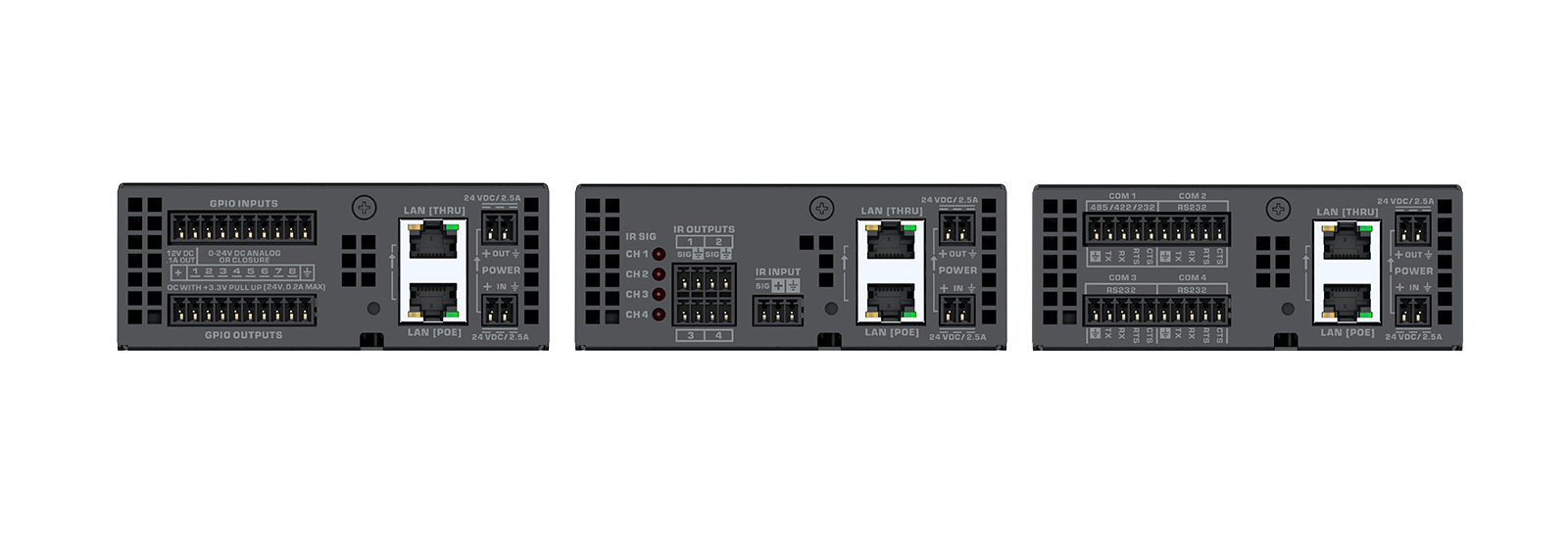

Control Connectivity
| QIO-IR1x4 | QIO-GP8x8 | QIO-S4 | |
| Connectivity Type | Infrared | GPIO | Serial |
|---|---|---|---|
| Ports | One (1) IR receiver input & four (4) IR emitter outputs | Eight (8) general purpose inputs & eight (8) general purpose outputs | Four (4) RS232 ports (one port also includes RS-485 and RS-422 compatibility) |
| Other Connectors | |||
| External power supply | 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) | ||
| LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE | ||
| PoE specification | Conforms to IEEE 802.3af Type 1 | ||
| LAN (Thru) | Ethernet daisy-chaining | ||
| General | |||
| Dimensions | 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm) | ||
| Weight | 1.18 lb (0.54 kg) | ||
| Mounting options | Surface- and wall-mountable (hardware included) Rack-mountable, 1RU, quarter-rack width (QIO-RMK rack kit sold separately) | ||
All specifications are subject to change without notice.
