AcousticDesign Series (Premium)
The AcousticDesign™ Series Direct Weather landscape (AD-DWL) loudspeakers and companion subwoofer have been weatherized and ruggedized to face the elements while offering superior sound quality for your outdoor installation.
Optimal Outdoor Sound Experience

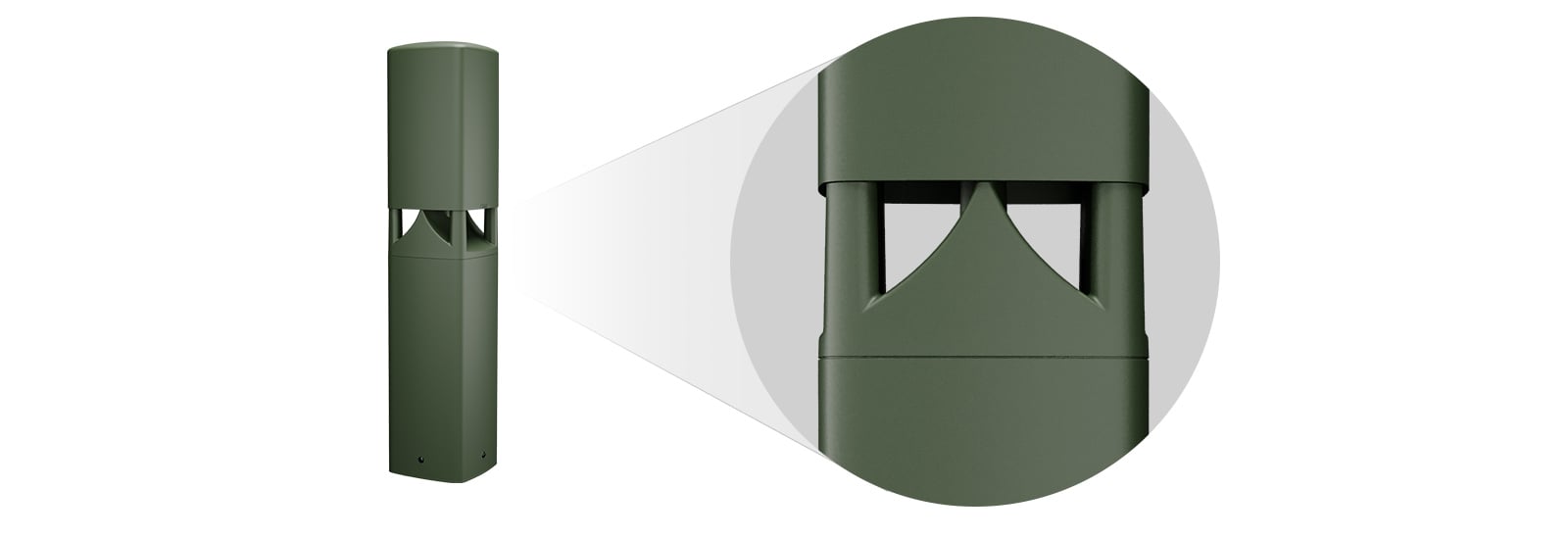

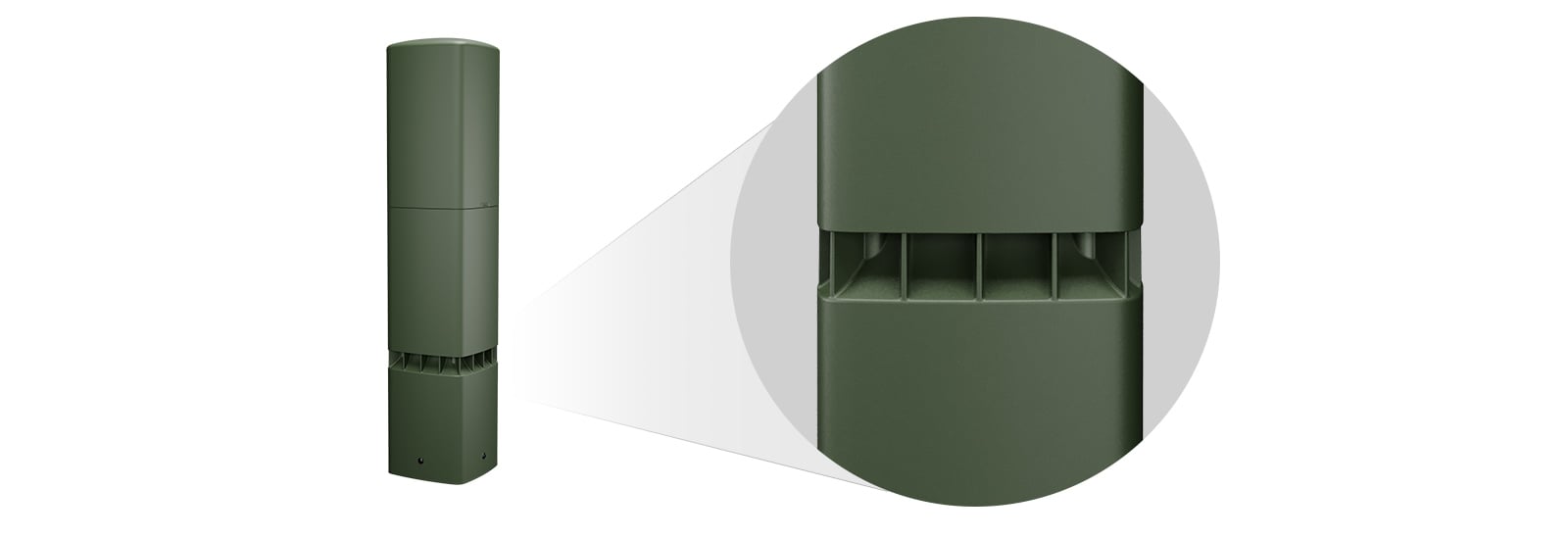

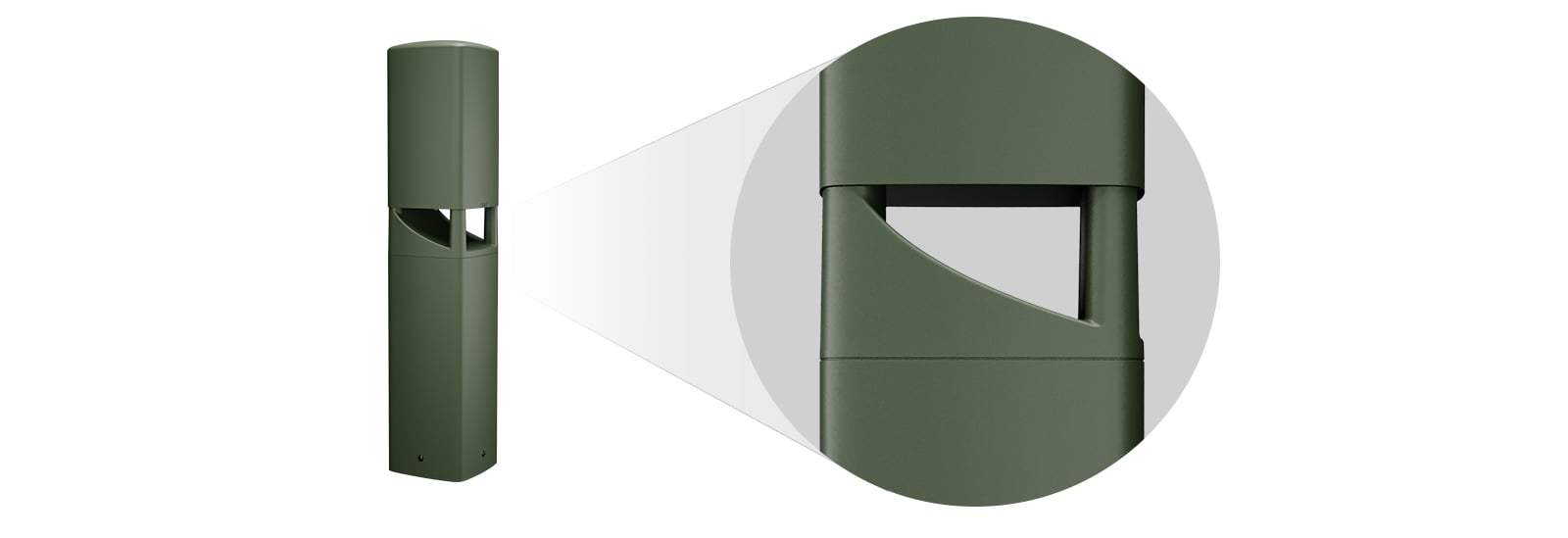

Address outdoor environment variables with an elevated bollard design, allowing sound to travel above obstructions for an optimal listener experience. The available 180° or 360° coverage models enables customization for individual environmental requirements.
All Weather Durability
With an Ingress Protection (IP) Rating of IP55, durable polypropylene/fiberglass construction and stainless-steel hardware, this series is built to withstand the long-term outdoor exposure.
Featuring direct-to-concrete or in-earth base supports for permanent installation as well as tamper-resistant screws and a rugged exterior, the AcousticDesign™ Series Direct Weather family mitigates damage from accident or attempted tampering.
Advanced Loudspeaker Voicings
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using Intrinsic Correction™ techniques are available via the Q-SYS Platform.
SELECT A MODEL
|Effective frequency range||55 Hz - 25 kHz||49Hz - 200Hz|
|Rated noise power / voltage||80 W||160 W|
|Sensitivity||>84 dB @ 1 W/1m (200 - 10 kHz)||>84 dB @ 1 W/1m|
|Coverage Angle (-6 dB)||180° (500 Hz – 5 kHz)||360° (500 Hz – 5 kHz)||Omni|
|Output (Peak SPL @ 1M)||110 dB||112 dB|
|Transducers||5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround, 1 in (25 mm) , aluminum dome tweeter, rubber surround||5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround 2x 1 in (25 mm) , aluminum dome tweeter, rubber surround||2x 5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround|
|Transform Max Tap||7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W||12.5 W, 25 W, 50 W, 100 W / 25 W, 50 W, 100 W|
|Rated Impedance||16 Ω|
|Input Connectors||Wire pig-tail, blunt|
|Enclosure||Glass-Filled polypropylene, F1-F2 UL Rated|
|Ingress Protection||(IP - 55)|
|Product Dimensions (HWD)||30.16 in (766mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support)|
|Net Weight||10.36 lb (4.7 kg)|
All specifications are subject to change without notice.
