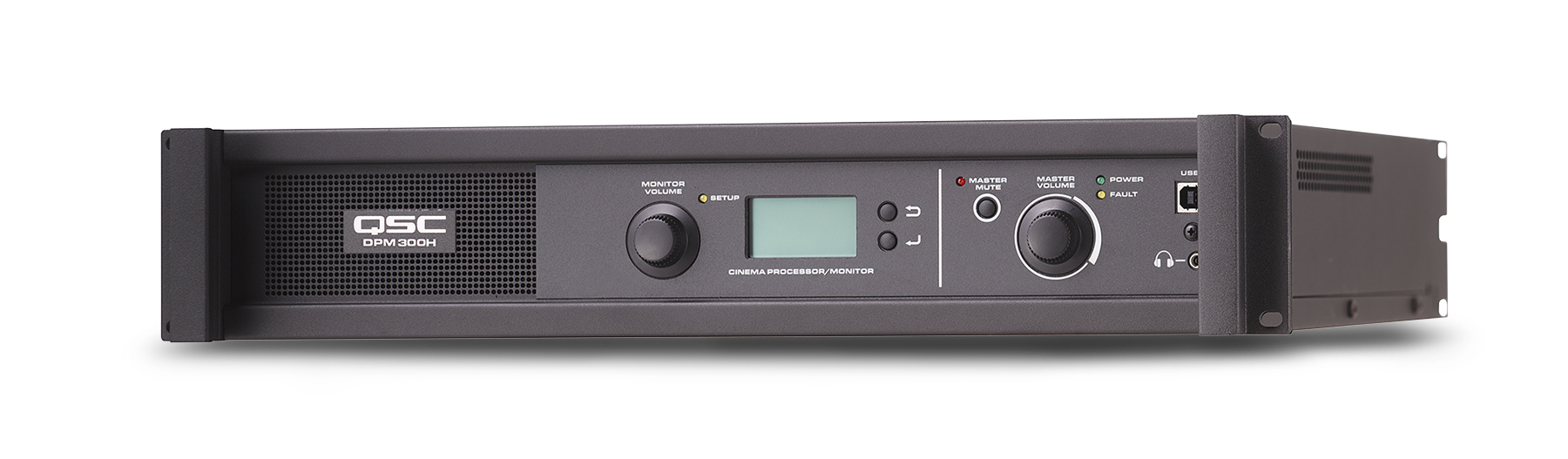

DPM 300/300H

Digital Processor/Monitor/Crossover

DPM Series processors are a powerful solution for today’s D-Cinema audio systems.

The DPM builds on the legacy of QSC’s DCM and DCP products to provide all signal processing and monitoring functions for Digital Cinema in a single integrated system. Designed to be used with QSC’s Digital Cinema Amplifiers (DCA) and featuring advanced Intrinsic Correction™ settings for QSC’s Digital Cinema Speakers (DCS), the DPM optimizes loudspeaker performance while simplifying cinema sound system wiring and configuration. The DPM 300 is configurable for passive, bi-amp, tri-amp and quad-amp operation and 2 or 4 surround channels (5.1 or 7.1).


  • Ten digital inputs for 5.1 and 7.1 soundtracks and HI/VI
  • HDMI input/output for non-sync sources (DPM 300H)
  • Dolby Digital Plus™ and DTS-HD® (DPM 300H)
  • Control and monitoring via Ethernet including full SNMP support
  • Serial automation control via RS-232
  • Analog Inputs for film processors, non-sync and Mic/Line
  • Master volume and full 1/3 Octave Graphic EQ on all channels (except subwoofer)
  • Booth Monitor loudspeaker and headphone jack
  • Digital Loudspeaker Crossovers — three passive bi-, tri-, or quad-amp screen channels
  • Compatible with all existing DCA amplifiers — thousands of DCA-equipped screens are ready for full network monitoring and control
  • Bypass mode routes audio around failed components to insure that the show will go on
  • Intrinsic Correction™ for DCS loudspeakers for optimal “out of box” performance and reduced set-up time
  • Continued development of software and firmware will add new capabilities to the existing hardware with easy firmware updates

The DPM 300 digital signal processing capability outperforms traditional analog crossovers and equalizers for optimized speaker performance. Crossover frequency, 1/3 octave graphic EQ, parametric equalization, polarity, delay and gain can be precisely adjusted for each speaker in your system. Passive or active 2, 3, or 4-way crossovers are available for three screen channels. QSC’s proprietary Intrinsic Correction adjusts for the intrinsic behaviors of loudspeakers, removing any anomalies from the equation of factors that affect measured response and, ultimately, the quality of sound. The result is optimal “out of the box” performance while minimizing on-site room tuning.

The DPM 300 greatly simplifies system wiring and set-up, significantly reducing installation time and labor cost. Digital input to the DPM 300 is provided via RJ45 cables from the D-Cinema server or IMB. Connections to DCA amplifiers for input and monitor signals are made through QSC DataPort VGA-style cables. Set-up is accomplished by a front panel USB cable connection, using a menu-driven, PC-based software program for configuration. The program includes a speaker data file that lists default parameters for popular QSC cinema speaker models.

In addition to audio monitoring of amplifier inputs and outputs, DPM 300 includes QSC’s exclusive “load fault” detection. It monitors all amplifier outputs and indicates any opens and shorts in the loudspeakers, providing confirmation that all amplifier outputs are functioning properly.


DPM 300 / 300H
Dimensions & Accessories
Dimensions (HxWxD) 3.5"(2 RU) x 19" x 15"
Line voltage requirements 100 VAC – 240 VAC, 50/60 Hz
Accessories included 6 ft UL/CSA line cord, Connector Kit

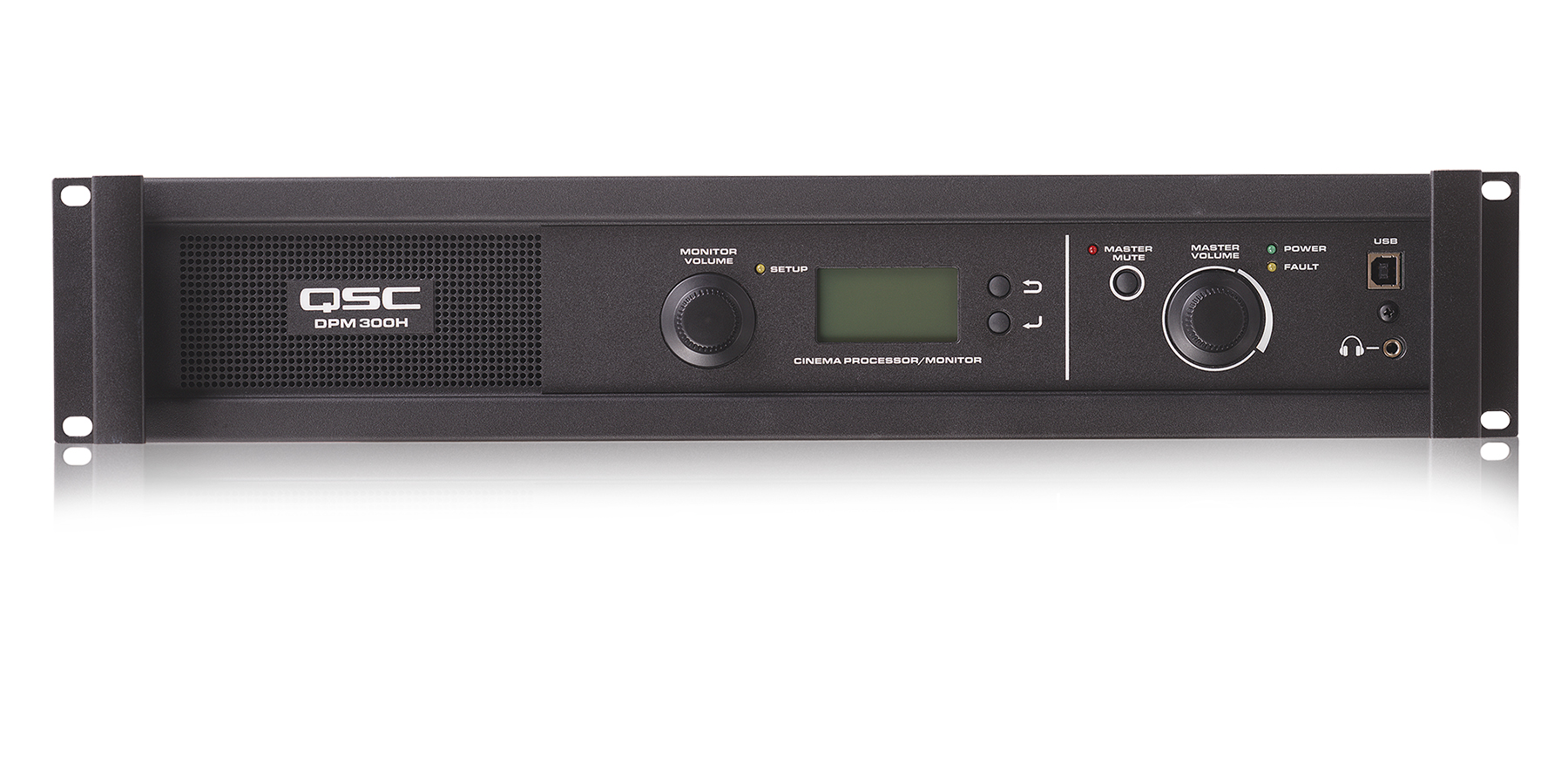

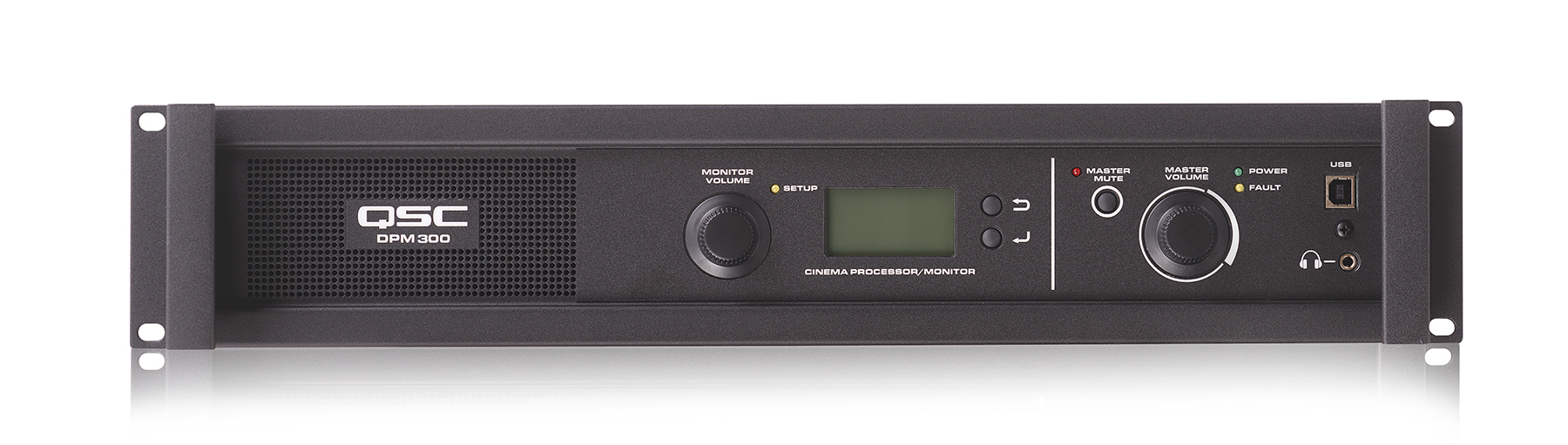

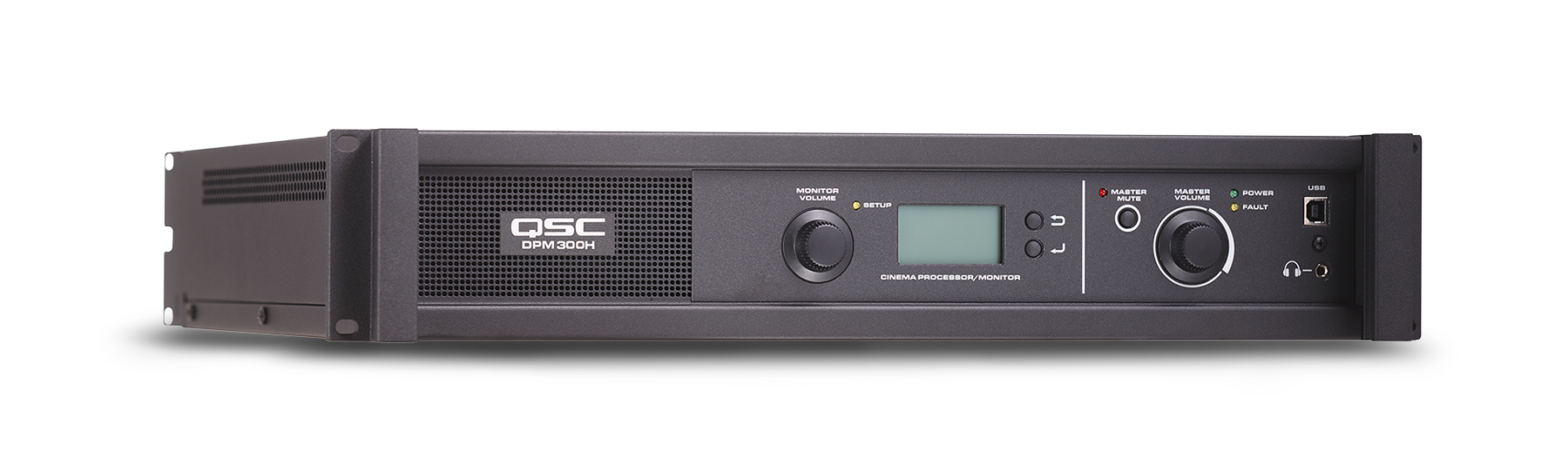

Front Panel Controls and Indicators
Monitor Volume/parameter adjust Rotary encoder
LCD 128 x 64 bit Monochrome LCD
Master Mute Push buttons
Master Volume Rotary encoder
USB Type B port Config and management interface
Monitor output 3.5 mm TRS

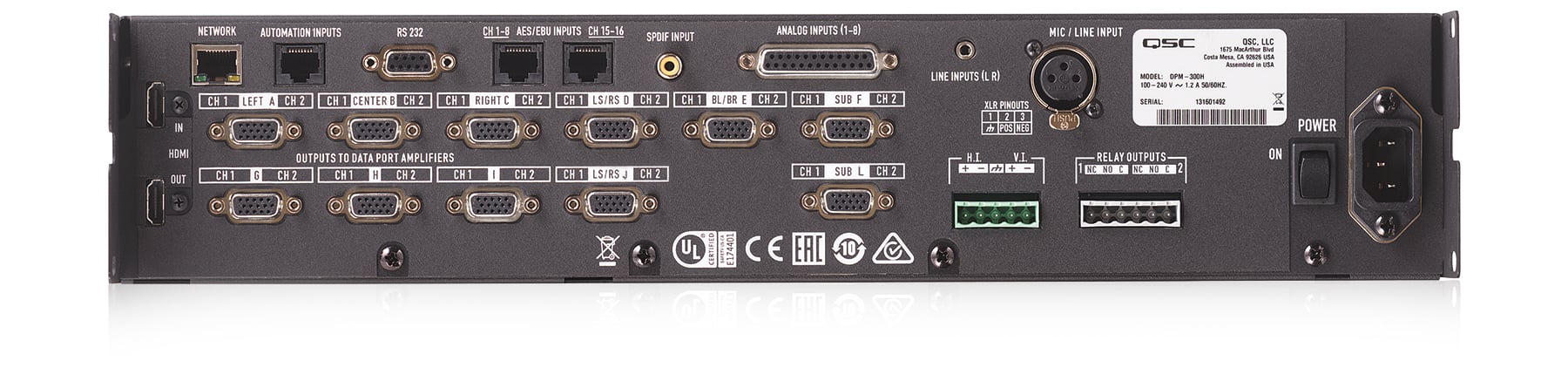

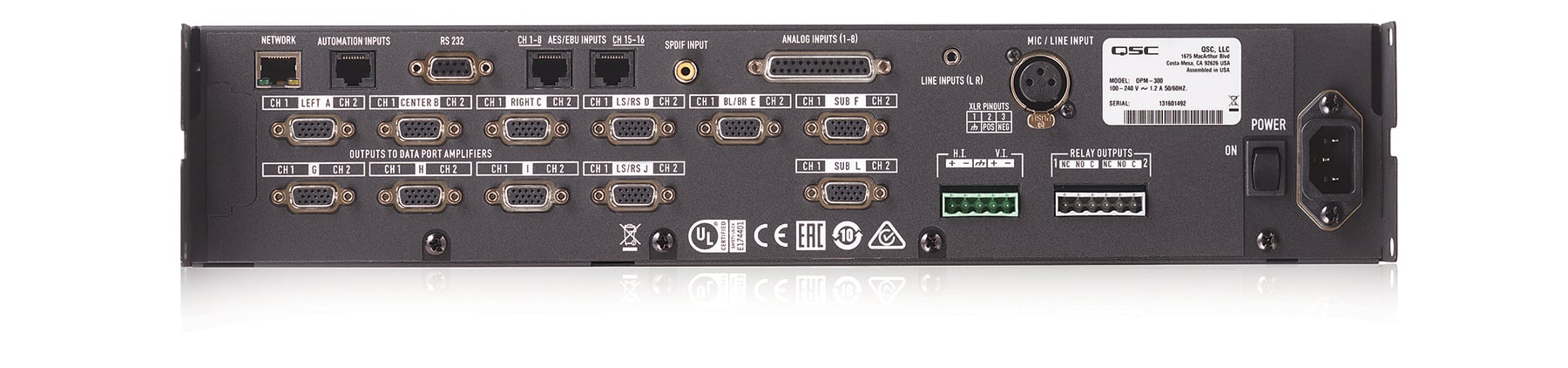

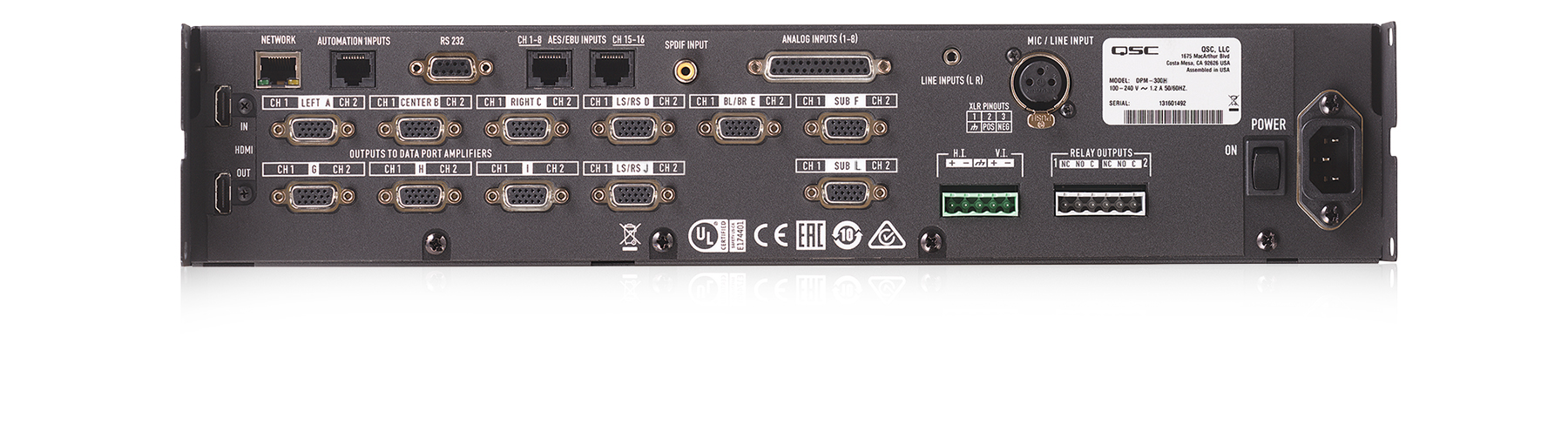

Rear Panel Connectors
Network RJ45 10/100 Mbps network management
Automation Inputs RJ45 – 6 contact closure inputs
RS232 DB-9 Serial Interface
Channels 1-8 AES/EBU Inputs RJ45
Channels 15-16 AES/EBU Inputs RJ45
SPDIF Input RCA — Stereo digital audio interface and Lt/
Rt Matrix
Analog Inputs (1-8) DB-25
Line Inputs 3.5 mm TRS — Stereo Left and Right and Lt/
Rt Matrix
Mic/Line input XLR — Mic (+ phantom pwr) or line level
HDMI input/output (DPM 100H) Type A female connectors
DataPort connectors HD-15 (11) — QSC amplifier interface
H.I./V.I. output 5-pin Euro-style (x1) – common GND
Relay outputs 3-pin Euro-style (x2) – max 30 VDC
Monitor Speaker
Speaker 2"x 3.5" full-range
Audio Performance
A/D conversion 24-bit delta-sigma, 48 kHz
Frequency response 20 Hz to 20 kHz (+- .5dB)
Main Analog Input
Connector DB25F - 8 channel
Input stage type Active balanced input
Input impedance 20k Ohms
Max analog input level +14.2 dBu (4.0 Vrms)
Mic/Line Input (XLR)
Input Stage Type Active balanced input
Input Impedance 2.2k Ohms
Max Analog Input Level 26 dBu
Input gain 0 to 60dB in 1 dB steps
Phantom power voltage 15V
Stereo Line Inputs
Connector 3.5mm TRS mini jack
Input stage type Unbalanced input
Input impedance (4dBu sens) > 10k Ohms
Max analog input level (4dBu sens) 14 dBu (4.2 Vrms)
Input impedance (-10dBV sens) 2.7k Ohms
Max analog input level (-10dBV sens) 0 dBV (1 Vrms)
DataPort Outputs (HD15)
Max output level 14 dBu
Dynamic range (unweighted) > 109 dB
HI/VI Outputs
Connector 5-pin Euro-style with common GND
Output stage type Balanced output
Max output level 18 dBu (adjustable)
Monitor Headphone Output
Connector Front Panel 3.5mm mini jack
Output stage type Unbalanced output
Max output level 21 dBu
Dynamic range (unweighted) > 109 dB
AES/EBU Digital Inputs (RJ45)
Input stage type Balanced input
Input sample rate 48 kHz or 96 kHz
SPDIF Digital Inputs (Mono RCA)
Input stage type Unbalanced input
Stereo PCM or Dolby Digital Plus (DPM300H
Relay outputs (2) 3-pin Euro-style
  Normally open (NO), normally closed (NC), and
  Max 30 VDC @ 1A
Automation inputs (RJ45 - 6 GPI) Max input voltage 5V (3.3V typical)
  TTL compatible dry contact closure
