Scaling & Feature Licenses

Expanded software-based functionality

Expand functionality at the software-level

Anticipate changing requirements and leverage additional features via a simple license activation, powered by the holistic Q-SYS OS. Q-SYS Scaling Licenses offer expanded functionality in alignment with your specific installation requirements, while Q-SYS Feature Licenses enable additional features on Q-SYS Products, letting you design your Q-SYS system to the unique needs of each space.

Q-SYS Scaling Licenses

Q-SYS Collaboration Bundle Scaling License

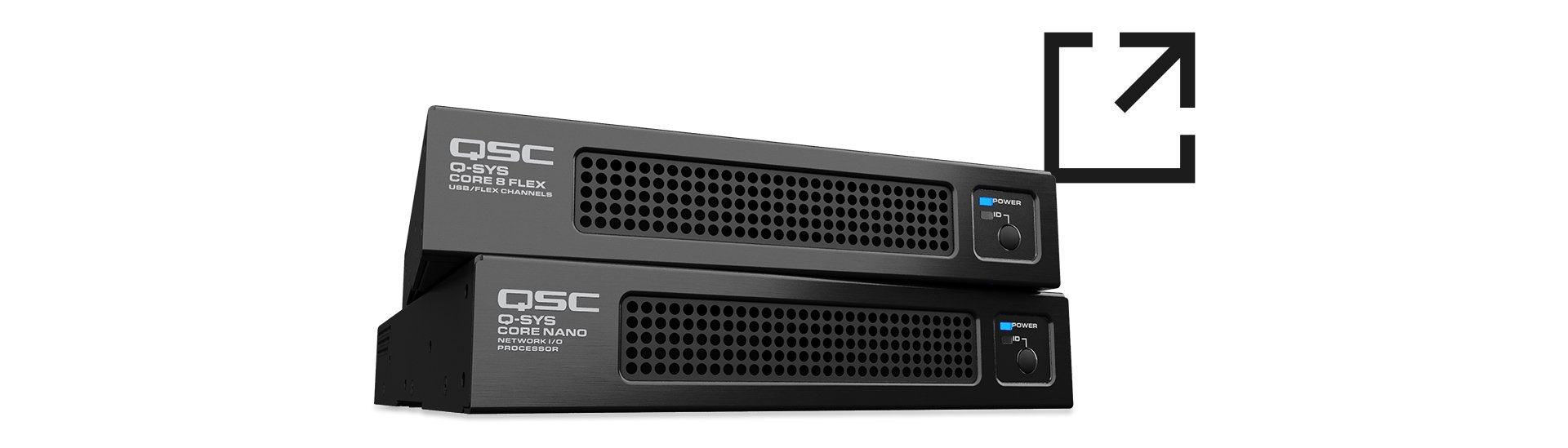

Enable your Core Nano or Core 8 Flex processors to scale into larger, high impact spaces with increased processing capabilities, additional AEC channels and expanded NM Series microphone support.

Commercial AV Scaling License

Enable your Core Nano or Core 8 Flex processors to serve areas that previously required higher tier Core processors. Increase processing power, total network channel capacity and peripheral count.

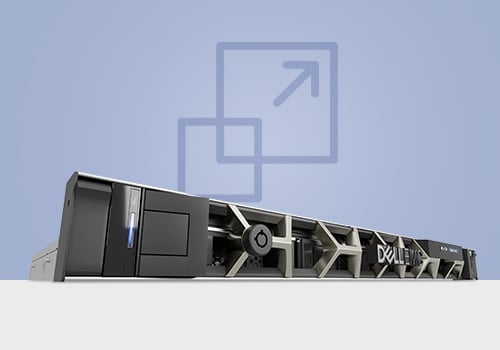

Q-SYS Core 610 Scaling License

Expand the capabilities of the Q-SYS Core 610 at the software level, whether before installation or as business needs change. Increases the overall power of the processor, increasing capacity for total network channels, Media/WAN streaming channels, AEC channels and Q-SYS NM Series microphone capacity.

Q-SYS Feature Licenses

Q-SYS AV Bridging Feature License

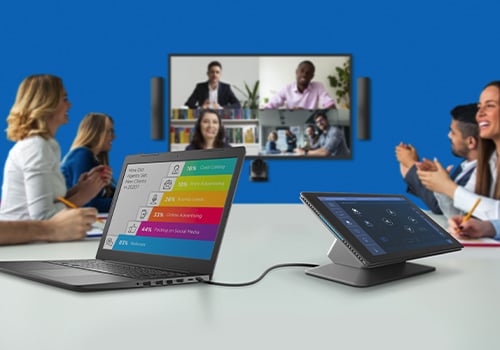

Expand the functionality of the TSC Series Gen 3 network touchscreens or NV-21-HU network video endpoints to allow users to connect their device directly via USB to easily integrate Q-SYS audio and camera feeds for remote meetings.

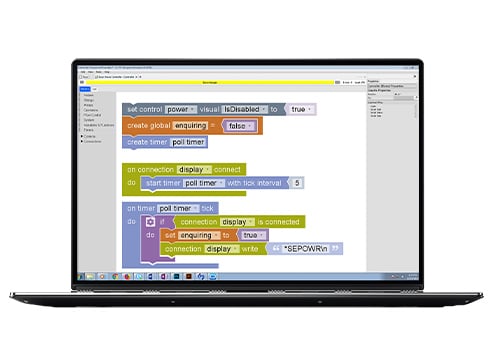

Q-SYS Scripting Engine Feature License

Integrate third party hardware and software solutions into Q-SYS. Draw upon a growing library of Q-SYS Partner plugins, take full advantage of easy drag-and-drop scripting tools, or use full-featured LUA scripting capabilities.

Q-SYS UCI Deployment Feature License

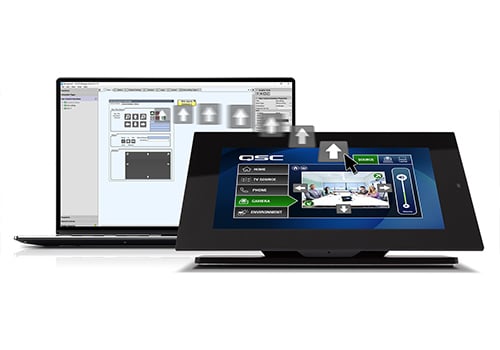

Build robust UCI screens by simply dragging any Q-SYS audio, video or control
component from the Q-SYS design schematic into the UCI Editor, or take full
advantage of cascading style sheets which govern the aesthetic across all Q-SYS
user control devices.

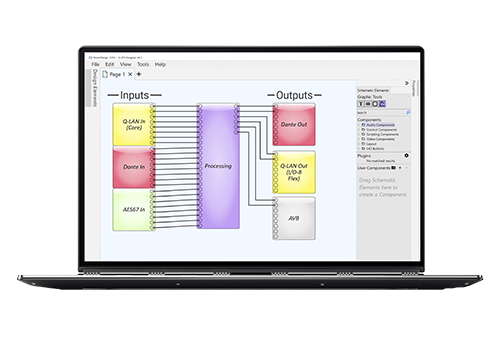

Software Based Dante for the Q-SYS Ecosystem
Feature License

Integrate Dante network audio into the Q-SYS AV&C Ecosystem workflow.

Q-SYS SCALING LICENCES

Features	Q-SYS Collaboration Bundle Scaling License	Q-SYS Commercial AV Bundle Scaling License	Q-SYS Core 610 Scaling License
Applicable Hardware	Core Nano, Core 8 Flex	Core Nano, Core 8 Flex	Q-SYS Core 610
Type	Perpetual, Node Locked	Perpetual, Node Locked	Perpetual, Node Locked
Supported QDS Version	v9.3.0 or higher	v9.3.0 or higher	v9.8 or higher
Q-LAN/AES67 network channels	128 x 128 (2x from standard)	128 x 128 (2x from standard)	384 x 384 (1.5x from standard)
Additional DSP processing power	Approx. 2x from standard	Approx. 2x from standard	Approx. 1.5x from standard
Softphones	4 (2x from standard)	-	-
AEC Processors @ 200 ms	16 (2x from standard)	-	96 (1.5x from standard)
Additional NM-T1 Support	Up to 6 (2x from standard)	-	24 (1.5x from standard)
Media/WAN network channels	-	Increased to 24 x 24 (2x from standard)	96 x 96 (1.5x from standard)
Q-SYS peripheral count	-	Increased to 48 (16 additional from standard)	-

All specifications are subject to change without notice.

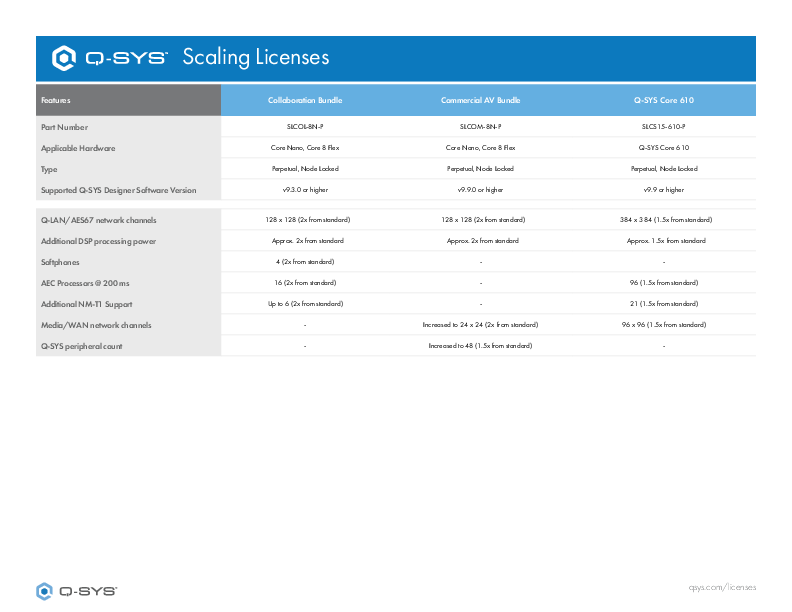

Download Features Comparison Table

Q-SYS Control

License Type	Part Number	Applicable Hardware	Supported Q-SYS Designer Software Version	Description
Q-SYS Scripting Engine	SLQSE-8N-P	Core Nano, 8 Flex, NV-32-H	v7.0 or higher	Q-SYS Scripting Engine license to write scripts and use plugins
	SLQSE-110-P	Core 110f
	SLQSE-510-P	Core 510i
	SLQSE-610-P	Core 610
Q-SYS UCI Deployment	SLQUD-8N-P	Core Nano, 8 Flex, NV-32-H	v7.0 or higher	Q-SYS UCI Deployment - needed to deploy User Control Intefaces to native Q-SYS touchscreen controllers or other hardware targets
	SLQUD-110-P	Core 110f
	SLQUD-510-P	Core 510i
	SLQUD-610-P	Core 610

Q-SYS Audio

License Type	Part Number	Applicable Hardware	Supported Q-SYS Designer Software Version	Description
Software-Based Dante	SLDAN-8-P	All Q-SYS Cores	v9.0¹ or higher	8x8-channels. This license is included on all Q-SYS Cores except the NV-32-H. It can be purchased for an NV-32-H, or for a Q-SYS Core 110f sold prior to 30 March, 2020 or Cores 510i and 5200 sold prior to January 1, 2021.
	SLDAN-16-P			16x16-channels
	SLDAN-32-P			32x32-channels
	SLDAN-64-P	Core 510i, 610, 5200		64x64-channels
	SLDAN-128-P	Core 510i, 610, 5200		128x128-channels
	SLDAN-256-P	Core 610, 5200		256x256-channels ¹For Core 610, Q-SYS Designer v9.9 or higher is required.
	SLDAN-512-P	Core 5200		512x512-channels
Multi Track Playback	SLMTP-32	All Q-SYS Cores²	v7.0 or higher	32 Audio Player tracks ²Core Nano, 8 Flex, 110f, and 510i require a media drive option installed to depoy expanded multi-track playback capacity.
	SLMTP-64	All Q-SYS Cores²		64 Audio Player tracks ³Core 510i requires a media drive option installed to deploy extended multi-track playback capacity
	SLMTP-128	Core 510i³, 610, 5200		128 Audio Player tracks ³Core 510i requires a media drive option installed to deploy extended multi-track playback capacity

Q-SYS Video

License Type	Part Number	Applicable Hardware	Supported Q-SYS Designer Software Version	Description
AV Bridging	SLQBR-P	TC-70-G3, TC-101-G3, NV-21-HU	v9.7* or higher	Enables AV Bridging for native Q-SYS devices. One license required PER device with AV Bridging enabled. *For NV-21-HU, Q-SYS Designer v9.8.1 or later is required.

Q-SYS Licensing Bundles

License Type	Part Number	Applicable Hardware	Supported Q-SYS Designer Software Version	Description
Microsoft Teams Room	SLMST-8N-P	Core Nano, 8 Flex, NV-32-H	v9.0 or higher	License for Microsoft Teams Room software features. Includes both Q-SYS Scripting Engune and UCI Deployment licenses.
	SLMST-110-P	Core 110f
	SLMST-510-P	Core 510i
	SLMST-610-P	Core 610

Note: All Q-SYS Feature Licenses are Perpetual, Node Locked
