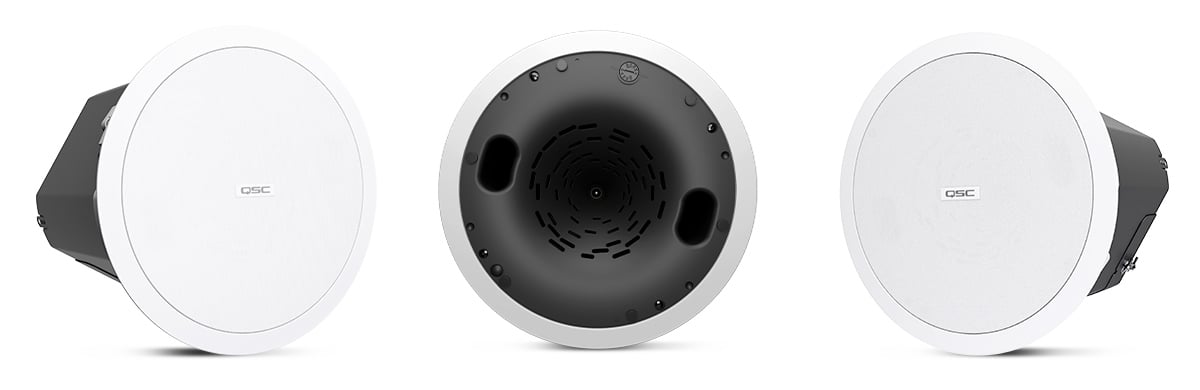

AD-C6T-HC

6.5-inch, 2-way ceiling-mount loudspeaker, 75° coverage


Features

  • Higher power handling and tighter coverage area enables venues with high ceilings or reverberant spaces
  • Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™
  • 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems
  • 75° coverage pattern
  • Available in white (RAL 9010)

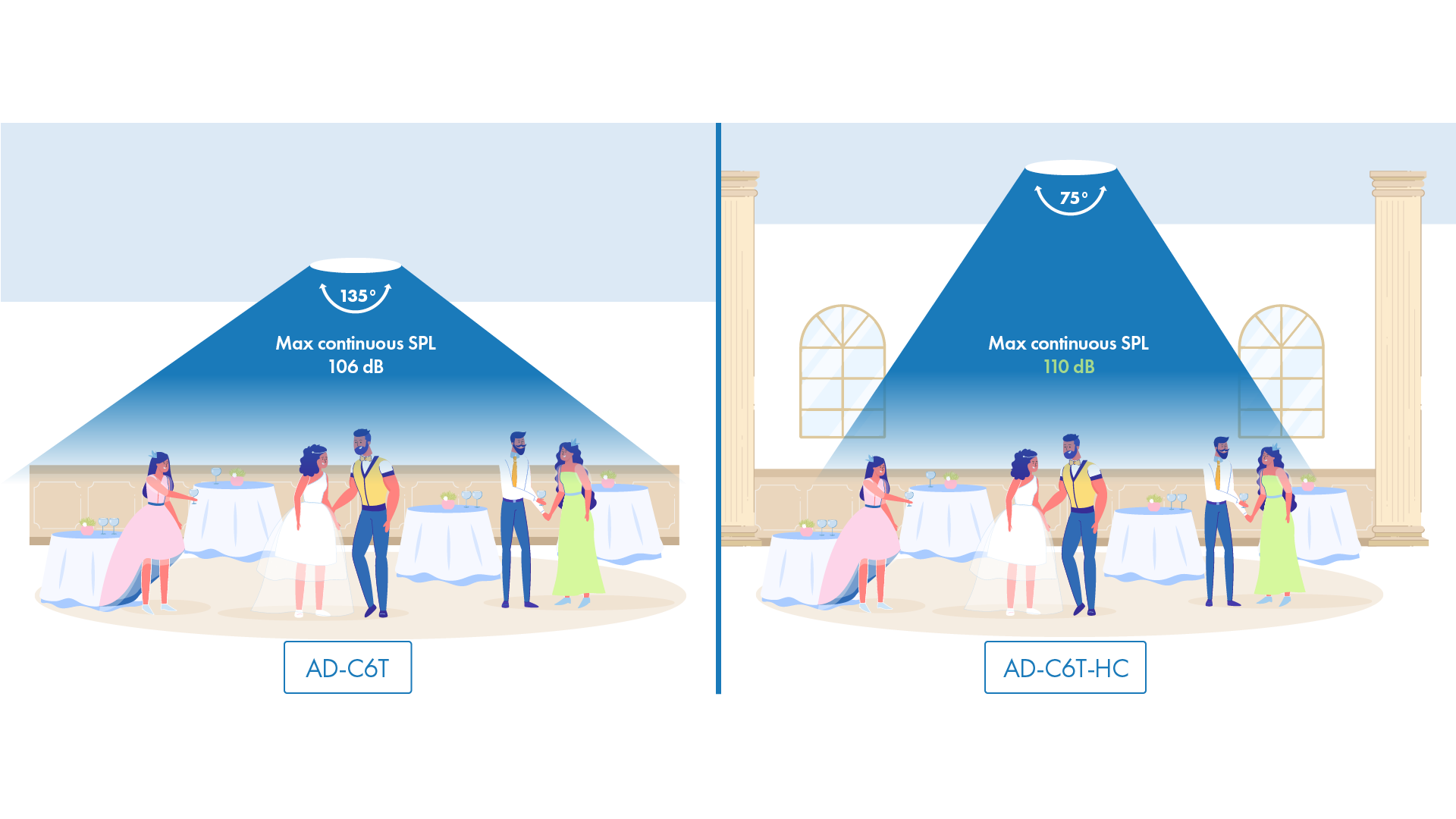

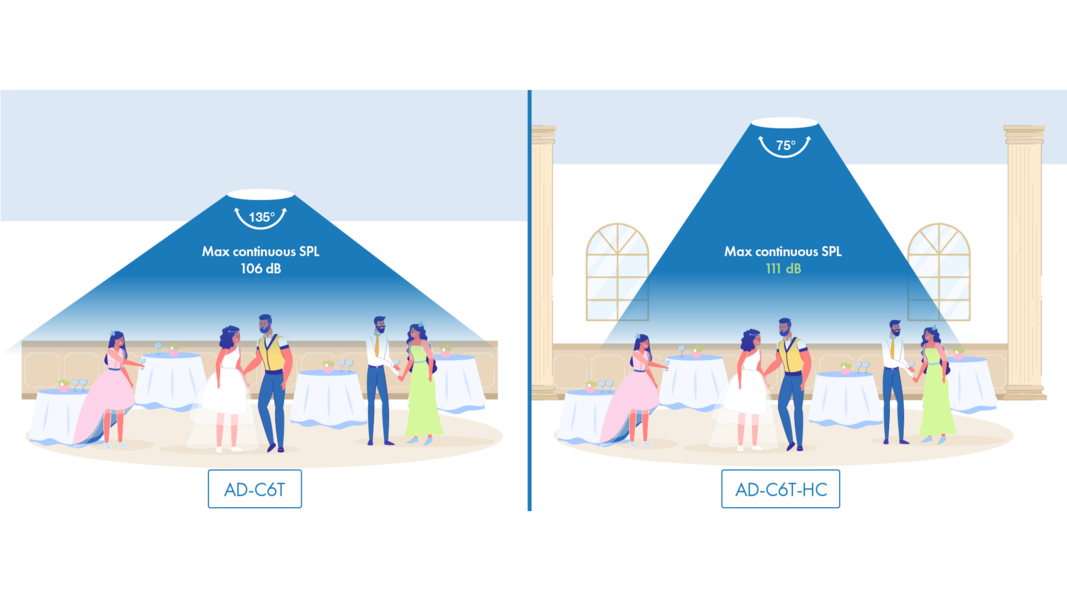

Coverage Comparison

SPECIFICATIONS AD-C6T-HC
Description 6.5 in, two-way ceiling-mount loudspeaker with transformer
Transducers 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet
1.4 in (35.6 mm) kapton dome compression tweeter



Sensitivity 91 dB @ 1 W, 1 m
Freq. range (-10 dB) 45 Hz - 20 kHz
Rated noise power (@16 Ω bypass) 120 W
Coverage (-6 dB) 75°
Directivity factor 4.6
Directivity index 6.6dB
Max SPL (continuous/peak) 110 dB / 116 dB @ 1 m
Taps (70 V/ 100 V) 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
Bypass impedance 16 Ω
Min impedance 14.97 Ω @ 208 Hz
Crossover frequency 2.5 kHz
Input 4-pin Euroblock connector with parallel output
Net weight 19 lb (8.58 kg)
Product dimensions 12 x 13.4 x 13.4 in (313 x 340 x 340 mm)
