Stop hassling with the limitations of distributing media over USB. Q-SYS™ I/O-USB Bridge puts USB access right where you need it, close to every device that needs Q-SYS audio, video, and/or control. The Q-SYS I/O-USB Bridge allows users to integrate networked Q-SYS conference room camera video alongside industry leading audio processing into soft-codec applications via USB connection, all without installing special drivers.

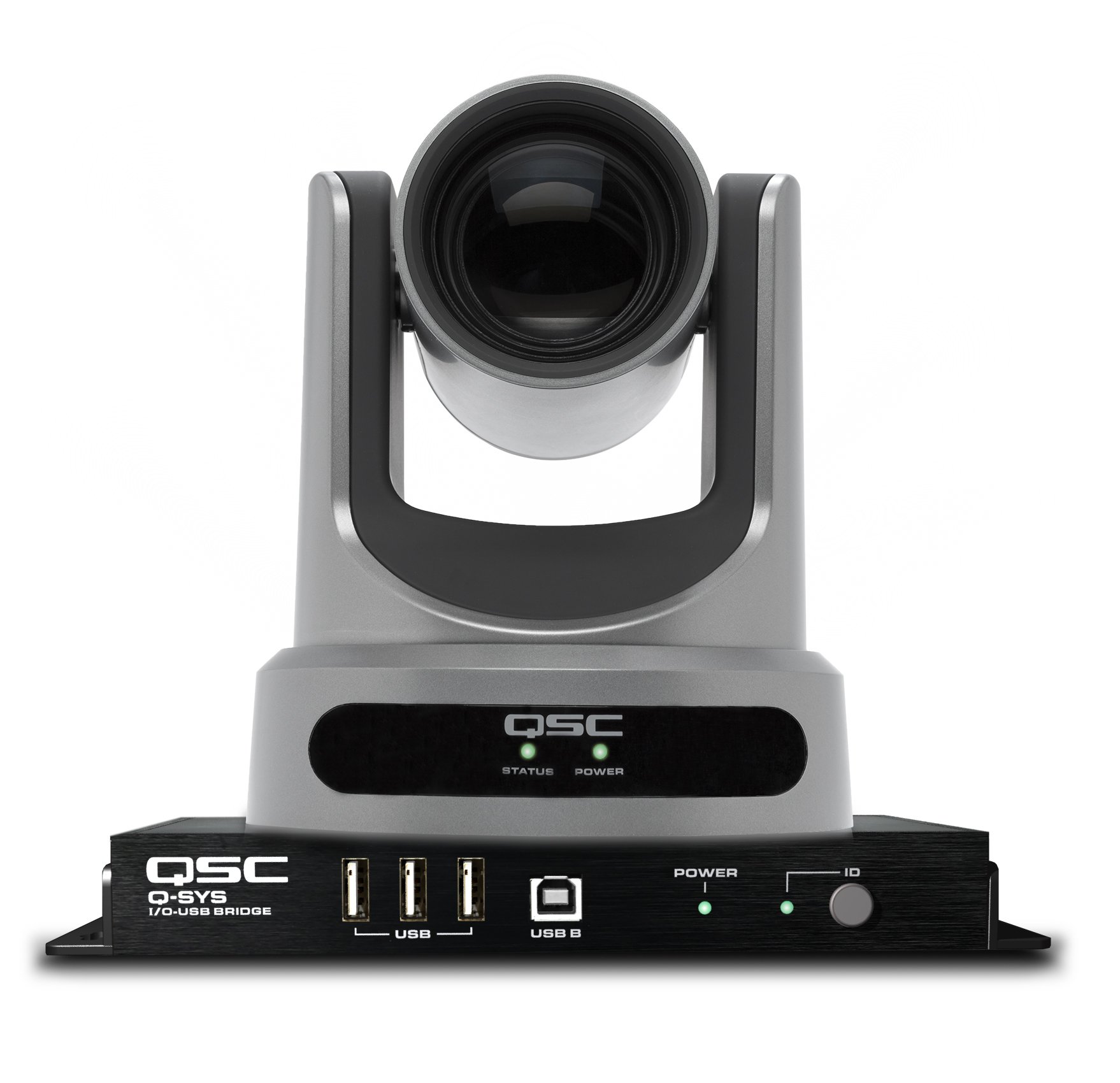

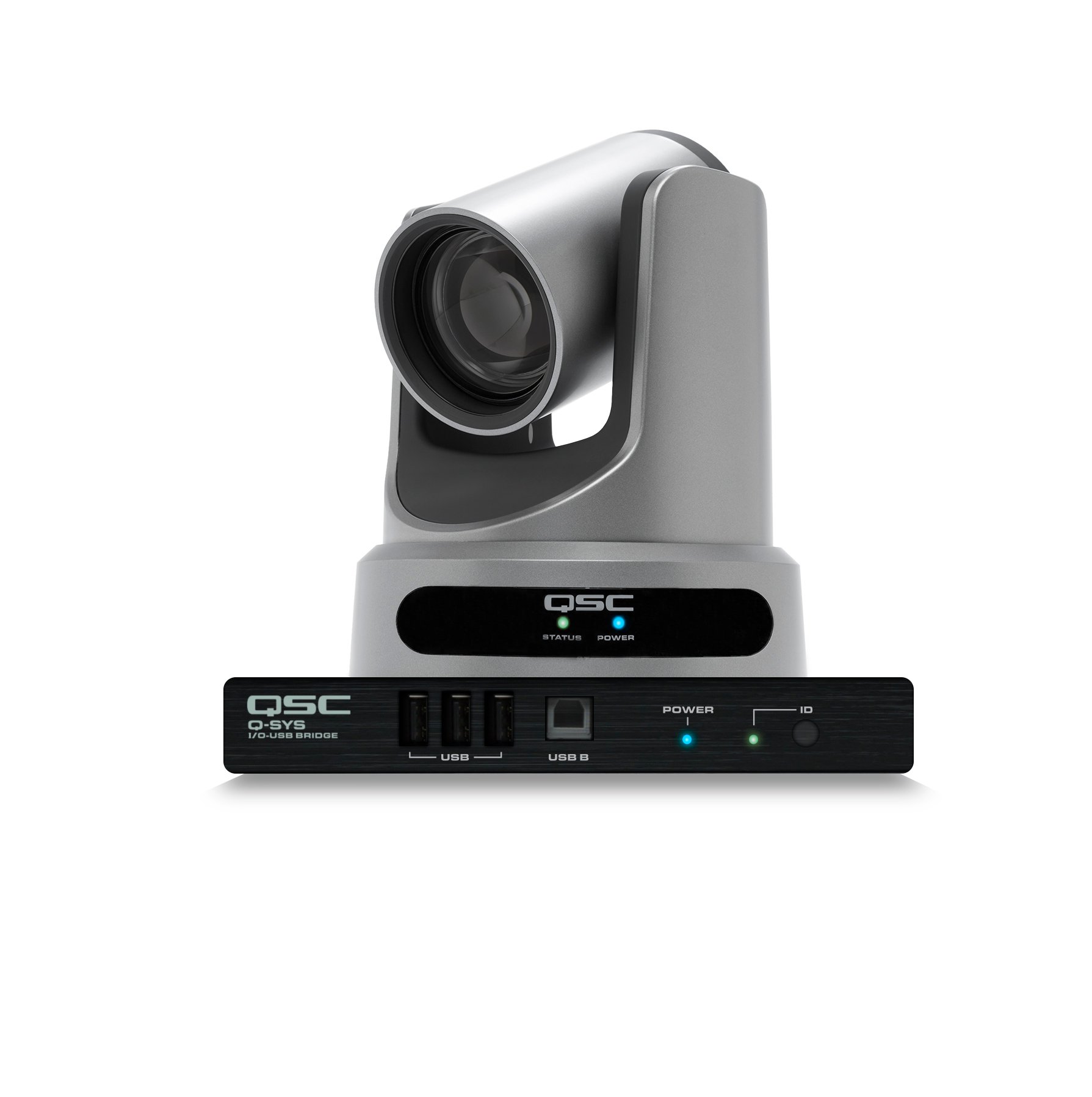

The I/O-USB Bridge and Q-SYS conferencing cameras will offer a brand new networked AV paradigm to soft codec AV integration in medium to large meeting room systems. Because Q-SYS is a fully networked platform, the Q-SYS I/O-USB Bridge can act as an in-rack or Bring Your Own Device (BYOD) endpoint for Q-SYS conferencing camera feeds and audio processed with Q-SYS acoustic echo cancellation (AEC). As part of the Q-SYS Platform, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.
Connect to Q-SYS Reflect Enterprise Manager
This Q-SYS Product can be connected to our powerful monitoring and management solution.
- Driverless USB 2.0 Connection
- Built for BYOD (plug and play)
- Resolutions up to 1080p
- Emulates webcam video and AEC speakerphone audio over single USB connection
- Emulates computer soundcard
- Bridges audio and video over Q-LAN to USB
- Route USB HID events across Q-LAN networks
- External Power Supply or PoE enabled (802.3af)
|Supported Resolutions||MJPEG: 1080p: 30, 15 fps | 720p: 30, 15 fps | 360p: 30, 15 fps | 180p: 30, 15 fps|
|USB Connection||- USB 2.0 (UVC/UAC) driverless connection for Windows and OS X devices |
- Emulates webcam video driver, AEC speakerphone audio driver, and multi-channel soundcard driver over single USB connection
|Power Supply||PoE Enabled Device (802.3af) or 12v DC (1A)|
|Dimensions||25 x 85 x 183 mm |
1 × 3.35 × 7.2 in
|Weight||500g / 1.1 lb|
*Specifications are preliminary and are subject to change without notice.
