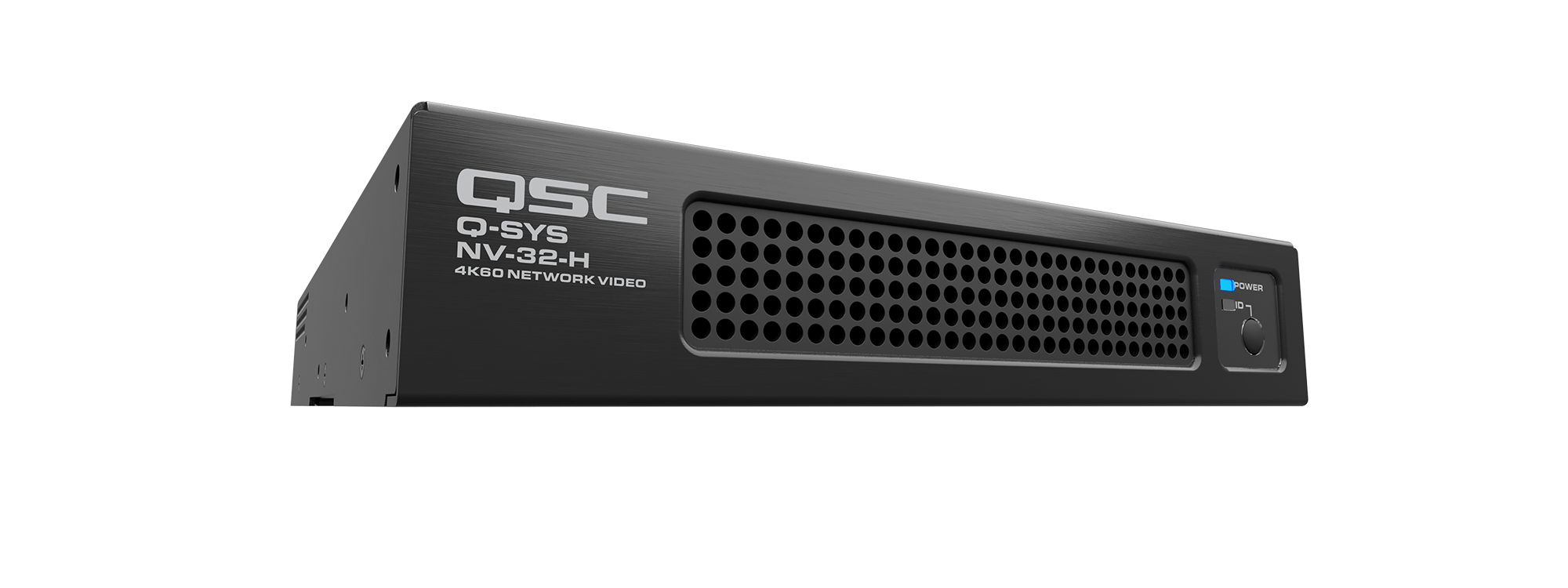

NV Series
Q-SYS Network Video Endpoints
Q-SYS NV Series network video endpoints are multipurpose, software-configurable devices native to the Q-SYS platform enabling high-quality, low-latency video distribution. The NV Series are flexible and scalable, allowing you to tailor your system components to the project requirements, placing the correct type and quantity of video I/O where it’s needed most. Q-SYS. NV Series endpoints easily convert Q-SYS network camera and audio feeds into your preferred collaboration application through a single, driverless, plug-and-play USB connection. As native Q-SYS Products, the NV Series is driven by the Q-SYS OS and seamlessly integrates into any Q-SYS system, enabling no-code audio routing, video source selection and device configuration.
Flexible and Scalable
The Q-SYS NV Series offers multiple models allowing designers to tailor and right-size their system based on connectivity type, I/O density, supported or license features and physical footprint.
Q-SYS Shift
NV Series enables visually lossless low-latency distribution of digital video formats up to 4K60 4:4:4 through Q-SYS Shift™. Q-SYS Shift™ is optimized to intelligently manage and optimize the network bitrate by only refreshing changes within each frame, allowing for significantly reduced bandwidth usage compared to other codecs without sacrificing quality or latency.
AV Bridging
NV Series allows you to place USB connectivity where you need it most while eliminating the installation and maintenance hassles associated with conversion, switching and extension technologies required to deploy USB conferencing systems.
Designed for Q-SYS
NV Series enable native video and audio distribution without additional management and control hardware. Driven by the Q-SYS OS, NV Series devices integrate seamlessly into Q-SYS systems creating frictionless, no-code deployments.
Audio, Video, Control. One OS.
Q-SYS NV Series endpoints join a host of other Q-SYS products to provide a complete end-to-end solution tailored for the needs for your spaces.

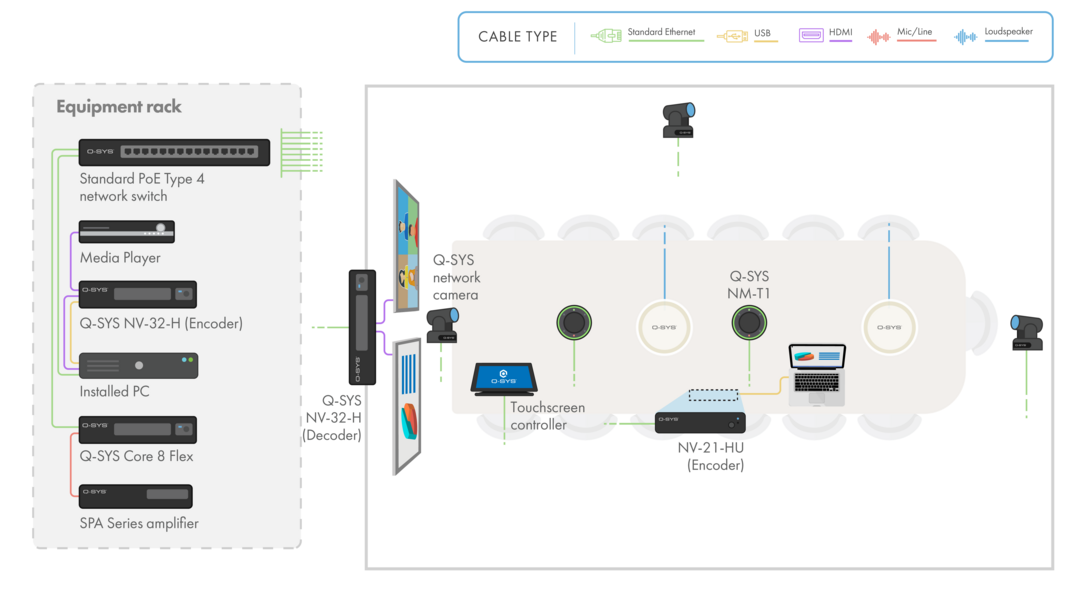

Click diagram to enlarge
Specifications

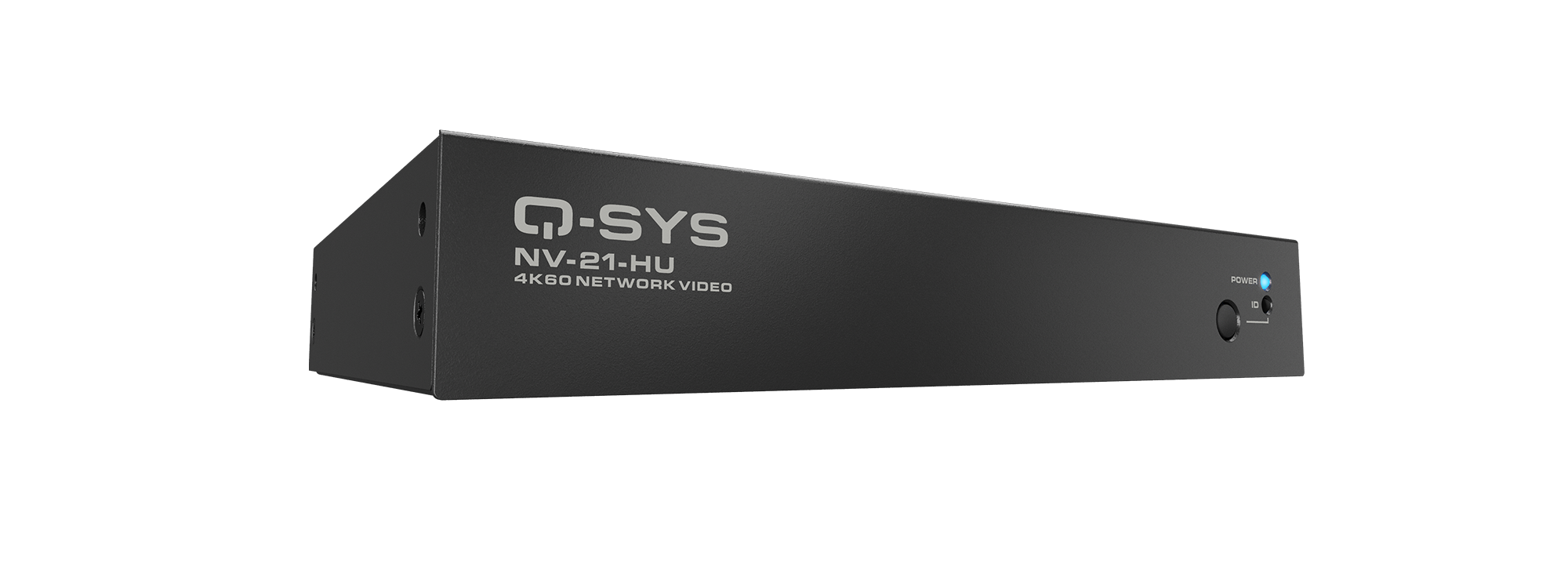

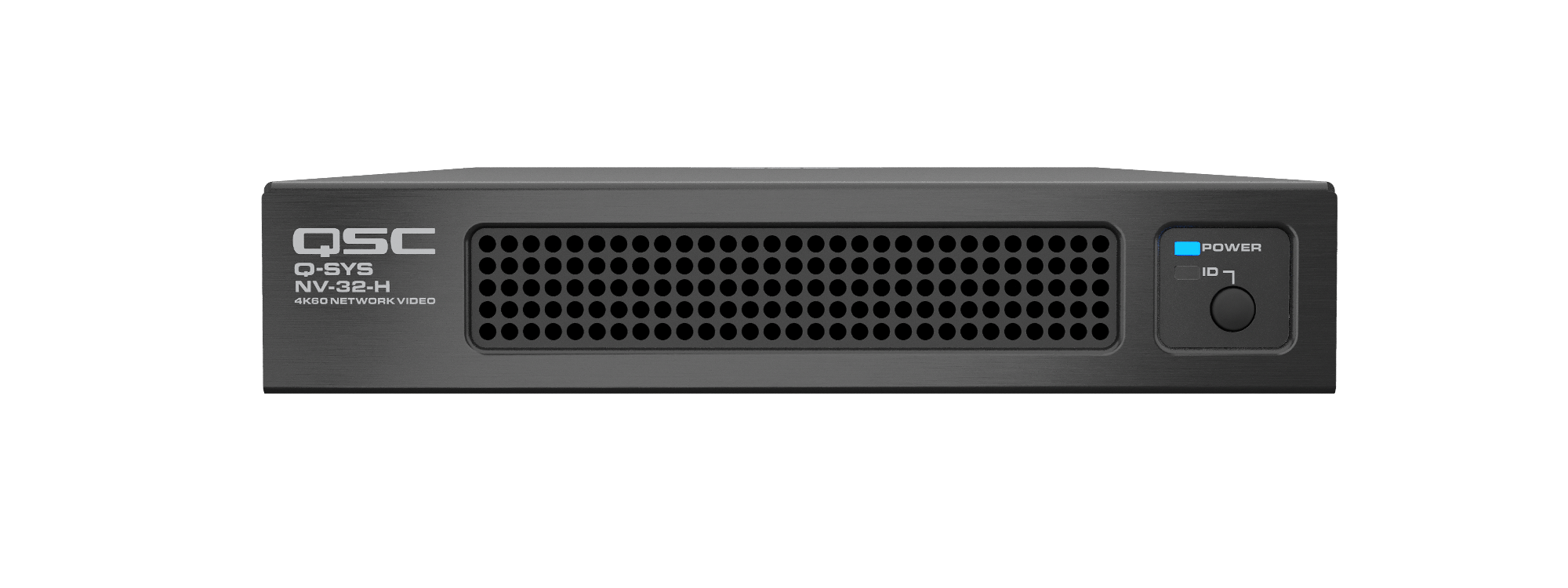

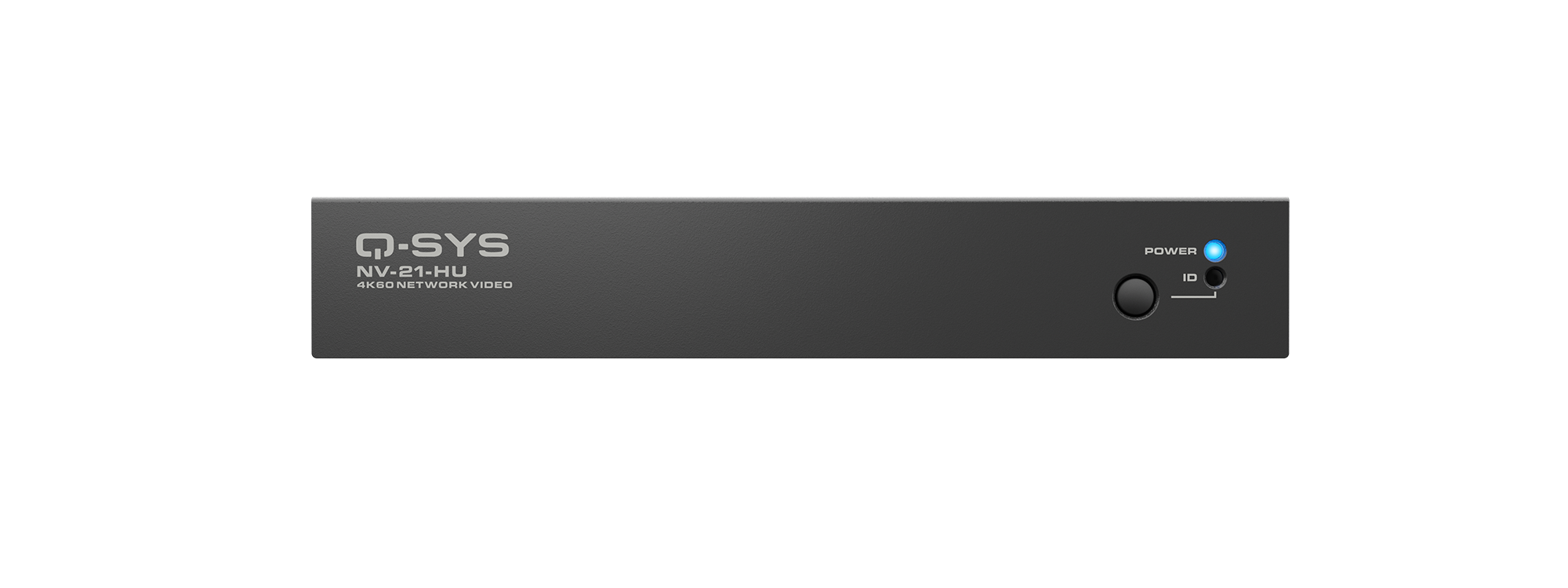

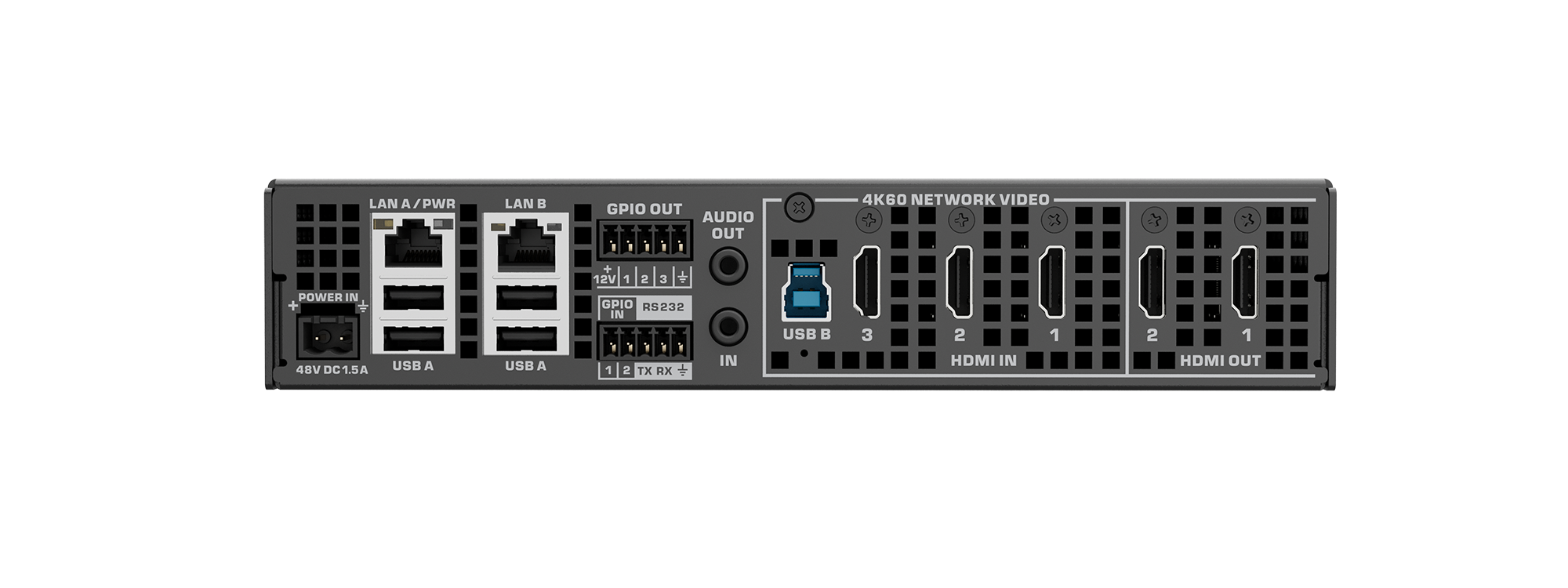

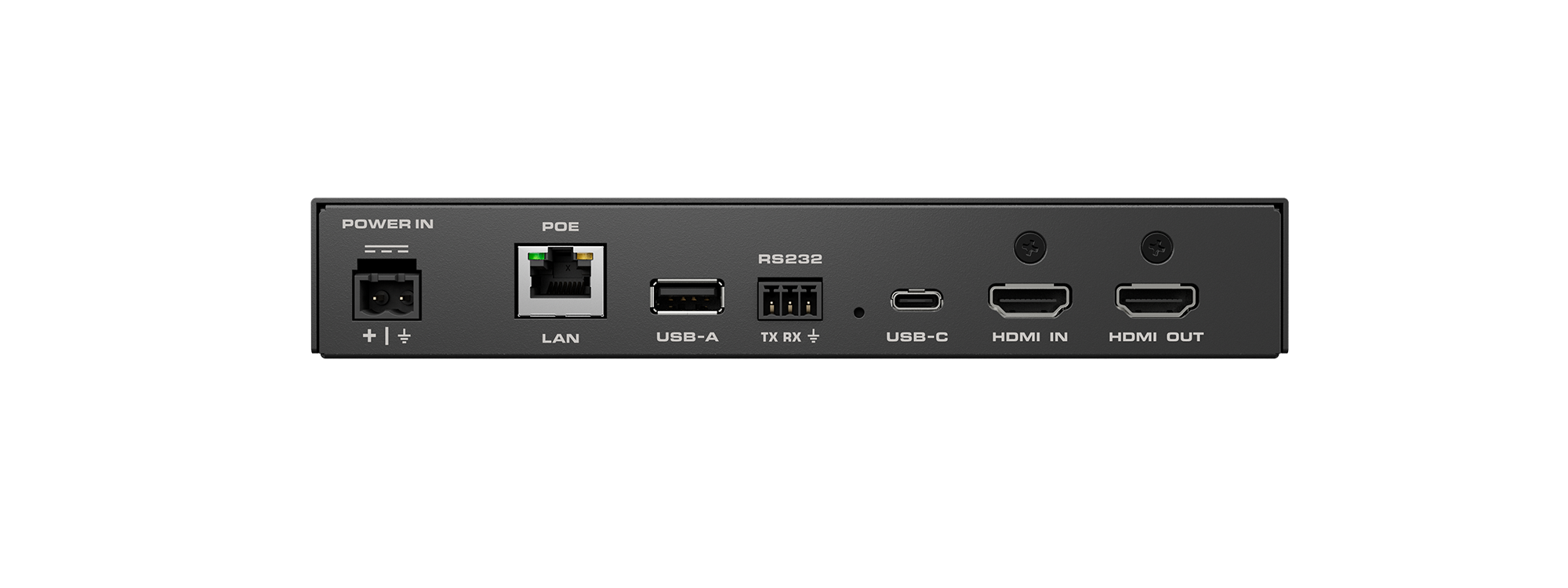

| NV-32-H | NV-21-HU | |
| HDMI Inputs | 3 | 1 |
|---|---|---|
| USB-C Inputs | 0 | 1 |
| HDMI Outputs | 2 | 1 |
| HDCP | 1.4 & 2.2 | 1.4 & 2.3 |
| HDMI output scaler | Yes | Yes |
| AV Bridging | Yes - Included | Yes - Licensed Feature |
| USB HID Routing | Yes | Yes |
| USB Device Charging | No | Yes[1] |
| RS-232 | 1 | 1 |
| GPIO | 2 input 3 output | No |
| HDMI Output CEC | Yes | Yes |
| 3.5 mm Audio Input | Yes - 2 channels | No |
| 3.5 mmAudio Output | Yes - 2 channels | No |
| PoE Requirements | PoE Type 4, Class 8 | PoE Type 3, Class 5 |
| Supports Q-SYS Core Mode | Yes | No |
| Stream multiple content sources simultaneously | Yes | No |
| Aux Power | 48 V DC 1.5 A | 12 V DC 9 A |
| Aux Power Supply Included | No | No |
| Aux Power Supply Accessory | No | Yes - NV-21-PSU |
| Details | Details |
[1] An external power supply is required for any device charging over the USB-C connection.
All specifications are subject to change without notice.
