• Hero front and side view of the AC-C6T in-ceiling speaker with and without the speaker grill

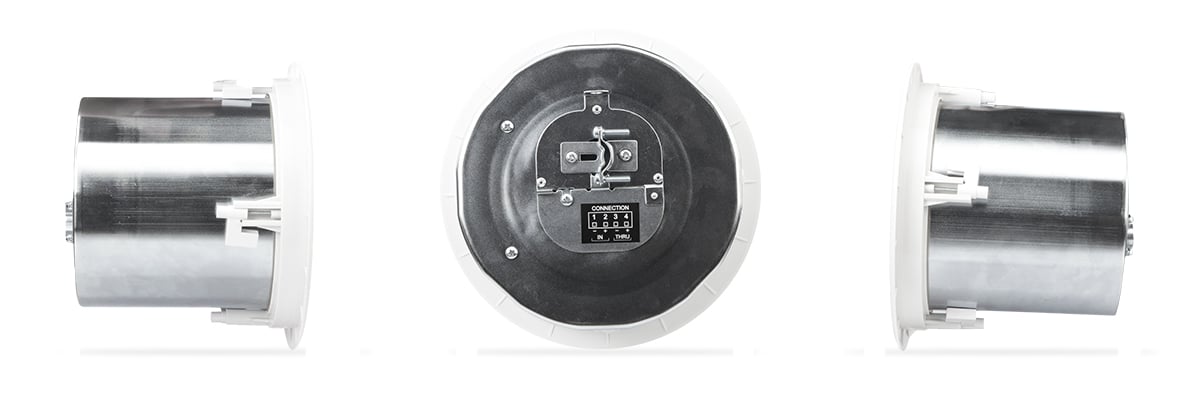

  • Hero side and rear view of an AC-C6T in-ceiling speaker

Features

  • High quality 6.5-inch 2-way system provides exceptional clarity through the critical voice range.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Intrinsic Correction™ voicings available via Q-SYS Platform.
  • White (RAL 9010).
  • Complete EASE, CAD, and BIM information available online.
Specifications AC-C6T
Effective frequency range 65 Hz to 20 kHz
Rated noise power / voltage 30 watts / 15.5 volts (rms)
Broad-band sensitivity 89 dB SPL
Coverage angle (-6 dB) 110° (500 Hz to 5 kHz)
Maximum continuous SPL 104 dB
Maximum peak SPL 110 dB
Rated impedance 8 ohms
Transformer taps:
                 70 V: 30, 15, 7.5, 3.7, 1.9 watts and 8-ohm bypass
                 100V: 30, 15, 7.5, 3.8, watts and 8-ohm bypass
HF Transducer .86-inch silk dome tweeter, coaxially mounted
LF Transducer 6.5-inch Polypropylene cone with butyl rubber surround
Input connector type Euroblock connector with parallel output terminals
Baffle material Painted ABS polymer
Grille material Powder coated steel
Back can material Galvanized steel
Testing Listed UL1480, UL2043 safe for use in air handling space
Net weight 7.6 lb / 3.5 kg
Product dimensions 10.24-inch × 8.4-inch (260 × 213 mm)
Cut-out Dimensions 9-inch (229 mm)
Ceiling Capture Thickness 0.25-inch to 1.5-inch (6.35 to 38.1mm)
Shipping weight 21 lb / 9.5 kg pair packed
Shipping dimensions 24.5-inch × 12.5-inch × 12.8-inch (622 × 318 × 324 mm)
Included accessories Rails and C-ring for ceiling tile installation
Optional accessories AC-MR6 mud ring for sheet rock installation


All specifications are subject to change without notice.
