NV-32-H (Core Capable)
Q-SYS Network Video Endpoint

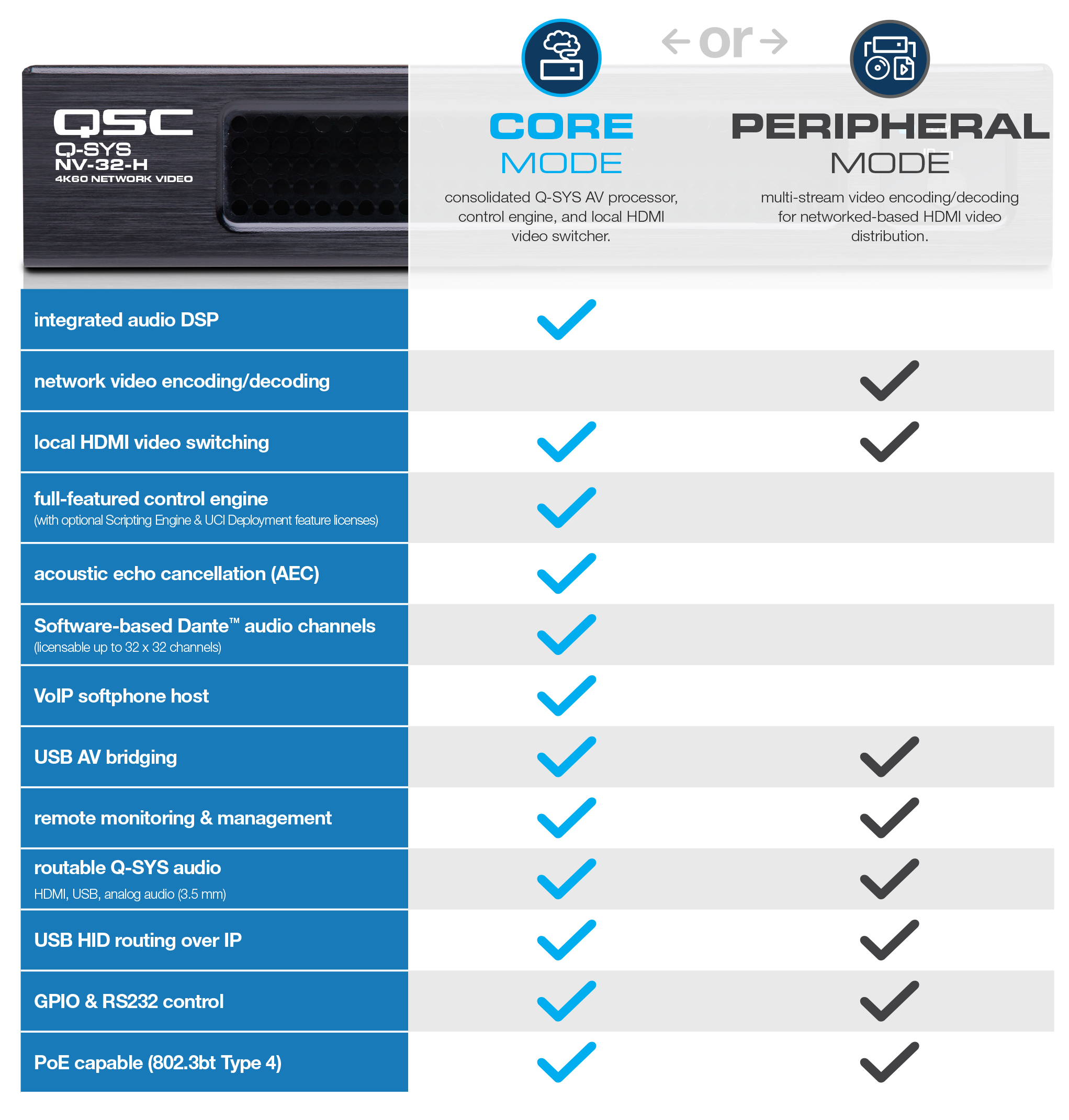

The NV-32-H (Core Capable) is a multipurpose, software-configurable video endpoint native to the Q-SYS Platform, offering two distinct operating modes to choose between, based on the needs of the application. ‘Core Mode’ transforms the device into a fully integrated Q-SYS processor with local HDMI switching capabilities. ‘Peripheral Mode’ allows multi-stream video encoding or decoding for network-based HDMI video distribution. Like all Q-SYS devices, the NV-32-H (Core Capable) offers native integration and control driven by the Q-SYS OS, simplifying setup and configuration while eliminating the need for advanced programming knowledge. With its Q-SYS Platform integration, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.
Features & Benefits
True Q-SYS processing and I/O capabilities
Full-featured audio processing engine for the Q-SYS Platform featuring 32 x 32 network audio channels, eight channels of software-based AEC, along with onboard audio I/O via HDMI, USB and 3.5 mm. Optional software feature licenses allow for even greater, customizable functionality (full-featured control engine, UCI engine, Dante audio channels, remote monitoring and more).
Integrated video switching
Core Mode enables an on-board 3 x 2 HDMI video switcher, allowing in-room users to easily share presentation or video content from their laptops or other in-room HDMI sources.
BYOD-capable web conferencing & VoIP
Integrate Q-SYS video cameras and audio via USB into all major UC&C conferencing applications, such as Microsoft Teams or Zoom. Also offers integration support for VoIP telephony systems.
Dramatic reduction in footprint and component integration costs
Consolidates disparate AV functionality in a 1RU, half-rack unit to free up physical space and reduce hardware & integration costs.
Streamlined video streaming integration for the Q-SYS Ecosystem:
Enables native HDMI and audio distribution without additional control processors, bridges or complicated programming.
Optimized for the connected meeting space:
Q-SYS Shift® video compression codec dynamically adjusts network bandwidth consumption based on video content, delivers the right balance of quality, latency, network efficiency and scalability for meeting room video applications.
BYOD-capable web conferencing & VoIP:
Integrate Q-SYS video cameras and audio via USB into all major UC&C conferencing applications, such as Microsoft Teams or Zoom.

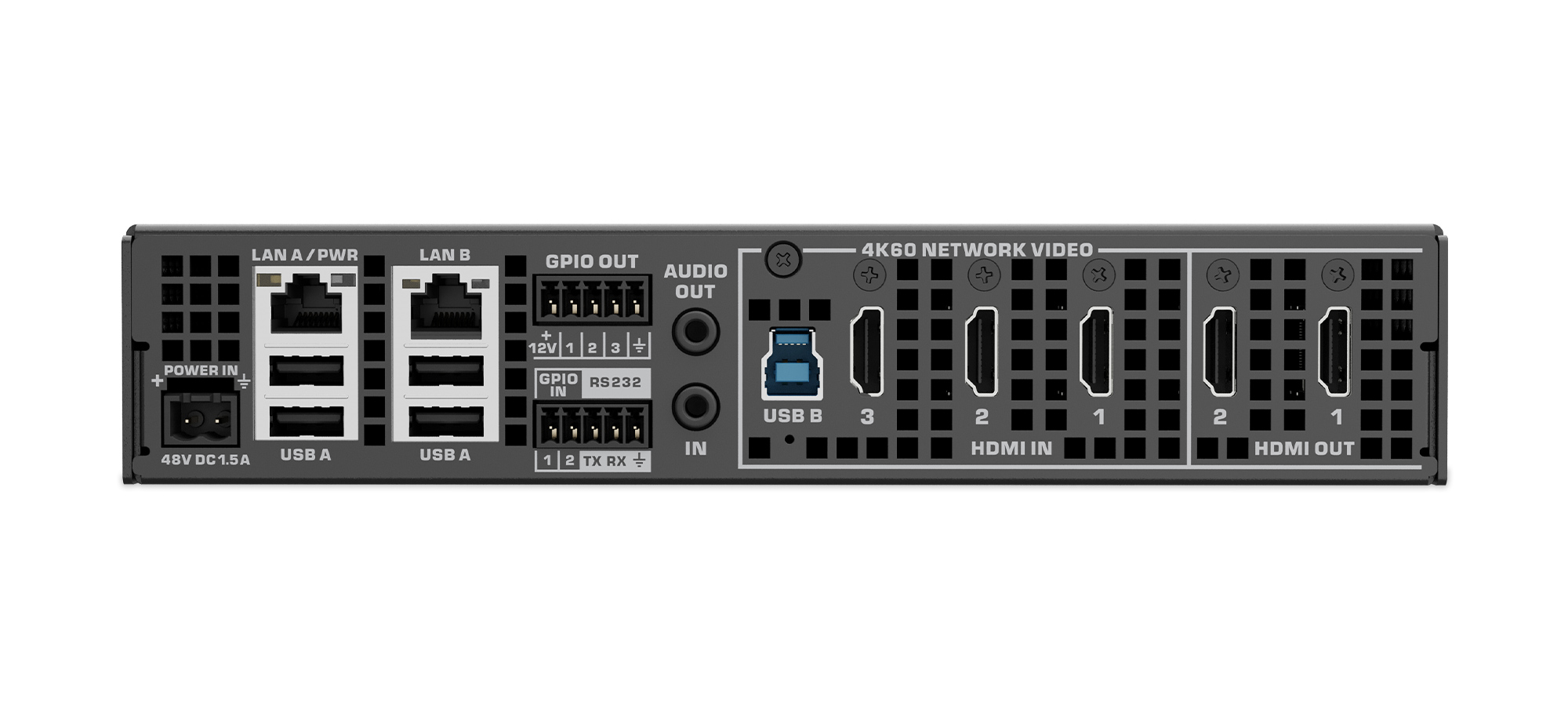

With 3x HDMI inputs and 2x HDMI outputs, the NV-32-H enables emerging room design scenarios, such as simultaneous 1080p60 streaming for dual-monitor rooms, with a single device.
(Click each image for a larger view)

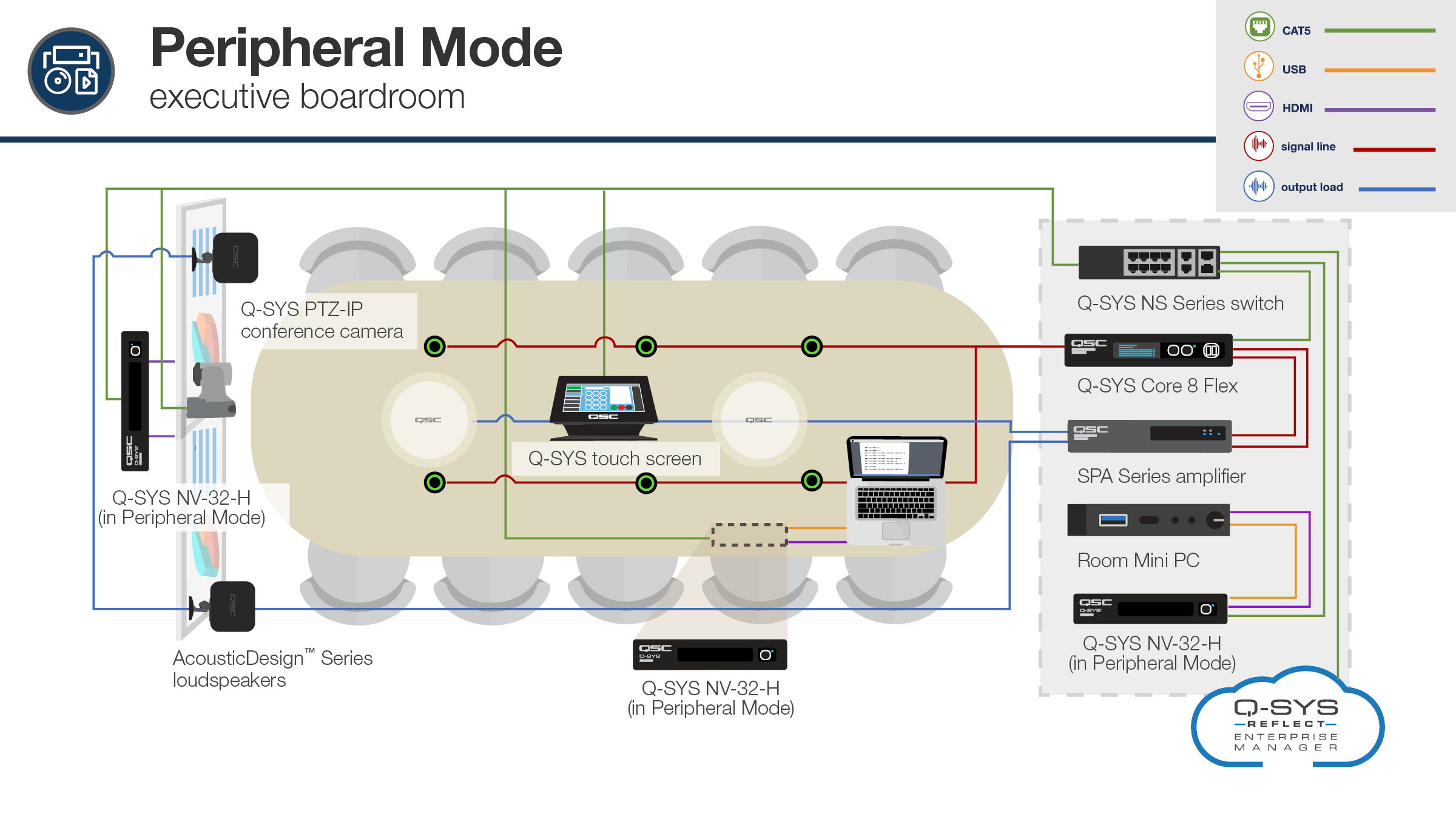

Click to Enlarge

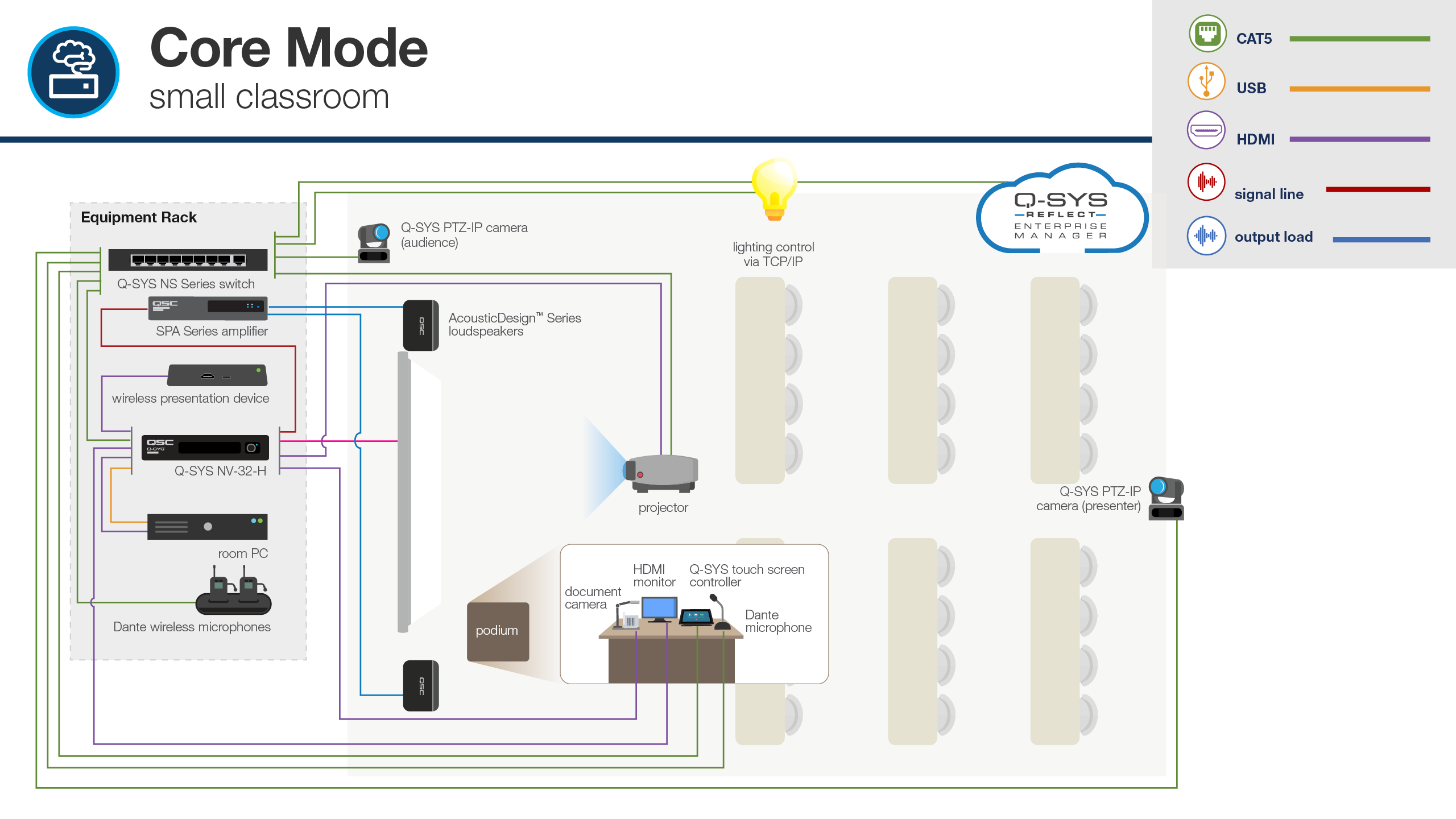

Click to Enlarge

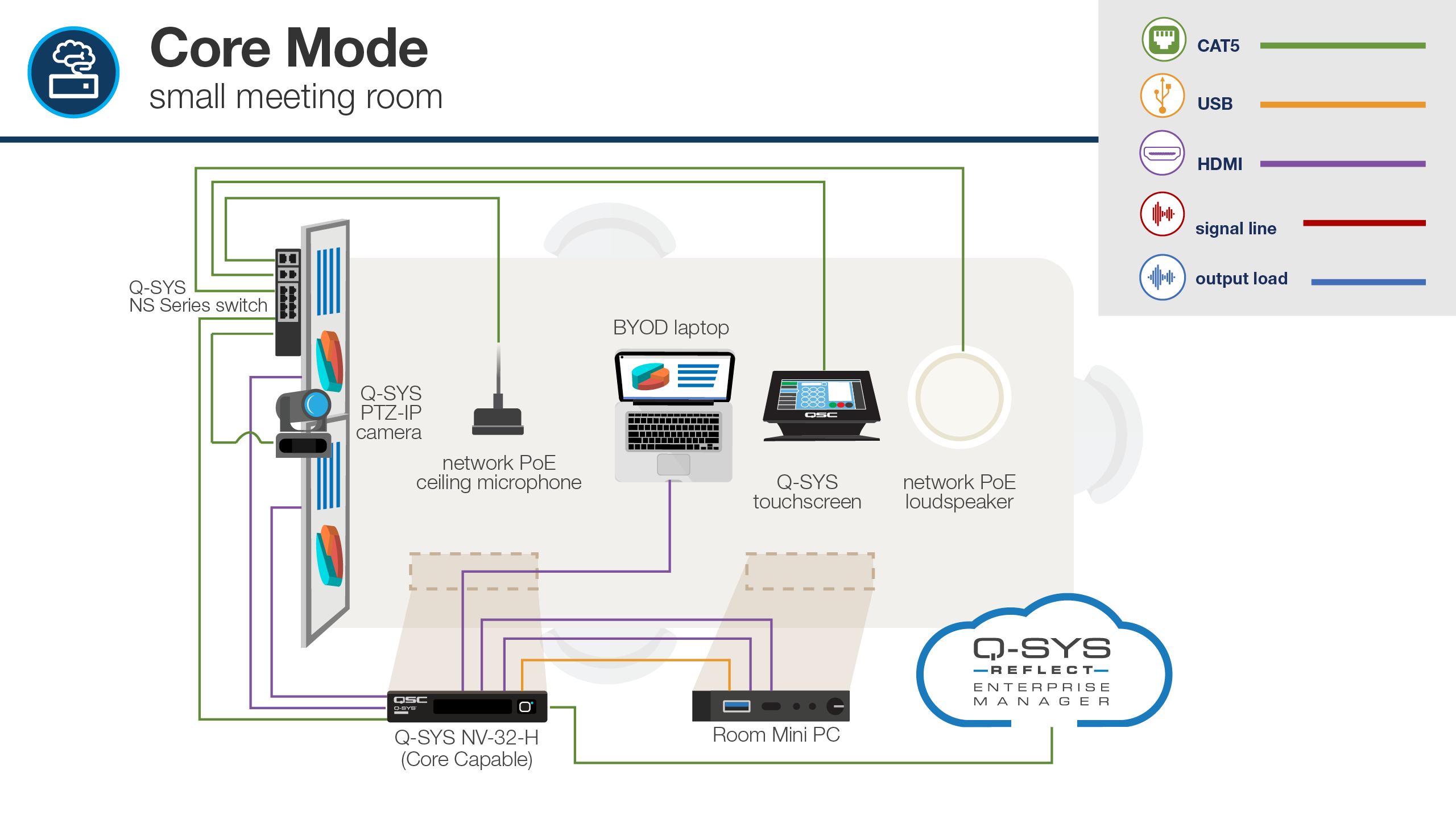

Click to Enlarge

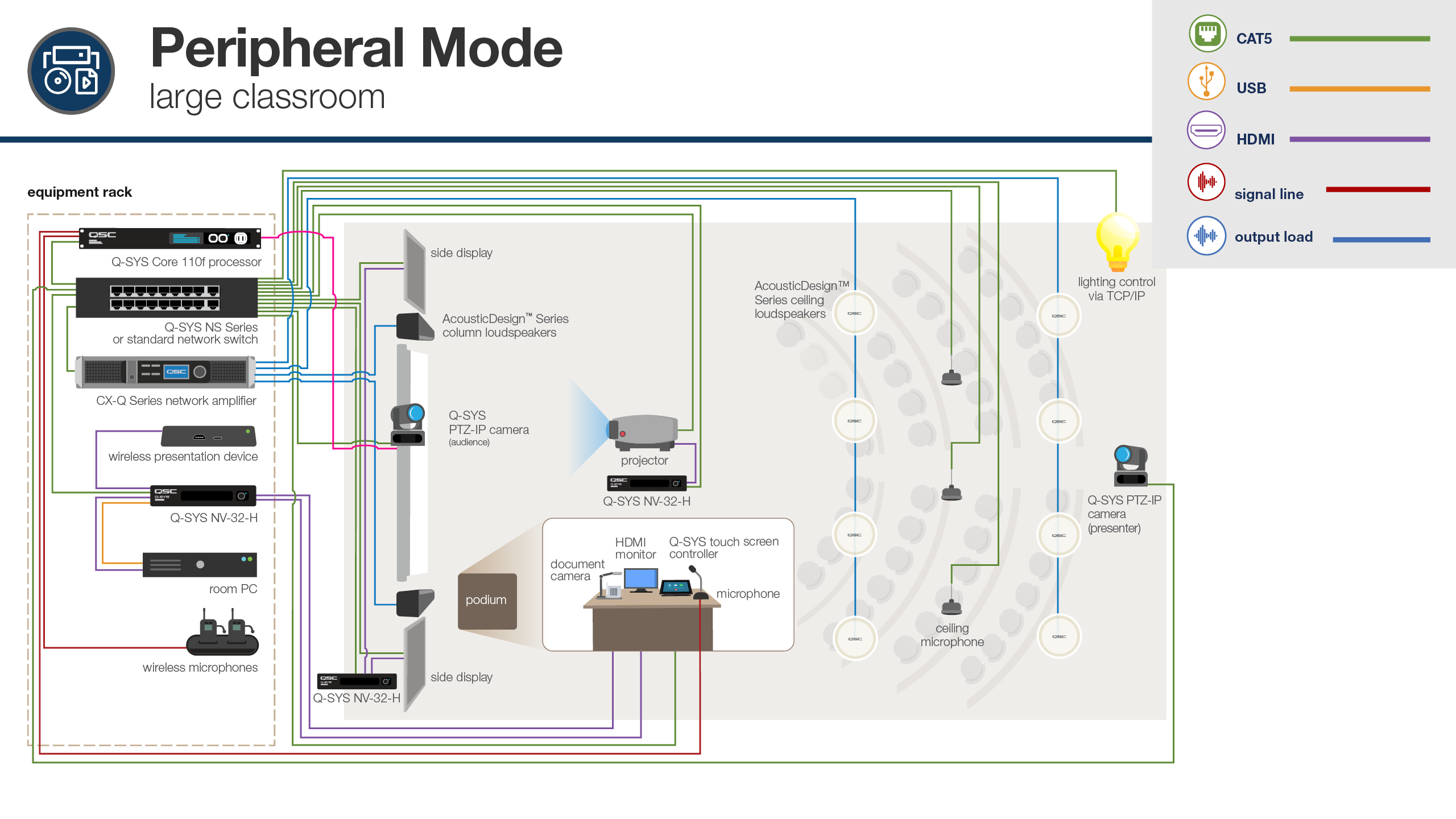

Click to Enlarge
|Channel Capacity (Core Mode only)|
|Q-LAN / AES67||32 x 32|
|Dante Channels||licensable up to 32 x 32 (none included)|
|Audio recording / playback||4 ch recording / 16 ch playback|
|Q-SYS NM-T1 capacity||3|
|Encoding/Decoding (Peripheral Mode only)|
|Video compression||Q-SYS Shift™ compression codec|
|Bitrates||10 Mbps - 800 Mbps|
|Content protection||HDCP 2.2 compliant, AES-128 encryption for all audio and video signals between encoders and decoders|
|HDMI inputs||8-channel PCM audio, Q-SYS routable|
|HDMI outputs||8-channel PCM audio, Q-SYS routable|
|Analog input||3.5 mm unbalanced stereo mic/line input |
|Analog output||3.5 mm unbalanced stereo line output |
|HDMI 2.0 inputs||3x HDMI capable of receiving source input video formats up to 4K60 4:4:4|
|HDMI 2.0 outputs||2x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4|
|Scaler||Each HDMI output features a robust 4K60 4:4:4 scaler that can accommodate the most challenging resolution and frame rate conversions|
|RS-232||Three-pin Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable|
|GPIO||Euroblock terminal connector for extension of Q-SYS control to third-party devices, user configurable|
|LAN A||Gigabit LAN connection for interfacing with Q-LAN. PoE 802.3bt Type 4 for power.|
|LAN B||Redundant connection for audio & control traffic (Core Mode only)|
|Audio input||Signal to Noise: 90 dBFS|
|THD+N: 0.009% @ 0 dB|
|Audio output||Signal to Noise: 90 dBFS|
|THD+N: 0.0167% @ 0 dB|
|Power over Ethernet specification/wattage||Conforms to IEEE 802.3bt Type 4|
|Physical power supply info||48 V DC Nominal, 1.5 A on 2-pin Euro connector|
|Ambient operating temperature range||0-50° C|
|Humidity||5 to 85% non-condensing|
|Storage temperature||-20 to 70° C|
|Dimensions||8.66 in x 11.28 in x 1.72 in|
|220 mm x 286.6 mm x 43.6 mm|
|Weight||Weight: 4.0 lb (1.81 kg)|
|Regulatory compliance||CE, FCC Part 15 Class B, RoHS|
|Mounting options||Rack-mountable, 1RU half-rack width|
|Surface-mountable, table or wall-mount|
|All mounting hardware is included|
