Axon C1 Wall Controller
Single-Gang networked audio controller (Attero Tech)

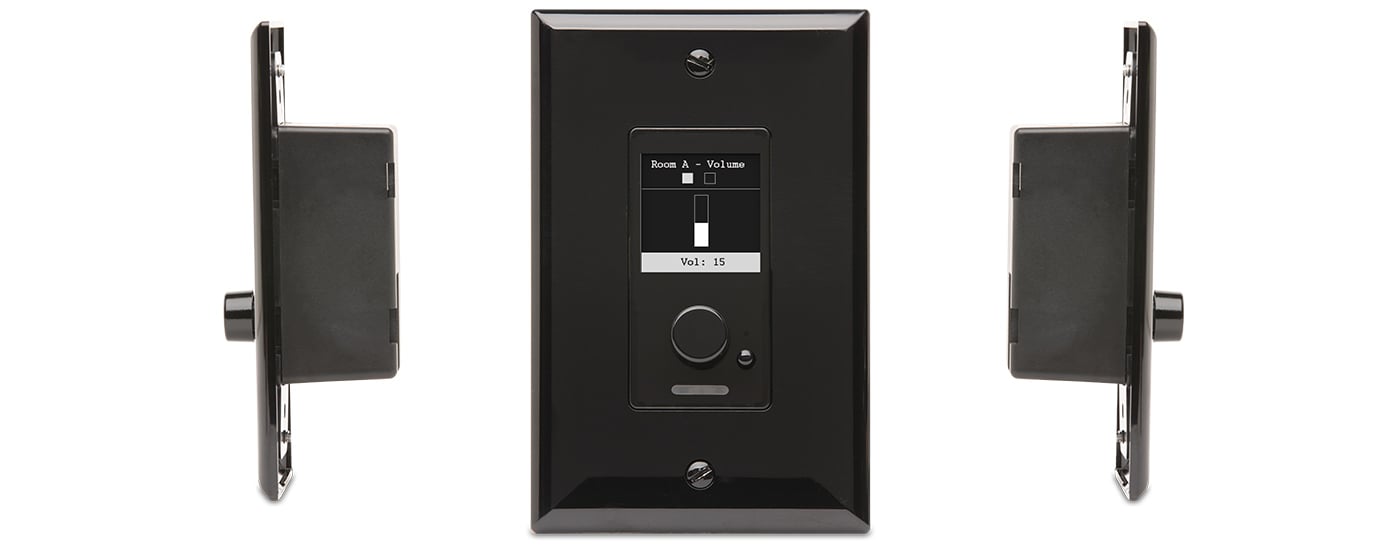

The Attero Tech Axon C1 is an assignable control solution for networked AV systems. The C1 features a single-gang, Decora in-wall design with an OLED display and rotary encoder for simple AV system control of volume, mute and preset recall. The C1 integrates into the Q-SYS via Extension, removing the need for custom programming during integration. Given its flexible nature, the C1 is capable of controlling virtually any Ethernet-based, third-party audio DSP or AV equipment.
Key Features
- Ethernet-based control solution for Q-SYS and other third-party AV products supporting UDP, TCP/IP control
- Available Q-SYS Extension for control mapping - no programming required
- Menu customization with unIFY Control Panel software
- High-contrast OLED display provides easy-to-read menus and status
- Intuitive controls facilitate simple user experience over assigned AV system functions
- Assignable LED light bar, provides optional feedback for zone level and system state

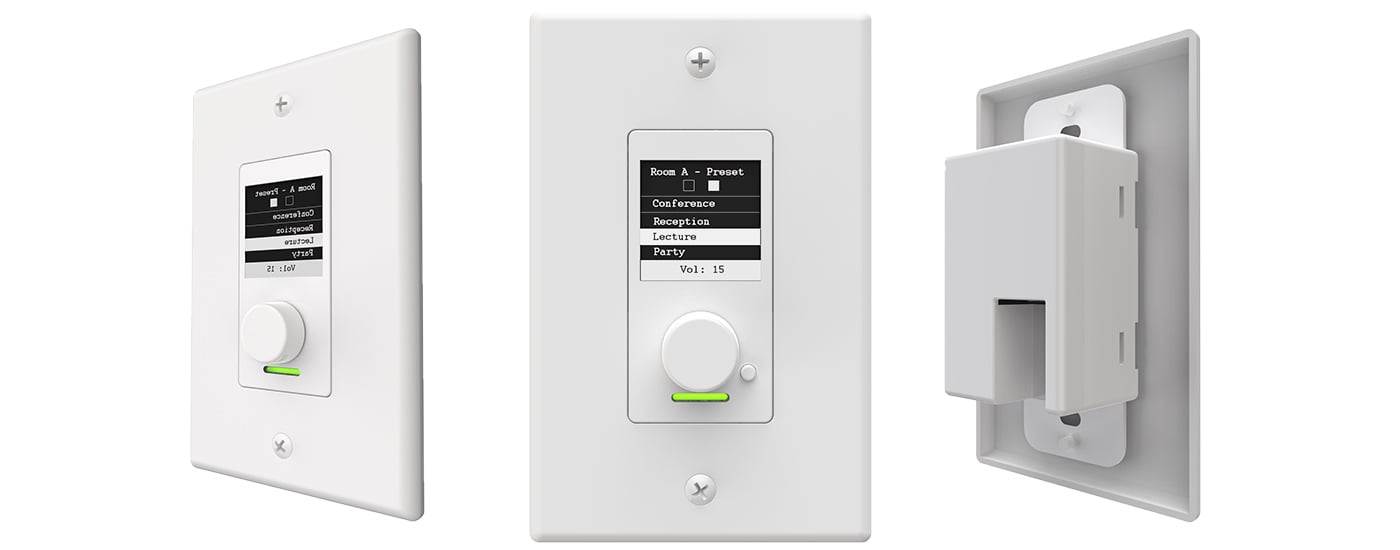

- Minimalist design includes both black and white Decora faceplates to provide aesthetic appeal to a variety of venues
- PoE powered - simple, single CAT-5e/CAT-6 cable installation
Setup & Configuration
Axon C1 Control & Display:
| Axon C1 | |
| User interface | One rotary / pushbutton encoder knob; one pushbutton toggle selector |
| Display type | 1.5 in (38.1 mm) diagonal high-contrast OLED display |
| Status indicator | RGB LED bar, adjustable brightness |
Axon C1 Specifications:
| Axon C1 | |
| Network physical layer | Ethernet |
| Network connector(s) | RJ-45 |
| Network transmission speed | 100 Mbps |
| PoE power | 802.3af Class 0 |
| Device dimensions (H x W x D) | 4.2 x 1.74 x 1.77 in (106.68 x 44.19 x 44.96 mm) |
| Device weight | 0.25 lbs (0.113 kg) |
