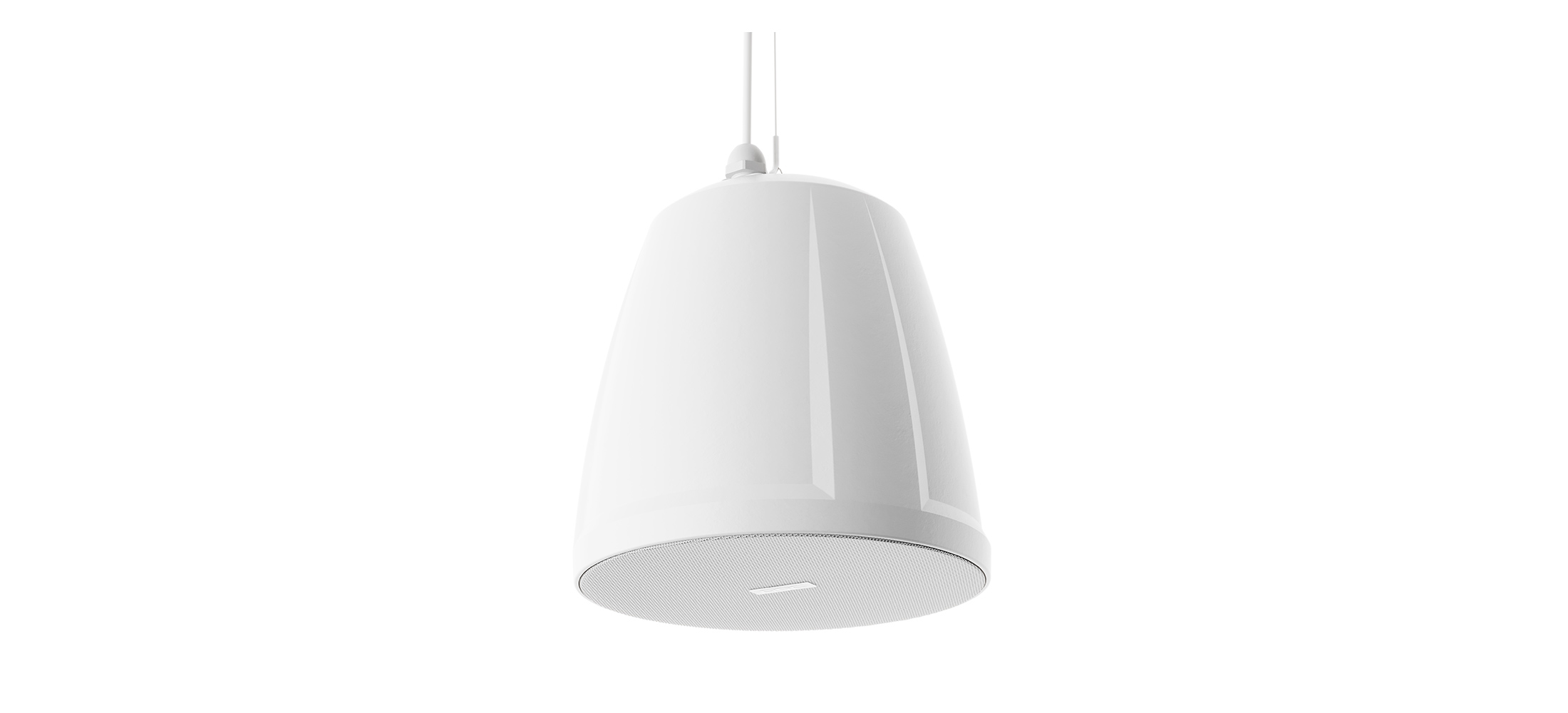

The Q-SYS NL-P4 is a network PoE loudspeaker that delivers clear speech and music reproduction natively to Q-SYS. The pendant-mount loudspeaker features a four-inch, full-range driver, optimized for open-ceiling installations. The Q-SYS NL-P4 can be integrated into your space with a single Ethernet cable to reduce overall hardware footprint and lower system cost. As a native Q-SYS Product, you can take advantage of the drag-and-drop integration and simple control capabilities offered by Q-SYS.
Features & Benefits
- Native PoE pendant-mount loudspeaker for Q-SYS
- 4-inch, full-range driver
- Powered-over-Ethernet enables power, data, and control over a single cable
- Consistent tonal characteristics across the entire NL Series family to let you mix and match form factors
- Q-SYS integrates loudspeaker voicings (Intrinsic Correction™) to simplify the tuning process
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manage
- Available in black (RAL 9011) or white (RAL 9010)
Full-range pendant-mount PoE loudspeaker: The Q-SYS NL-P4 features a 4-inch, full-range driver in a pendant enclosure, ideal for spaces with open ceilings. The loudspeaker delivers both clear speech and music reproduction for any high-value collaboration space.
Mix and Match: NL Series network loudspeakers are built on the same design principles as the Q-SYS AcousticDesign™ Series, featuring a sleek, unobtrusive design along with the same sonic characteristics that allow integrators to mix-and-match form factors to fit the unique needs of any space.
Go Easy: NL Series network loudspeakers are powered-over-Ethernet (PoE), which means native Q-SYS audio data, power and control and are delivered over a single cable, greatly simplifying installation and deployment while reducing rack space requirement.
Intrinsic Correction™: Q-SYS automatically integrates loudspeaker voicings (Intrinsic Correction™) to simplify the tuning process.
Remote Monitoring and Management: NL Series network loudspeakers are the first loudspeakers that can be automatically monitored and managed by Q-SYS Reflect Enterprise Manager every step of the way, from the audio source all the way through the loudspeaker driver.
Designed for Q-SYS: Q-SYS NL Series PoE loudspeakers are native to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future. Learn more about Q-SYS.
Click to Enlarge
|Loudspeaker type||Network PoE pendant-mount loudspeaker for Q-SYS|
|Driver||4-in (101.6 mm) full-range, paper cone woofer, ferrite magnet|
|Effective frequency range||90 Hz - 20 kHz|
|Rated noise power / voltage (W rms)||12 W (PoE), 24 W (PoE+)|
|Rated coverage (-6 dB)||100°|
|Directivity index||7.2 dB|
|Maximum continuous SPL||94 dB (PoE), 97 dB (PoE+)|
|Maximum peak SPL||108 dB (PoE), 111 dB (PoE+)|

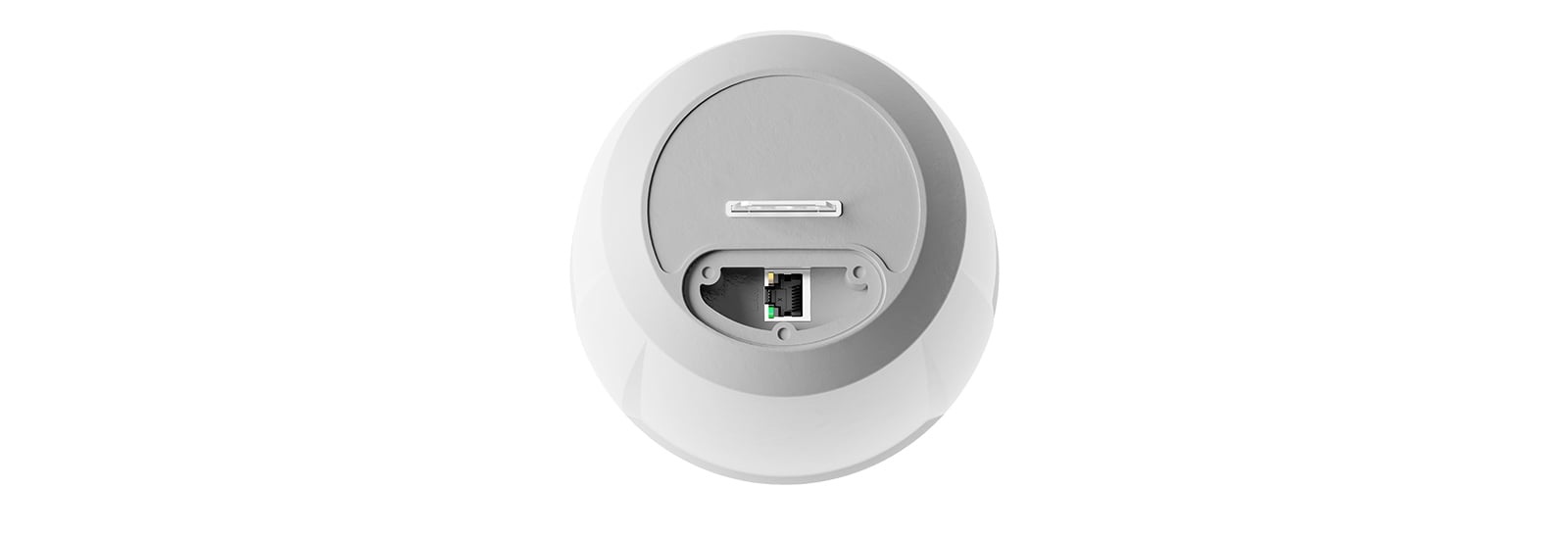

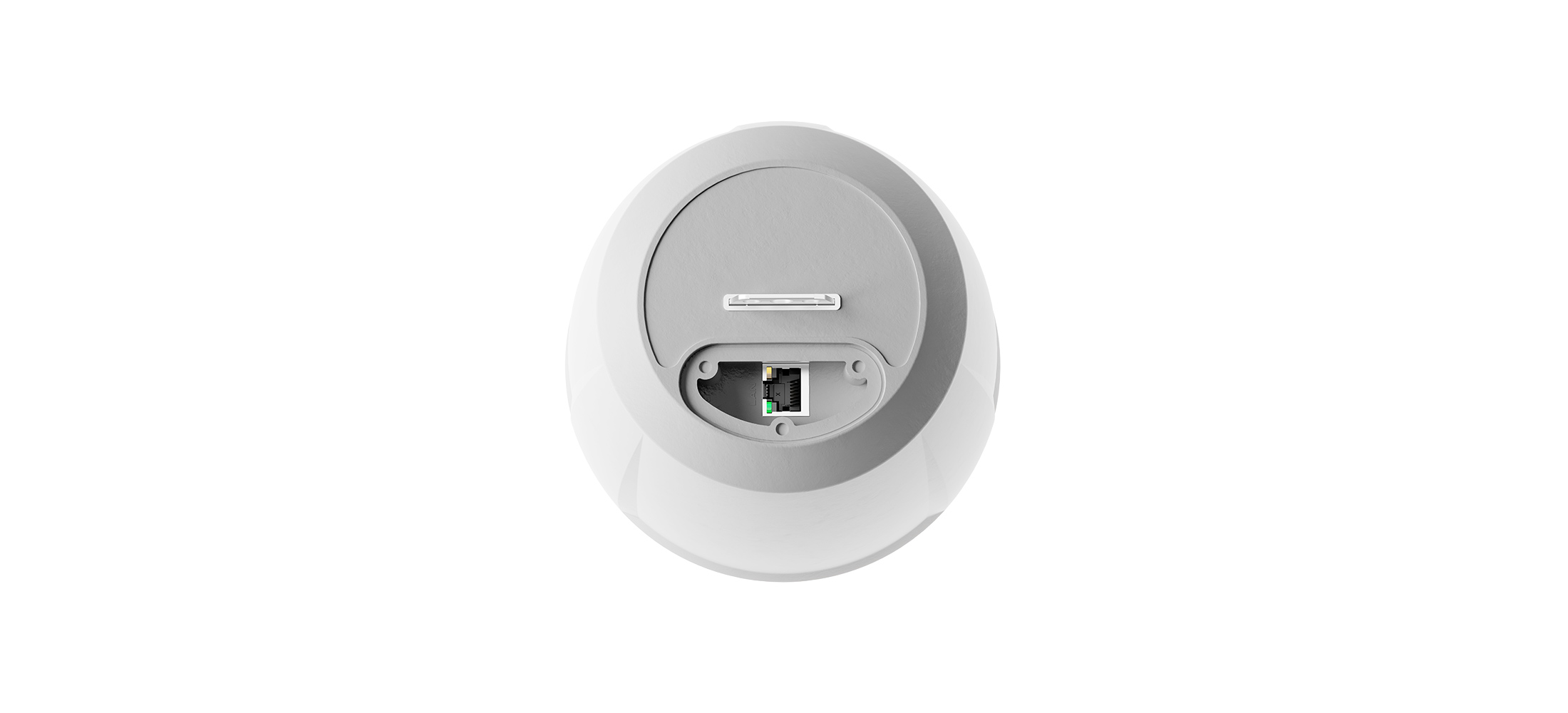

|Input connector type||RJ45, Q-LAN|
|Enclosure material||ABS baffle on powder steel back can|
|Grille material||Powder coated steel|
|Net Weight||2.88 lbs (1.31 kg)|
|Product dimensions |
(diameter x height)
|6.81 x 7.83 in (173 x 199 mm)|
|Operating environment||Designed for indoor use, IP34 ingress protection for weather protected outdoor spaces|
|Operating temperature range||-20° to 50° C|
|Included accessories||Quick-link cable assembly (length: 128 in / 3.25 m; thickness: 2 mm), slip-lock fastener, sealable input cover and screws, snapfit magnetic grille|
|Safety agency||UL/IEC 62368-1|
|Power requirements||PoE (Type 1 Class 3) or PoE+ (Type 2 Class 4)|
*All specifications are subject to change without notice.
