Q-SYS NVM Series video endpoints pair low-density HDMI I/O with network-efficient AV transport to deliver Q-SYS network video that is purpose-built for large-scale deployments in a broad range of spaces from entertainment and hospitality to collaboration, government and more.

Note: To deliver the best possible experience and support as availability expands, NVM Series is being introduced through a phased regional rollout, with broader availability planned soon. The Americas are among the first regions in this rollout, with availability in APAC, EMEA and SAARC varying by market; please check with your local Q-SYS representative for the latest information specific to your area.

Scale Q-SYS Video Experiences

Purpose-built for scale, NVM Series video endpoints deliver Q-SYS network video to a broad range of spaces, from entertainment and hospitality to collaboration, government and more.

Design Natively. Deploy Faster.

Deploy hundreds of NVM Series endpoints in minutes with an intuitive, wire-free method for configuring and deploying large-scale video systems in the singular Q-SYS Designer Software.

Deliver Holistic Q-SYS Experiences

Video built inside a Platform, not beside it, NVM Series leverage a fully integrated audio, video and control platform that streamlines system integration, from no-code workflows and end-to-end automation to comprehensive user control.

Application Diagrams

(Click image for larger view)

SELECT A MODEL

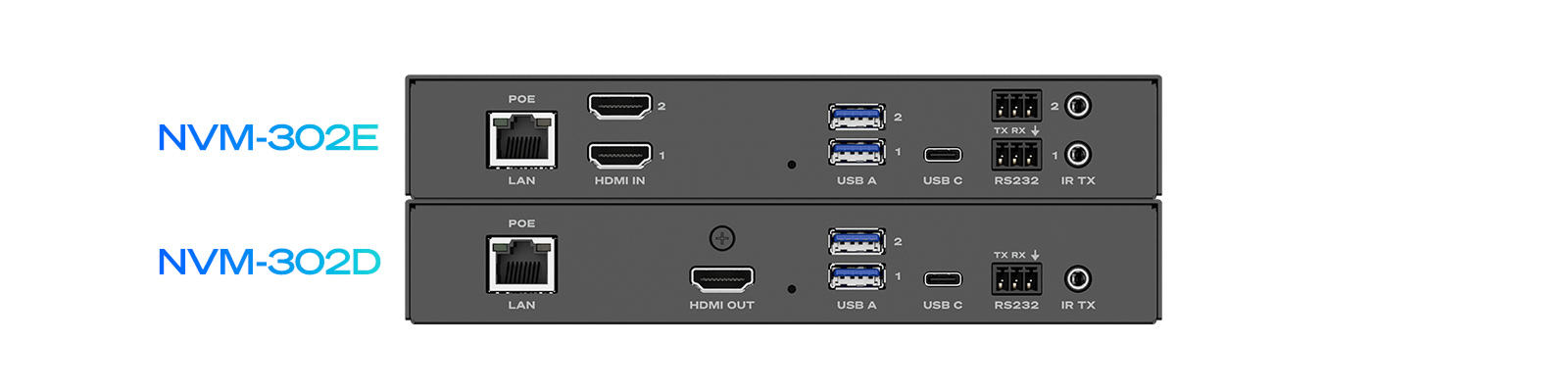

	NVM-302E	NVM-302D
Max power (per channel)	Encoder	Decoder
Inputs	2x HDMI (dual-encoding requires feature license)	-
Outputs	-	1x HDMI
Max Resolution supported	4K60 4:4:4 (single encode) 4K30 4:4:4 (dual encode)	4K60 4:4:4
Control Connectivity	2x RS-232 (3.5mm pitch euro-block), 2x IR Transmit (3.5mm mini jack)	1x RS-232 (3.5mm pitch euro-block), 1x IR Transmit (3.5mm mini jack)
Power Over Ethernet	PoE+, 802.3at Type 2, Class 4 PoE++, 802.3bt Type 3, Class 5	PoE+, 802.3at Type 2, Class 4

All specifications are subject to change without notice.
