SPA4-100
Power Amplifier
Características
- Hasta 200 watts por canal a 4 y 8 ohms — Las salidas del modelo SPA4-100 están diseñadas para proporcionar hasta 100 watts por canal en cargas de baja impedancia.
- Energy efficient — The SPA4-100 power amplifier employs an efficient class-D design to conserve energy and requires no active cooling, reducing operational costs.
- Salidas puenteables para mayor potencia — El puenteo de las salidas del SPA4-100 entregará hasta 175 watts por par de canales en 70 V o 100 V cuando estén puenteadas.
- Auto-Ramp provides quiet startup and power-down — The Auto-Ramp circuitry ensures quiet and fast power up from Standby and seamless power-down following 28 minutes of inactivity, dramatically reducing power consumption.
- Caja de 1 unidad de rack de altura, media unidad de rack de ancho — Los amplificadores SPA se pueden montar en 1 unidad de rack de altura, 1/2 de ancho, y sus ingeniosos soportes de unión permiten una fácil instalación debajo de la mesa y en la pared
| SPECIFICATIONS | SPA2-60 | SPA4-60 | SPA2-200 | SPA4-100 |
| Stereo Mode Watts Per Channel | ||||
| 8 Ω dynamic, both channels driven | 60 W | 60 W | 200 W | 100 W |
| 4 Ω dynamic, both channels driven | 60 W | 60 W | 200 W | 100 W |
| Bridged Mode Watts per channel pair | ||||
| 8 Ω & 4 Ω | 200 W | 100 W continuous | 400 W | 200 W |
70 V & 100 V | 250 W | 125 W | 350 W | 175 W* |
Signal to Noise (A weighted, 20 Hz-20 kHz) | >100 dB | >100 dB | >100 dB | >100 dB |
Input Sensitivity | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) | 1.23 Vrms (+4 dBu) |
Maximum Voltage Gain | 25.0 dB | 25.0 dB | 25.0 dB | 25.0 dB |
Ouput Circuitry | Class D | Class D | Class D | Class D |
Frequency Response (20 Hz - 20 kHz) | Frequency Response (20 Hz - 20 kHz) | |||
Input Impedance | >10 kΩ (balanced), >10 kΩ (unbalanced) | |||
Maximum Input Level | 12.3V (+24 dBu) | |||
Highpass Filter | Switchable 80 Hz when Bridged in 70V & 100V | |||

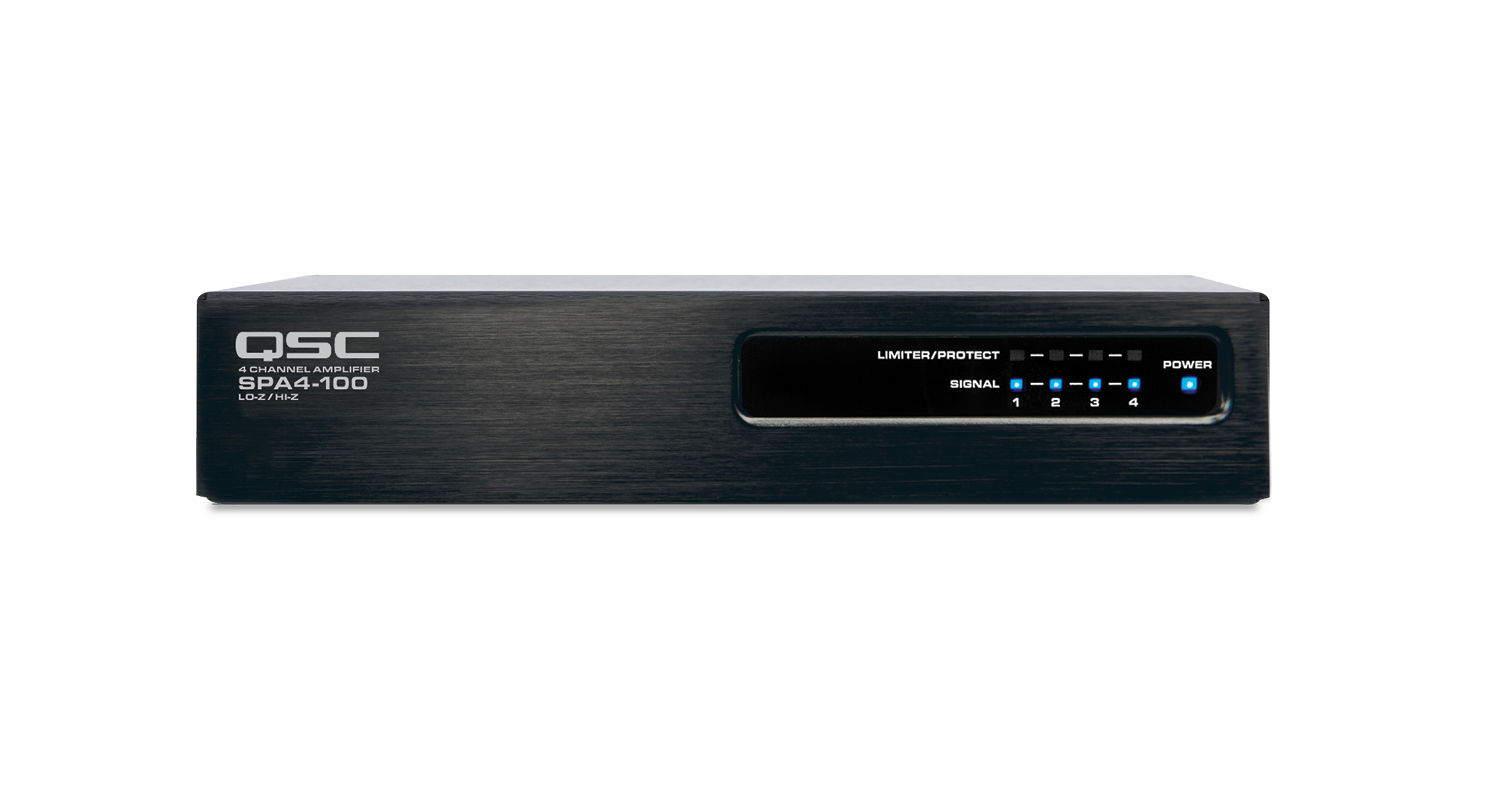

Front Panel Indicators | Power, per channel Signal, per channel Protect/Limit | |||
Controls | 4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair | |||
Dimensions (HWD) inches | 1.7 x 8.7 x 9.5 / 1RU | |||
Dimensions (HWD) mm | 43 x 220 x 241 / 1RU | |||
Weight (Net) | 3.5 lb / 1.6 kg | 3.5 lb / 1.6 kg | 4.0 lb / 1.4 kg | 4.0 lb / 1.4 kg |
Weight (Shipping) | 6 lb / 2.3 kg | 6 lb / 2.3 kg | 6.5 lb / 2.5 kg | 6.5 lb / 2.5 kg |
Agency Approvals | UL, CE, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit | |||
Carton Contents | Power cable, quick start guide, connector kit, rack mount ears, mounting brackets | |||
| *Peak Power 250 W | ||||
All specifications are subject to change without notice.
