Serie AcousticDesign (Premium)

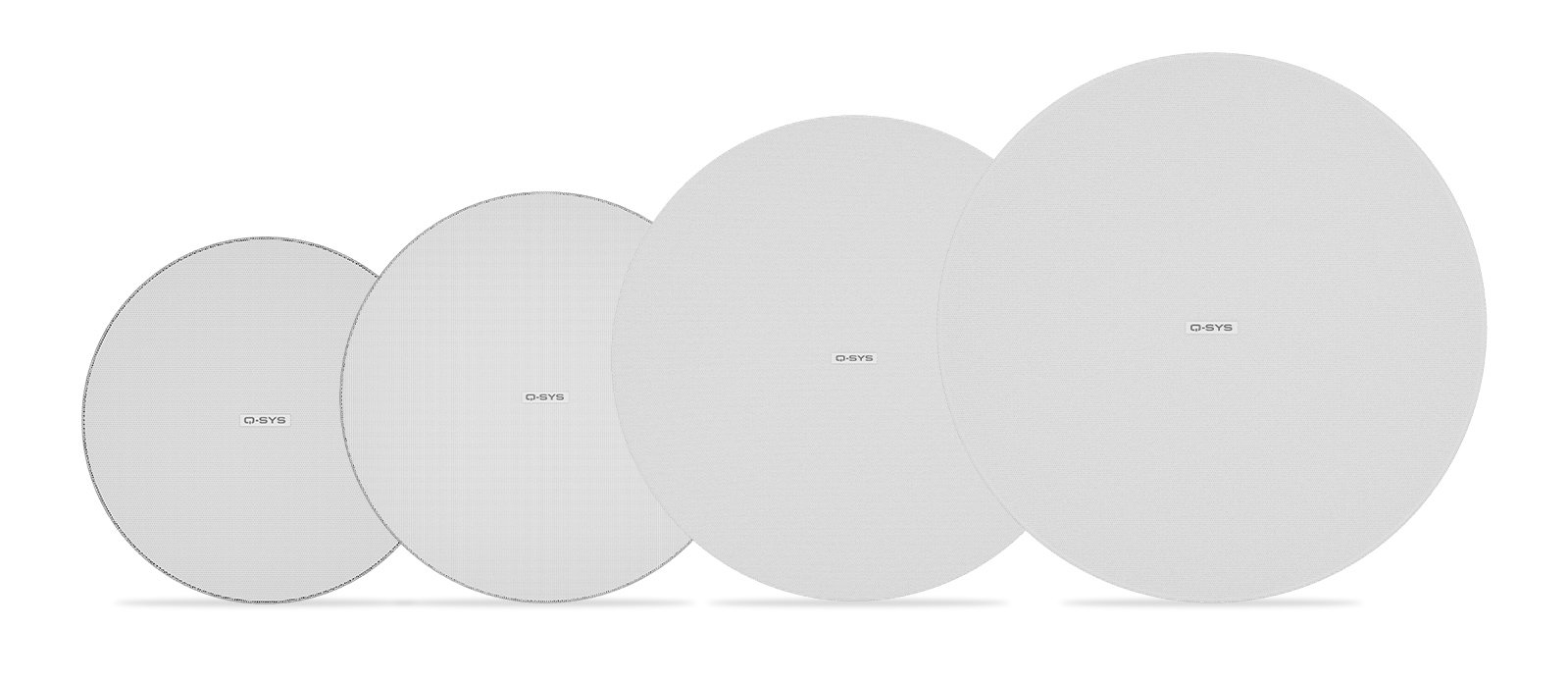

Los altavoces de techo AcousticDesign™ ofrecen una variedad de modelos diseñados a la medida de las demandas de aplicaciones de más alta fidelidad. Diseñados para una mayor claridad y precisión, estos sistemas de altavoces ofrecen una perfecta reproducción de audio para instalaciones que requieren una experiencia de audio refinada.
SELECT A MODEL
Small Format (4.5")
| AD-C4T-ZB | AD-C4T-LPZB | |
| Systems Type | 2-way | 2-way, shallow can |
| Bezel-less Design | ✔ | ✔ |
| Frequency Range, -10dB(Hz) | 70Hz–20kHz | |
| Nominal Coverage | 150° conical DMT™ | |
| Output (PeakSPL@1M) | 108 dB | |
| Rated noise power¹ | 30 | |
| Sensitivity² | 87.5 dB | 87.5 dB |
| LF Driver | 4.5in (114mm) | |
| HF Driver | 0.75in (19mm) | |
| Transformer Taps | 70V:30,15,7.5,3.75W and 16 bypass 100V:30,15,7.5W and 16 bypass | |
| Input Connectors | Euroblock connector with parallel output terminals | |
| Dimensions (W x D) inches | 9.06 x 6.94 | 11.02 x 3.93 |
| Dimensions (W x D) mm | 230 x 176 | 280 x 100 |
| Net Weight | 6.4lb (2.9kg) | 6.6lb (3kg) |
| Details | Details | |
¹ Continuous IEC specified test signal, 2 hours unless otherwise stated.
| ||
Small Format (6.5")
| AD-C6T-ZB | AD-C6T-LPZB | AD-C6T-HC | AD-C6T-HP | |||
| Systems Type | 2-way | 2-way, shallow can | 2-way | 2-way | ||
| Bezel-less Design | ✔ | ✔ | - | - | ||
| Frequency Range, -10dB(Hz) | 65Hz–20kHz | 65Hz–20kHz | 45Hz–20kHz | 58Hz–20kHz | ||
| Nominal Coverage | 140° conical DMT™ | 140° conical DMT™ | 75° conical | 120° conical | ||
| Output (PeakSPL@1M) | 112 dB | 112 dB | 116 dB | 115 dB | ||
| Rated noise power¹ | 60 | 60 | 120 W | 120 W | ||
| Sensitivity² | 88 dB | 88 dB | 90 dB | 89 dB | ||
| LF Driver | 6.5in (165mm) | |||||
| HF Driver | 0.75in (19mm) | 0.75in (19mm) | 1.4in (35.6mm) | 1.4in (35.6mm) | ||
| Transformer Taps | 70V:60,30,15,7.5W and 16 bypass 100V:60,30,15W and 16 bypass | |||||
| Input Connectors | Euroblock connector with parallel output terminals | |||||
| Dimensions (W x D) inches | 11.02 x 9.32 | 13.37 x 3.95 | 12 x 13.4 x 13.4 | 9.3 x 11 x 11 | ||
| Dimensions (W x D) mm | 280 x 237 | 340 x 100 | 313 x 340 x 340 | 235 x 280.5 x 280.5 | ||
| Net Weight | 9.5lb (4.3kg) | 9.3lb (4.2kg) | 19 lb (8.58 kg) | 13.39 lb (6.07 kg) | ||
| Details | Details | Details | Details | |||
¹ Continuous IEC specified test signal, 2 hours unless otherwise stated.
| ||||||
Large Format
| AD-C8T-ZB | AD-C10T-HPZB | |
| System Type | 2-way | 2-way |
|---|---|---|
| Bezel-less Design | ✔ | ✔ |
| Frequency Range, -10 dB (Hz) | 58 Hz - 20 kHz | 68 Hz - 20 kHz |
| Nominal Coverage | 90° conical DMT | 90° conical DMT |
| Power Rating | Continuous power 200 W @ 8Ω, rated Power 400 W | Continuous power 250 W @ 8Ω, rated Power 500 W |
| Sensitivity | 92.5 dB @ 1 W/1 m | 92.5 dB @ 1 W/1 m |
| LF Driver | 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite | 10 in (254 mm), 2.0 in. (50.8 mm) voice coil, ferrite |
| HF Driver | Coaxial compression driver, 1.5 in (38.1 mm) voice coil | Coaxial compression driver, 1.5 in (38.1 mm) voice coil |
| Transformer Taps (70v/100v) | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
| Input Connectors | 4-pin 0.2 in (5 mm) Euroblock connector with parallel output | 4-pin 0.2 in (5 mm) Euroblock connector with parallel output |
| Dimensions (HWD) inches | 13.5 x 13.5 x 13.75 | 13.5 x 13.5 x 13.75 |
| Dimensions (HWD) mm | 342.9 x 342.9 x 349.25 | 342.9 x 342.9 x 349.25 |
| Net Weight | 23.7 lb (10.75 kg) | 23 lb (10.5 kg) |
| Details | Details | |
1 Continuous IEC specified test signal, 2 hours unless otherwise stated.
| ||
SUB/SAT
| AD-C.SUB | AD-C.SAT | |
| Systems Type | Subwoofer | Satellite loudspeaker |
|---|---|---|
| Frequency Range, -10dB(Hz) | 45 Hz - 150 Hz | 150 Hz - 20 kHz |
| Nominal Coverage | N/A | 170° Conical |
| Output (Peak SPL @ 1M) | 106 dB | 96 dB |
| Rated noise power | 100 W | 25 W |
| Sensitivity | 86 dB | 82 dB |
| LF Driver | 6.5 in (165 mm) dual voice-coil | N/A |
| HF Driver | N/A | 2.75 in (70 mm) |
| Transformer Taps | 70 V : 100, 50, 25, 12.5 W and 4 Ω bypass 100V : 100, 50, 25 W and 4 Ω bypass | 16 Ω |
| Connectors | Mono Input: 4-pole Euroblock with thru output Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites | 2-pole Euroblock |
| Dimensions (W x D) inches | Ø13.4 x 10 | Ø5.9 x 3.4 |
| Dimensions (W x D) mm | Ø340 x 254 | Ø150 x 86 |
| Net Weight | 19.2 lb (8.7 kg) | 1.39 lb (0.6 kg) |
| Details | Details |
All specifications are subject to change without notice
Subwoofer
| AD-C8T-SWZB | |
| System Type | Ceiling Subwoofer, Bass Reflex |
|---|---|
| Bezel-less Design | ✔ |
| Frequency Range, -10 dB (Hz) | 53 Hz - 195 Hz |
| Nominal Coverage | Omni |
| Power Rating | Continuous power 250 W @ 8Ω, rated Power 500 W |
| Sensitivity | 92.3 dB @ 1 W/ 1 m |
| LF Driver | 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite |
| HF Driver | N/A |
| Transformer Taps (70v/100v) | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
| Input Connectors | 4-pin 0.2 in (5 mm) Euroblock connector with parallel output |
| Dimensions (W x D) inches | 13.5 x 13.5 x 13.75 |
| Dimensions (W x D) mm | 342.9 x 342.9 x 349.25 |
| Net Weight | 22.4 lb (10.1 kg) |
| Details |
All specifications are subject to change without notice.
Accessories
| Mud Ring | New Construction Ring | Full Capture Marine Grill/Collar | Black Ceiling Grille | Zero Bezel Collar | ||||
| AD-C4T | AD-MR4 | - | - | - | - | |||
|---|---|---|---|---|---|---|---|---|
| AD-C4T-ZB | AD-MR4 | - | - | - | - | |||
| AD-C4T-LP | AD-MR6 | - | AD-MC245 AD-MG245 | - | - | |||
| AD-C4T-LPZB | AD-MR6 | - | - | AD-C254BG | - | |||
| AD-C6T | AD-MR6 | - | AD-MC245 AD-MG245 | - | - | |||
| AD-C6T-ZB | AD-MR6 | - | - | AD-C254BG | - | |||
| AD-C6T-LP | AD-MR8 | - | - | - | - | |||
| AD-C6T-LPZB | AD-MR8 | - | - | AD-C305BG | - | |||
| AD-C820 | - | - | - | - | - | |||
| AD-C821 | ADC-MRS | ADC-NCS | - | - | - | |||
| AD-C1200 | - | - | - | - | - | |||
| AD-C81Tw | ADC-MRS | ADC-NCS | - | - | - | |||
| AD-C6T-HP | AD-MR6 | - | - | AD-C254BG | AD-C245C | |||
| AD-C6T-HC | AD-MR8 | - | - | AD-C305BG | AD305C | |||
| ||||||||
