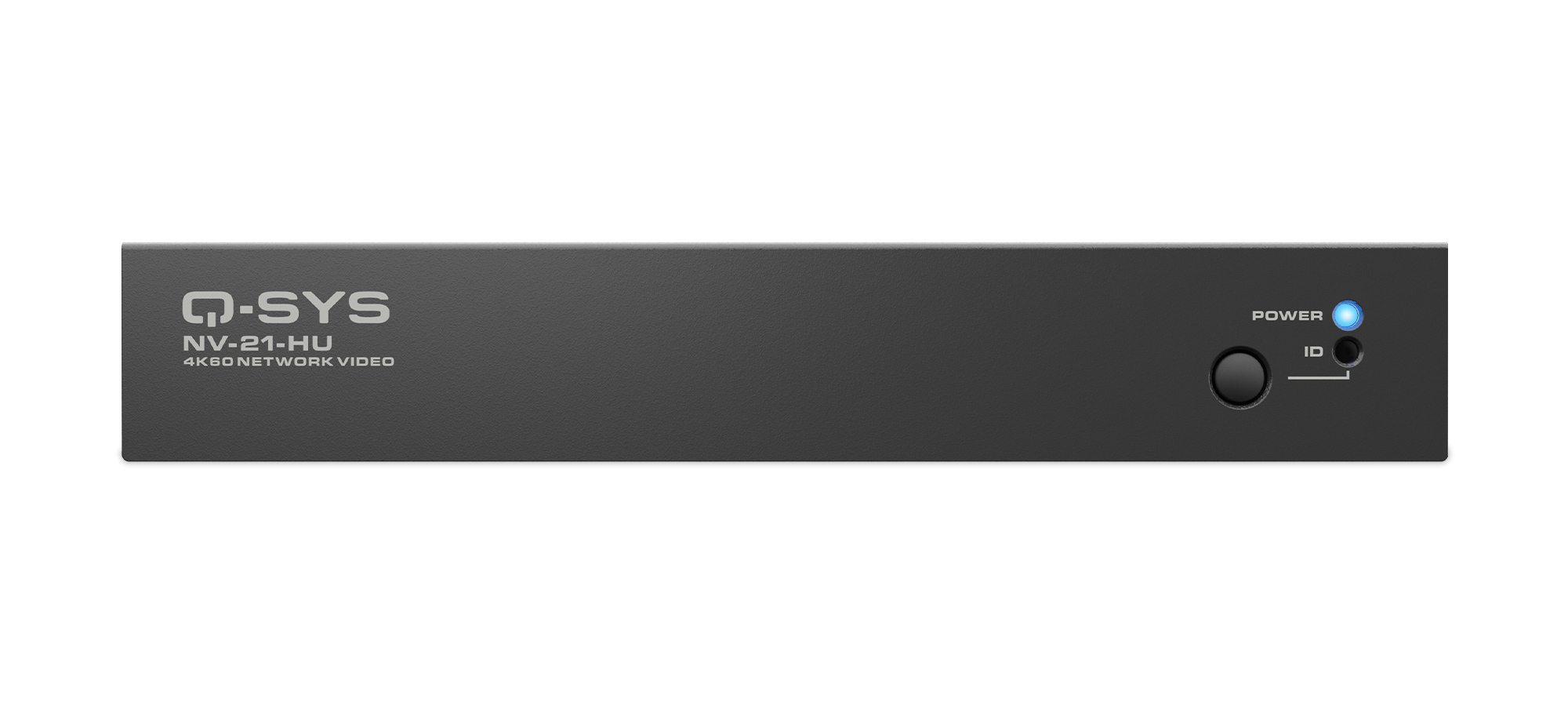

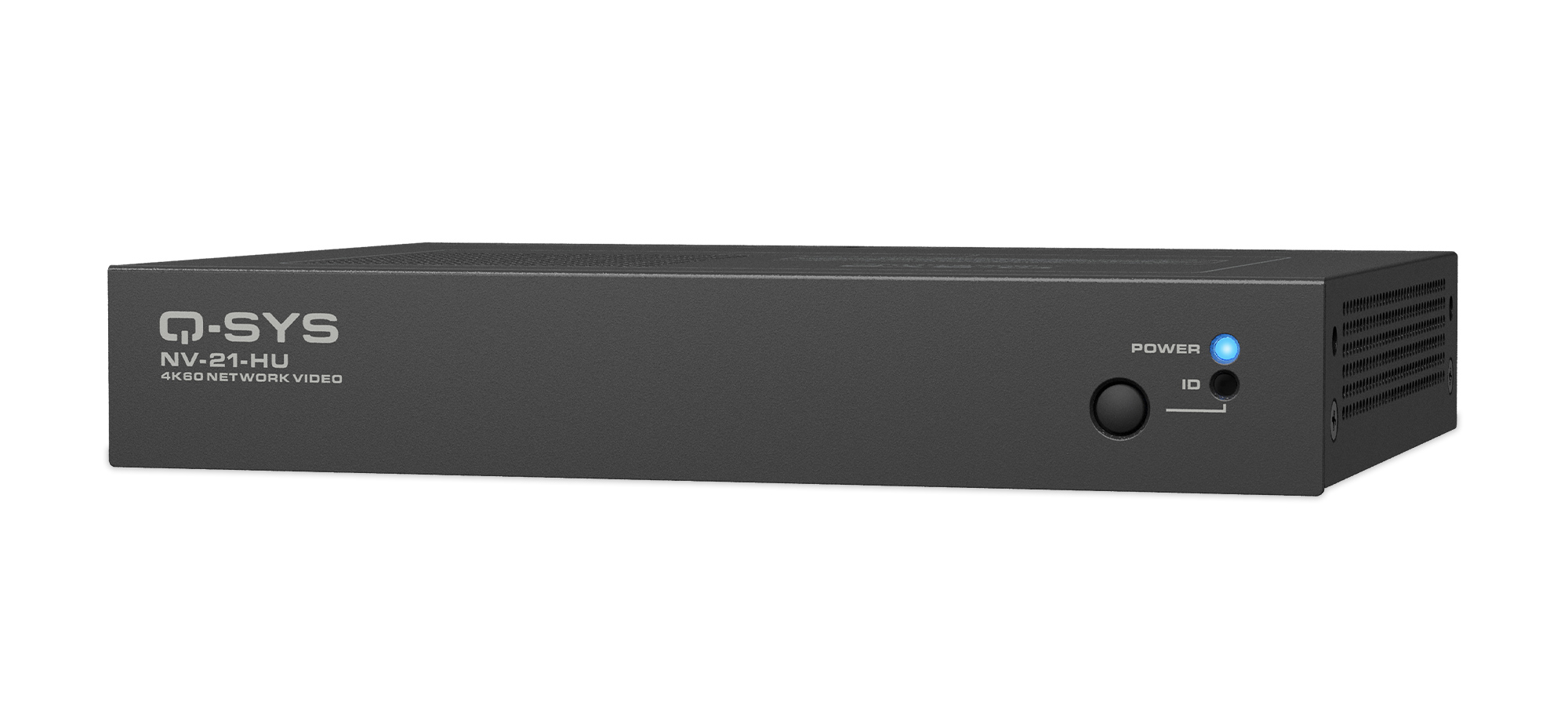

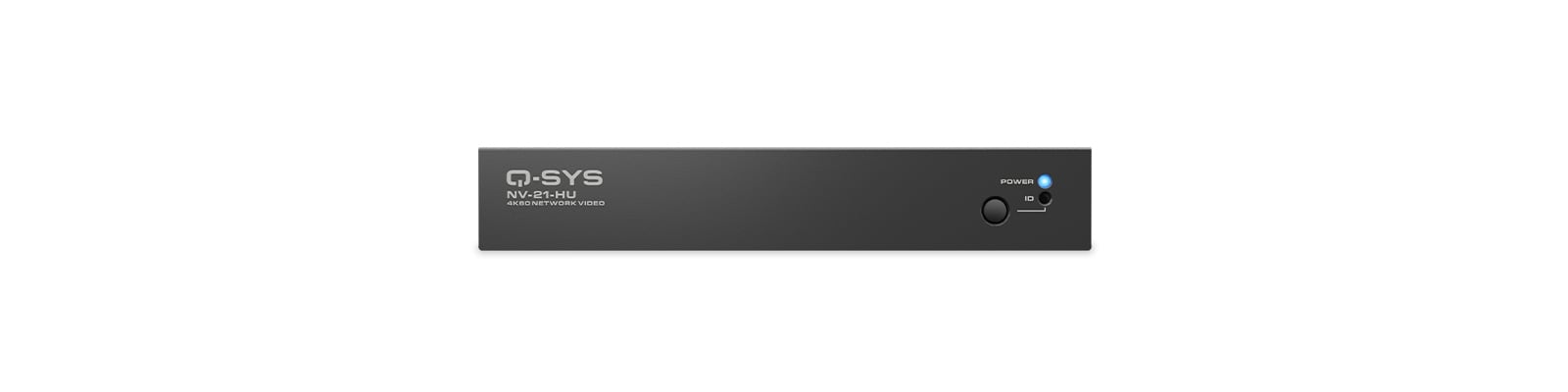

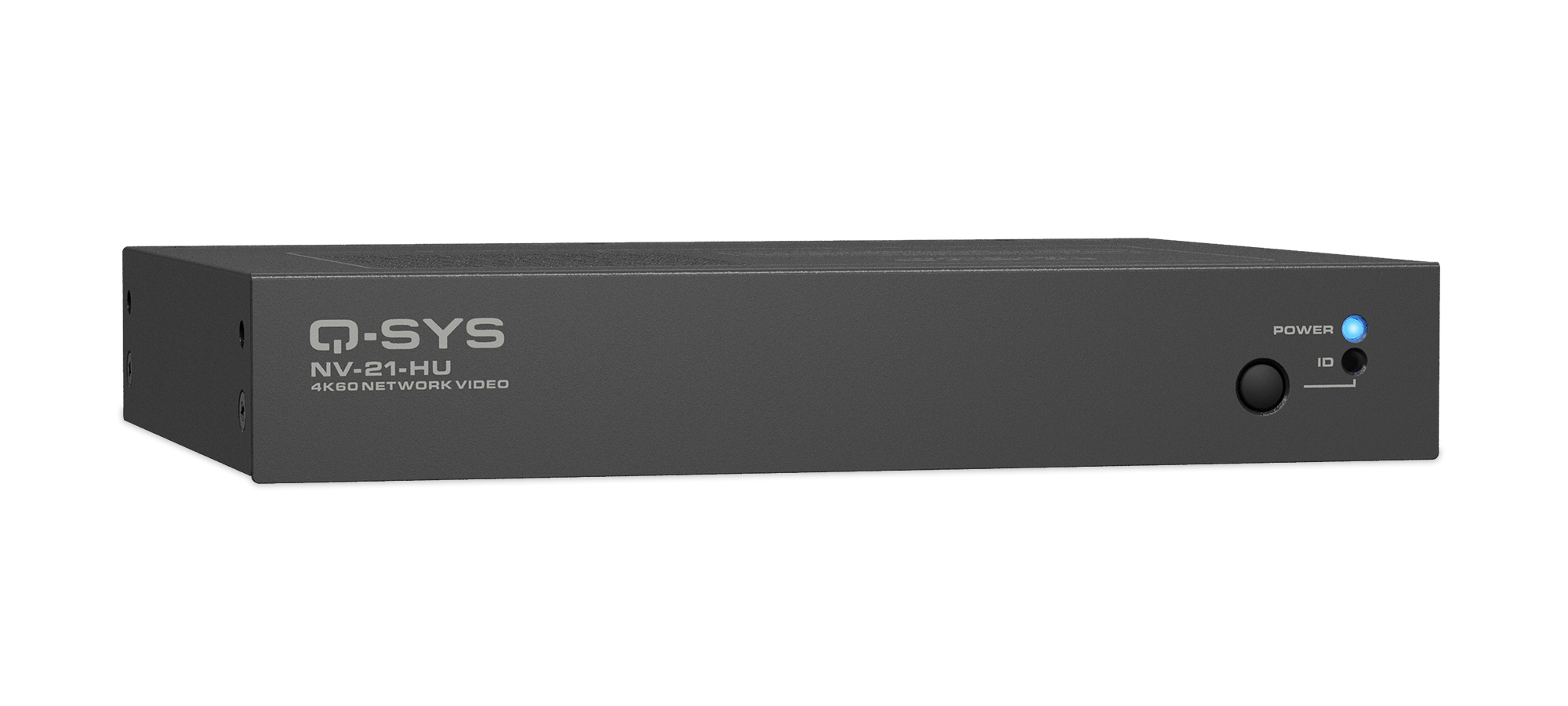

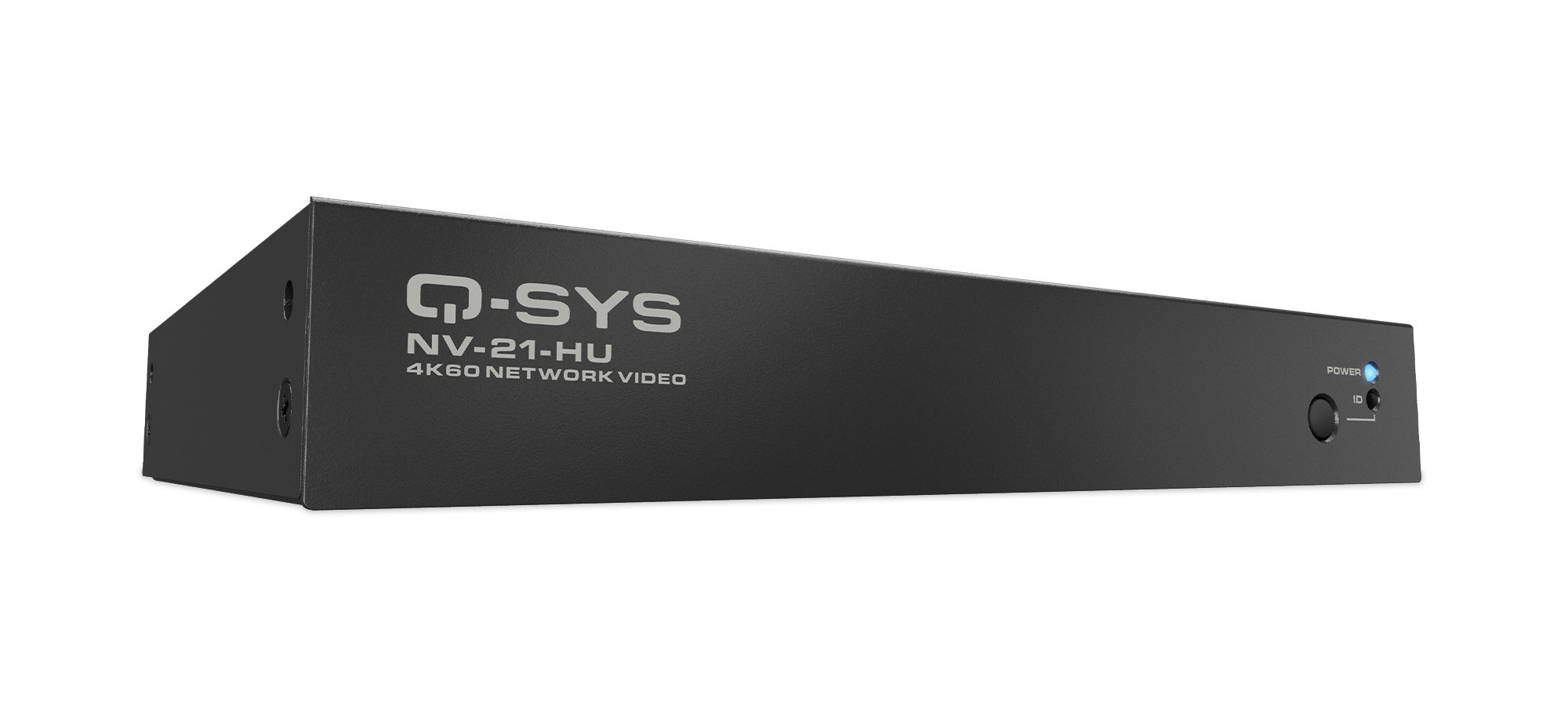

NV-21-HU
Q-SYS Network Video Endpoints
The Q-SYS NV Series NV-21-HU is the next evolution for native video distribution on the Q-SYS Platform. The NV-21-HU is a software configurable endpoint offering a comprehensive single-cable solution for audio and video distribution, AV bridging and device charging via USB-C. The NV-21-HU’s compact size and reduced I/O make it ideal for supporting meeting rooms, learning spaces, hospitality and entertainment installations. The NV-21-HU can be used alongside other Q-SYS NV Series video endpoints, providing system design flexibility. Like all Q-SYS products, the NV-21-HU offers native integration and control, simplifying configuration and operation.
Features & Benefits
Single Cable Solution: The Q-SYS NV-21-HU simplifies the user experience and intuitively supports a wide range of devices. A single USB-C connection to the NV-21-HU enables a user’s device to distribute video formats up to 4K60 4:4:4 via Q-SYS Shift™ video codec, integrate Q-SYS video camera and audio feeds into a supported collaboration application1 and charge their device simultaneously2.
Maximize Flexibility in Design & Specification: The NV-21-HU is software-configurable as an encoder or decoder in Q-SYS Designer Software and offers the ability to operate in either HDMI or USB-C mode, supporting a broader range of user devices without adapters or converters. In addition, the NV-21-HU supports the AV Bridging feature license as an AV bridging endpoint when needed. For a limited time, the AV Bridging feature license is included with the purchase of the NV-21-HU.
HDMI Mode: In HDMI mode, the NV-21-HU enables video distribution from the HDMI input and uses the USB-C connection to offer AV bridging and device charging.
USB-C Mode: In USB-C mode, the NV-21-HU enables video distribution, AV bridging and device charging via the USB-C connection.

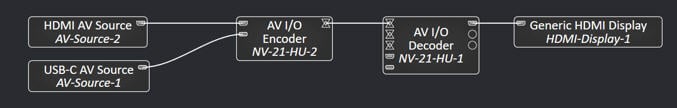

Dual Streaming support (when set as encoder): Enables both the HDMI in and USB-C to encode separate video streams to the network (1080p maximum resolution). Supported in Q-SYS Designer Software v9.10 and above.
Right-sized: The NV-21-HU provides designers with a more compact endpoint within the NV Series. The smaller design and reduced I/O (compared to the Q-SYS NV-32-H) enable simple and scalable designs across various applications, including meeting rooms, learning spaces, hospitality, and entertainment installations.
Designed for Q-SYS: Q-SYS NV Series Network Video endpoints are native to Q-SYS, which is powered by the Q-SYS OS; this software foundation manages NV Series endpoints and all other Q-SYS Products from a single application. The Q-SYS Platform’s modern IT architecture and development tools enable an entire ecosystem of third-party integrations developed by approved Q-SYS Partners and a worldwide community of developers using the available tools found in Q-SYS Open.
1. AV Bridging feature license is required to activate AV Bridging on the NV-21-HU. For a limited time, it will be included with the purchase of each NV-21-HU (until further notice).
2. An external power supply is required for any device charging over the USB-C connection. NV-21-PSU available separately.

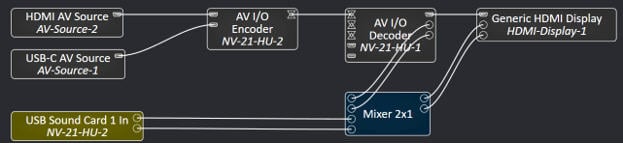

Configuration Options
Click to Enlarge
Click to Enlarge
Application Diagrams
Click to Enlarge
Click to Enlarge
Click to Enlarge
Click to Enlarge
Specifications

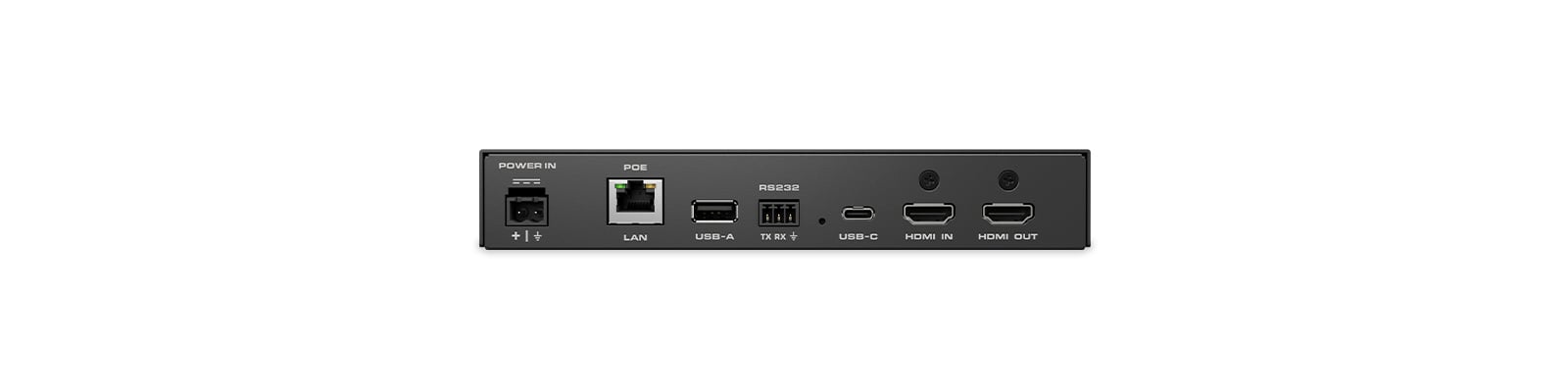

Video I/O | |||
HDMI 2.0 inputs | 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 | ||
USB-C Input | 1x USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port - Supporting DisplayPort Alt-Mode (DP 1.4 Sink) - capable of receiving input video formats up to 4K60 4:4:4 | ||
HDMI 2.0 Output | 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4 | ||
Scaler | HDMI output features a robust 4K60 4:4:4 scaler that can accomodate the most challenging resolution and frame rate conversions. | ||
Audio I/O | |||
HDMI inputs | 8-channel PCM audio1, Q-SYS routable | ||
USB Type C input | 8-channel PCM audio1, 1x1 speakerphone1, 2x2 soundcard1, Q-SYS routable | ||
HDMI outputs | 8-channel PCM audio1, Q-SYS routable | ||
General | |||
Dimensions | 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm) | ||
Weight | 1.75 lbs (794 g) | ||
Mounting options | Flexible surface mounting hardware included | ||

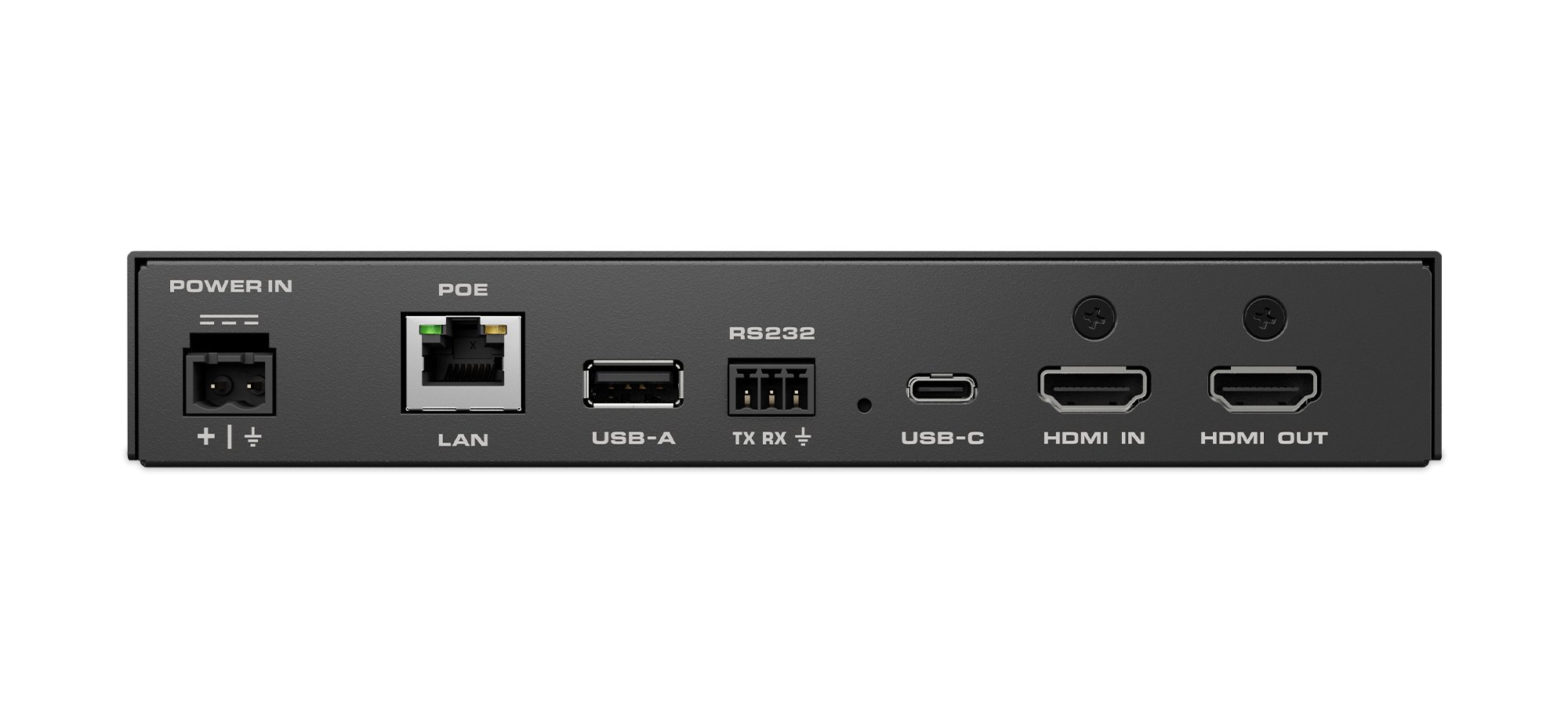

Others | |||
USB Type C input | USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port - Supporting DisplayPort Alt-Mode (DP 1.4 Sink) - USB Power Delivery up to 65W3 | ||
USB Type A input | USB HID Routing - 5 V DC 900 mA | ||
LAN | 1000BASE-T, 2.5GBASE-T compliant | ||
Power Over Ethernet | PoE Type 3, Class 5 (40W at PD, 45W at PSE)2 | ||
Auxiliary Power Supply | 12V DC 9 A Power Supply. NV-21-PSU sold separately.3 | ||
Environmental | |||
Ambient operating temperature range | 0° to 40° C | ||
Humidity | 5 to 90 RH % non-condensing | ||
Storage temperature | -20° to 70° C | ||
Expected Product lifecycle | 10 years |
1. For a limited time, it is included with the purchase of each NV-21-HU (until further notice).
2. When powered via PoE, the NV-21-HU cannot charge devices over the USB-C connection
3. An external power supply is required for any device charging over the USB-C connection.
