SR-8101

Surround Loudspeaker

Contact Us

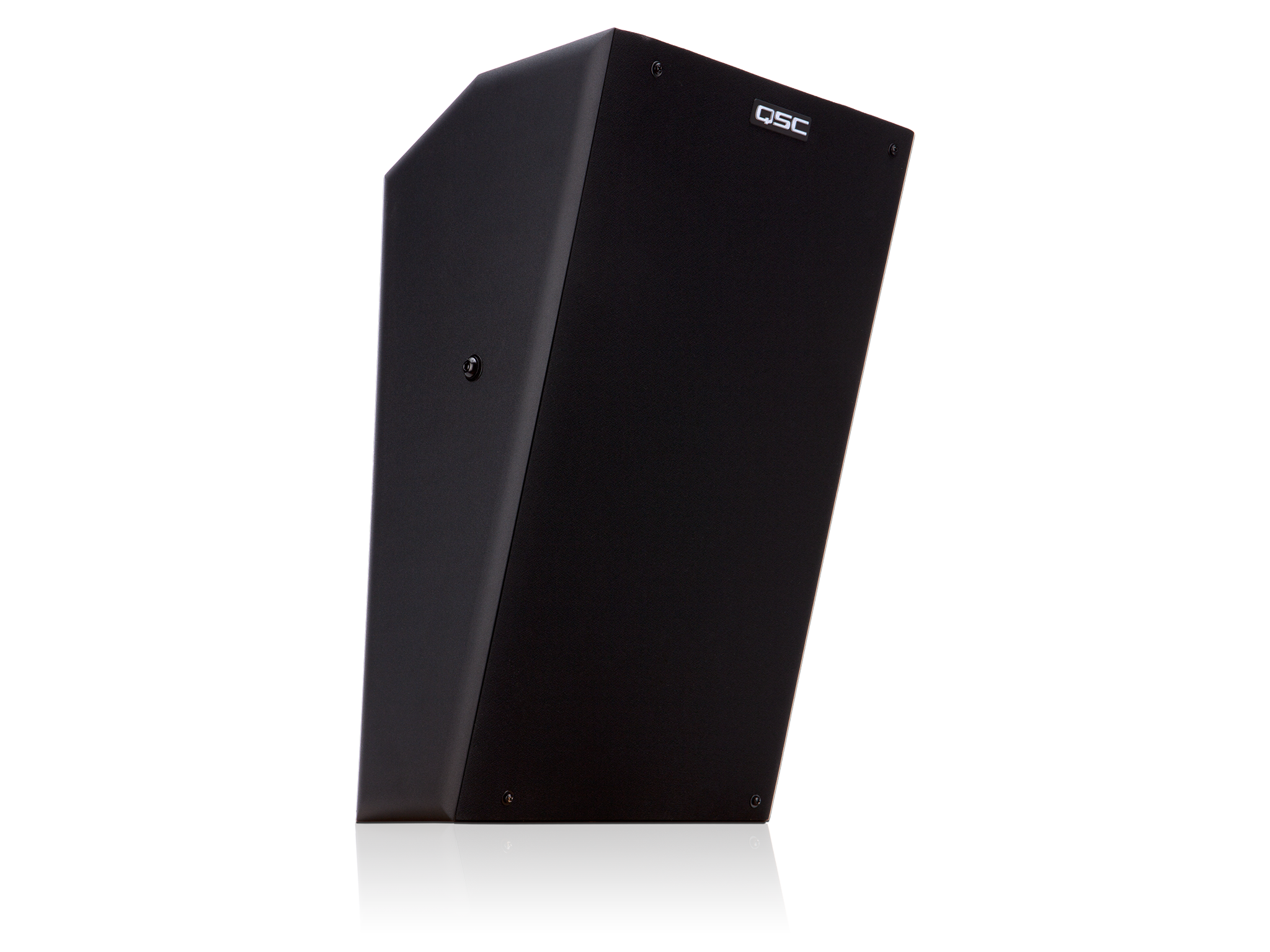

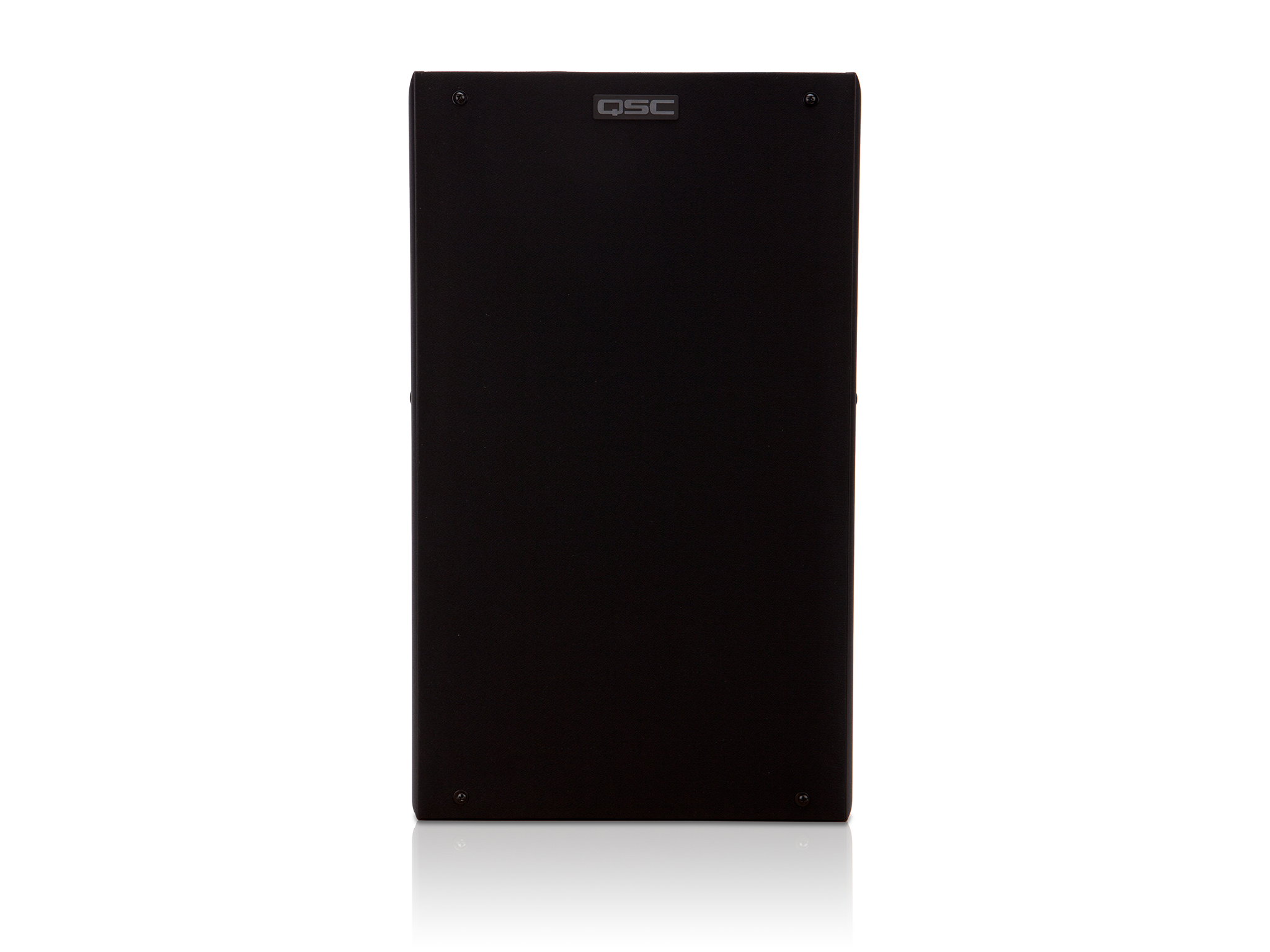

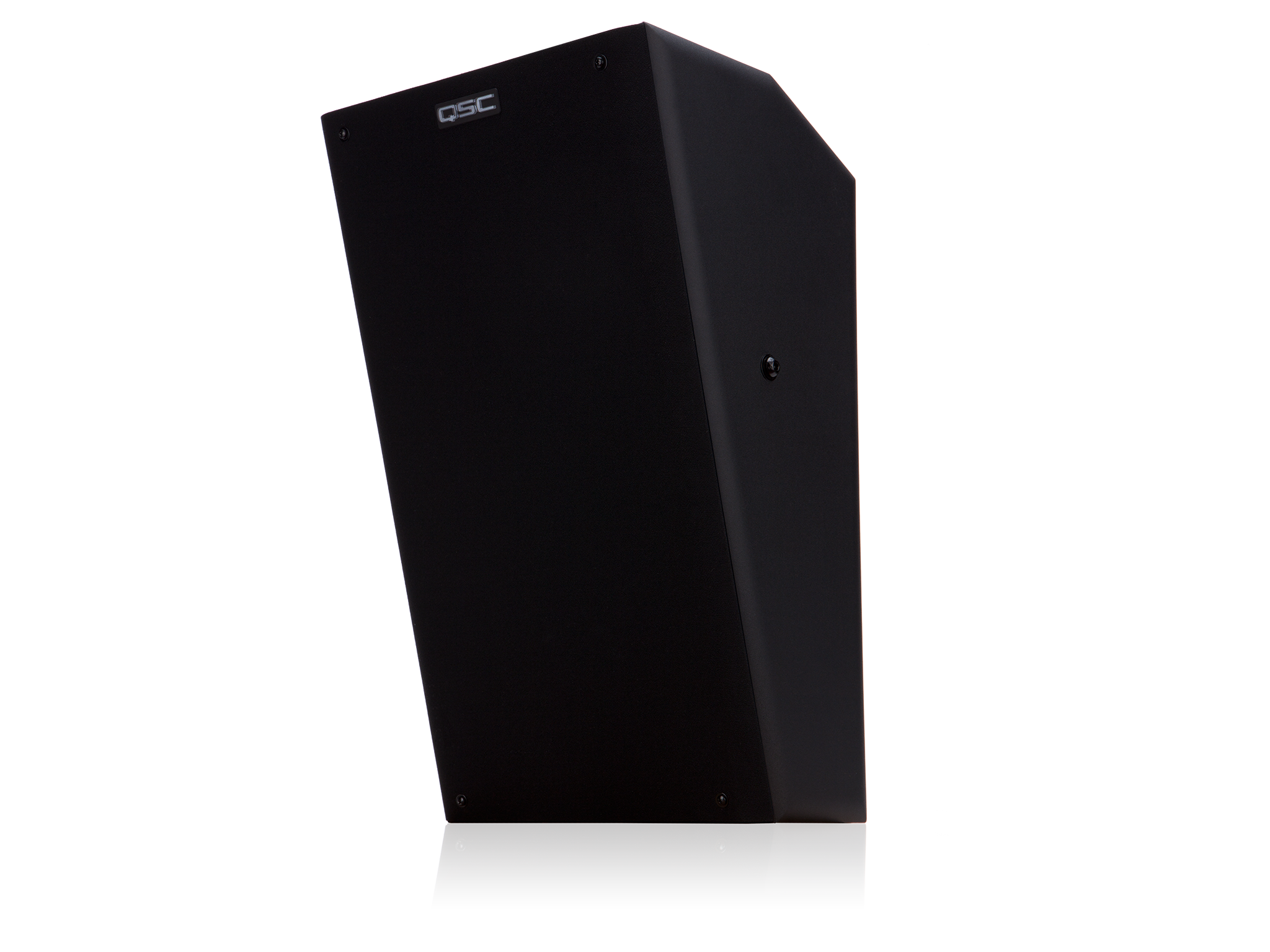

Front and angled view of the Sr-8101 with and without speaker grill
Hero top view of a SR-8101

QSC announces divestiture of its Digital Cinema Series product line to Moving iMage Technologies, including the Screen Channel (“SC”), Subwoofer (“SB”), Surround (“SR”), and Screen Channel (“RSC”) product lines.

For all inquiries, please visit DSCreference.com or contact [email protected]

Array of Q-SYS PL series speakers including linearray, subs and loudspeakers

This product has been discontinued. Please check with your Q-SYS regional sales representative for remaining stock availability.

Consider the PL Series performance loudspeakers as a replacement:

  • The PL Series is a portfolio of performance loudspeakers designed to deliver premium sound for Q-SYS systems in a broader range of applications
  • Available in multiple form factors, enabling design flexibility and optimal audio experiences for every unique space

Features

  • Parallel outputs for feeding additional units
  • 130° horizontal dispersion
  • Pre-installed speaker-side mounting hardware for fast, easy, and secure installation. Use with QM-SW or QM-BW for wall mounting (sold separately).

SPECIFICATIONS
 		 SR-8101
Frequency Range 1
(-10 dB, half space)

54 Hz to 20 kHz
Nominal Coverage 130° horizontal x 110° vertical
(averaged from 1 kHz to 8 kHz, -6 dB)

Maximum Rated SPL 2
Calculated Peak at rated power
Calculated Continuous
118 dB
112 dB
Rated Impedance 8 ohms
Rated Noise Power 3 125 watts
Sensitivity 1 watt/1 meter, free-field 4 91 dB
Crossover Frequency 1.7 kHz
Recommended Processing Subsonic filter at 50 Hz
Connectors 4-position barrier strip, accepts up to #10 AWG stranded wire
Transducers 8" long throw low frequency transducer
1" soft dome tweeter
Enclosure MDF, baffle angle is 15° downward
Dimensions (HWD) inches 19.5 × 12 × 9.6
Dimensions (HWD) mm 495  × 305  × 244
Weight 18.6 lb (8.4 kg)


1 Free-field, -10 dB from on-axis sensitivity
2 Calculated from rated noise voltage and sensitivity
3 IEC60268-1 noise signal for 2 hours
4 On-Axis, free-field sensitivity, 2.83V at 1 m

Specifications are subject to change without notice.
