Video built inside a Platform, not beside it
Q-SYS video solutions leverage a fully integrated audio, video and control engine that streamlines system integration, from no-code workflows and end-to-end automation to comprehensive user control to deliver Q-SYS video in a broad range of spaces.
Learn about the differences below, then decide which one is right for your installation.
NV Series
Flexible and customizable for collaboration spaces
Q-SYS NV Series video endpoints offer tailored video distribution solutions based on connectivity requirements, I/O density, form factor and available software licenses, allowing designers to customize and optimize any system, especially where user interaction is paramount like meeting rooms and learning spaces.

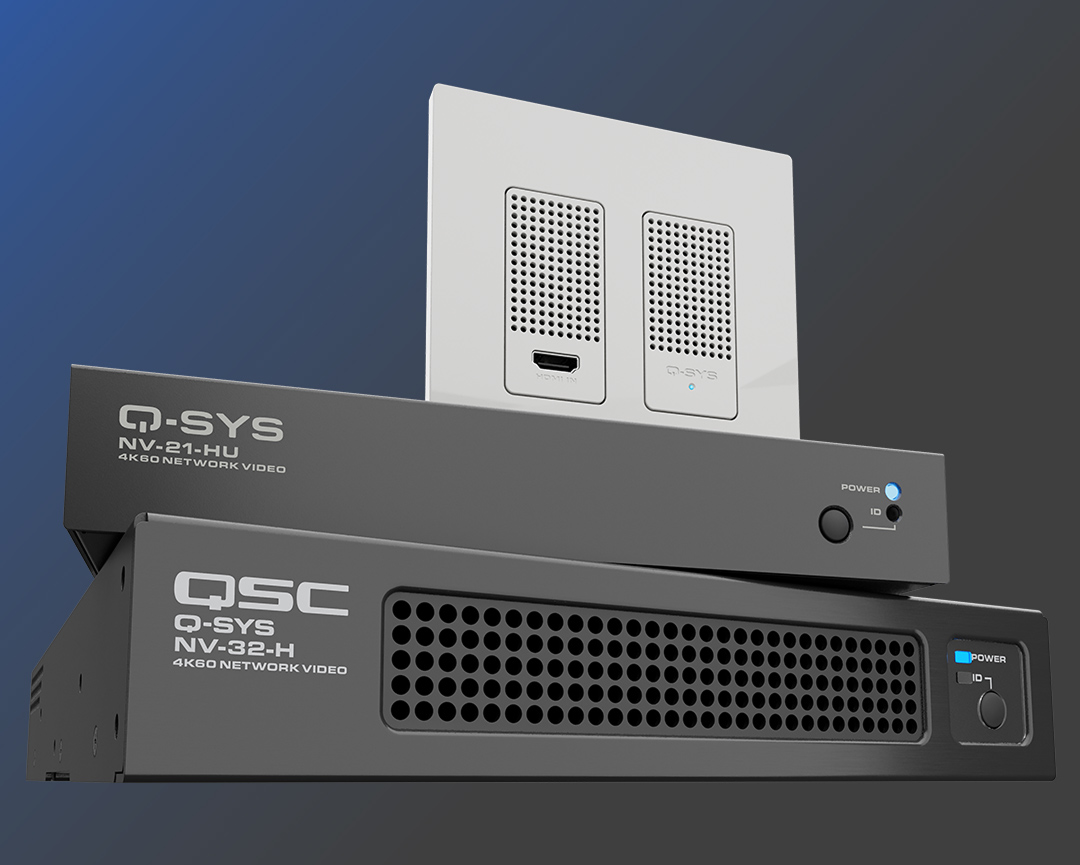

NV Series endpoints
NV-32-H (Core Capable): Encoder or decoder (software-definable) with USB-B AV bridging. Available Core mode enables fully integrated Q-SYS processing (Core Mode Streaming feature license required for simultaneous Core processing and network video encoding/decoding).
NV-21-HU: Encoder or decoder (software-definable) with USB-C AV bridging. Dual USB-C & HDMI streaming supported when set as encoder.
NV-1-H-WE: Single-channel encoder with 1x HDMI input. Wallplate form factor ideal for flexible and divisible spaces.
NVM Series
New
Q-SYS Video. Everywhere.
Q-SYS NVM Series video endpoints pair low-density HDMI I/O with network-efficient AV transport to deliver Q-SYS network video that is purpose-built for large-scale deployments in a broad range of spaces from entertainment and hospitality to collaboration, government and more.

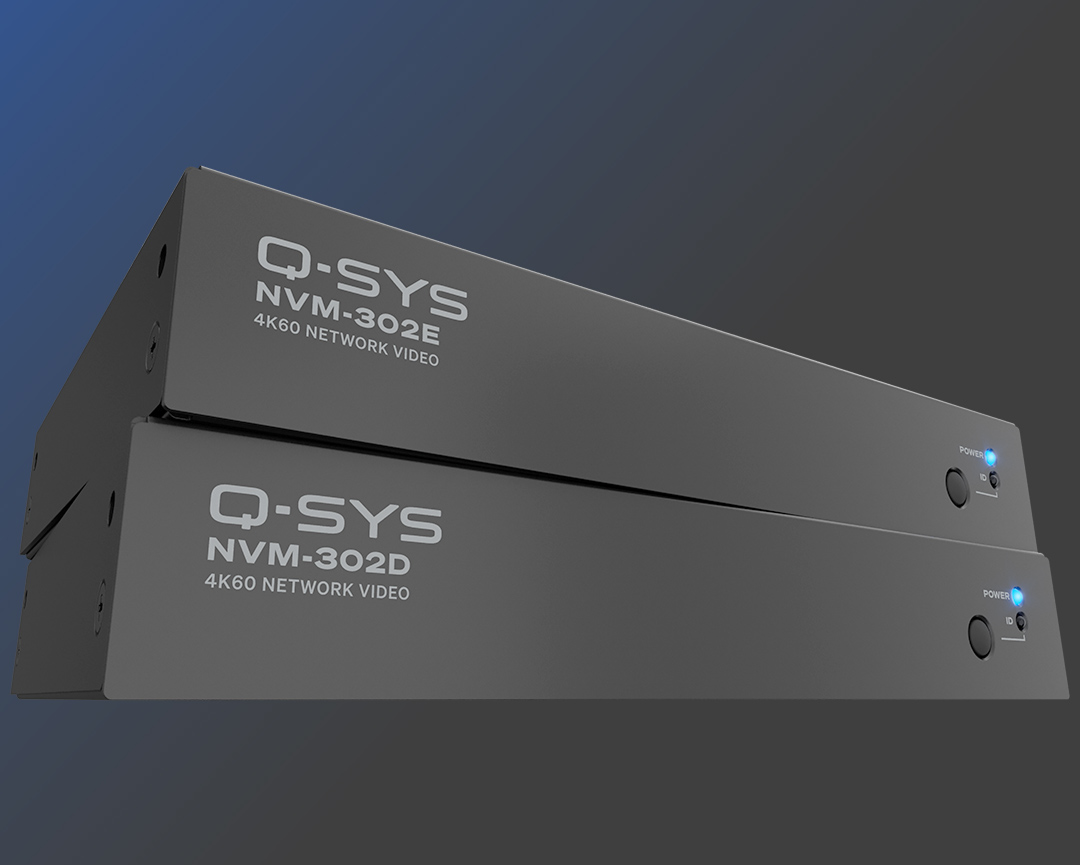

NVM Series endpoints
NVM-302E: Encoder pre-installed with a single-channel encode video app; optional feature license available to enable a dual-channel encode video app.
NVM-302D: Decoder pre-installed with a single-channel decode video app.
Both endpoints enable third-party device control (IR & RS232) and offer onboard USB-C that will enable integrated AV bridging in a future Q-SYS Designer Software release.
Note: To deliver the best possible experience and support as availability expands, NVM Series is being introduced through a phased regional rollout, with broader availability planned soon. The Americas are among the first regions in this rollout, with availability in APAC, EMEA and SAARC varying by market; please check with your local Q-SYS representative for the latest information specific to your area.
SELECT A SERIES
| NV Series | NVM Series |
| HDMI | |
| Up to 3x HDMI input (encode) or 2x HDMI output (decode) | Up to 2x HDMI input (encode) or 1x HDMI output (decode) |
| Video codec | |
| Shift: proprietary codec, dynamic bandwidth | Mediacast: AV routing paradigm built around industry-standard codec, network-efficient for scalability |
| Video Resolution | |
| Up to 4K60 4:4:4 | Up to 4K60 4:4:4 |
| AV Bridging | |
| Yes (except NV-1-H-WE wallplate encoder) | No (will be available in a future Q-SYS Designer release) |
| PoE capable | |
| Yes (PoE+) | Yes (PoE+) |
| Ideal for | |
| Collaboration applications where user is interacting with content | Large-scale video deployments |
