As the predominant audio format in most of the world’s cinemas, traditional 5.1 and 7.1 audio formats provide an excellent sonic experience for movies of all genres. Our catalog of screen channel, surround, and subwoofer loudspeakers can accommodate rooms of any size, from the smallest private cinema to the largest Premium Large Format showcase.
Q-SYS Cinema 5.1/7.1 Features
Multiple Processing Options
From our DPM Series processors to our Q-SYS Cores, all of our processing options are tailored to optimize the sound of any 5.1 or 7.1 cinema sound format.
Installation made easy
All Q-SYS Cinema loudspeakers were designed by professionals with years of experience who know the pain points of installation. Our aim is to make every installation as easy, quick, and safe as possible.
Example Diagrams

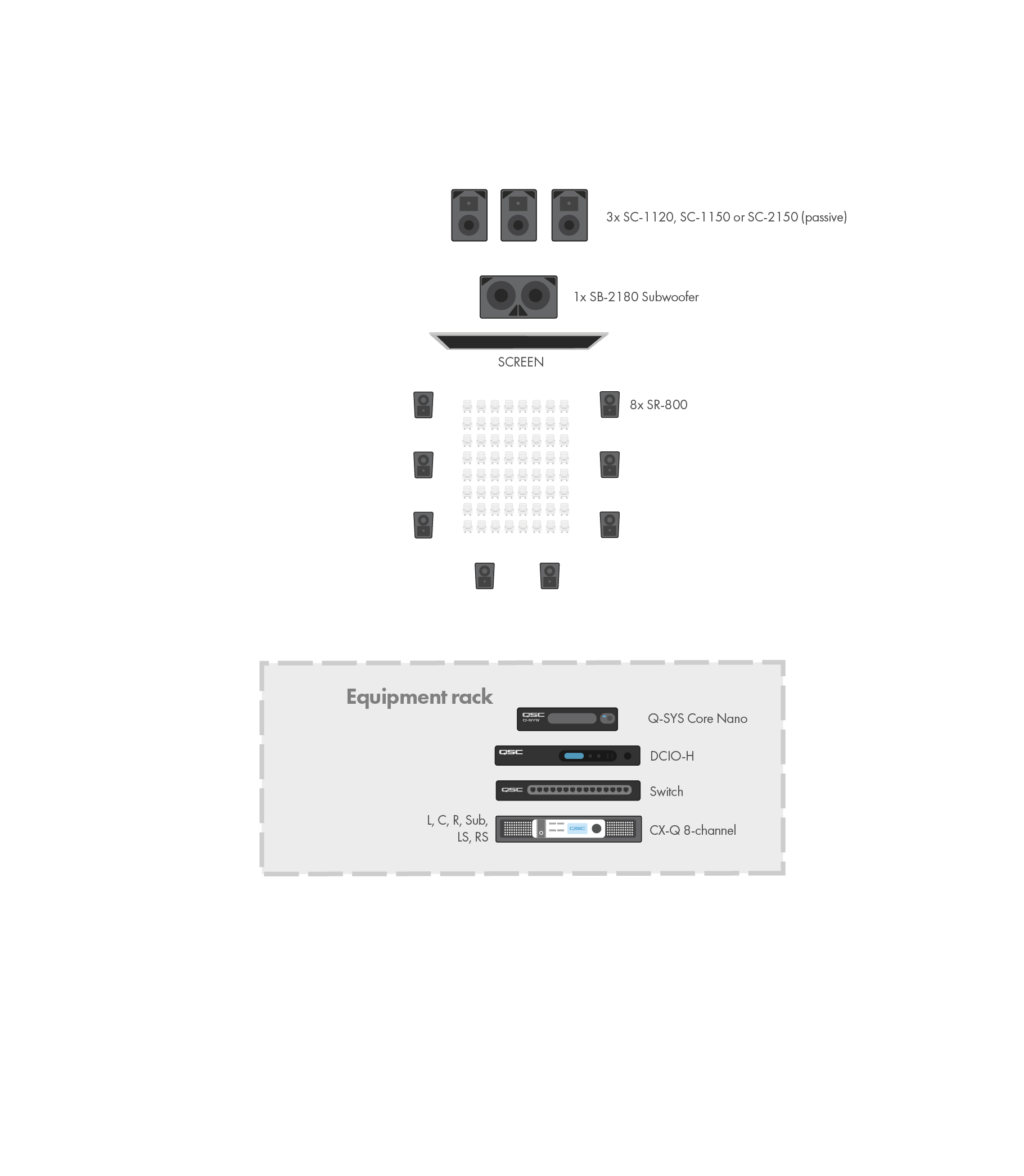

Small
Click image to enlarge
System Components
1 – Q-SYS Core Nano Network I/O Processor
1 – DCIO-H Digital Cinema Input/Output
1 – Switch
1 – CX-Q 8-Channel Power Amplifier
3 – SC-1120, SC-1150 or SC-2150 Screen Channel Loudspeakers
1 – SB-2180 Subwoofer
8 – SR-800 Surround Loudspeakers

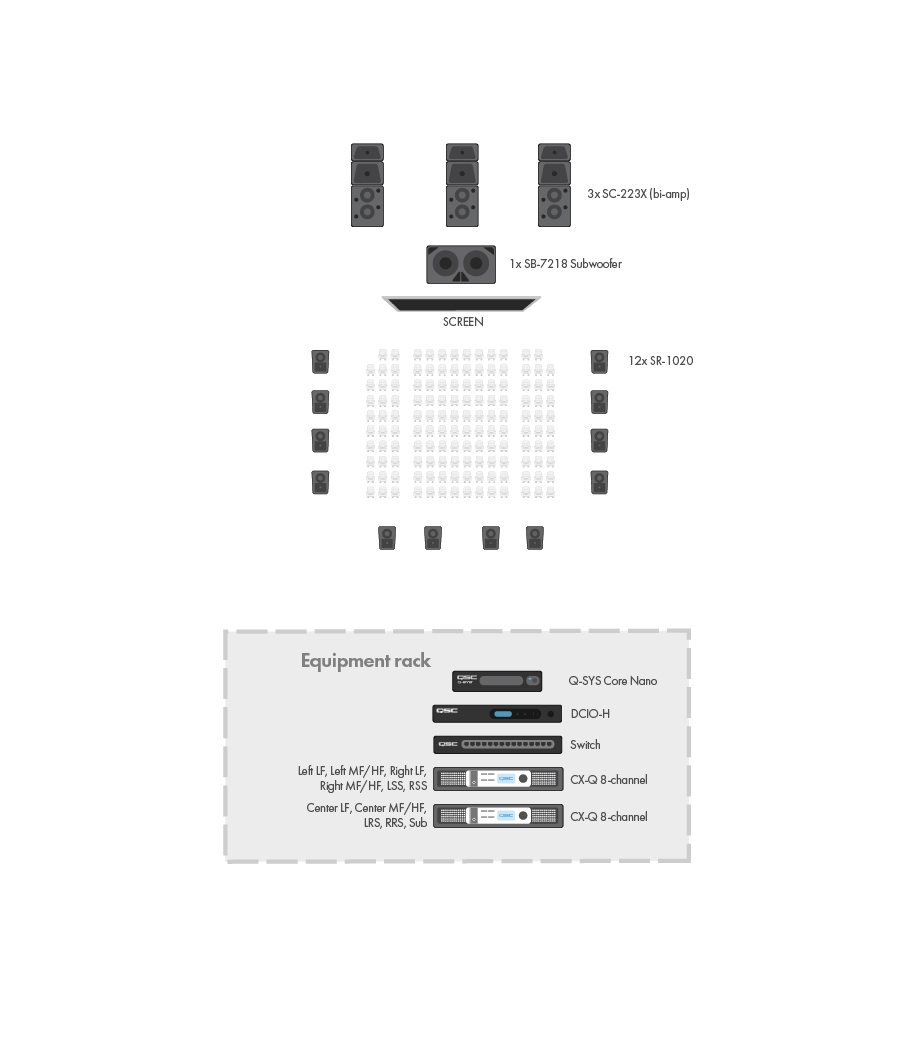

Mid-size
Click image to enlarge
System Components
1 – Q-SYS Core Nano Network I/O Processor
1 – DCIO-H Digital Cinema Input/Output
1 – Switch
2 – CX-Q 8-Channel Power Amplifier
3 – SC-223X Screen Channel Loudspeakers
1 – SB-7218 Subwoofer
12 – SR-1020 Surround Loudspeakers

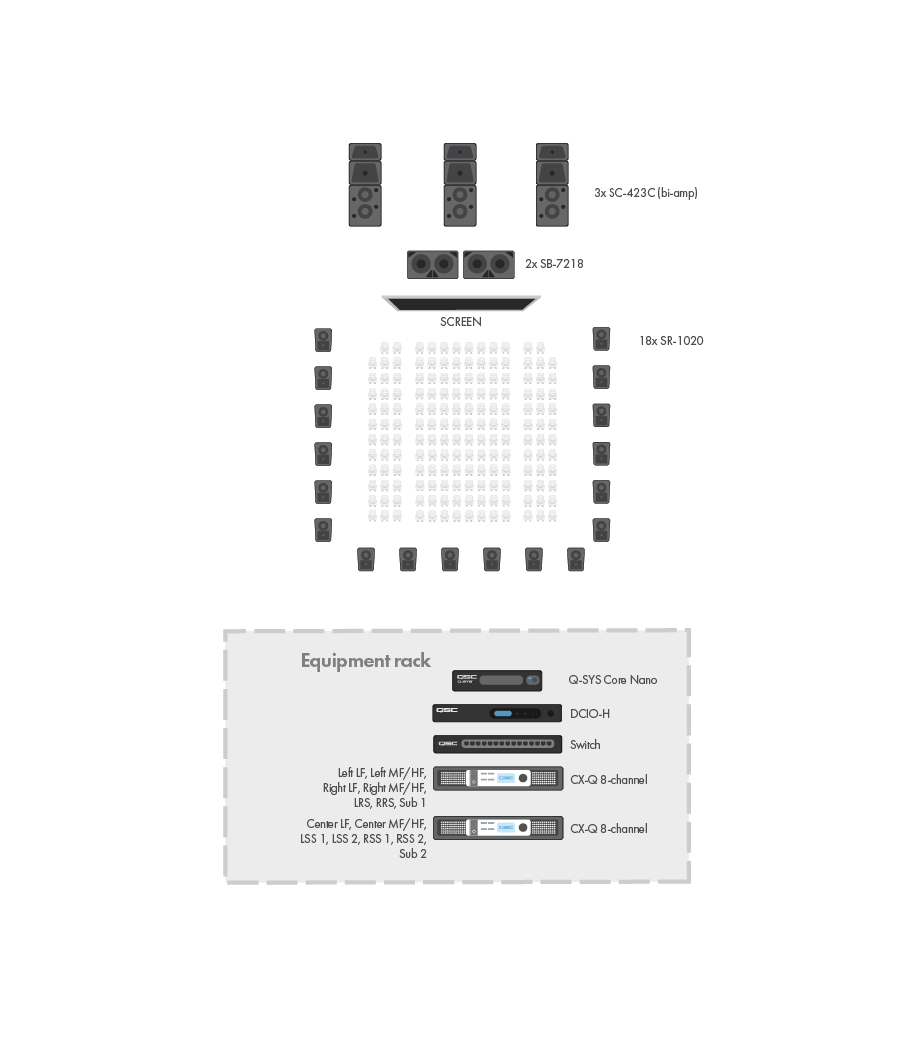

Large
Click image to enlarge
System Components
1 – Q-SYS Core Nano Network I/O Processor
1 – DCIO-H Digital Cinema Input/Output
1 – Switch
2 – CX-Q 8-Channel Power Amplifier
3 – SC-423C Screen Channel Loudspeakers
2 – SB-7218 Subwoofer
18 – SR-1020 Surround Loudspeakers

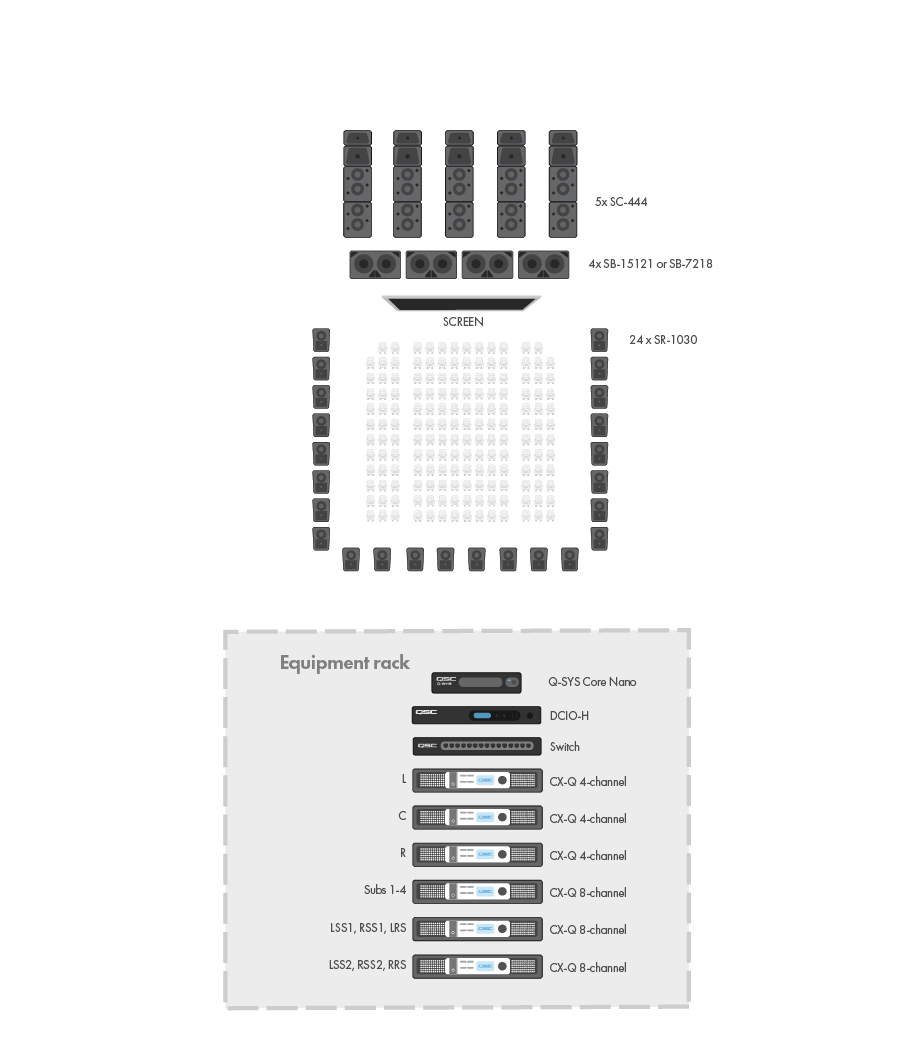

PLF
Click image to enlarge
System Components
1 – Q-SYS Core Nano Network I/O Processor
1 – DCIO-H Digital Cinema Input/Output
1 – Switch
3 – CX-Q 4-Channel Power Amplifier
3 – CX-Q 8-Channel Power Amplifier
5 – SC-444 Screen Channel Loudspeakers
4 – SB-15121 or SB-7218 Subwoofer
24 – SR-1030 Surround Loudspeakers

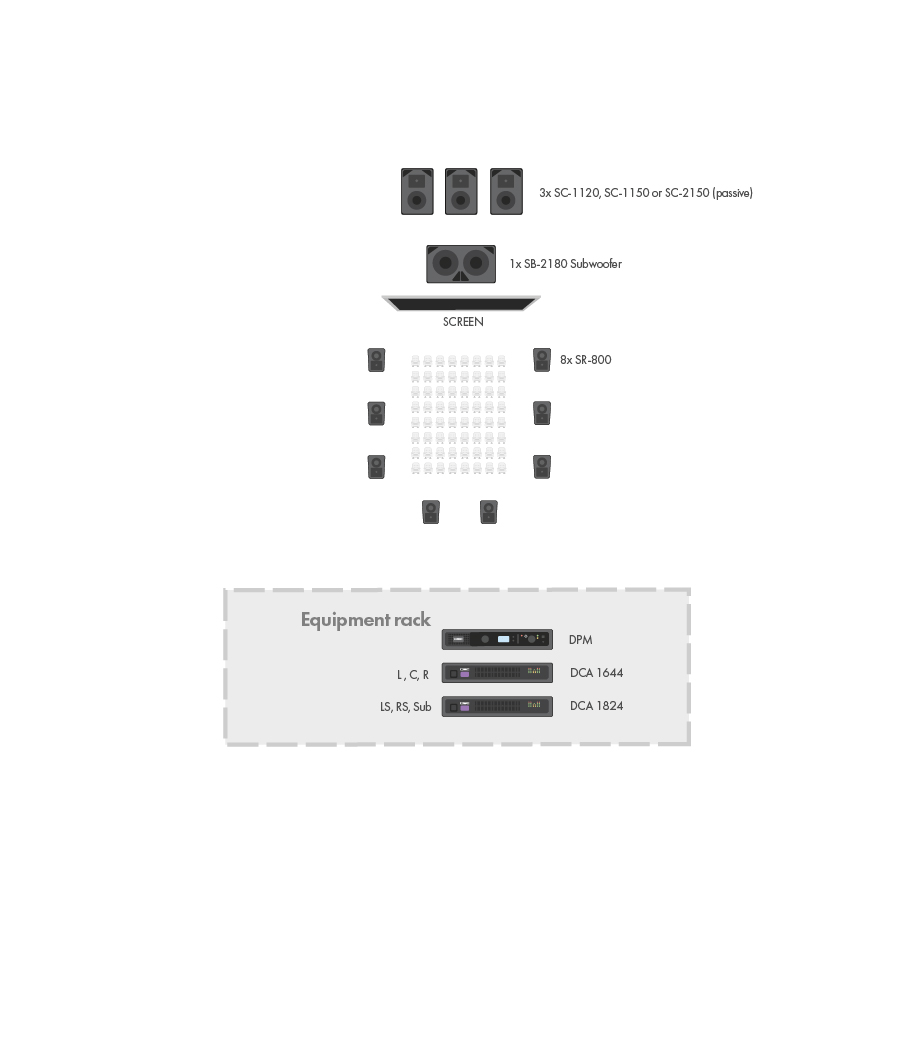

Small (non-Q-SYS)
Small

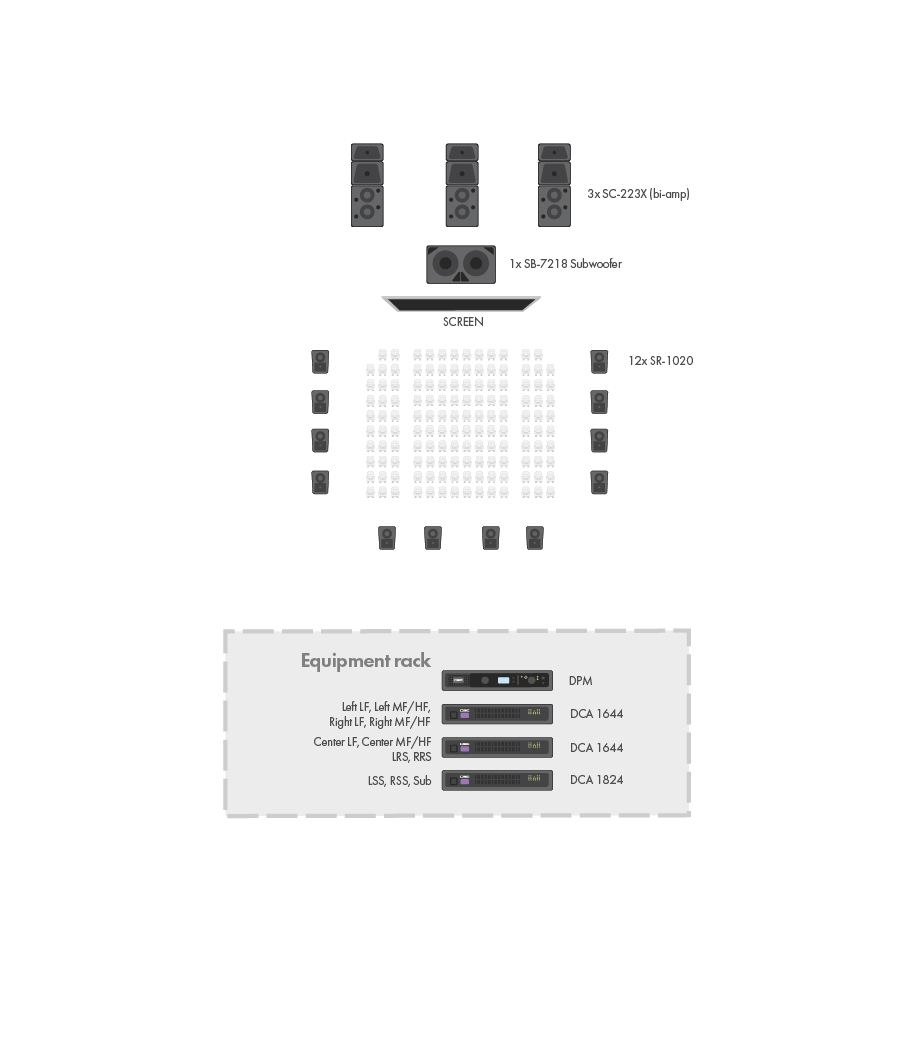

Mid-size (non-Q-SYS)
Mid-size
Large
PLF
Surround channels draw the audience into the action by creating an immersive multidimensional soundscape. With a range of compact
enclosures that fit every decor, the SR Series cinema surround loudspeakers offers the perfect surround solution for any size theater.
