SR-800

Cinema Surround Loudspeaker

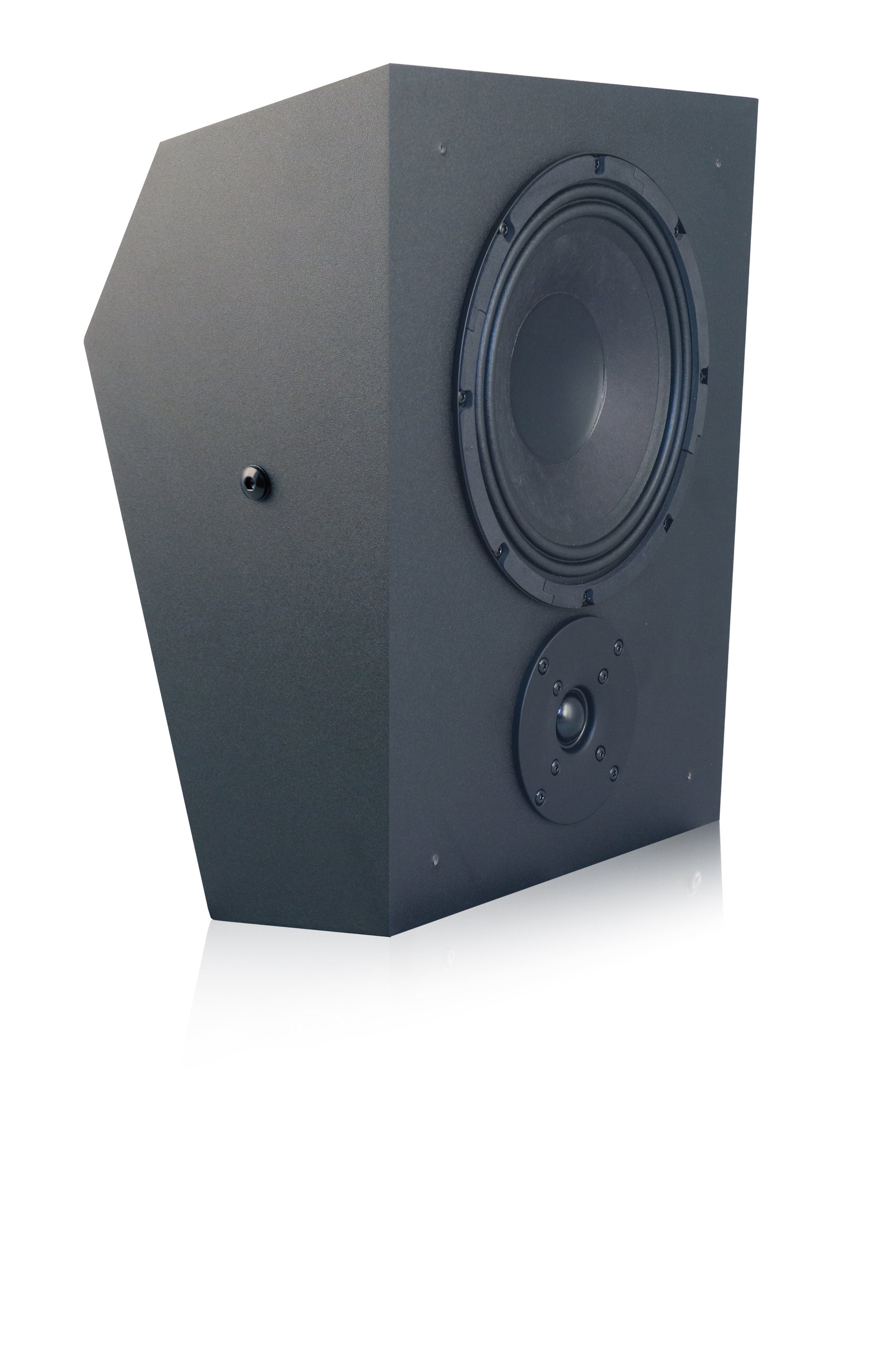

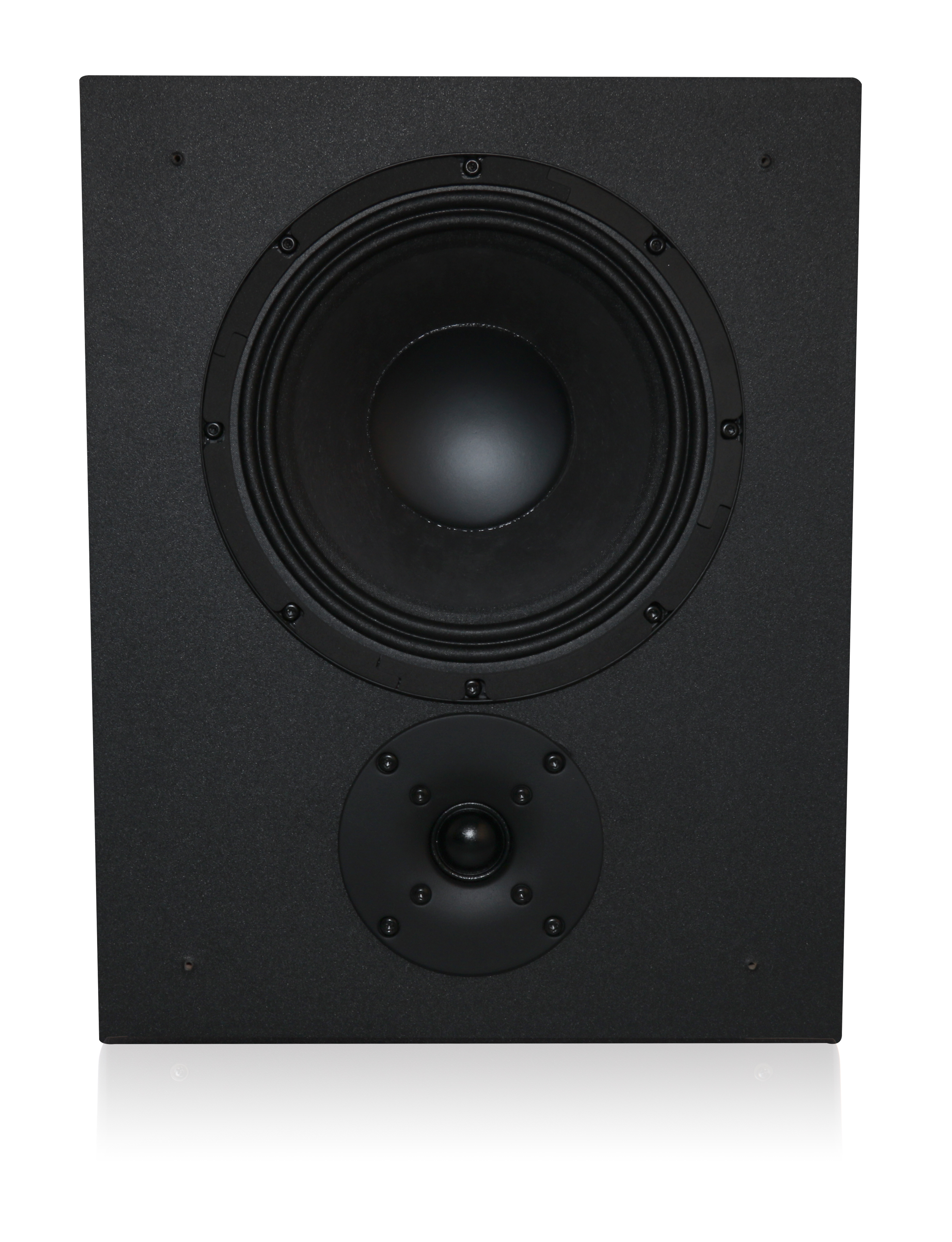

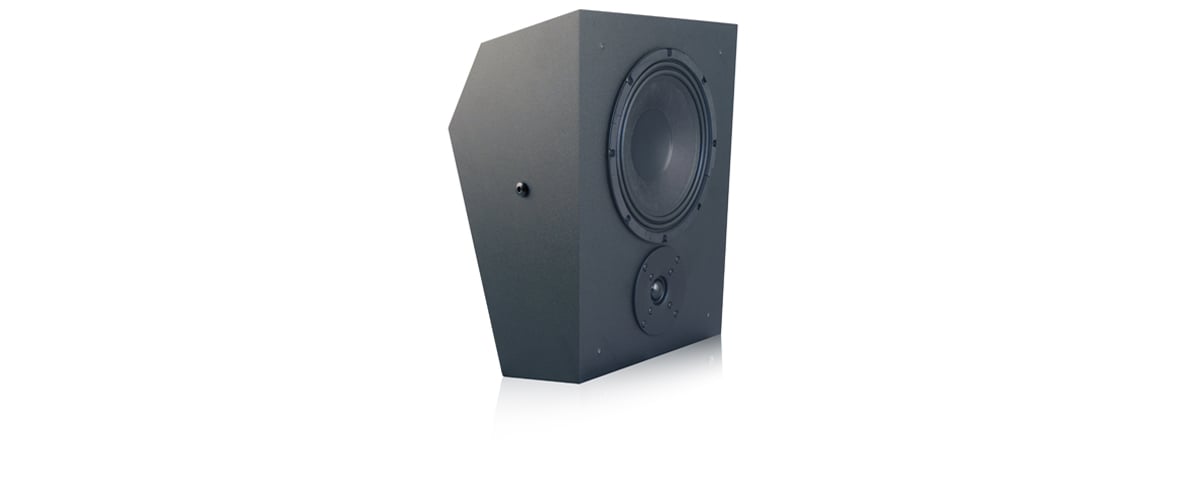

The SR-800 Cinema Surround Loudspeaker is a two-way design that features an 8" (203mm) low-frequency transducer with a
1" dome tweeter. The 125 watt continuous power rating and sophisticated crossover circuitry provides absolute reliability.

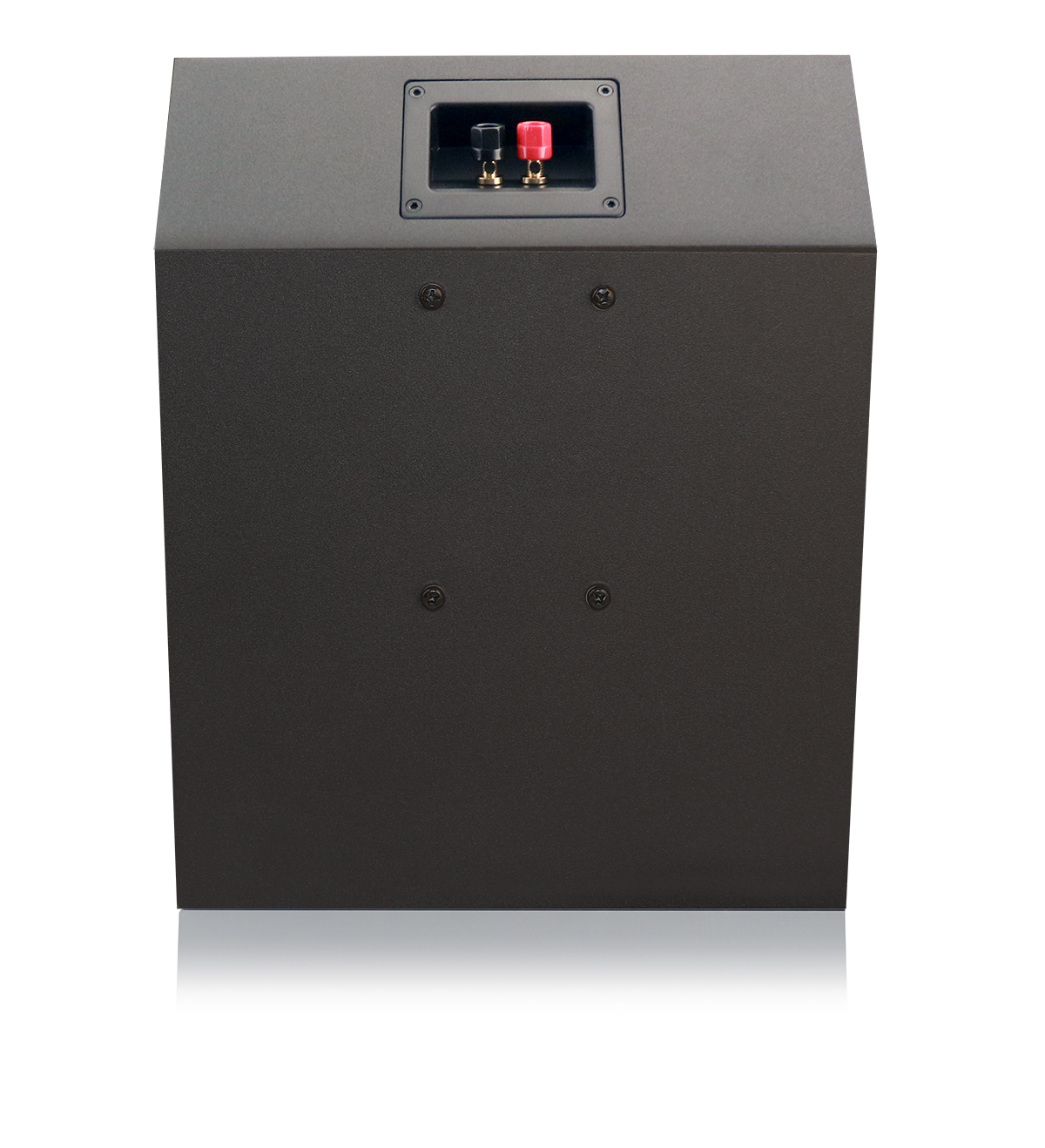

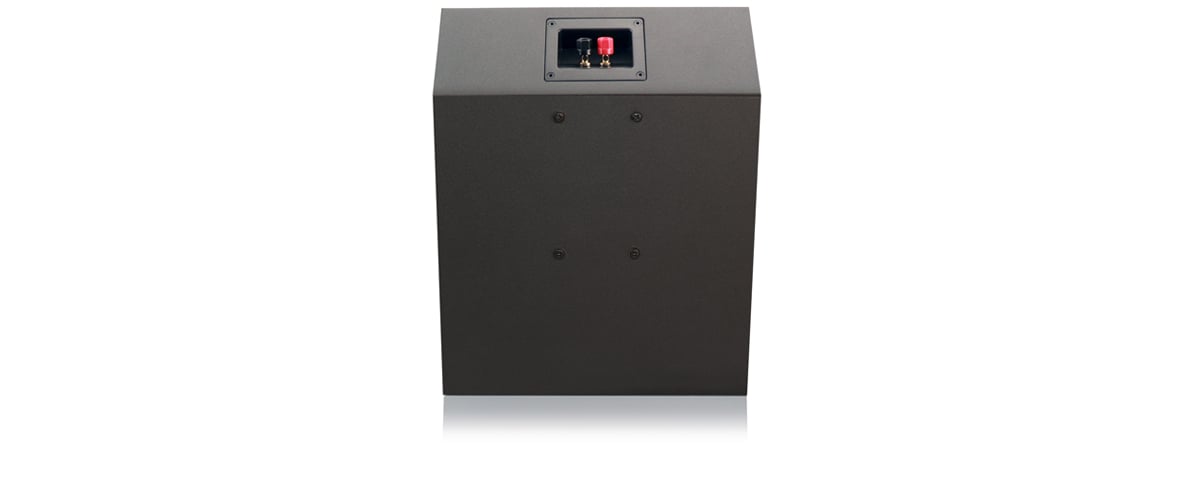

The SR-800 is designed for safe and secure mounting. The cabinet is constructed of 12mm MDF with internal bracing for superior structural integrity. The rear panel of the cabinet is fitted with four threaded insert mounting points that accommodate the standard bolt pattern for most third- party bracket manufacturers. Included pre- installed speaker side hardware allows fast single-installer wall mounting, and brackets support down-angles of either 15° (QM-SW, ordered separately) or 23° (QM-BW, ordered separately). A traditional U-bracket “yoke” style bracket (YM-300) is also available.

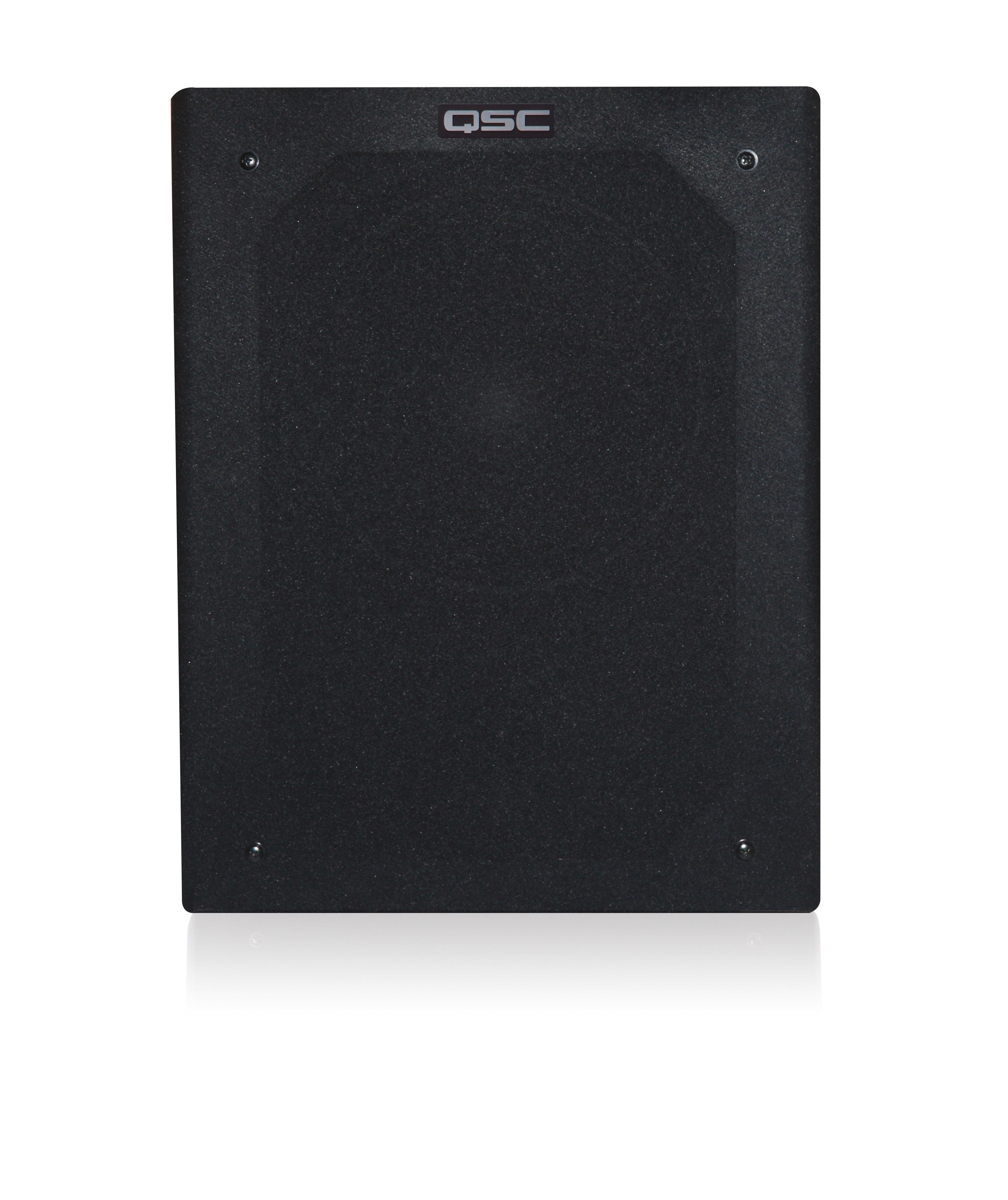

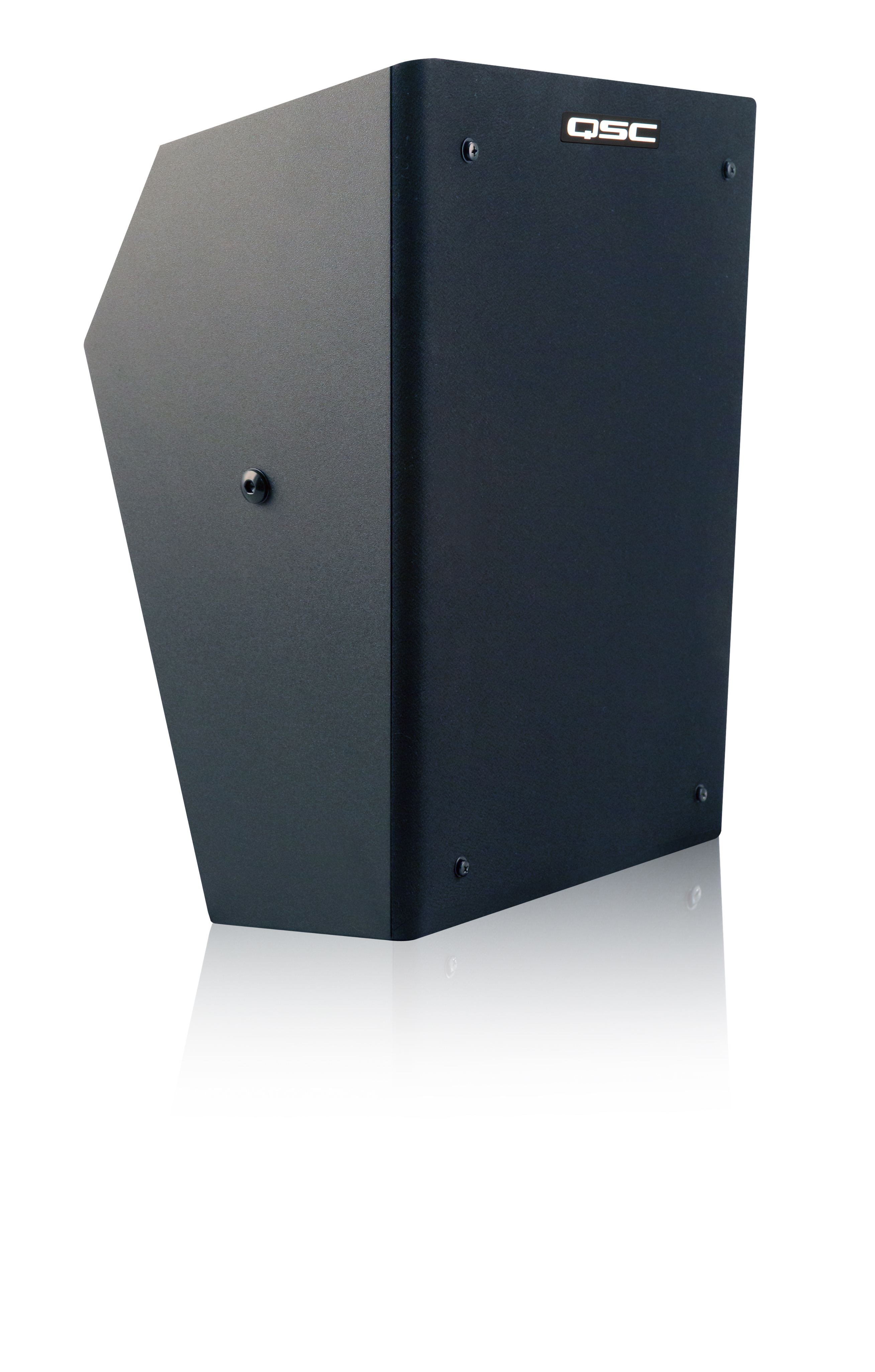

The compact black enclosure with black grille blends into any theatre decor.


Features

  • High Performance for all Cinema applications
  • 8" (203 mm) woofer
  • 1" (25 mm) dome tweeter
  • Pre-installed speaker-side QM mounting hardware
  • Accepts YM-300 yoke bracket
SPECIFICATIONS SR-800
Frequency Range 1
(-10dB, Half space)

60 Hz to 20 kHz
Rated Coverage Angle (-6 dB) 135° conical
Maximum Rated SPL 4
Calculated Peak at rated power
Calculated Continuous

117 dB
111 dB
Rated Impedance 8 ohms
Rated Noise Power 2
Recommended Amplifier Power
125 watts
400 watts
Sensitivity 3 90 dB
Input Connector


Two 5-way binding posts, accepts up to #10 AWG stranded wire



Transducers


8” (203 mm) LF driver





1” (25 mm) dome tweeter



Enclosure Material


12mm MDF with black vinyl wrap, matte finish



Dimensions (HWD) inches


14.4 x 11.7 x 9 inches



Dimensions (HWD) mm


365 x 298 x 228.5 mm



Net Weight 14.3 lb (6.5 kg)
Brackets


QM-SW, QM-BW, YM-300




1 Free-field, -10 dB from on-axis sensitivity
2 AES2-1984 noise signal for 2 Hrs
3 On-axis, free-field sensitivity, 1W, 1 m
4 Calculated from rated noise voltage and sensitivity

Specifications are subject to change without notice.
