Simplicity and scale

 A Windows-based solution that quickly scales and deploys across your collaboration spaces.

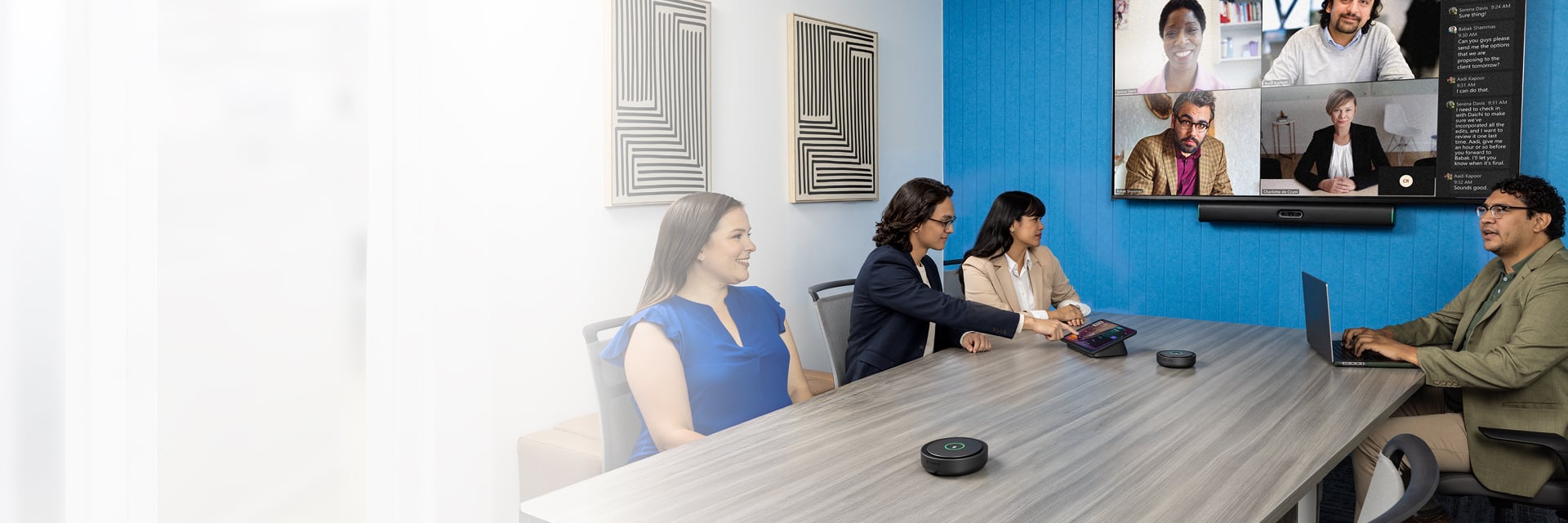

 The Q-SYS RoomSuite Collaboration Bar and expansion devices provide a scalable AV solution for standard small-to-large meeting spaces. This Windows-based solution features built-in audio, video, and supports Microsoft Teams Rooms and bring-your-own-meeting conferencing*. Includes a touch panel for control and allows for optional table microphones for extended audio coverage.

*Remote/far-end capabilities coming soon.

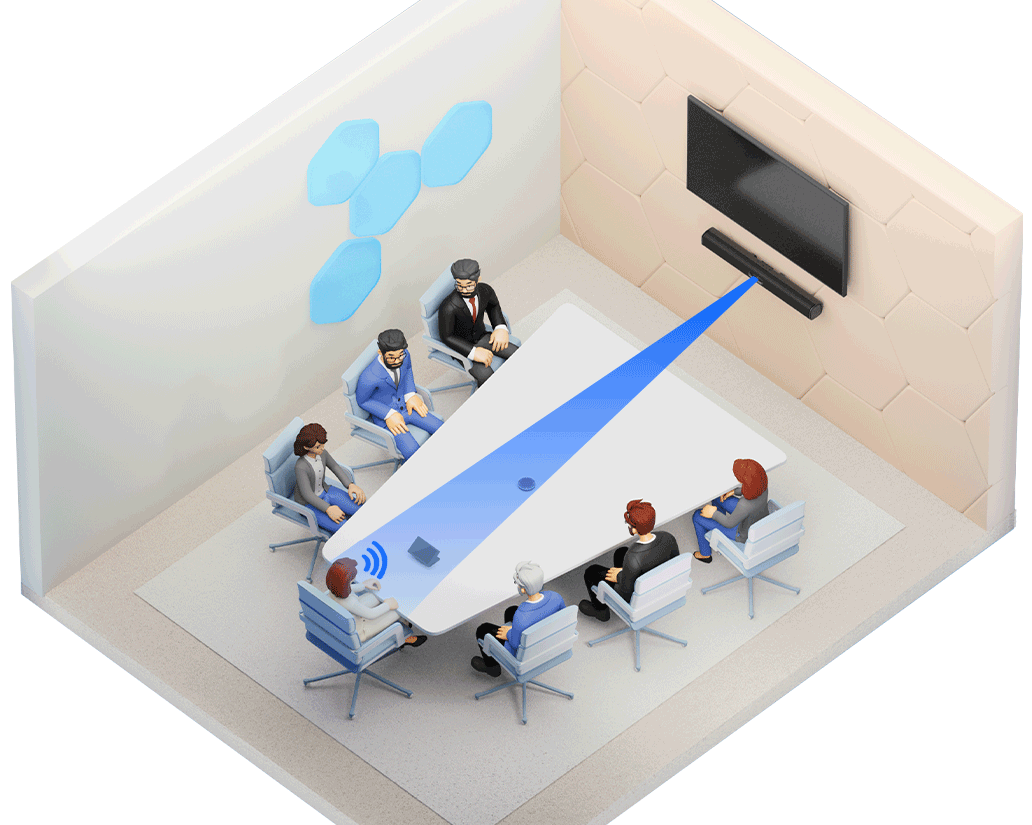

Simplified Hardware

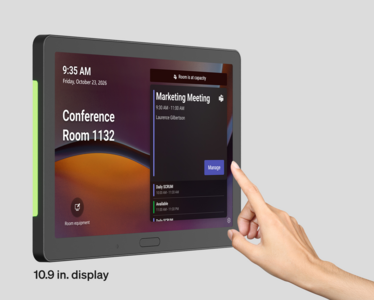

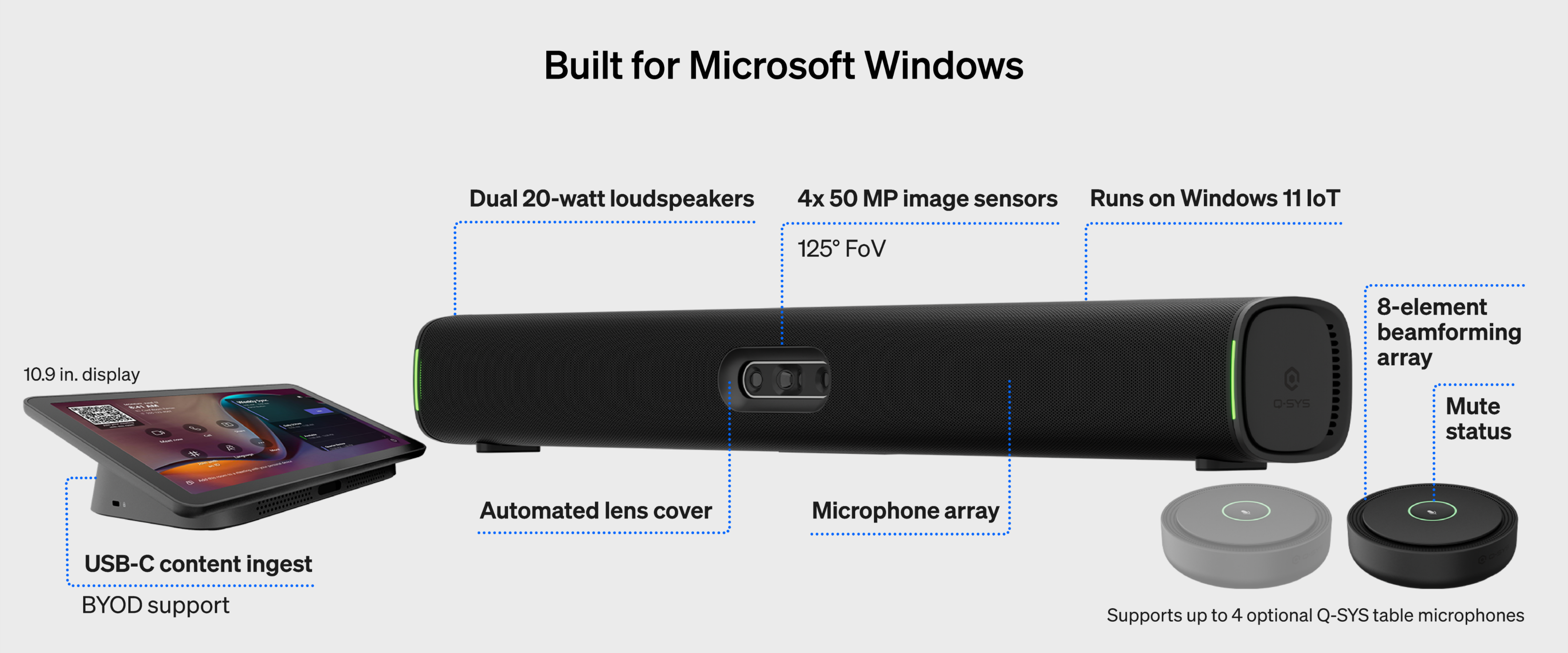

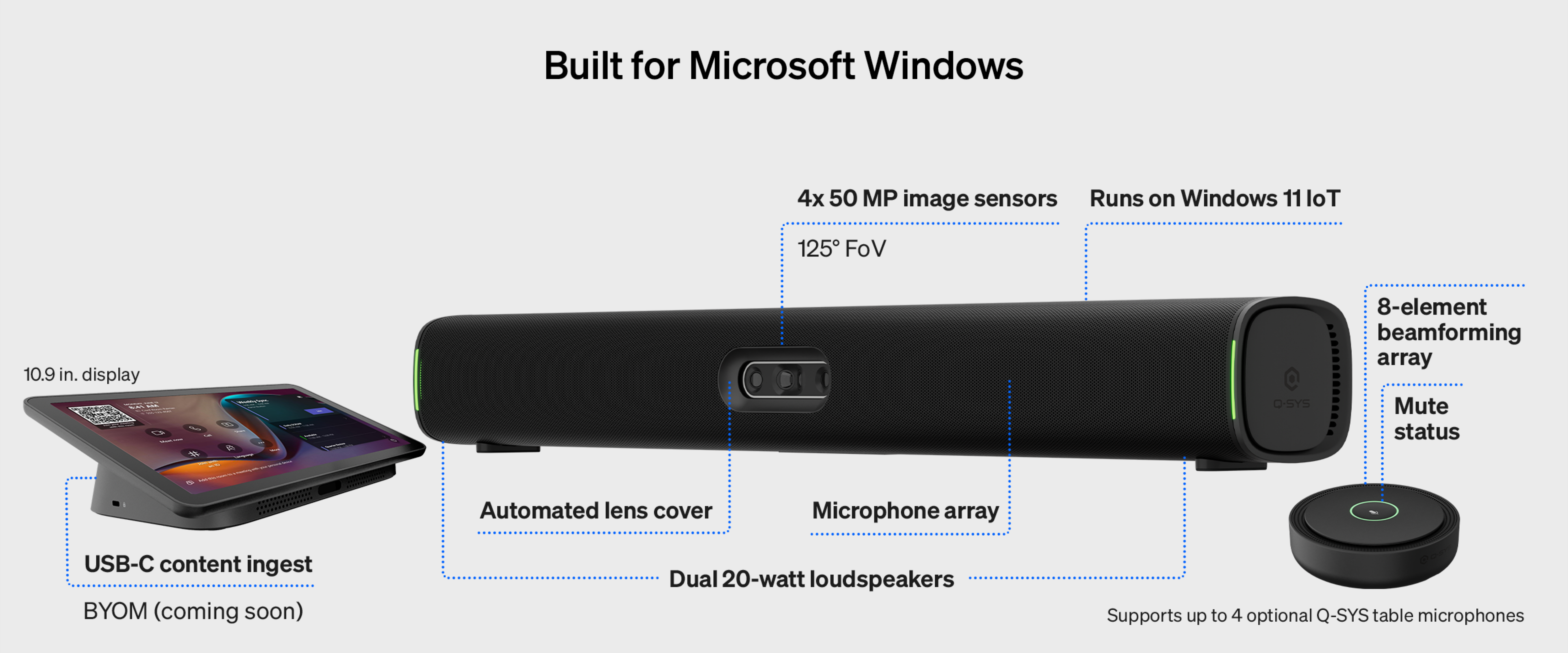

The Q-SYS RoomSuite Collaboration Bar is an integrated Windows-based device with a built-in compute. It features four high-resolution cameras, a 16-element microphone array and integrated loudspeakers. The included 10.9-inch touchscreen controller simplifies meeting management and AV bridging, while up to four optional table microphones provide flexible audio coverage with mute sync.

Simplified Configuration

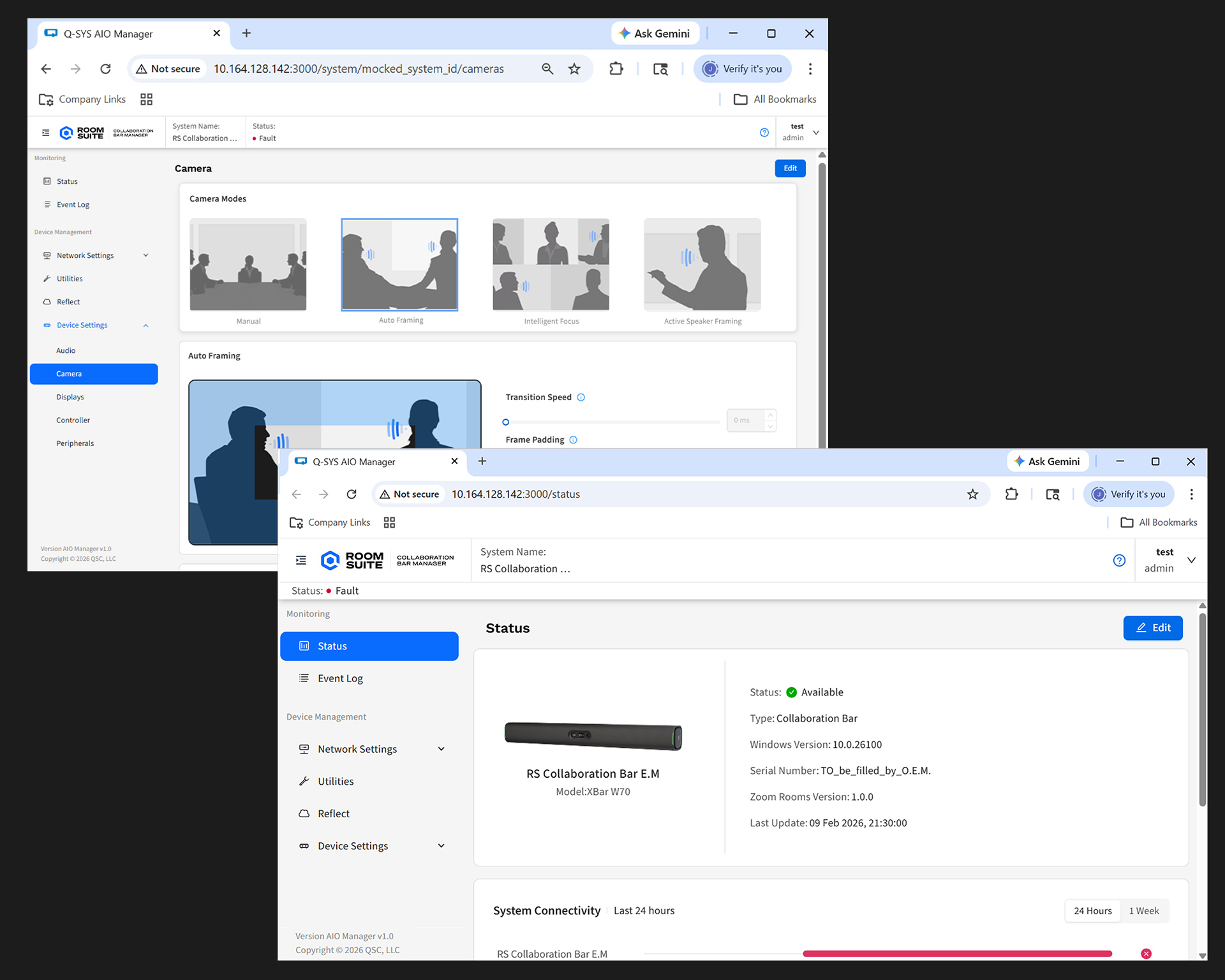

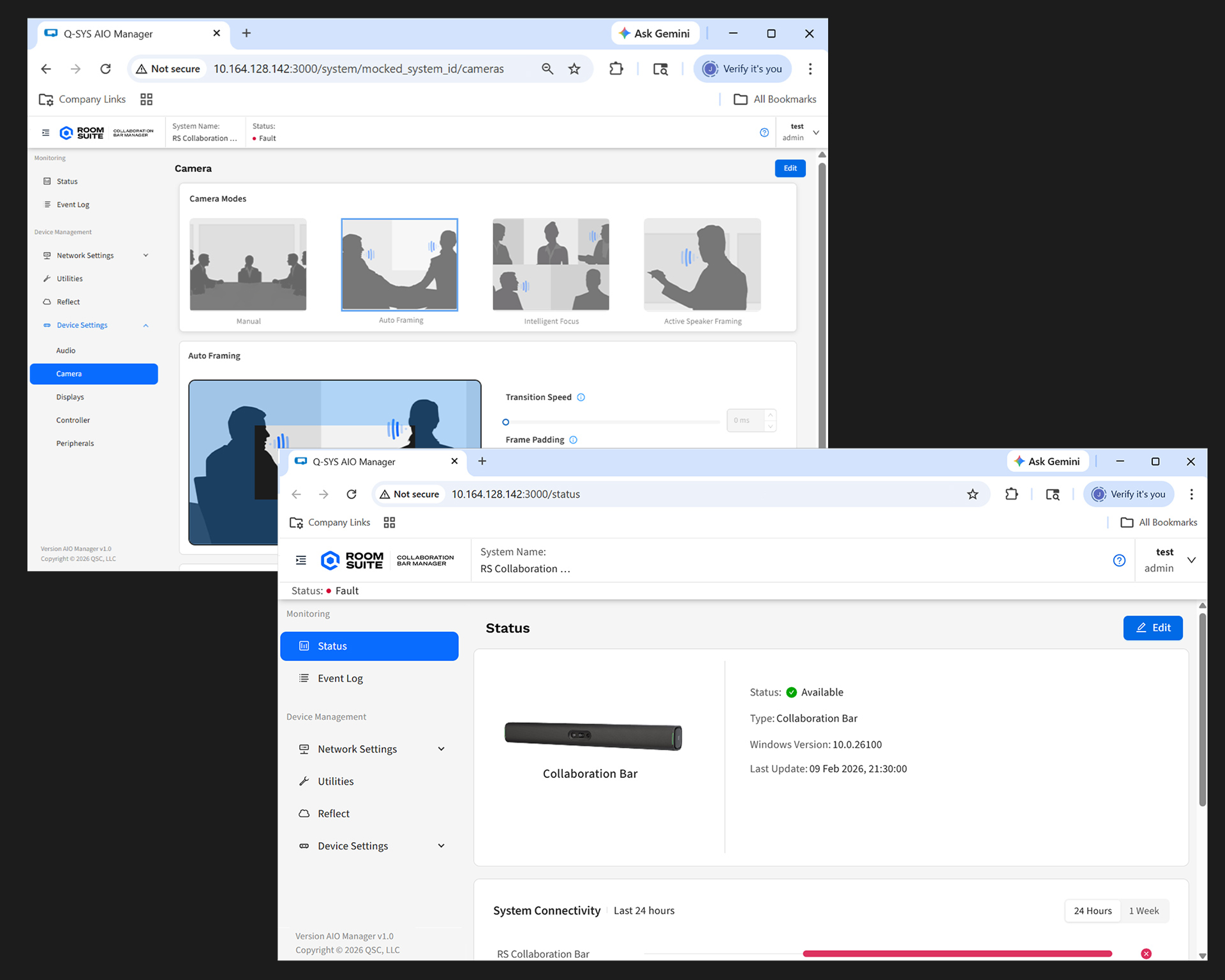

The Q-SYS RoomSuite Collaboration Bar was designed to be up and running in minutes (without Q-SYS Designer Software). Devices are plug-and-play, providing integrated meeting and device control plus room-ready audio that greatly reduces setup time. The web-based configuration tool lets users make additional changes to ensure the best performance in any space.

Simplified Registration to Q-SYS Reflect

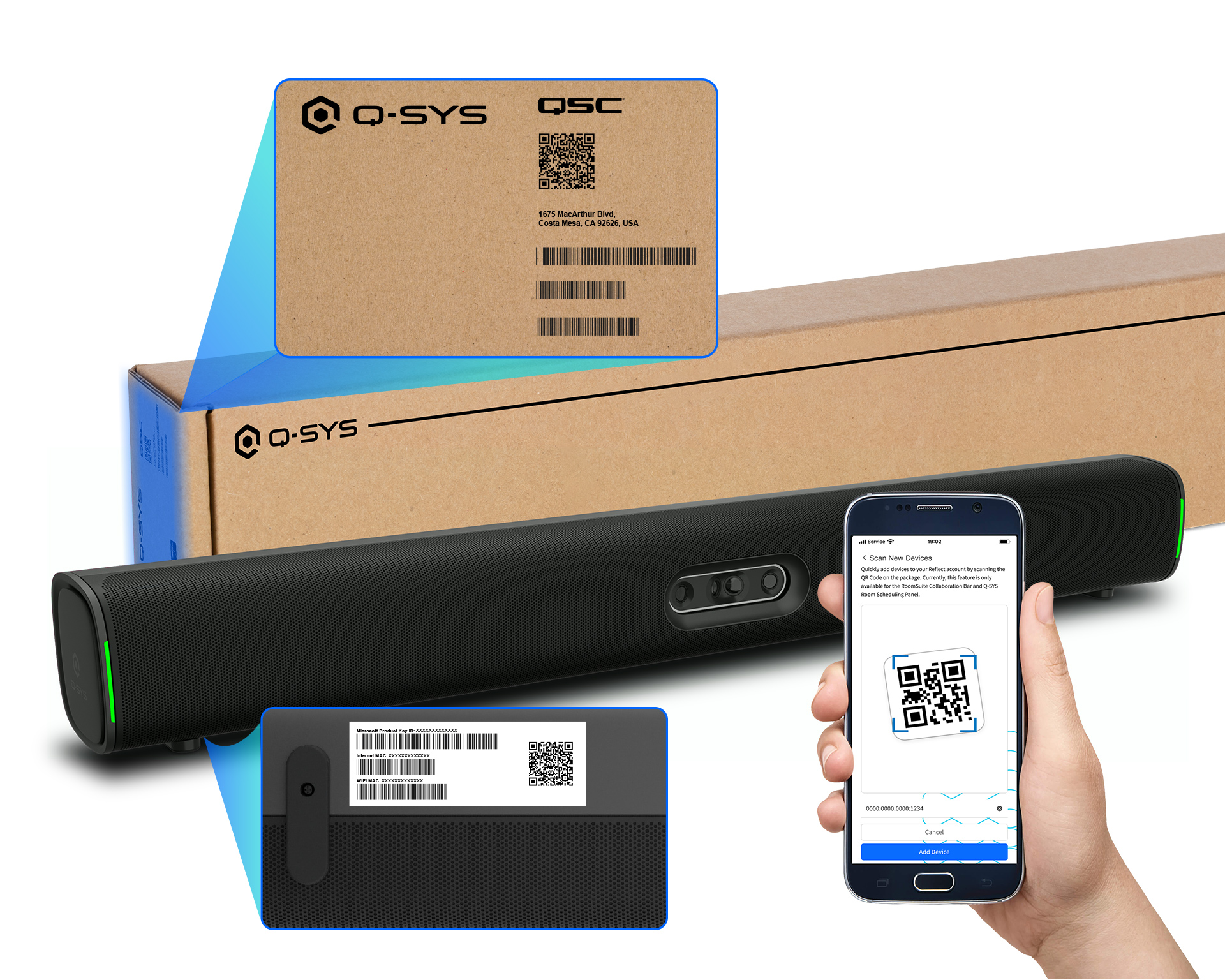

A few simple steps connects your Q-SYS RoomSuite Collaboration Bar to systemwide remote monitoring and management via Q-SYS Reflect. Just scan the QR code located on the exterior packaging or bar to access a web-based interface for easy configuration.

Simplified System-wide Management

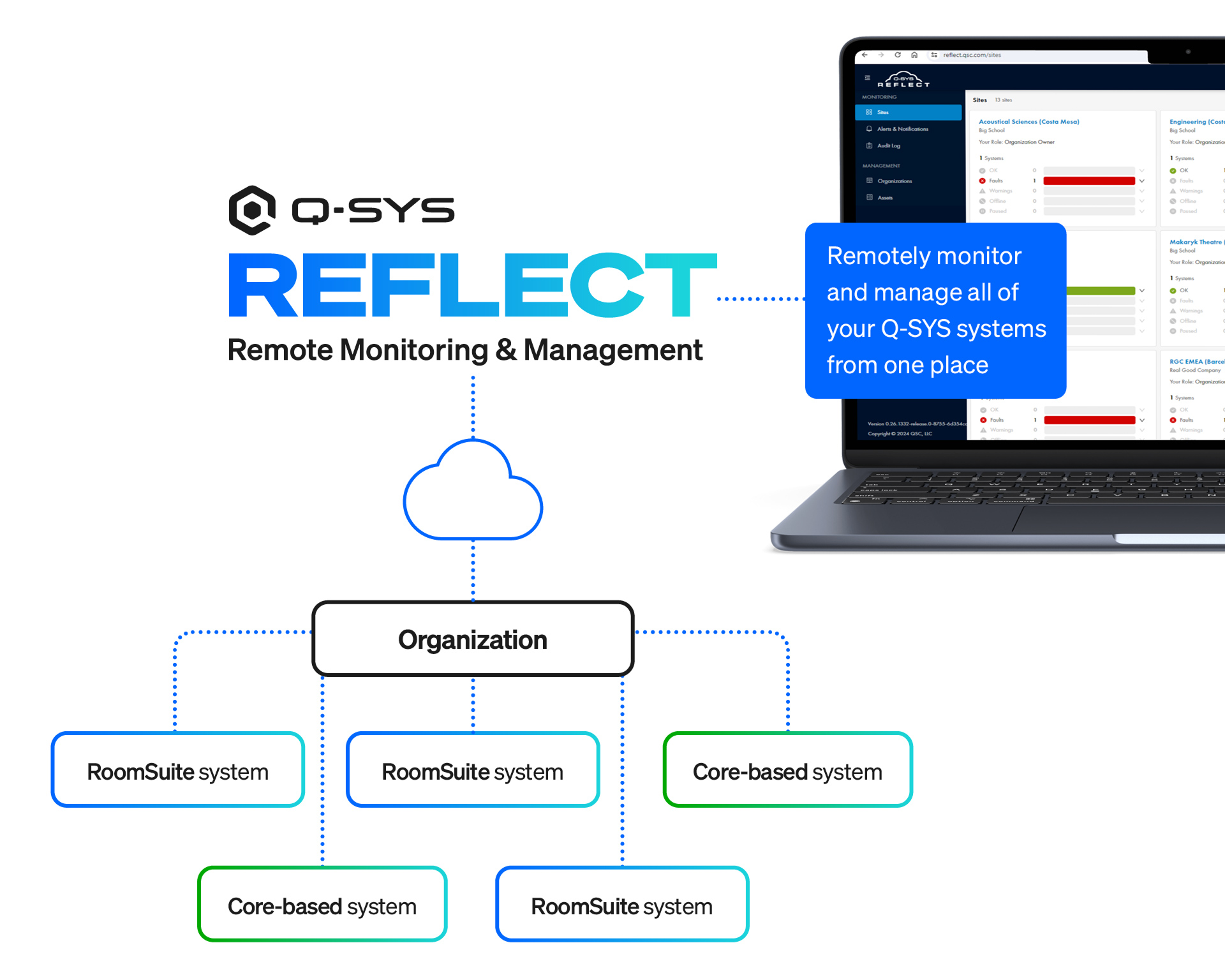

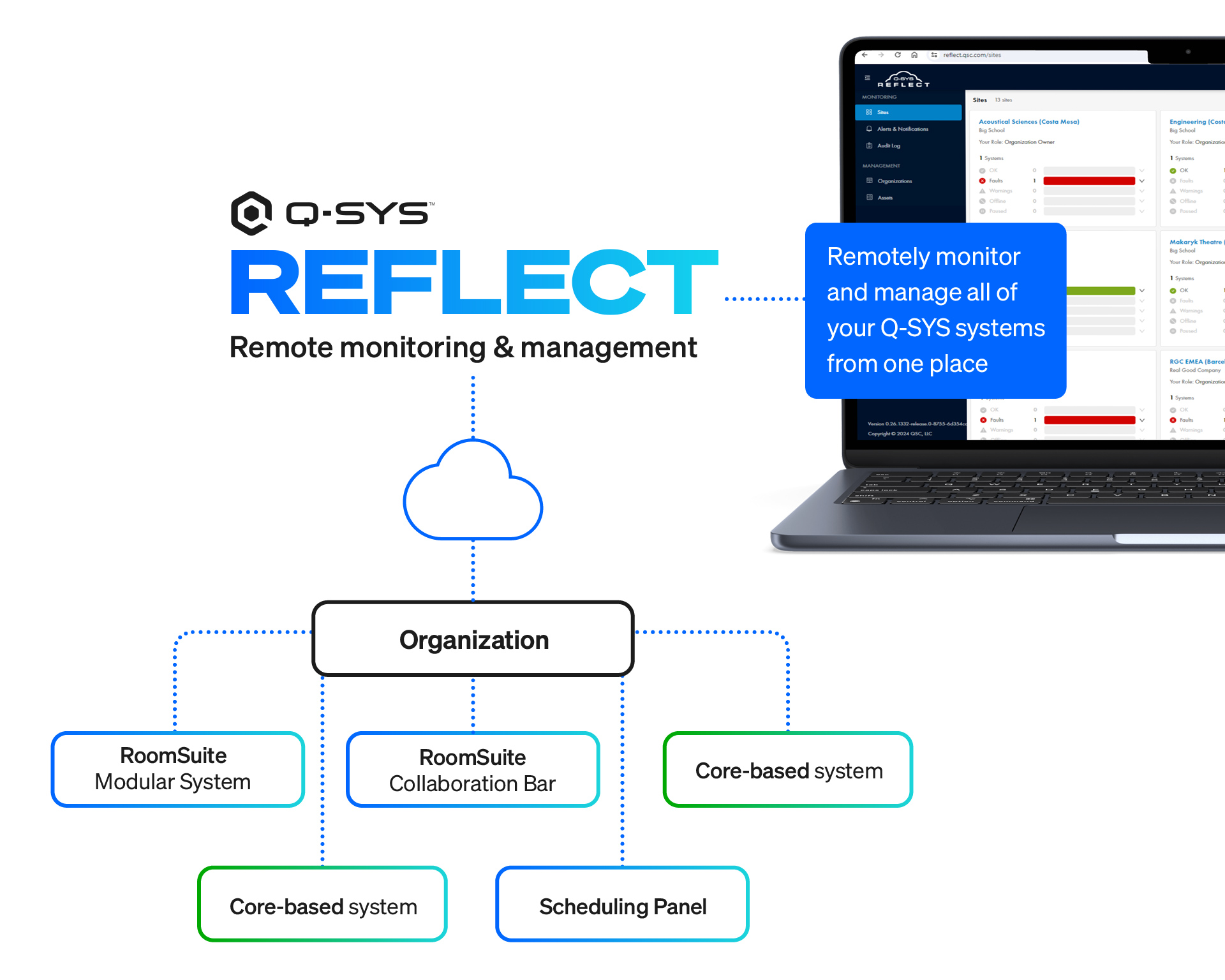

The Q-SYS RoomSuite Collaboration Bar connects to Q-SYS Reflect, a cloud-based monitoring and management tool that ties together every Q-SYS system across your high-performance workplace, and communal areas, providing system administrators with real-time actions and insights. Coming soon, Q-SYS Reflect Plus will enable quicker scalability using presets, an easy way to save and deploy configurations of the Q-SYS RoomSuite Collaboration Bar at scale.

Reflect Regional Data Hosting

New for the Q-SYS RoomSuite Collaboration Bar: Reflect Regional data hosting; enabling customers to store their Q-SYS device application data within a selected geographic region. This option is available in Europe and Asia-Pacific regions.

AI-Driven Features

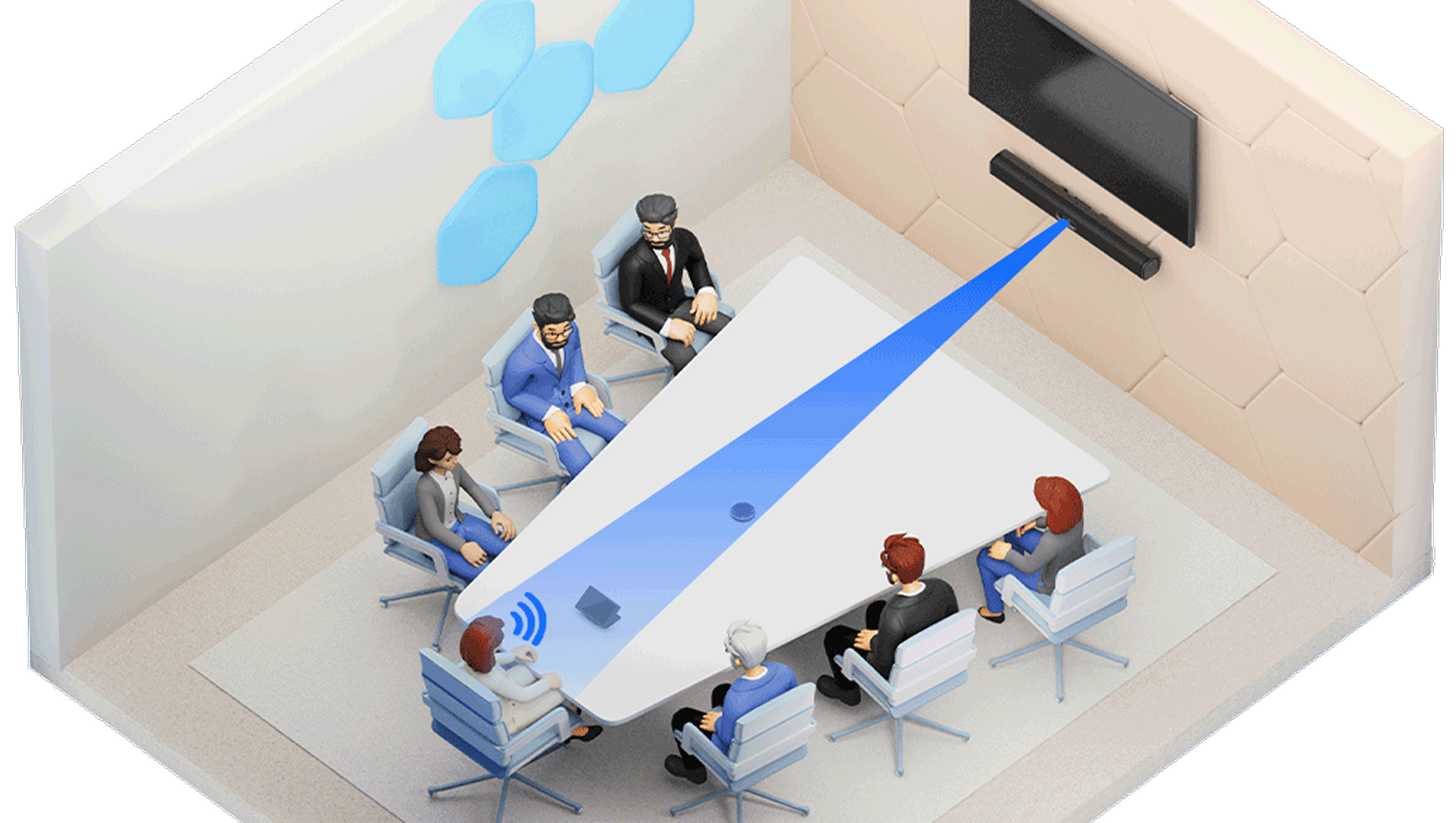

Active Speaker Framing

Camera positioning is dynamic and triggered by audio positioning data

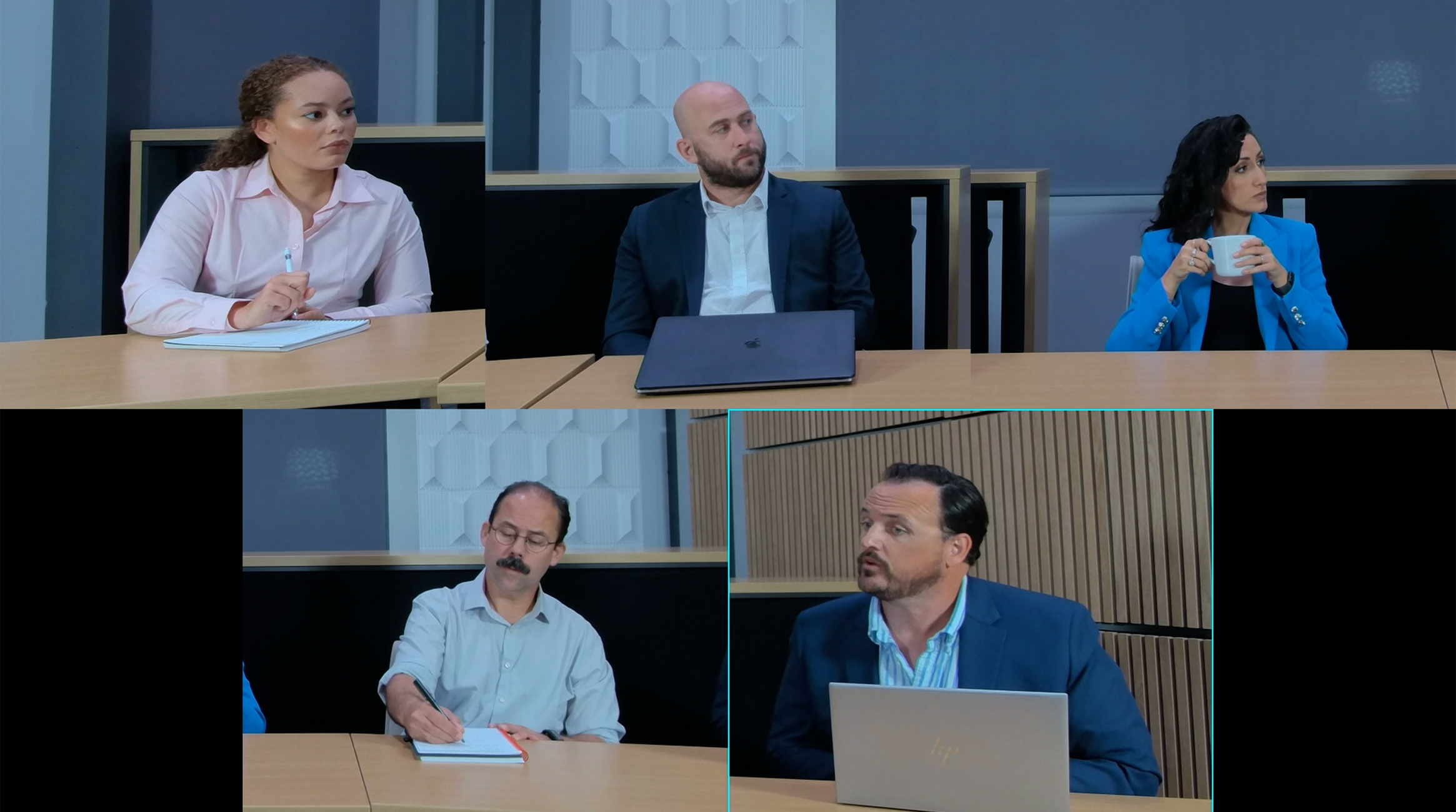

Tile View (Beta)

Frames up to eight participants

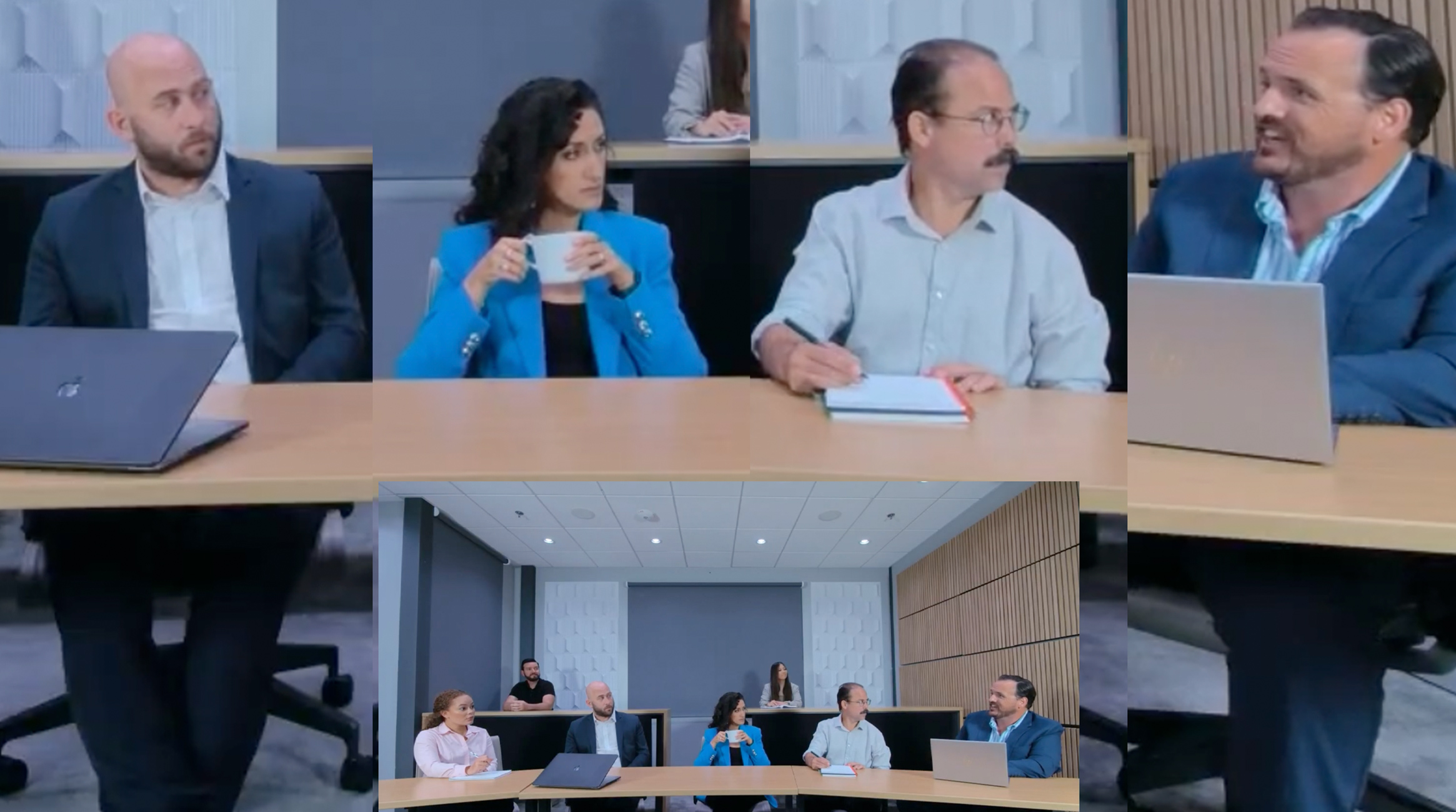

Active Speaker Tiling (Beta)

Tiles last four active speakers with optional room view

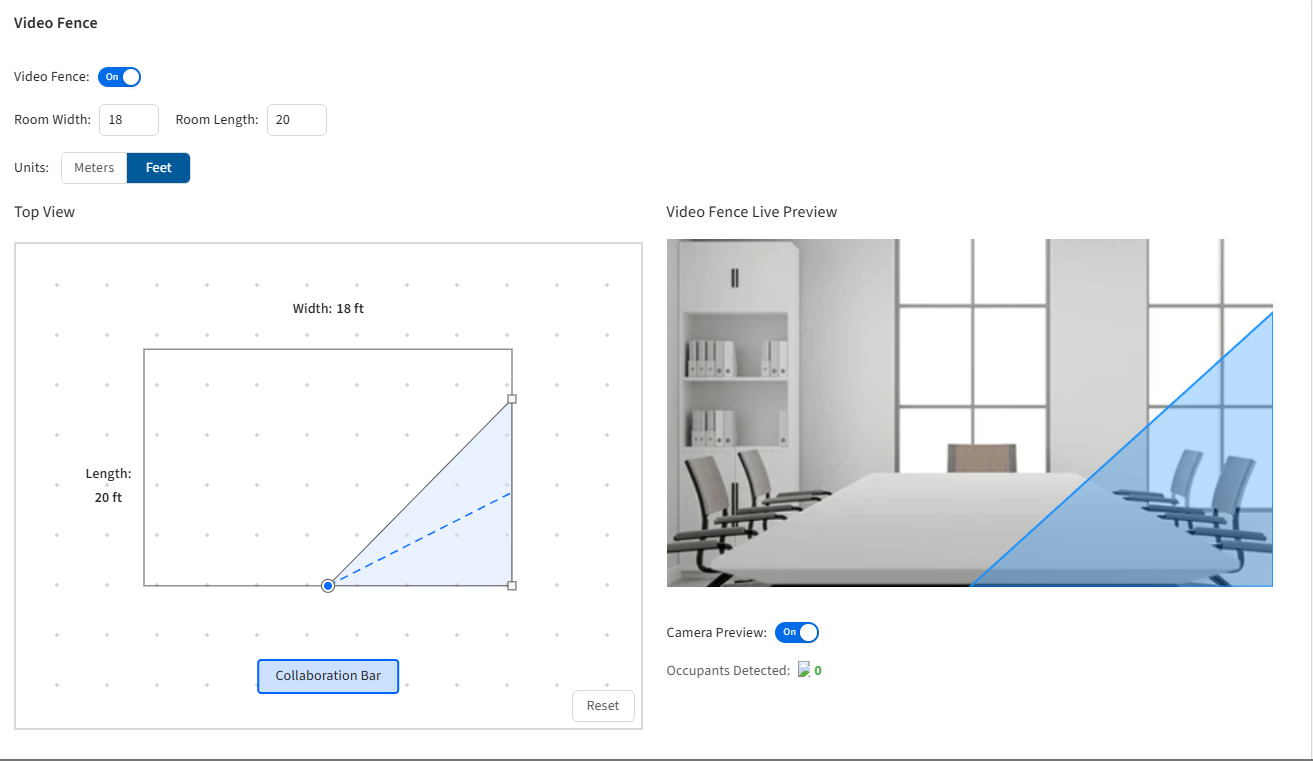

Video Fence

Define camera field of view and set exclusion zones

SYSTEM COMPONENTS

Model Q-SYS RoomSuite Collaboration Bar
System Details
Product type Collaboration bar with integrated cameras, loudspeakers and microphone array
Operating system Windows 11 IoT Enterprise (x64)
Power 19V/19.5V DC Input (power supply included)
Peripheral support Up to 4 Q-SYS RoomSuite Table Microphones for the Collaboration Bar (sold separately)
Controls & indicators • Microphone status LED indicators
• Camera privacy screen
Compute & performance
Processor Intel® i5 1340P
Memory 16 GB RAM
Storage 256 GB
Graphics Intel® UHD Graphics (13th Gen)
Camera
Camera quantity 2x wide-angle, 2x telephoto
Resolution 4x 50 MP image sensors
Zoom 8x hybrid zoom
Privacy Automatic lens shutter
Field of view
Camera Horizontal Vertical Diagonal
Wide camera 125° 50° 130°
Telephoto camera 42° 32° 52°
Audio
Configuration Stereo (2.0)
Power Output 20 W max per loudspeaker (40 W max total)
Max SPL 89 dB SPL (+/- 3 dB) @ 1 W / 0.5 m
Frequency Range 80 Hz – 20 kHz
Microphone
Microphone array 16-element microphone array
Pickup range Up to 33 ft (10 m)
Sensitivity -36 dBFS
Sample rate 48 kHz
Frequency range 100 Hz – 10.5 kHz, +/-3 dB
Content sharing
HDMI Local sharing 1080p30
Wireless & Networking
Wi-Fi Wi-Fi 6 (2x2 MIMO)
Wi-Fi bands 2.4 GHz + 5 GHz
RJ45 ports (4) • 1x 1Gbps Ethernet port for internet connection
• 1x USB-CAT PSE PoE+ Ethernet port for RS-CB-CTL11 Controller I/O
• 1x 1Gbps Ethernet port for RS-CB-CTL11 Controller BYOM function
• 1x 1Gbps PSE PoE Ethernet port for RS-CB-TM Expansion Table microphones
Bluetooth Bluetooth 5.3 (Dual Mode: BR/EDR+BLE)
Video I/O
HDMI inputs 4k60 capable, 1080p30 supported for ingest
HDMI outputs 3x total, 2x supported, (4K60 capable CEC supported)
USB I/O
USB ports • 1x USB-A 3.0
• 1x USB-A 2.0 (under right endcap)
Bundle
Physical
Collaboration Bar product dimensions (L x W x H)  36.1 x 4.7 x 4.3 in (918 x 120.5 x 109 mm)
Collaboration Bar product weight 11.8 lbs (5.4 kg)
Controller product dimensions (L x W x H) 10.39 x 6.9 x 3.3 in (264 x 175.6 x 84.1 mm)
Controller product weight 2.2 lbs (1 kg)
Included Accessories • 1x Power adapter
• 1x 5 ft (1.5 m) AC cable (country-specific)
• 2x 6.56 ft (2 m) HDMI cables
• 1x 6.56 ft (2 m) Ethernet cable
• 2 x 24.6 ft (7.5 m) Ethernet cable
• 1x 5 ft (1.5 m) USB-C cable
• 1x Wall Mounting components (for the Collaboration Bar)
• 2x Table Mounting rubber feet (for the Collaboration Bar)
Environmental & safety
Storage temperature range -4° to 140°F (-20 to 60°C)
Storage humidity range 10% to 90%
Operating temperature range 32° to 95°F (0° to 35°C)
Operating humidity range 5% to 85%



Model Q-SYS RoomSuite Collaboration Bar UC Controller
System Details
Screen size 10.95 in (278 mm)
Resolution 1920 x 1200
Refresh rate 55 Hz
Brightness 250 nits (minimum) – 300 nits (maximum)
Backlight ELED
Touch & sensors
Touch type Capacitive
Surface Anti-glare, anti-fingerprint
Motion sensor PIR (auto wake-up)
Mounting
Wall mount Optional (sold separately)
300° swivel mount Optional (sold separately)
Content sharing
USB-C local sharing 1080p30
Ethernet
RJ45 ports (2) • CTL A - USB-CAT and PoE+ input, connects directly to bar to support controller display
• CTL B - 1 Gbps Ethernet, connects directly to bar to support BYOM functionality (coming soon)
Power input PoE+ Type 2 Class 4 (PD)
USB I/O
USB ports 1x USB-C
AV bridging Via USB-C

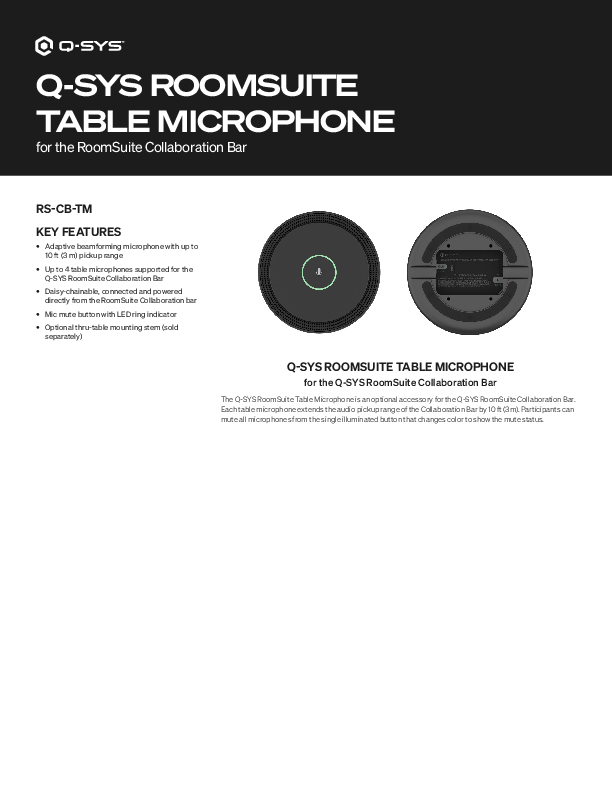

Model Q-SYS Table Microphone for the RoomSuite Collaboration Bar (RS-CB-TM)
Audio
Pickup Type Adaptive beamforming
Pickup Range Up to 10 ft (3 m) radius
Microphone elements 8x MEMS
Connectivity Ethernet, compatible only with Q-SYS RoomSuite Collaboration Bar
Frequency response 100 Hz - 10.5 kHz, +/-3 dB
Sampling rate 48KHz
Bit depth 16bit
Sensitivity -37 dBFS
Maximum SPL (1 kHz @ 1% THD) 128 dB
Dynamic range 99 dB
Signal-to-Noise ratio 65 dB(A)
Self noise 29 dB(A)
Power
Power input PoE Type 1 Class 3 (PD)
Power output PoE Type 1 Class 3 (PSE, daisy-chainable up to 4 total table microphones)
Power consumption <3 W
Connector type RJ-45
General Specifications
Product dimensions 4.72 x 1.46 in (120 x 37.2 mm)
Product weight 1.1 lbs (0.50 kg)
Included accessories CAT6 Ethernet cable (6.56 ft / 2 m)
Optional accessories Thru-table mounting stem (sold separately)
Environmental & safety
Storage temperature range -4° to 140°F (-20 to 60°C)
Storage humidity range 10% to 90%
Operating temperature range 32° to 95°F (0° to 35°C)
Operating humidity range 5% to 85%
