Dante™ Networked Audio Wall Plate (Attero Tech)

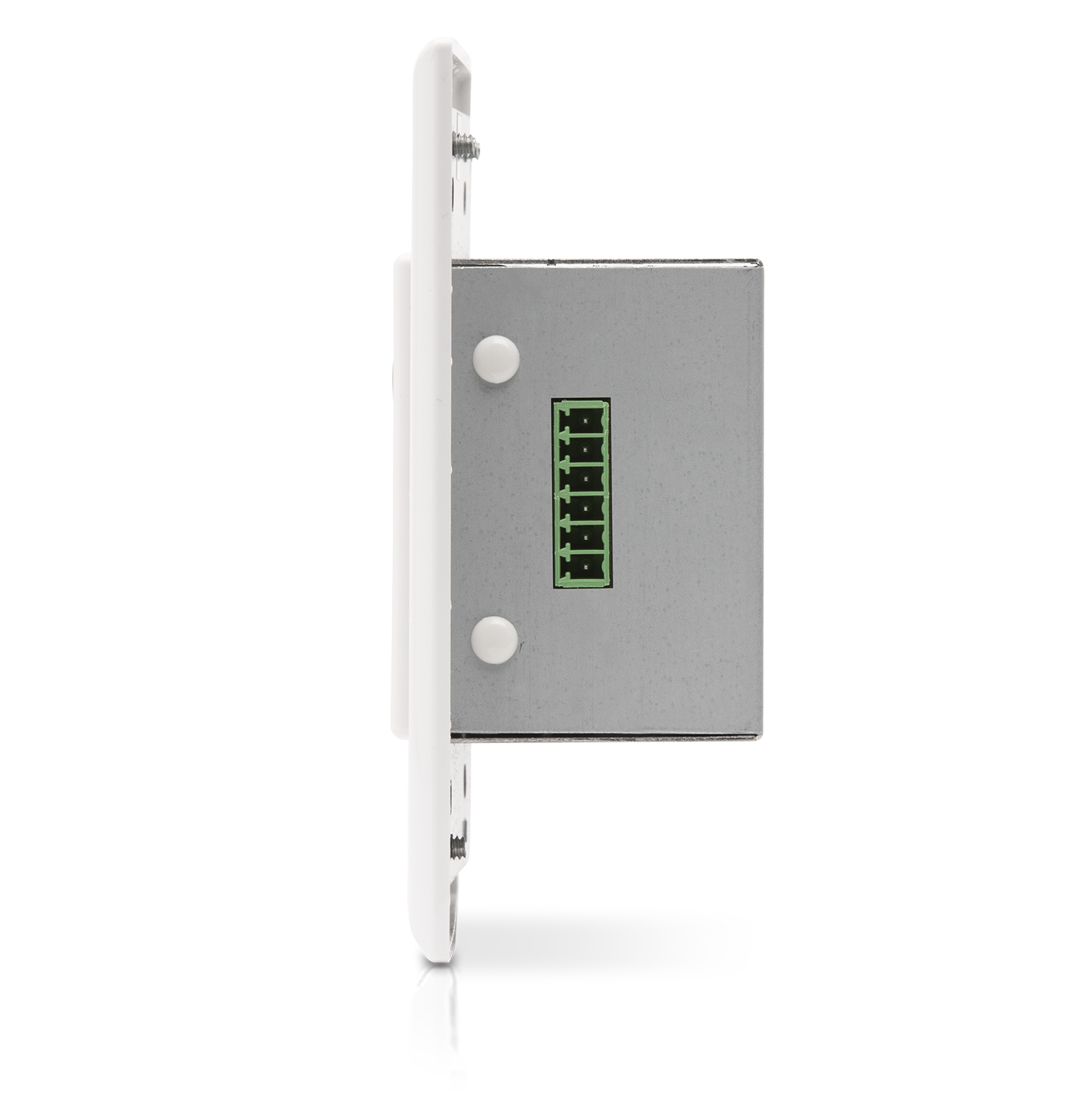

  • hero fron and side view of unD6IO white in color

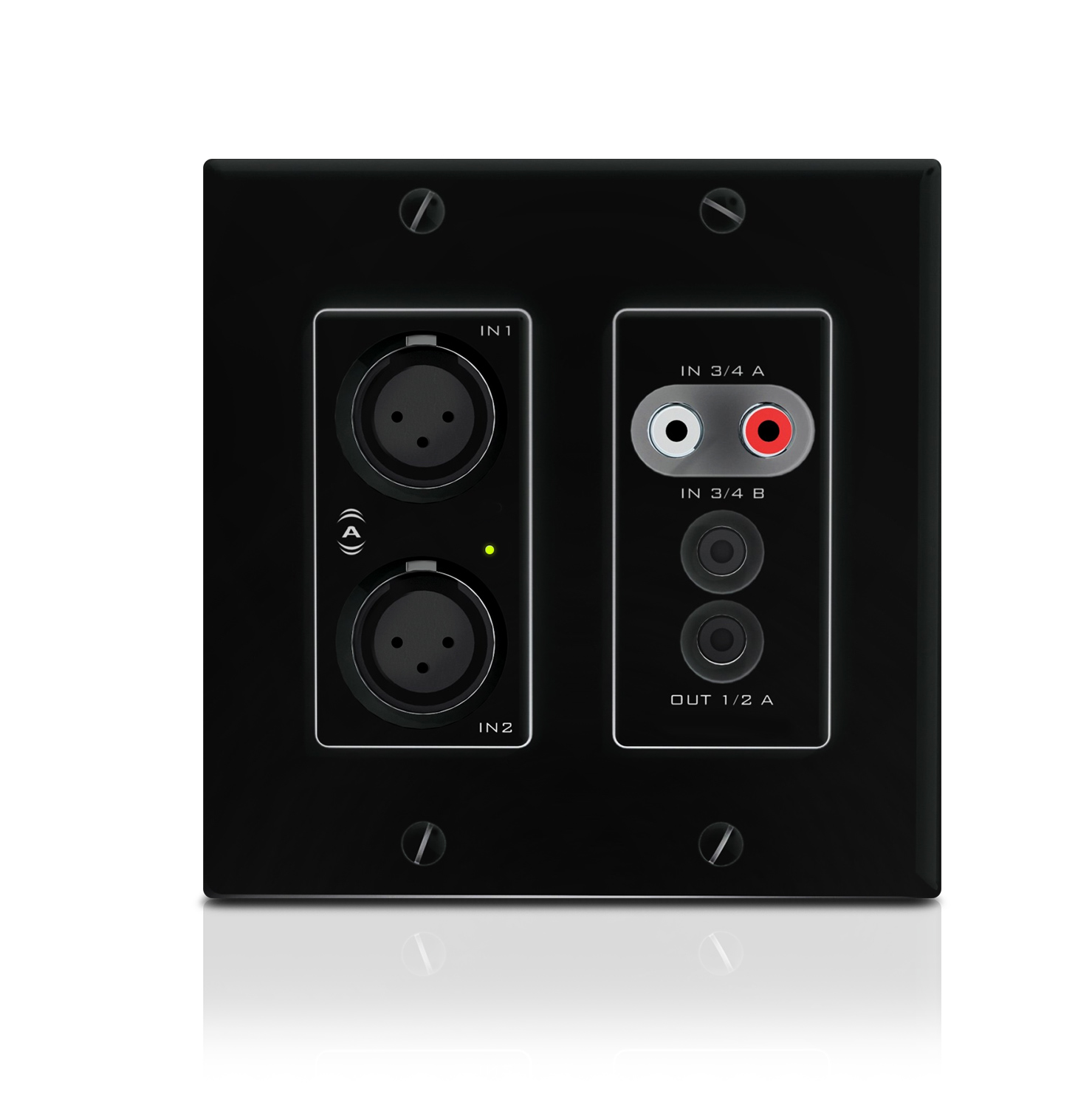

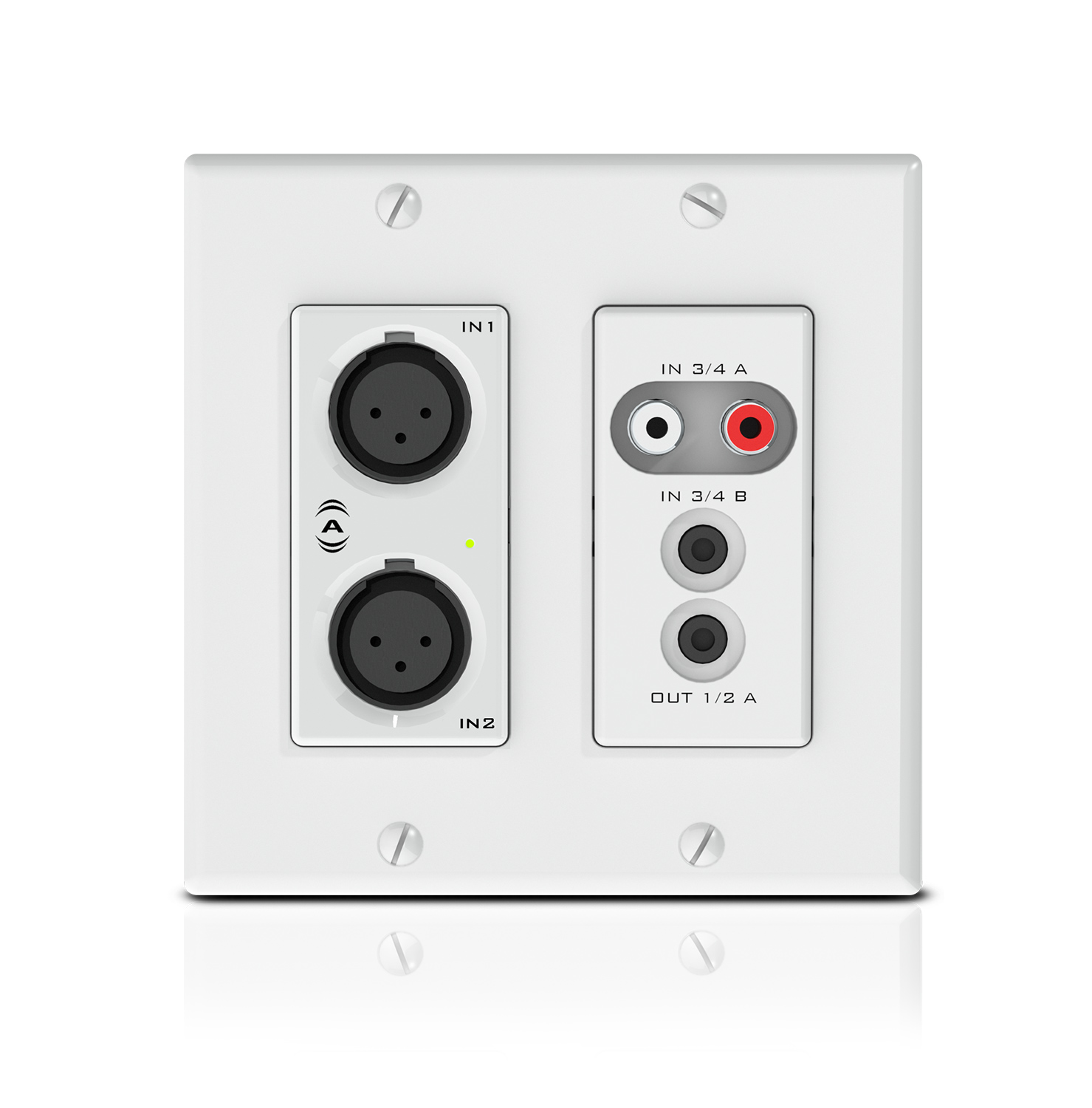

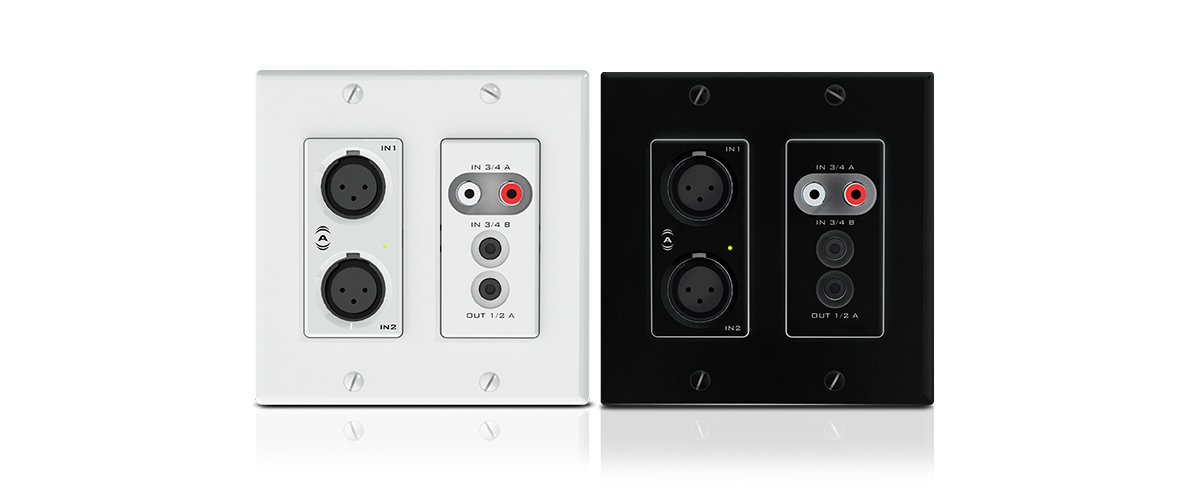

  • Hero front view of unD6IO one in black, and one in white

The Attero Tech unD6IO is a cost-effective, multi-IO Dante network audio wallplate, featuring XLR, RCA and 3.5 mm inputs along with one 3.5 mm and two balanced outputs in a dual-gang form factor. The unD6IO is PoE enabled, delivering all connectivity (power, control and audio data) with a single CAT-5e/6 cable. The size and I/O density of the unD6IO make it easy to put Dante connectivity wherever it is needed - near the audio source or sink - thereby eliminating costly and interference-prone analog wiring.

  • Q-SYS Reflect logo banner

Connect to Q-SYS Reflect

This Q-SYS Product can be connected to our powerful monitoring and management solution.

Start your free trial today!

Features & Benefits

  • 2 x balanced XLR mic/line inputs, 2 x RCA and 1 x 3.5 mm input
  • 1 x 3.5 mm output and 2x balanced outputs on a side-mounted depluggable connector, with software-controllable volume
  • Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
  • PoE capable
  • Three software-selectable gain levels are available on the XLR input to accommodate a wide variety of input levels and devices.
  • +48 V phantom power
  • Dante Domain Manager-ready
Audio Inputs
Input types 2 x XLR (balanced and RF filtered)
2 x RCA (stereo unbalanced)
1 x 3.5 mm (stereo unbalanced)
Gain -18 dB, -3 dB, +25 dB and +40 dB,
software selectable (Inputs 1/2)
Maximum input levels +20 dBu @ -18 dB gain,
+6 dBu @ - 3 dB gain,
-23 dBu @ +25 dB gain
-38 dBu @ +40 dB gain (Inputs 1/2)
+12 dBu ( Inputs 3/4 A & B)
Phantom power +48 V (inputs 1 & 2 only)
Audio Outputs
Output type Two balanced line level with automatic muting on loss of Dante signal on 6-pin Depluggable Euroblock (Outputs 1/2 B) Two unbalanced line level outputs on stereo 3.5 mm TRS (Outputs 1/2 A)
Attenuation range -60 dB to 0 dB (software-controlled)
Maximum output levels +12 dBu at 0 dB attenuation (output 1/2 A)
+20 dBu at 0 dB attenuation (output 1/2 B)
Dante Network
Physical level Standard Ethernet
Connector Single RJ-45
Cable type CAT-5e or higher
Supported sample rates 44.1 kHz, 48 kHz
Power PoE (802.3af)
Dimensions (HWD) 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm)
Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm)
Weight 0.6 lb (.27 kg)
