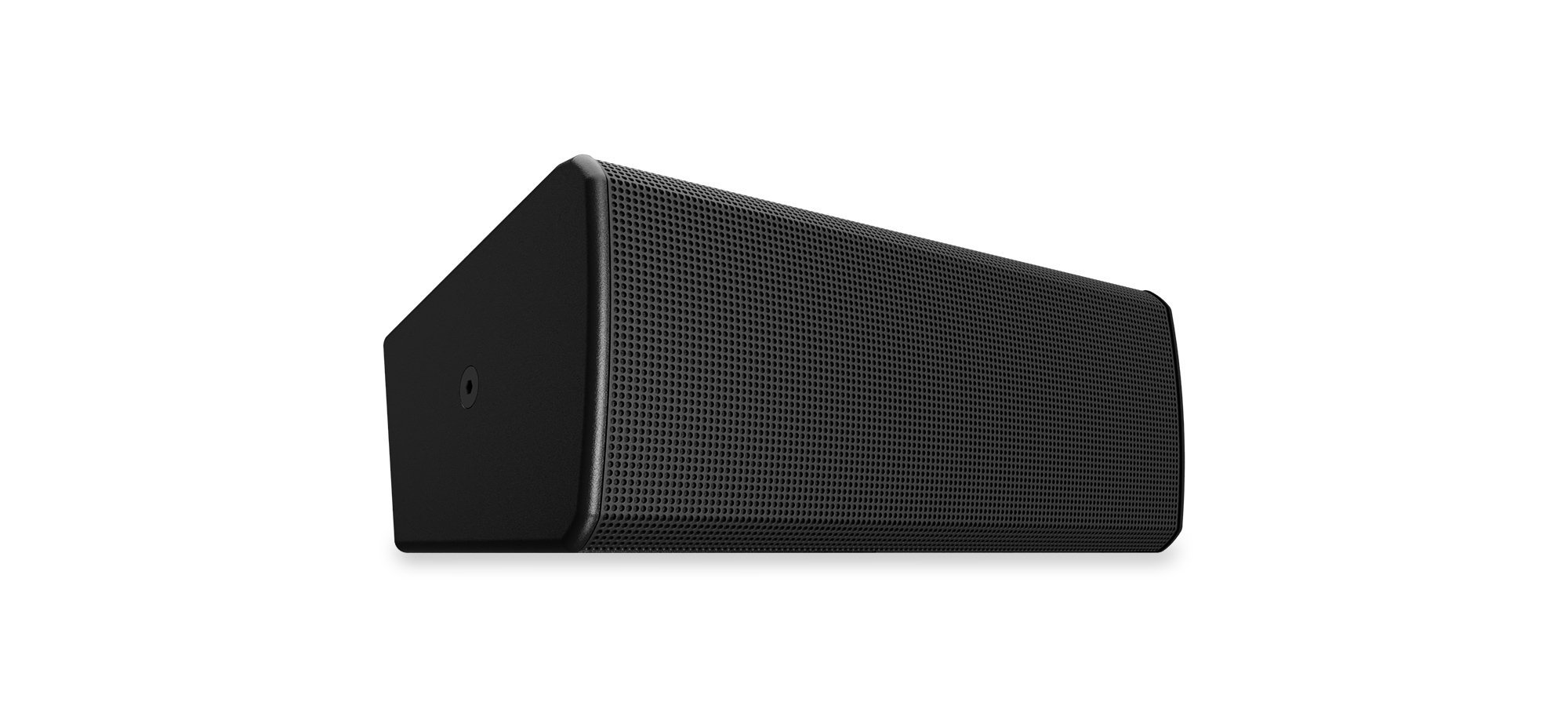

The Q-SYS PL-DC24 is a compact, two-way passive point source loudspeaker with directivity control that delivers premium sound for a broad range of venue types in entertainment, hospitality, corporate and higher ed applications. This dual-4-inch model offers a fixed 120°x50° horn, making it ideal for stage fills, delays, or filling in lost coverage when placed under balconies.
- Dual-4-inch LF transducers + HF compression driver in a bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Fixed horn with 110° (horizontal) x 50° (vertical) coverage
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
- Several mounting options available for a variety of spaces and venue requirements
- Deliver the right system for your customers: The PL-DC24 features dual-4-inch transducers and a high-frequency compression driver in a bass-reflex enclosure enabling high-performance audio across a broad range of applications. Pairing it with Q-SYS network amplifiers extends several benefits, from custom loudspeaker voicings and protection safeguards to advanced telemetry, helping to speed up deployment and deliver an optimal system operation experience.
- Full control and monitoring for Entertainment: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect Enterprise Manager to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
- Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that delivers a holistic audio, video, and control experience for the entire venue.
|Transducers||LF: 2x 4 in (102 mm), 1.3 in (33 mm) voice coil, neodymium |
HF: Compression driver, 1 in (25 mm) voice coil
|Enclosure Configuration:||Two-way, passive point source loudspaker in bass reflex enclosure|
|Coverage (horizontal x vertical):||110° x 50°|
|System Sensitivity||97.3 dB @ 1 W/1 m|
|Max SPL* (continuous)||114 dB|
|Enclosure Material:||Exterior plywood|
|Enclosure Color:||Black (RAL 9011)|
Treated grille vs. UV and corrosion
Hydrophobic stainless steel mesh behind grille
Input cup (IP65) sealing with gland
|Recommended Amplifiers||Q-SYS CX-Q 4K4 (up to 4 per ch) |
Q-SYS CX-Q 2K4 (up to 2 per ch)
*1 m on-axis in free space; continuous IEC noise 6 dB crest factor into power rating
All specifications are subject to change without notice.
