QIO Series
Network Bluetooth® Audio Wall Plates
The Q-SYS QIO Series of network audio extenders enable interoperability with non-networked audio I/O to expand the power of Q-SYS across more devices. QIO Series network Bluetooth® audio wall plates bring wireless audio integration to the places that need it most, enabling reliable Bluetooth® media streaming and call bridging within a native Q-SYS endpoint, making it ideal for hospitality, education, live entertainment spaces, as well as collaboration applications where simple user pairing, clean installation, and Q-SYS integration matter most.
Features & Benefits
- Connect your Bluetooth® devices to Q-SYS for system-wide audio streaming
- Support two-way calls for wireless audio bridging for UC applications
- Supports Auracast™ to enable wireless assistive listening and broadcast audio use cases
- Bluetooth® 5.4 module supports compatibility with the latest mobile devices and laptops
- NFC tap-to-pair sensor for quick & easy Bluetooth pairing of supported devices

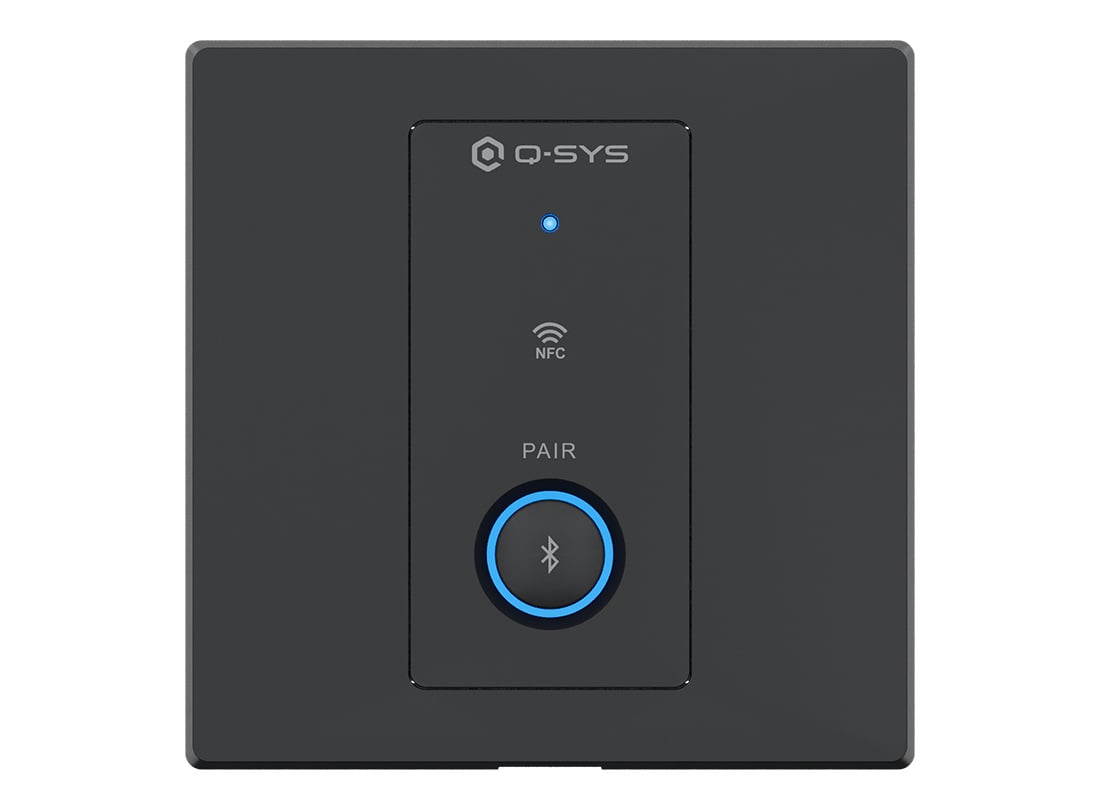

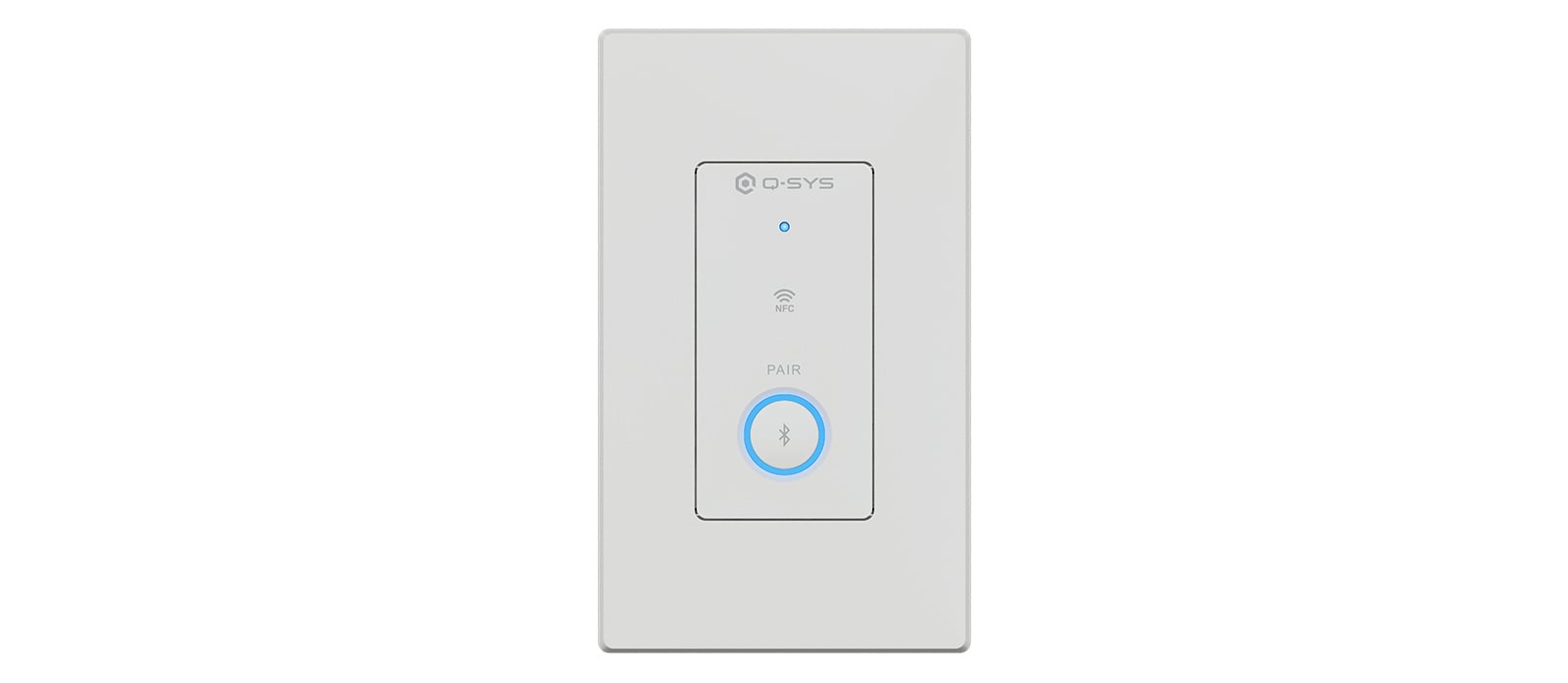

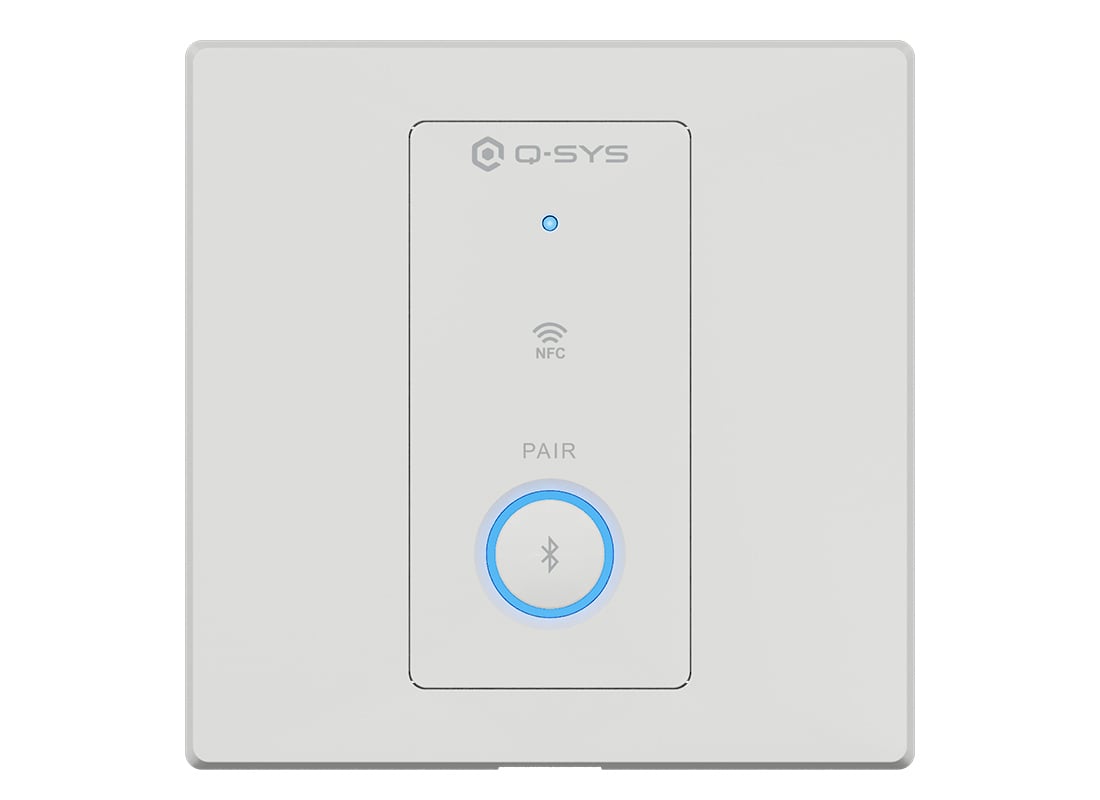

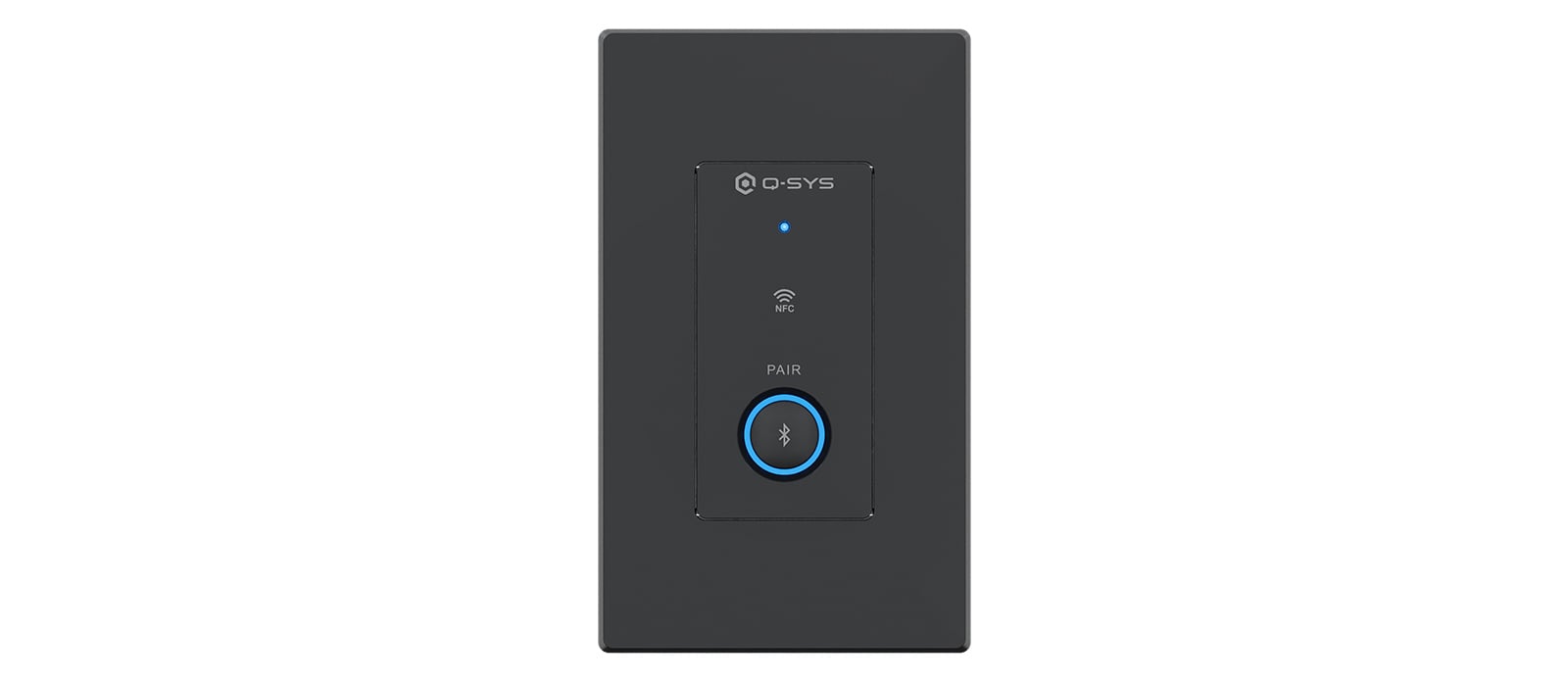

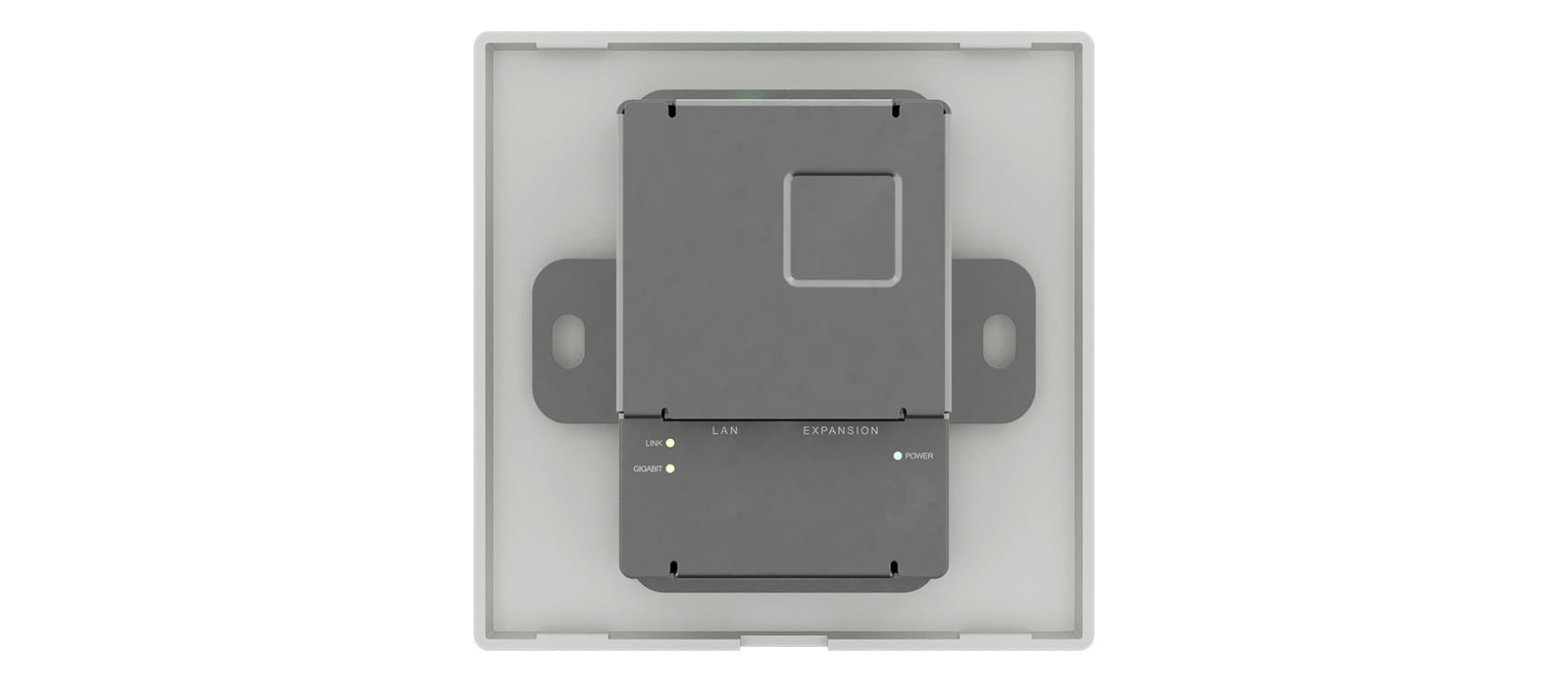

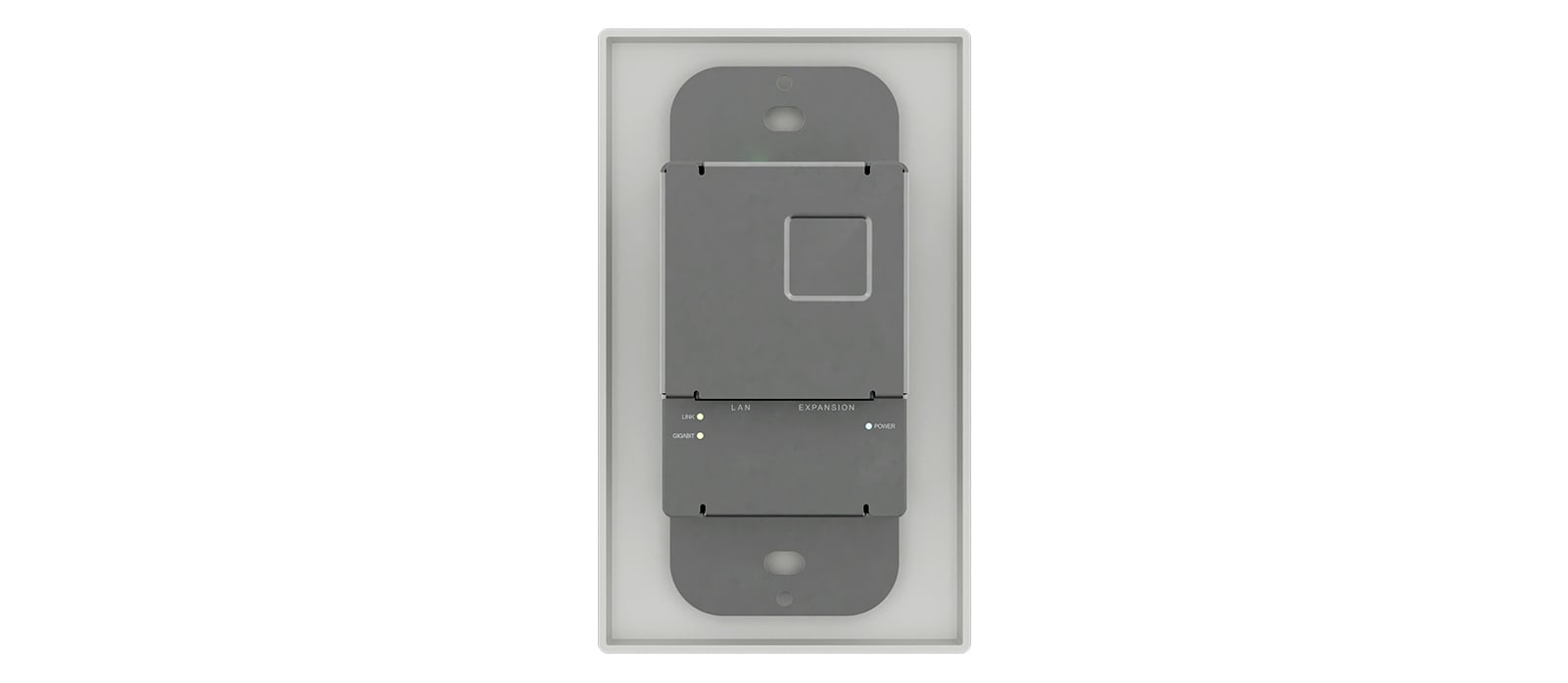

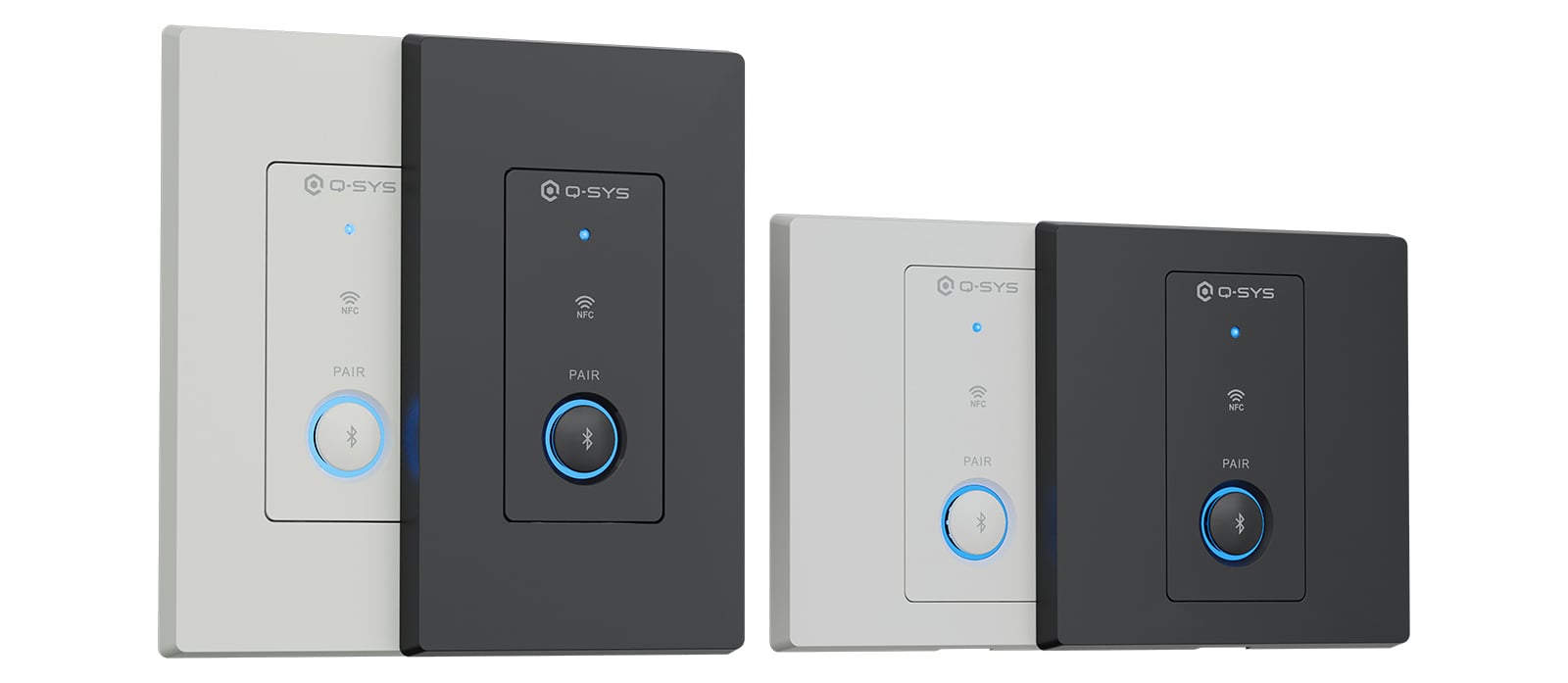

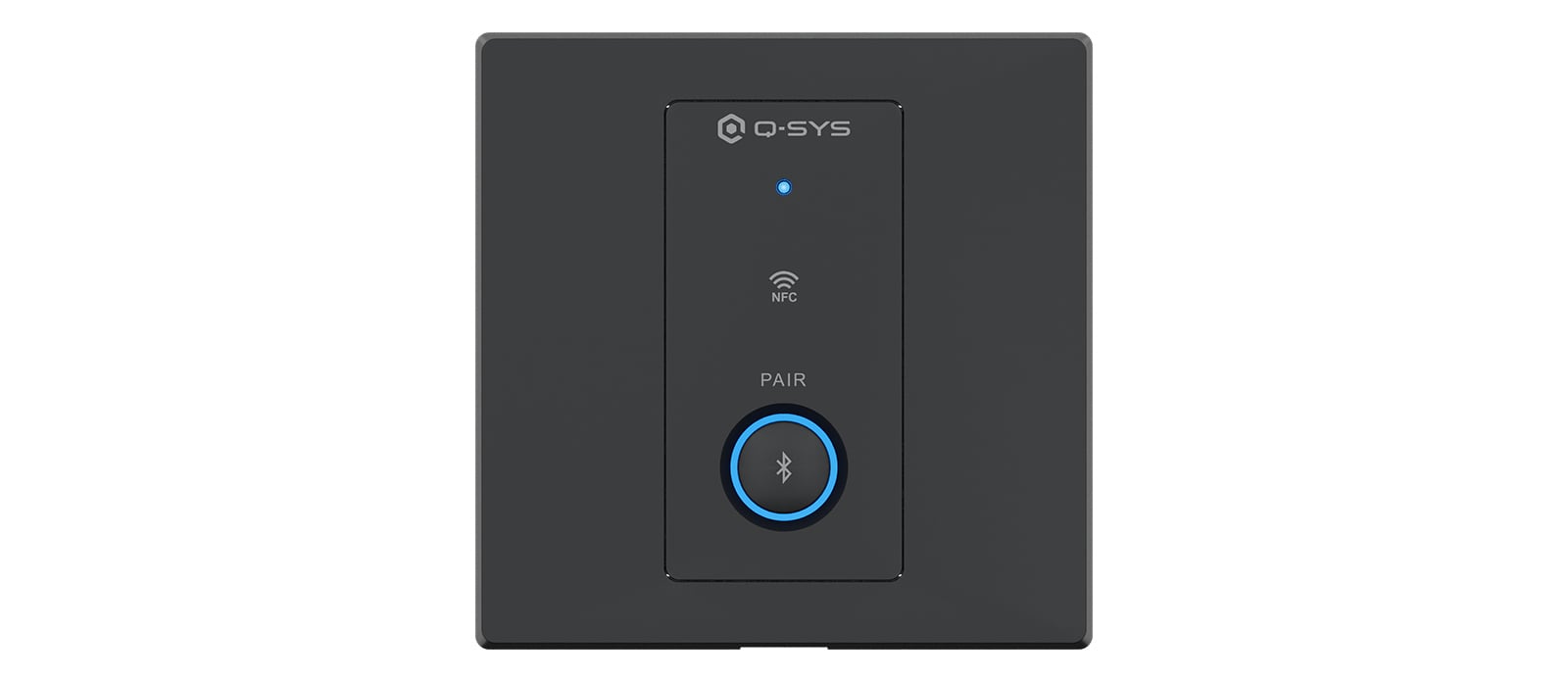

- Available US (1-gang) or EU/UK (75mm square) versions fit into standard electrical backboxes with Decora style faceplates

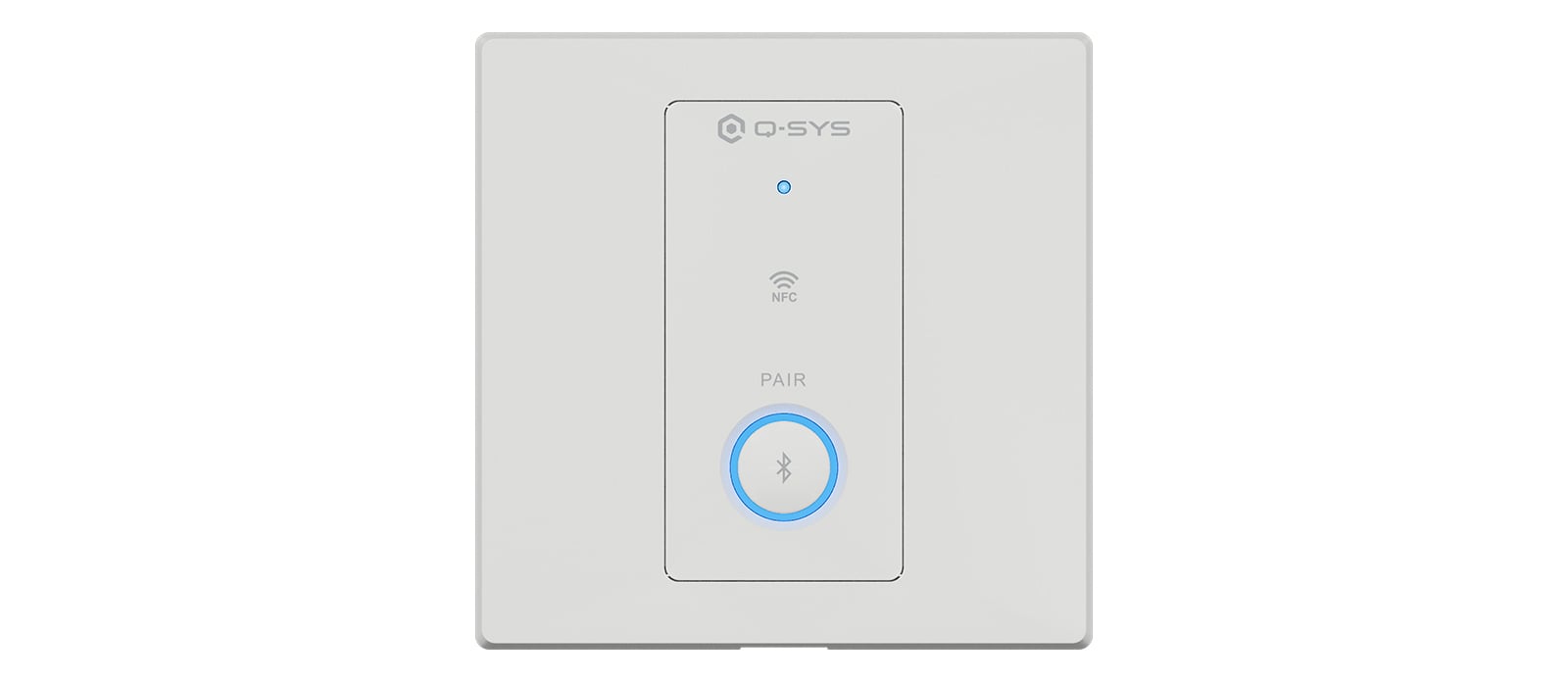

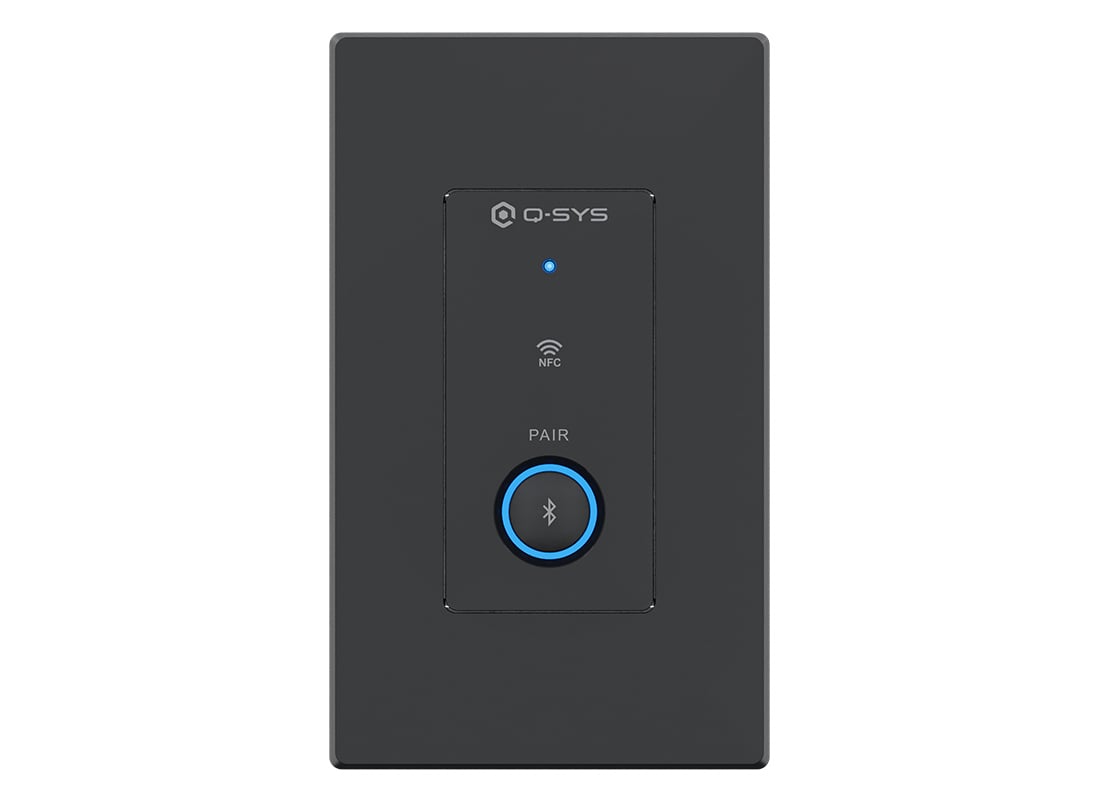

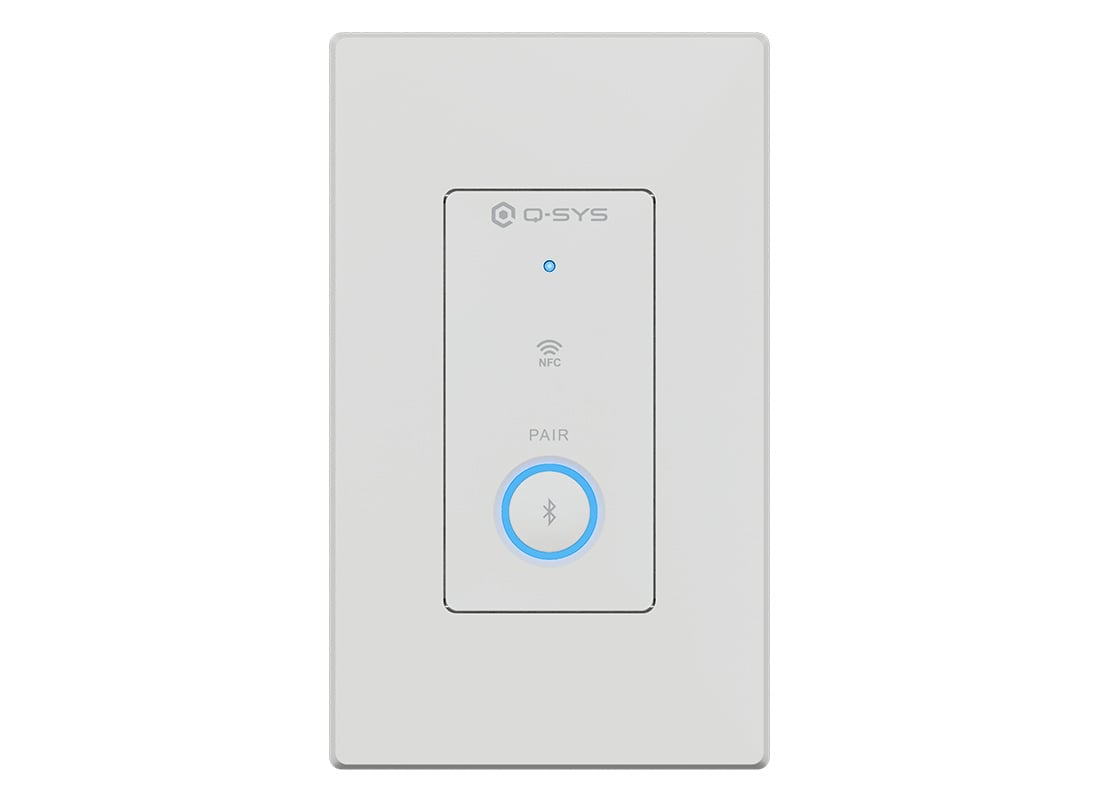

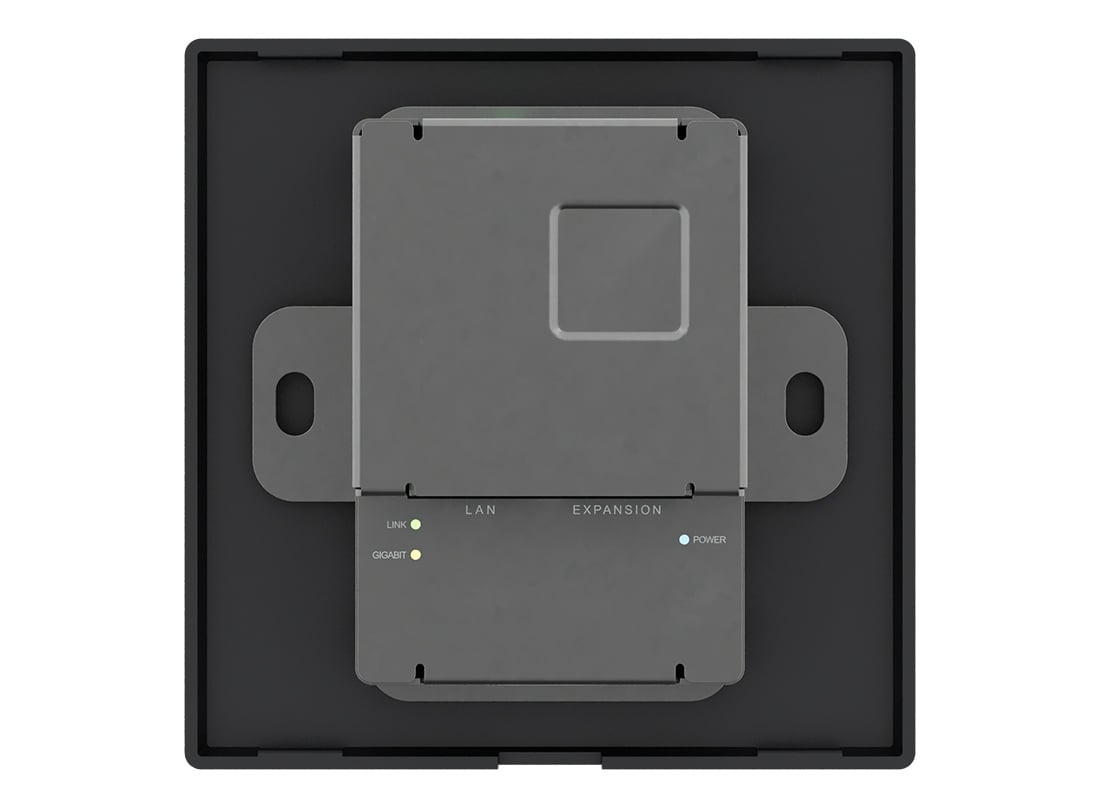

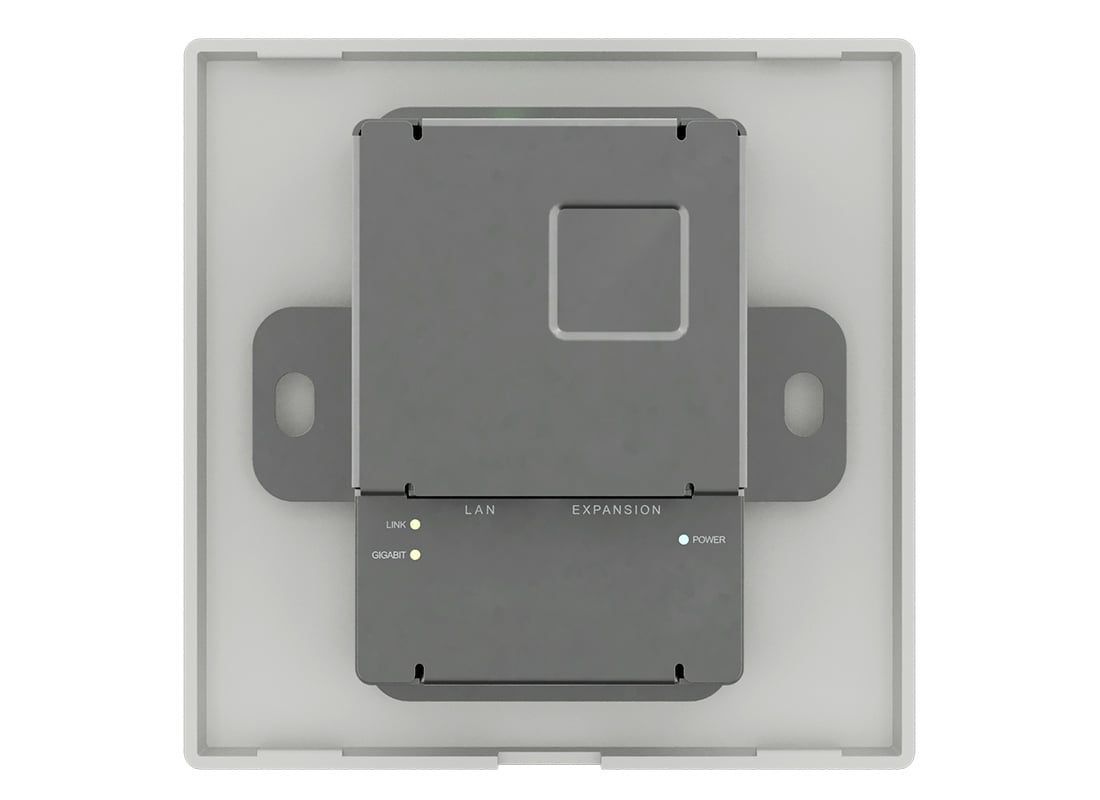

- White (RAL 9003) and black (RAL 9011) faceplates both included
- Control pairing permissions, auto-connect settings, idle timeouts, and more
- Can be monitored and managed by using Q-SYS Reflect, with one simple connection from your Q-SYS Core to the Q-SYS Reflect cloud
Add the right I/O where you need it: With QIO Series Bluetooth® audio wall plates, you can bring wireless audio to the places that need it most and integrate today’s Bluetooth®-enabled devices into Q-SYS for reliable audio streaming and call bridging.
Native Q-LAN Bluetooth audio connectivity: The network Bluetooth audio wall plate can receive two Q-LAN audio channels to stream stereo media from a mobile device into a networked audio system, and it can use the Bluetooth® hands-free profile to carry bi-directional audio to wirelessly bridge calls into a room’s networked audio system.
Customizable to your environment: The QIO Series features modular devices that can be combined to fit your unique I/O requirements for centralized, distributed and hybrid processing architectures. By separating I/O from processing hardware, the QIO Series enables you to interface with non-networked audio and control devices precisely where they’re needed.
Integrated audio, video and control: QIO Series network I/O expanders are driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.
Click to Enlarge
Click to Enlarge
| Specifications | QIO Series Network Bluetooth® Audio Wall Plate |
| Bluetooth® module version | 5.4 |
| Bluetooth® profiles supported | Bluetooth® Classic (BR/EDR):
|
| Bluetooth® audio codecs supported | SBC, AAC, aptX and aptX HD |
| Bluetooth® range | >86 ft (>23 m) line-of-sight |
| Controls & indicators | Front panel:
|

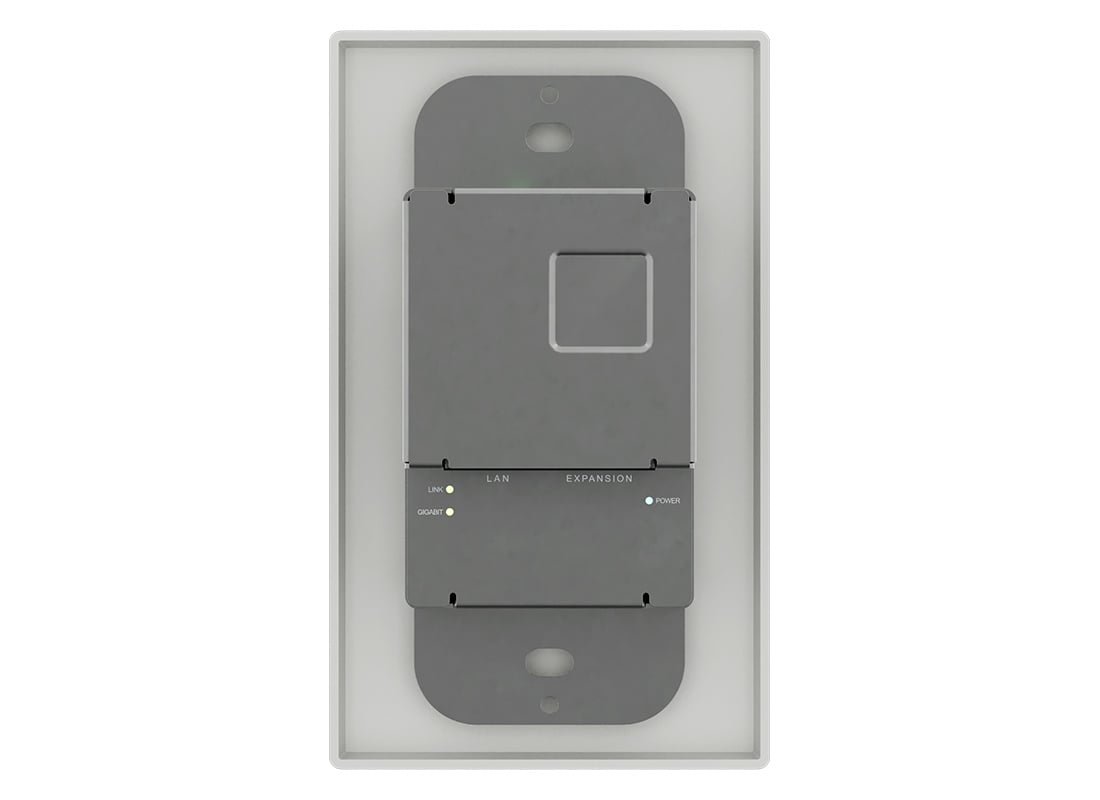

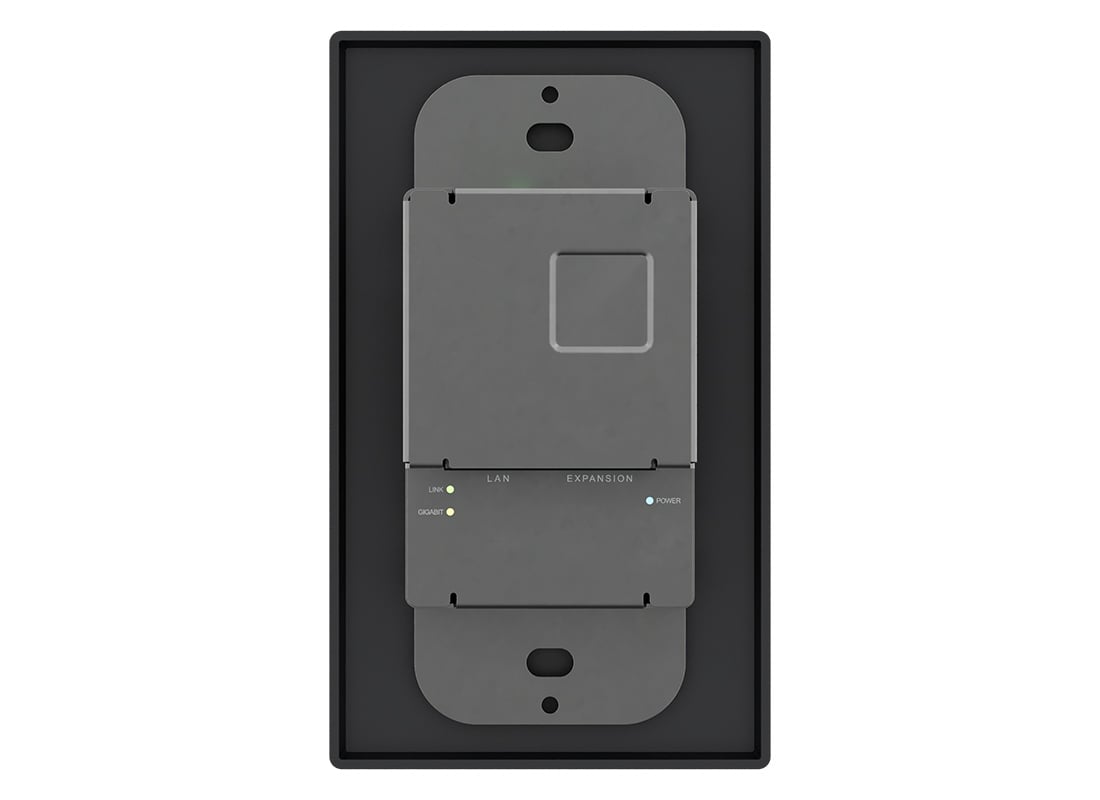

| Product dimensions (L x W x H) | QIO-WP-BT-NA: 1.55 x 2.75 x 4.61 in (39.5 x 69.9 x 117.1 mm), including 1-gang cover plate
|
| Colors | White - RAL 9003 (default configuration) Black - RAL 9011 (replaceable faceplate included) |
| Product weight | 0.375 lb (170.1 g) |
| Shipping dimensions | 6.25 x 4.00 x 3.50 in (158.75 x 101.60 x 88.90 mm) |
| Shipping weight | 0.75 lb (340.2 g) |
| Operating temperature | 32° F to 122° F (0° C to 50° C) |
| Power consumption | IEEE 802.3af PoE Class 0; 3 W max |
| BTU usage / heat generation | 10.24 BTU/h |
| Humidity range | 5%–85% RH, non-condensing |
| Environmental noise (dB) | N/A (no fan) |
*All specifications are subject to change without notice.
