Cinema Loudspeaker System

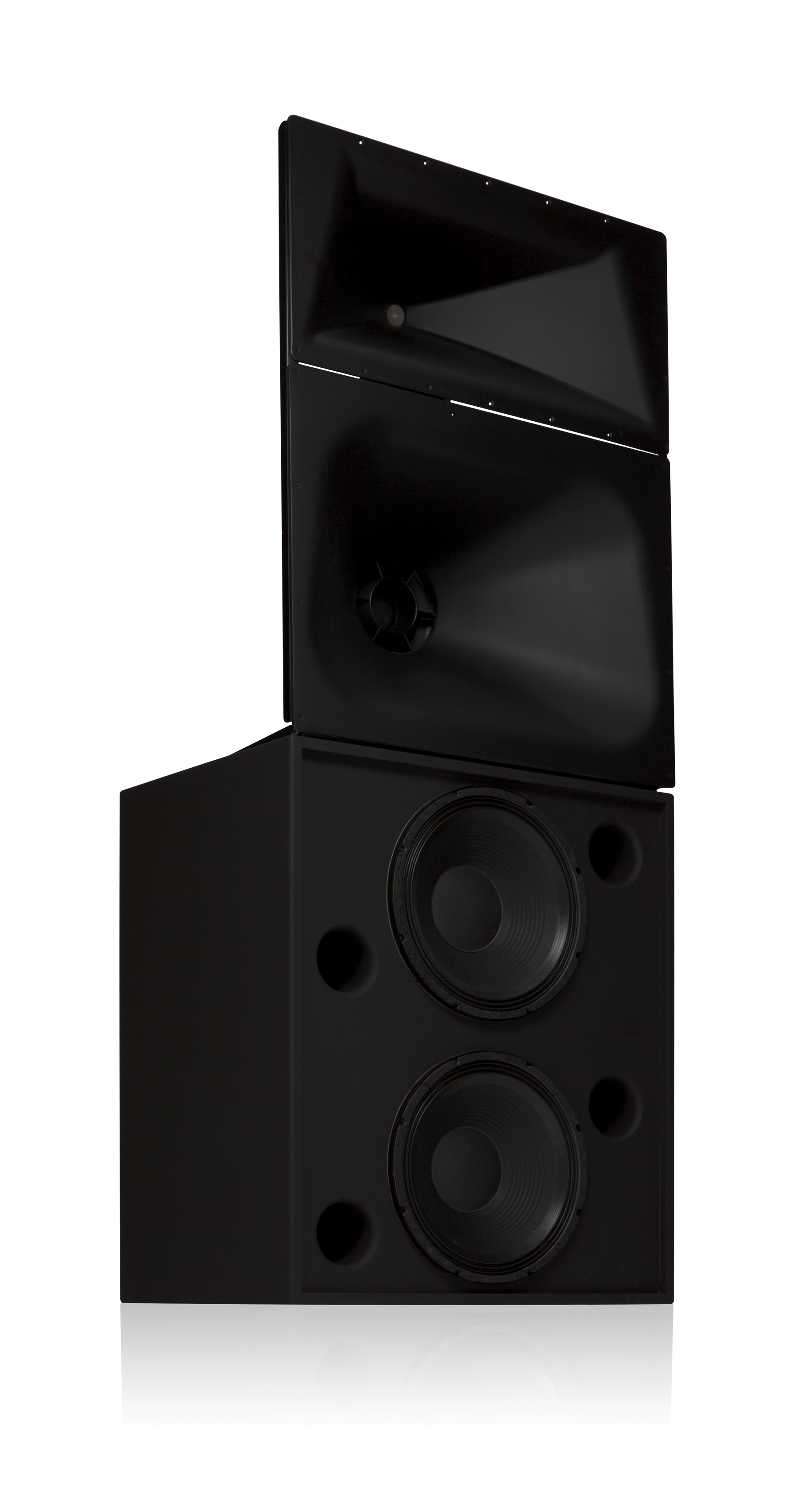

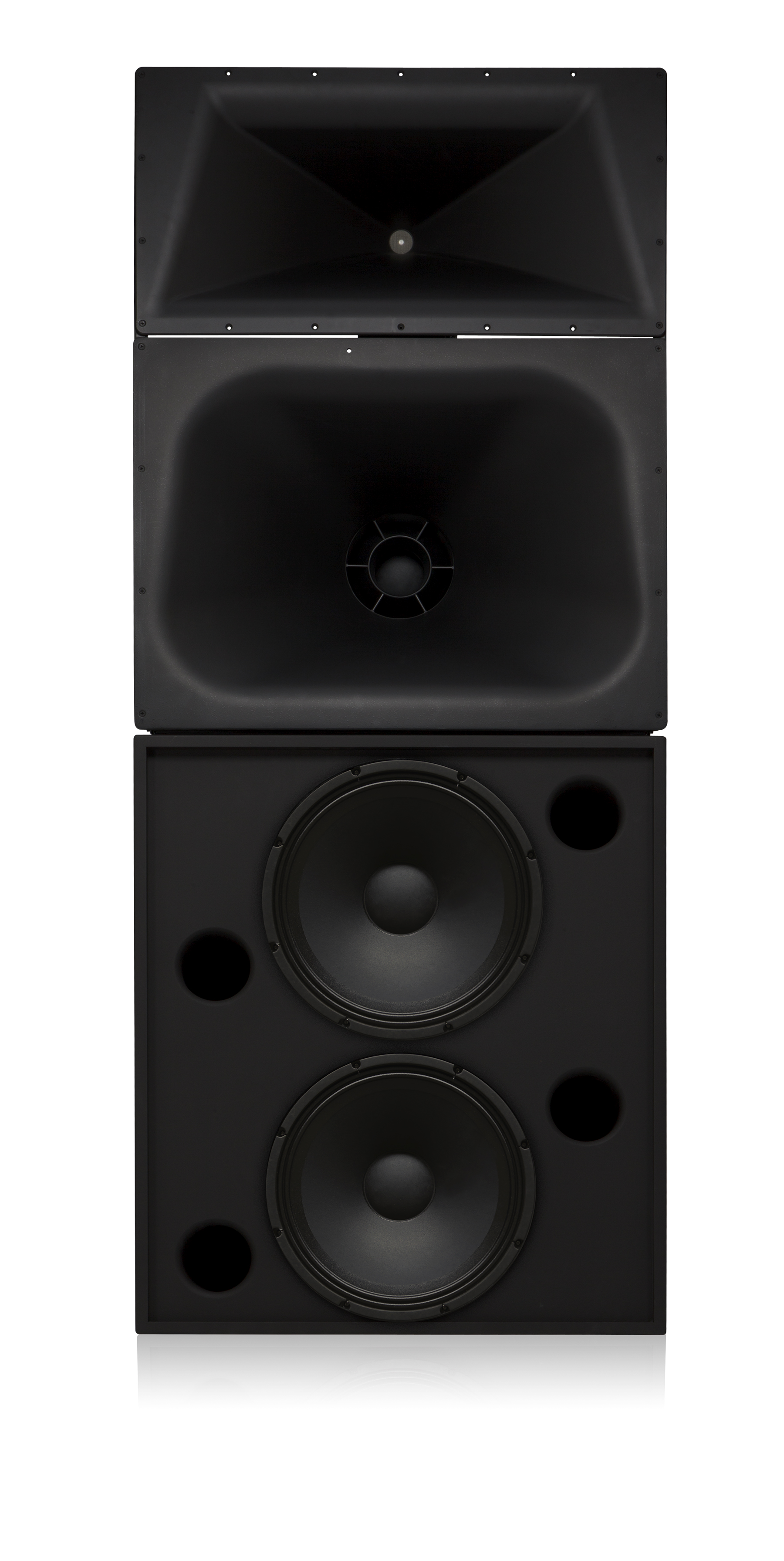

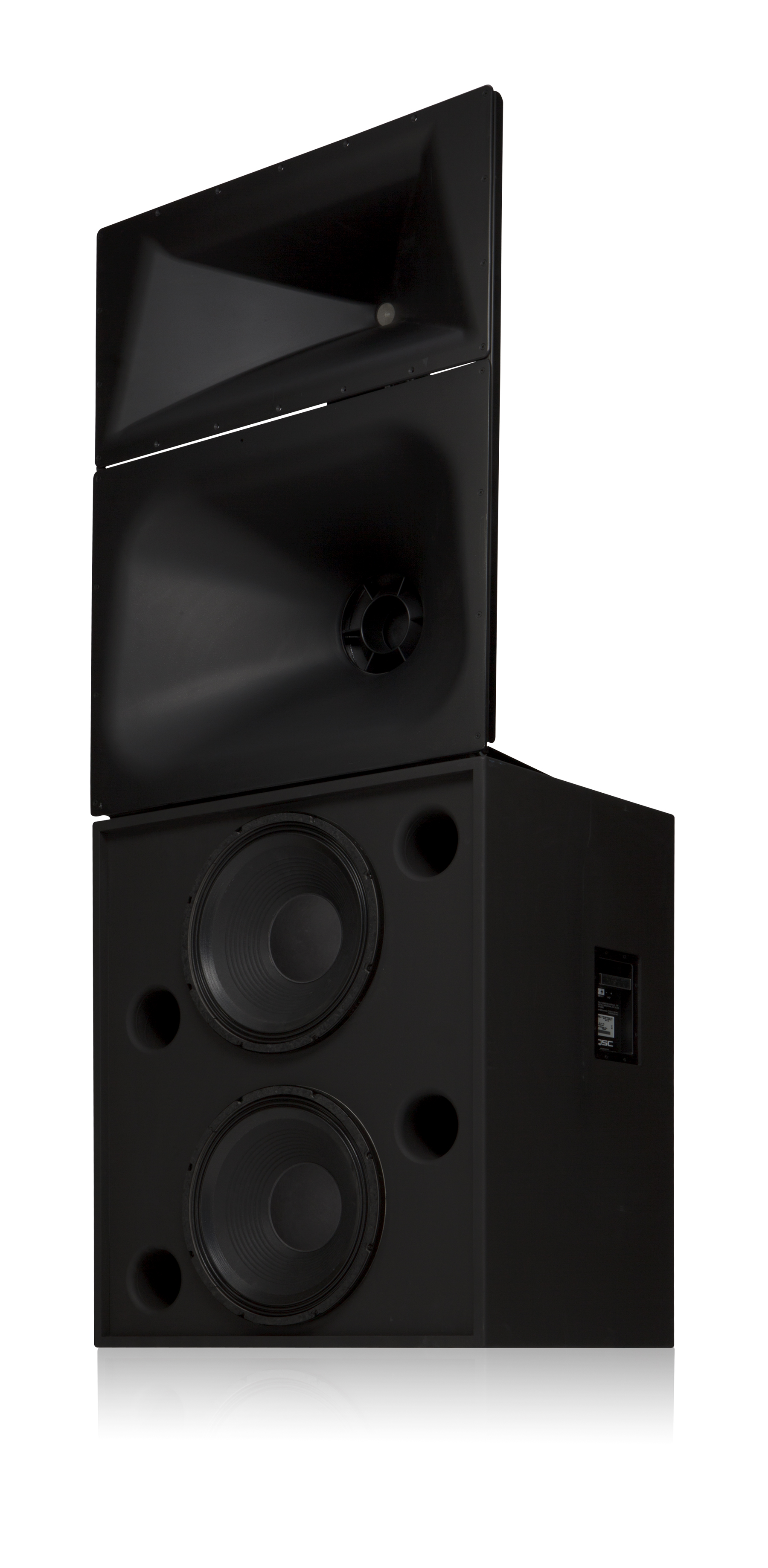

Developed specifically for the unique requirements of professional motion picture playback, the SC-223 extends QSC's commitment to the cinema market. As a member of the DCS Digital Cinema Speaker Series, the SC-223 is a 3-way bi-amplified screen channel loudspeaker system comprised of two main units - the MH-1060 mid-high frequency and the LF-2215 low - frequency.

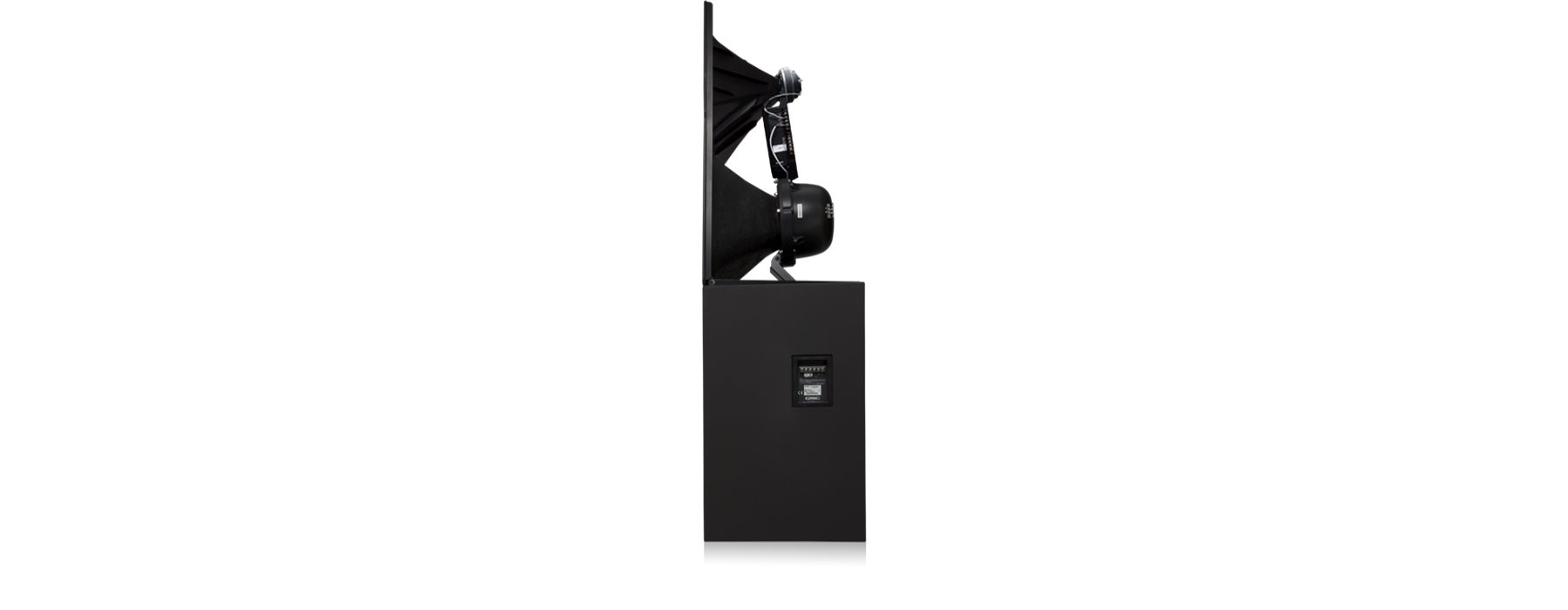

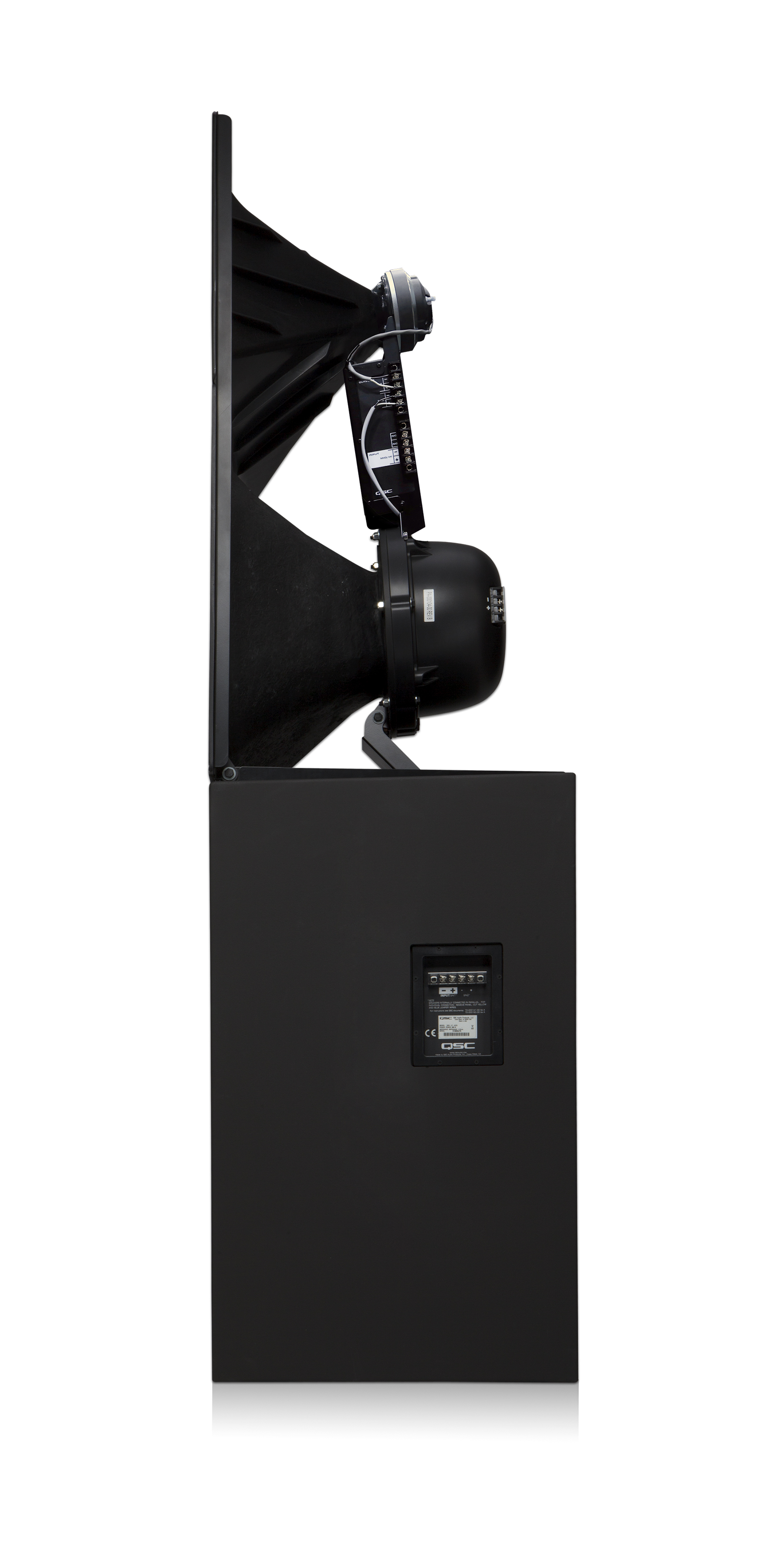

The MH-1060 mid-high system features a high output, horn loaded 10-inch (254mm) midrange cone driver and 2.4-inch (60mm) titanium diaphragm compression driver mounted to an adjustable pan and tilt bracket. The MH-1060 includes a passive crossover for bi-amp operation. The MH-1060 provides extended frequency coverage for the critical midrange band. A high power 10-inch cone driver allows operation as low as 300 Hz and the advanced phase plug coupling permits a crossover point of 2200 Hz to the high frequency horn. The ensures that most of the dialog range is reproduced by a single element, for unmatched intelligibility.
The LF- 2215 dual 15-inch (381 mm) low-frequency enclosure is designed specifically to address the extended low-frequency response required for cinema applications. The LF-2215 covers the frequency range from 35 Hz to 300 Hz. Close Coupled Woofers (CCW), with their tight spacing between woofers, improves coupling.
The SC-223 is designed for ease of installation. The MH-1060 components come pre-assembled to reduce field assembly time. Three bolts are all that are required to secure the MH-1060 to the top of the LF-2215 enclosure.
- 3-way bi-amplified screen channel system
- MH-1060 provides 90° horizontal by +20° to -30° vertical coverage
- LF-2215 is constructed of MDF and is heavily braced
- Low-distortion waveguides provide highly articulate dialogue
- Shallow depth (20-inch) facilities installation
|Nominal Coverage||90° horizontal x +20 to -30° vertical|
|Frequency Range||37 Hz - 16 kHz (-6 dB)|
|Crossover Frequency||300Hz, 24 dB per octave|
1 watt / 1 meter, half space
|98 dB||103.5 dB|
|Rated Noise Power |
2 hours of 6dB crest factor pink noise
Recommended Amplifier Power
|600 W1 |
450 W to 1200 W
|200 W2 |
150 W to 400 W
|Recommended Processing||Subsonic filter below 30 Hz, >18 dB per octave||4th order LR crossover at 300Hz via QSC processor|
|Connectors||Barrier strip screw terminals accept up to #10 AWG stranded wire||Barrier strip screw terminals accept up to #10 AWG stranded wire|
|Transducers||Two 15-inch (381 mm) high efficiency, extended bass woofers featuring 3-inch copper voice coils||10 high efficiency mid range, 1.4-inch (36mm) exit. 2.4-inch titanium diaphragm compression driver|
|Enclosure||Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Feature vandal resistant woofer mounting bolts||Tilt/Pan Bracket |
±10° vertical tilt
±10° horizontal pan
|Dimensions||35.75-inch x 30-inch x 20.3-inch (908 mm x 762 mm x 516 mm)||39-inch x 30-inch x 20-inch (990 mm x 762 mm x 508 mm)|
|Weight – Net||172 lb (78 kg)||82 lb (37.2 kg)|
|System Weight||254 lb (115 kg)|
|Baffle Cut-Out||76-inch x 32-inch|
1) Maximum input power tested in accordance with IEC 60268-5 recommendations, 30 Hz to 300 kHz band limiting.
2) Maximum input power tested in accordance with IEC 60268-5 recommendations, 300 Hz to 16 kHz band limiting.
Preliminary Specifications subject to change without notice.
