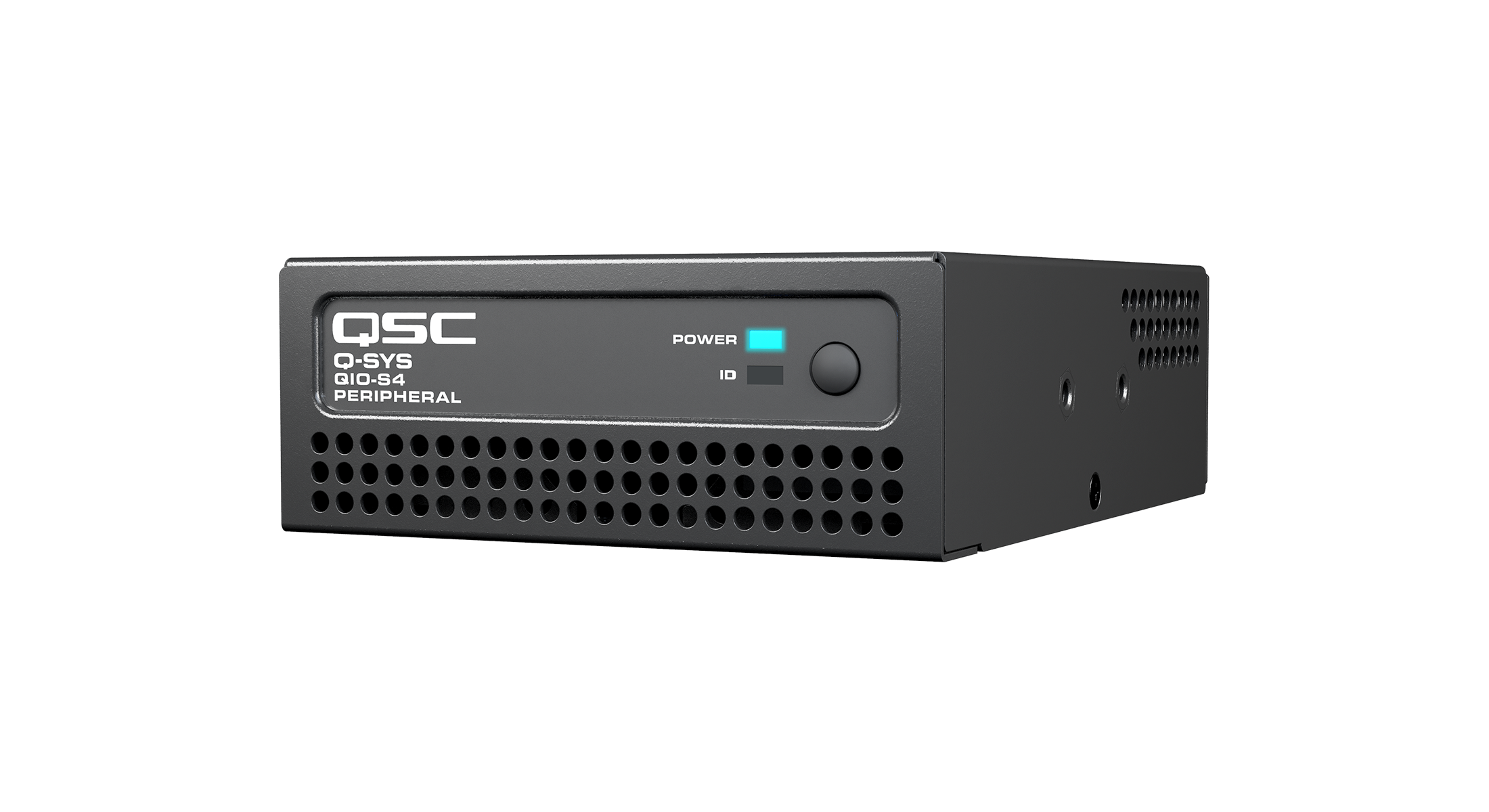

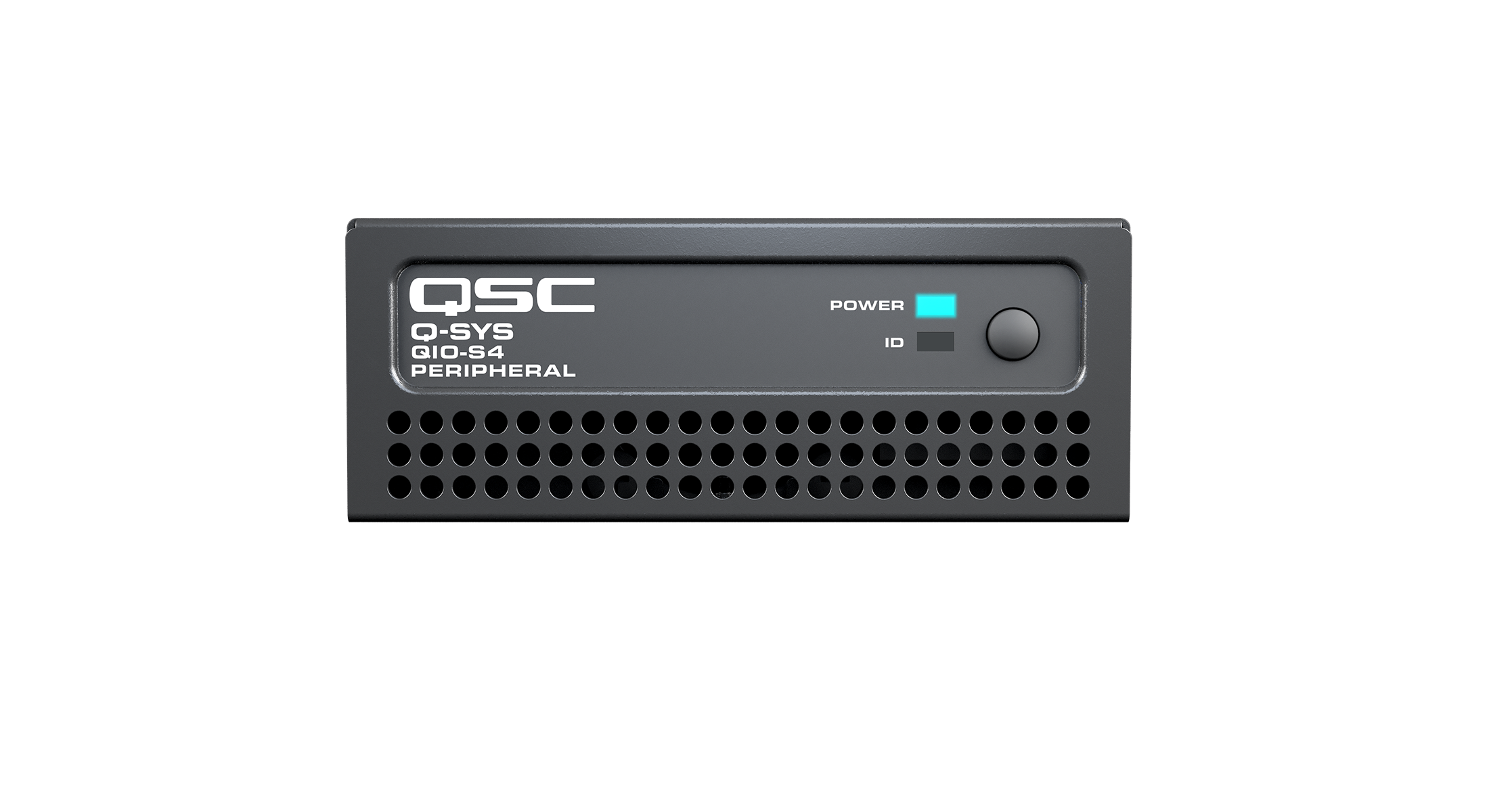

Q-SYS Network I/O Expander
The Q-SYS QIO-S4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via Serial connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
Features & Benefits
- Native network Serial connectivity solution for Q-SYS
- Four (4) bi-directional RS232 serial ports
- One port includes RS422 and RS485 compatibility
- Power over Ethernet (PoE) capable
- Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
- Surface- or rack-mountable (1RU, quarter width)
- Includes surface mounting hardware
- Network Serial connectivity where you need it
The QIO-S4 allows you to provide your Q-SYS system with greater flexibility to deploy Serial control connectivity where it’s most convenient. The QIO-S4 features four (4) bi-directional RS232 serial ports (including one port with RS422 and RS485 compatibility, enabling Q-SYS control over lighting systems, video displays, conference systems and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.
- Expanded I/O customization
QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).
- Simplicity & scalability
Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).
- Designed for Q-SYS
The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future. Learn more about Q-SYS.

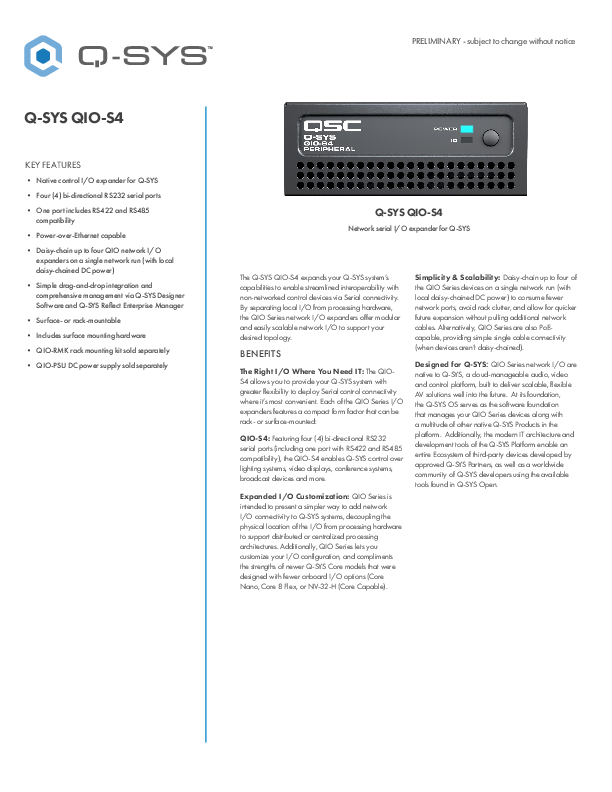

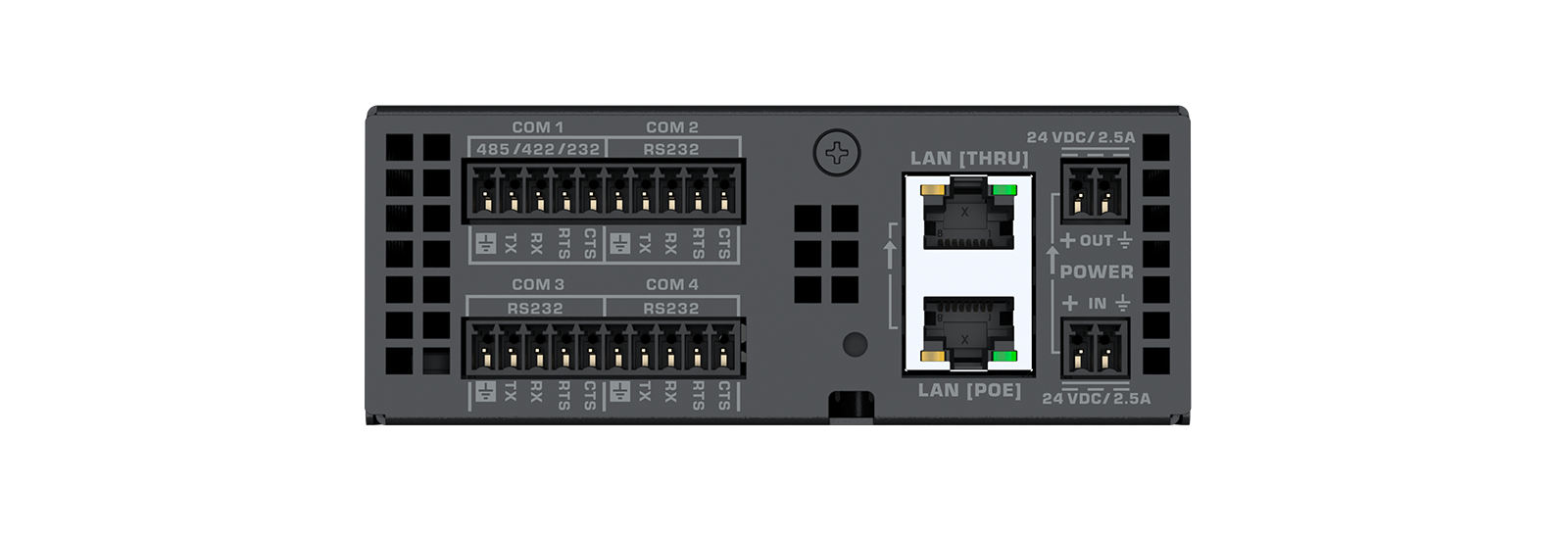

Click to Enlarge

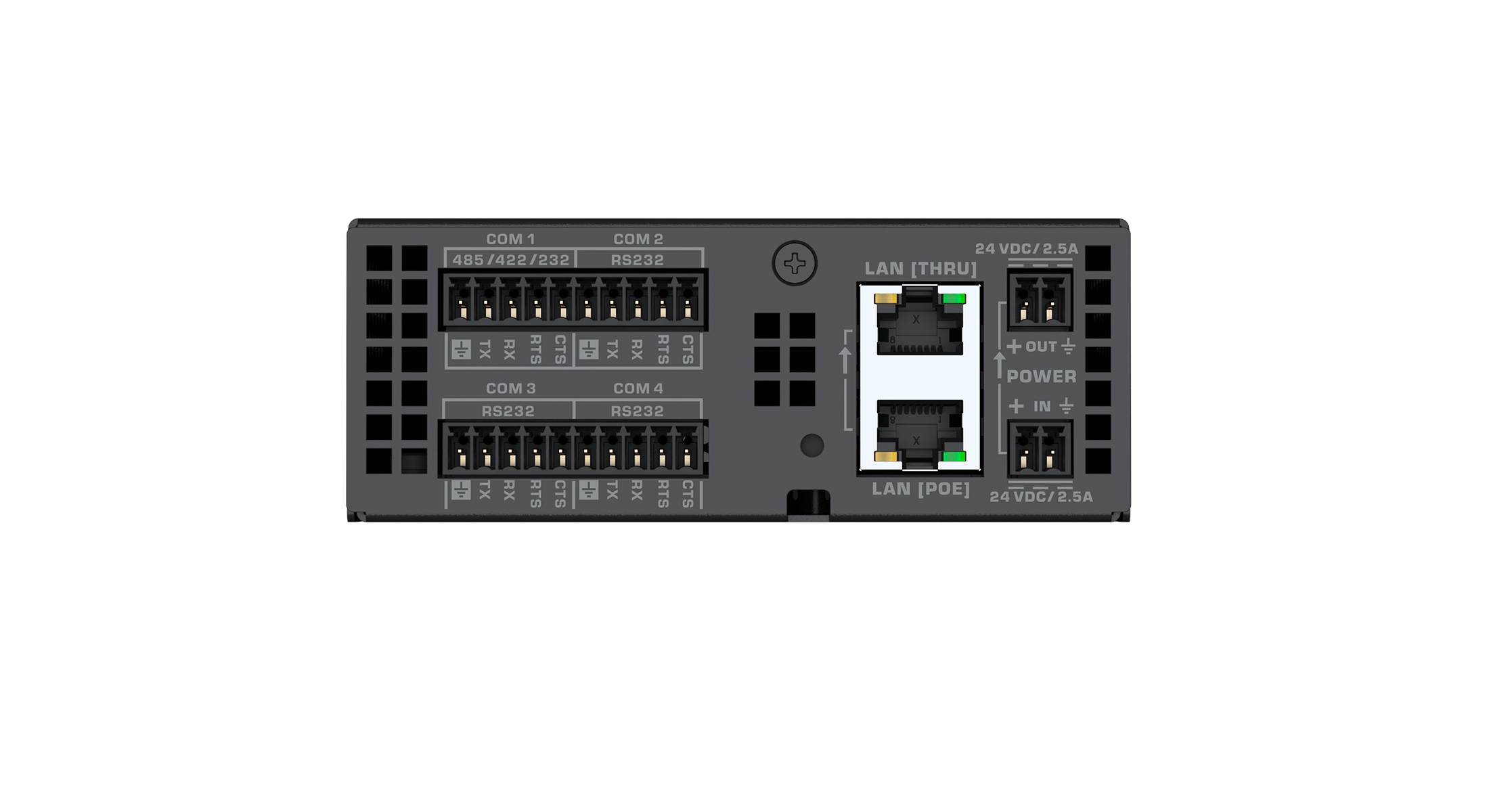

|RS-232 / RS-485 / RS-422||One (1) port, configurable protocol, baud rate, and flow control|
|RS-232||Three (3) port, configurable protocol, baud rate, and flow control|
|External power supply||24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)|
|LAN (PoE)||Gigabit LAN connection for Q-LAN, PoE|
|PoE specification||Conforms to IEEE 802.3af Type 1|
|LAN (Thru)||Ethernet daisy-chaining|
|Dimensions||5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)|
|Weight||1.18 lb (0.54 kg)|

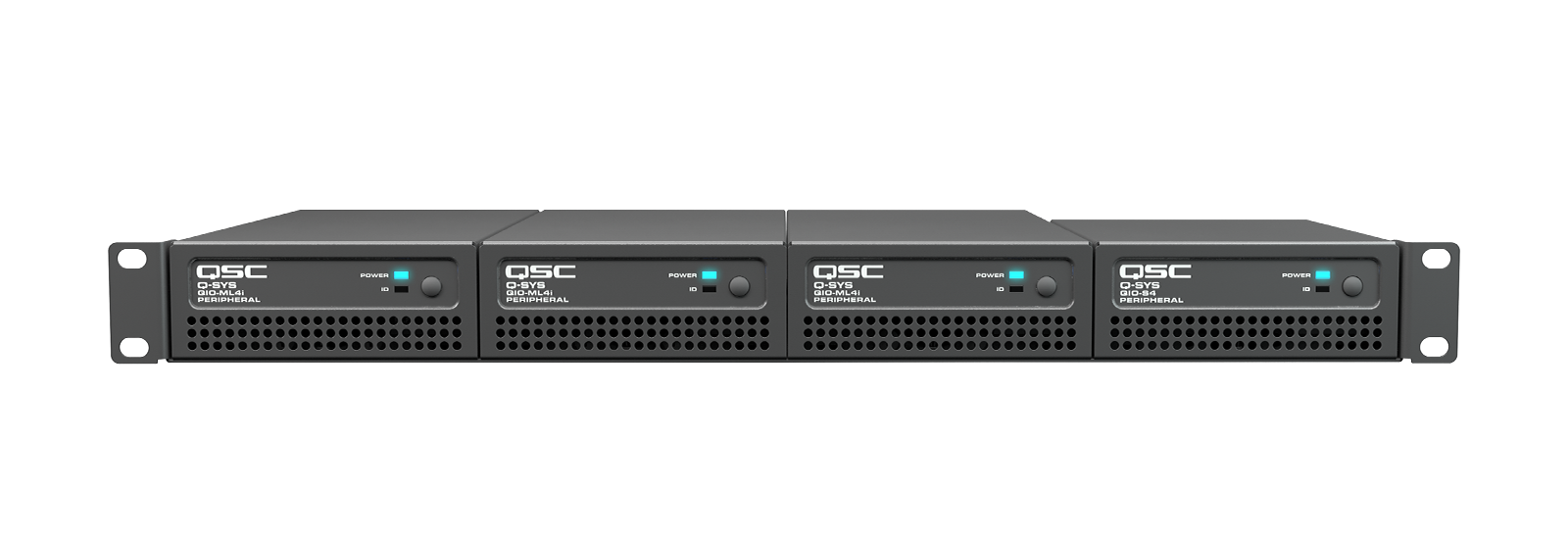

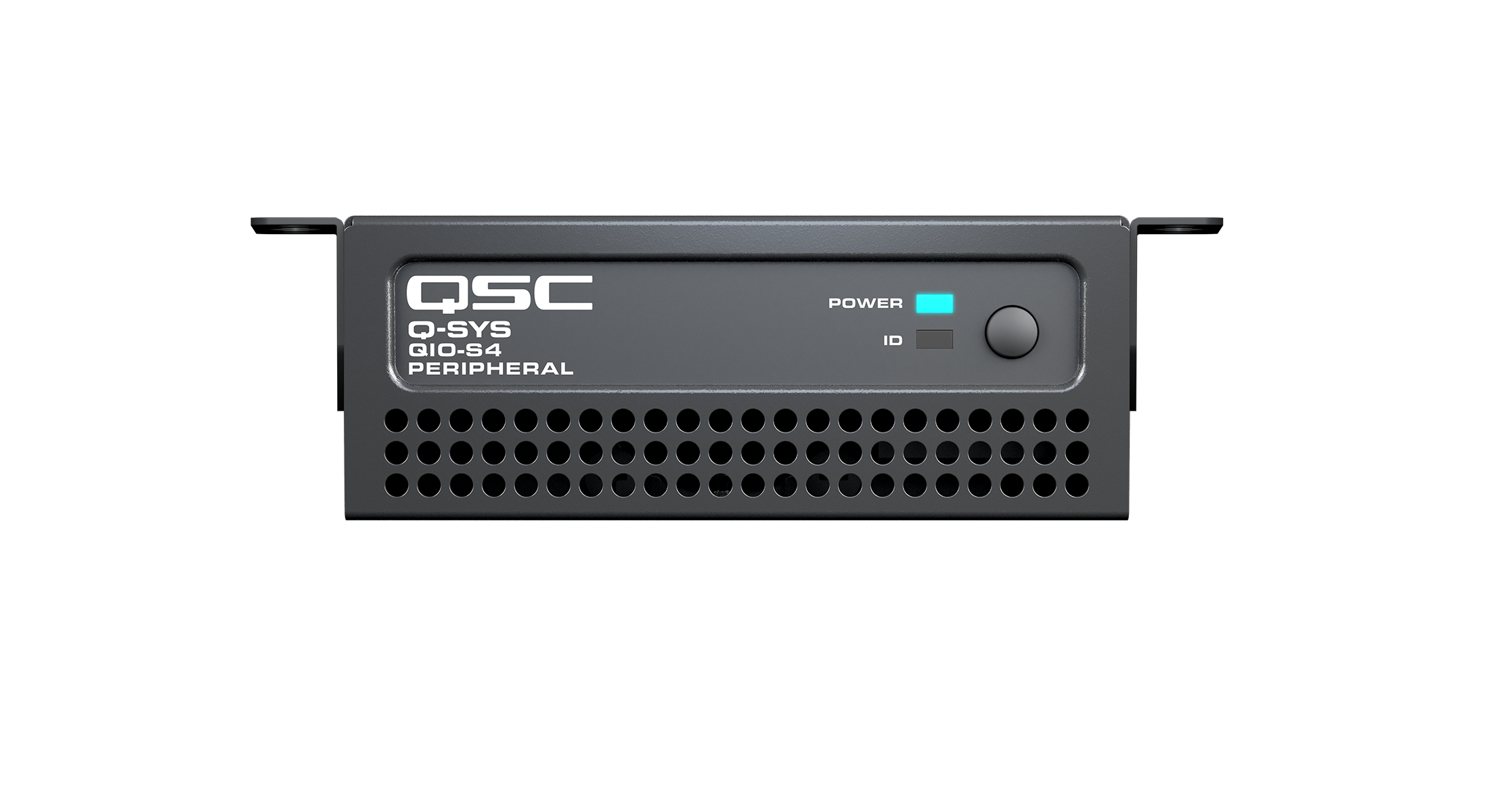

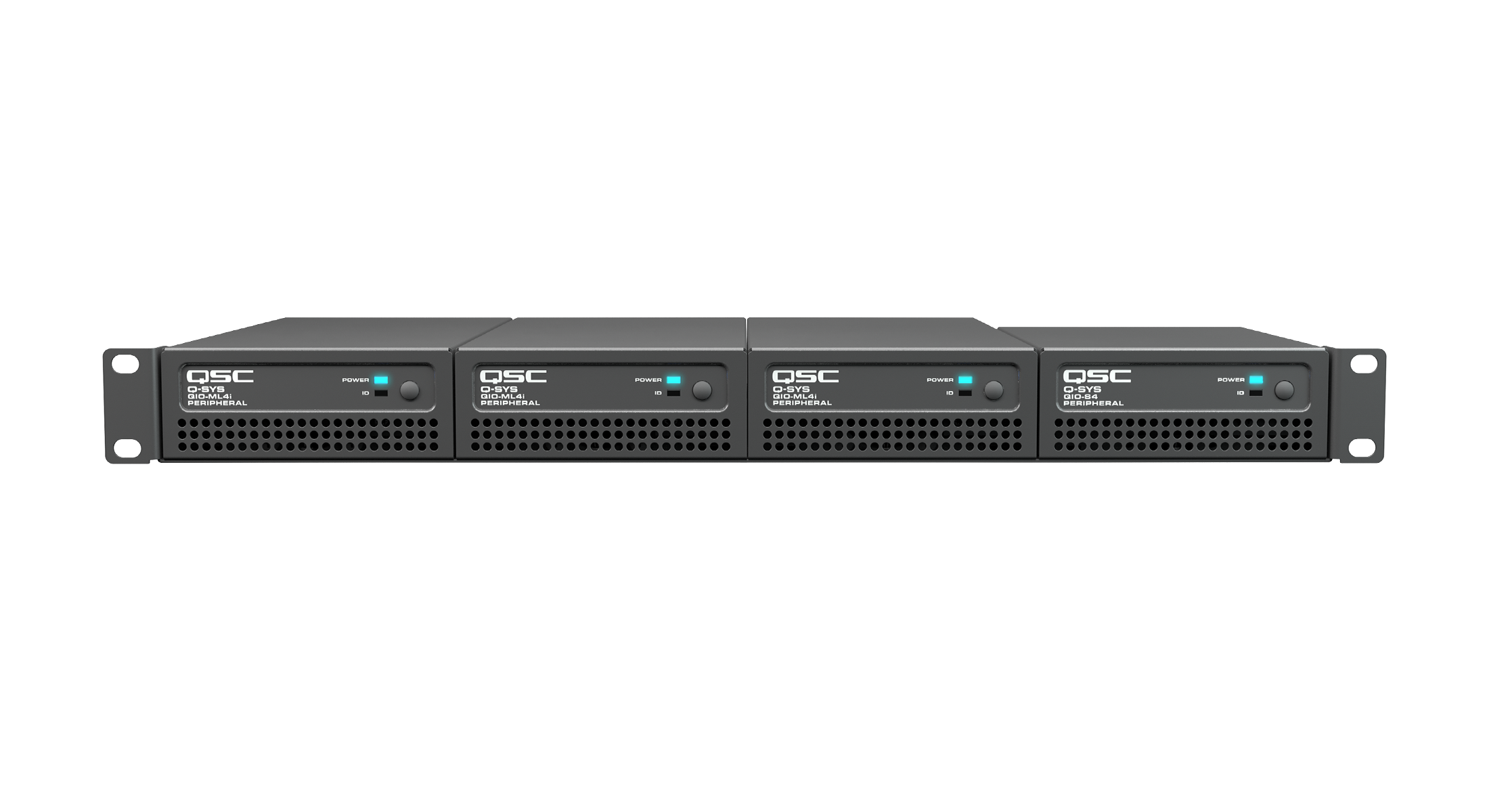

|Mounting options||Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)|
|Ambient operating temperature range||0°C to +50°C|
|Humidity||0%-85% through 30°C non-condensing|
|Storage temperature||-20°C to +70°C|
|Compliance||FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, UL, C-UL, NOM-019|
All specifications are subject to change without notice.
