Q-SYS Network I/O Expander

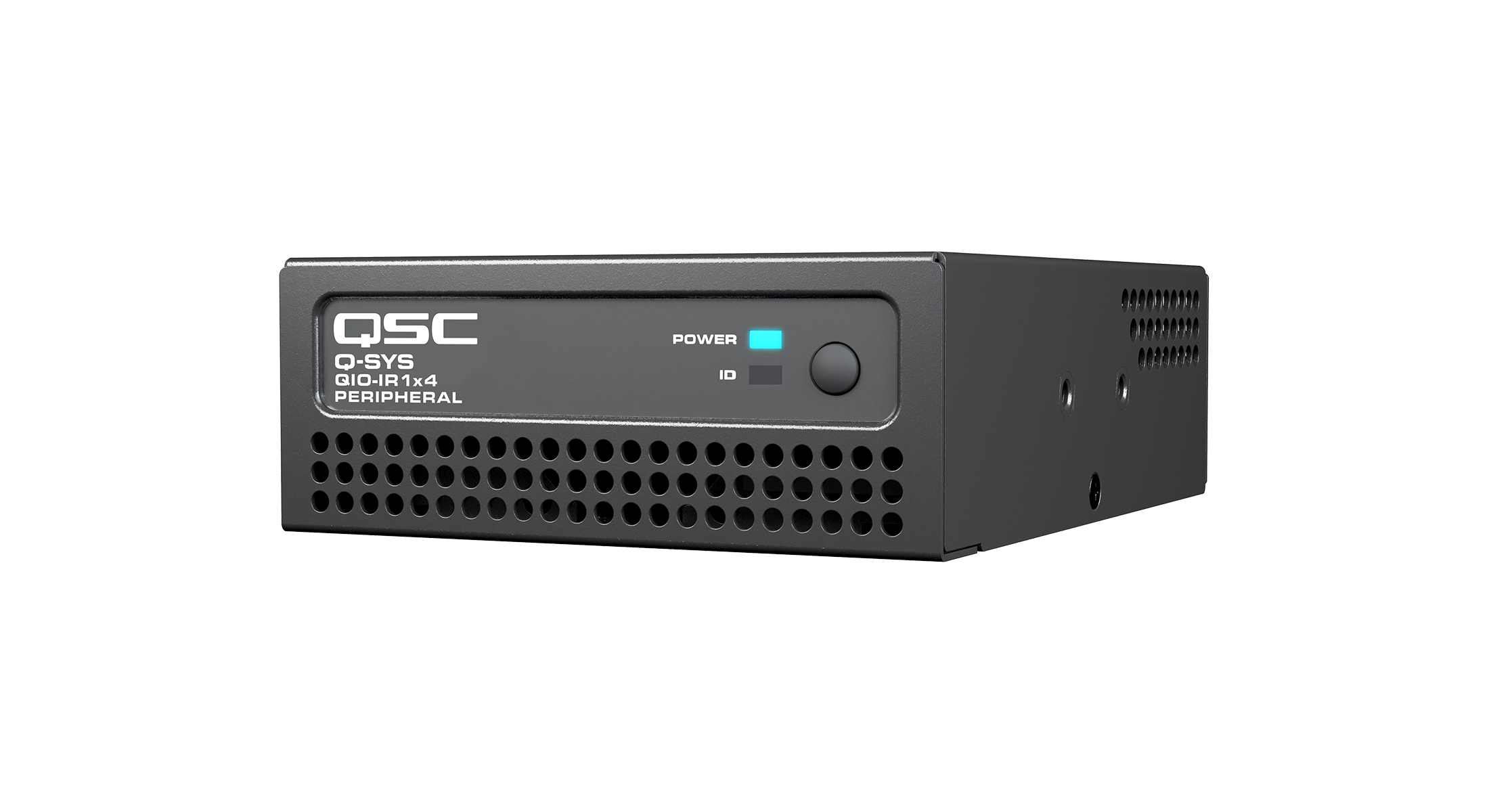

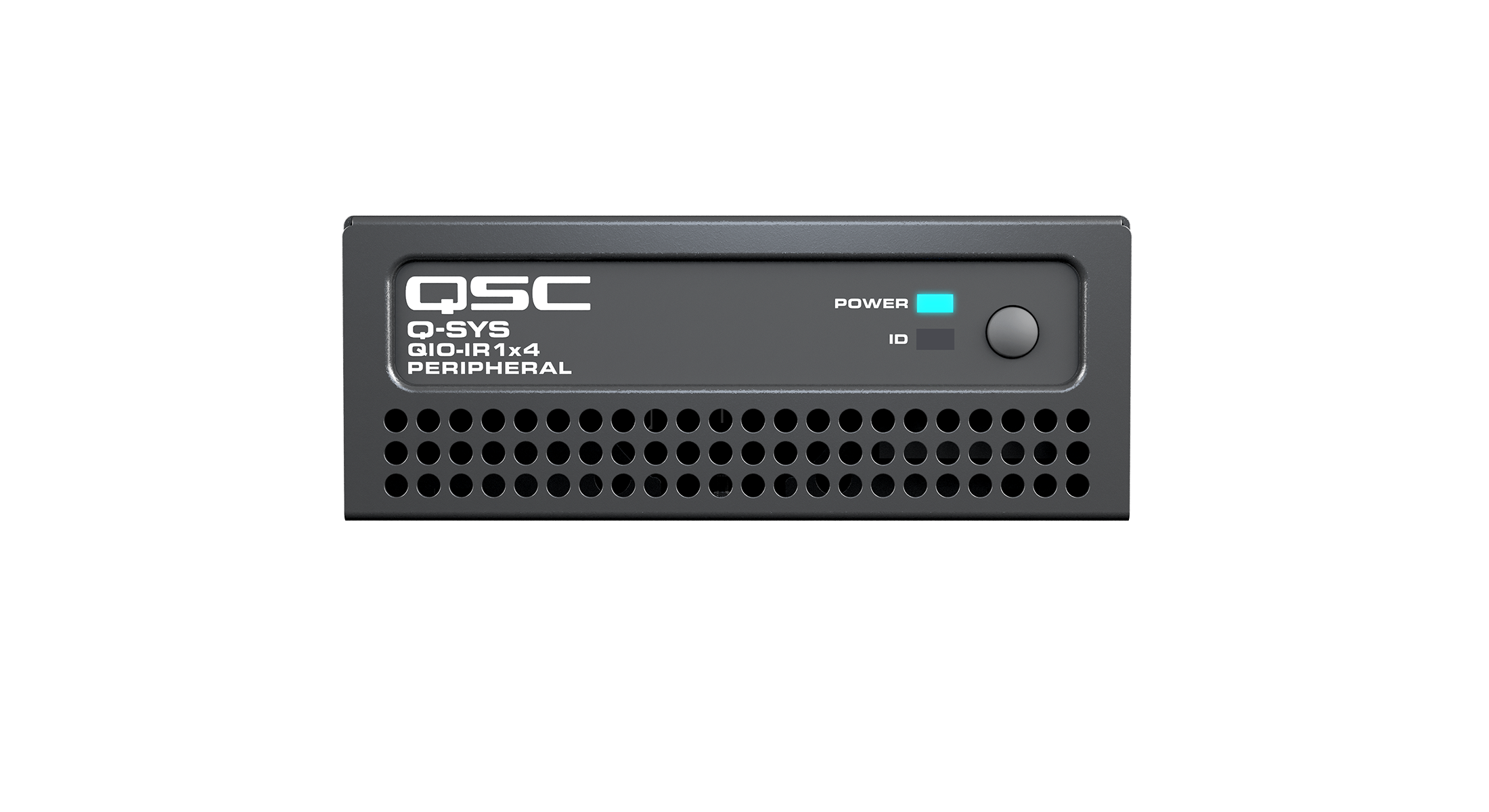

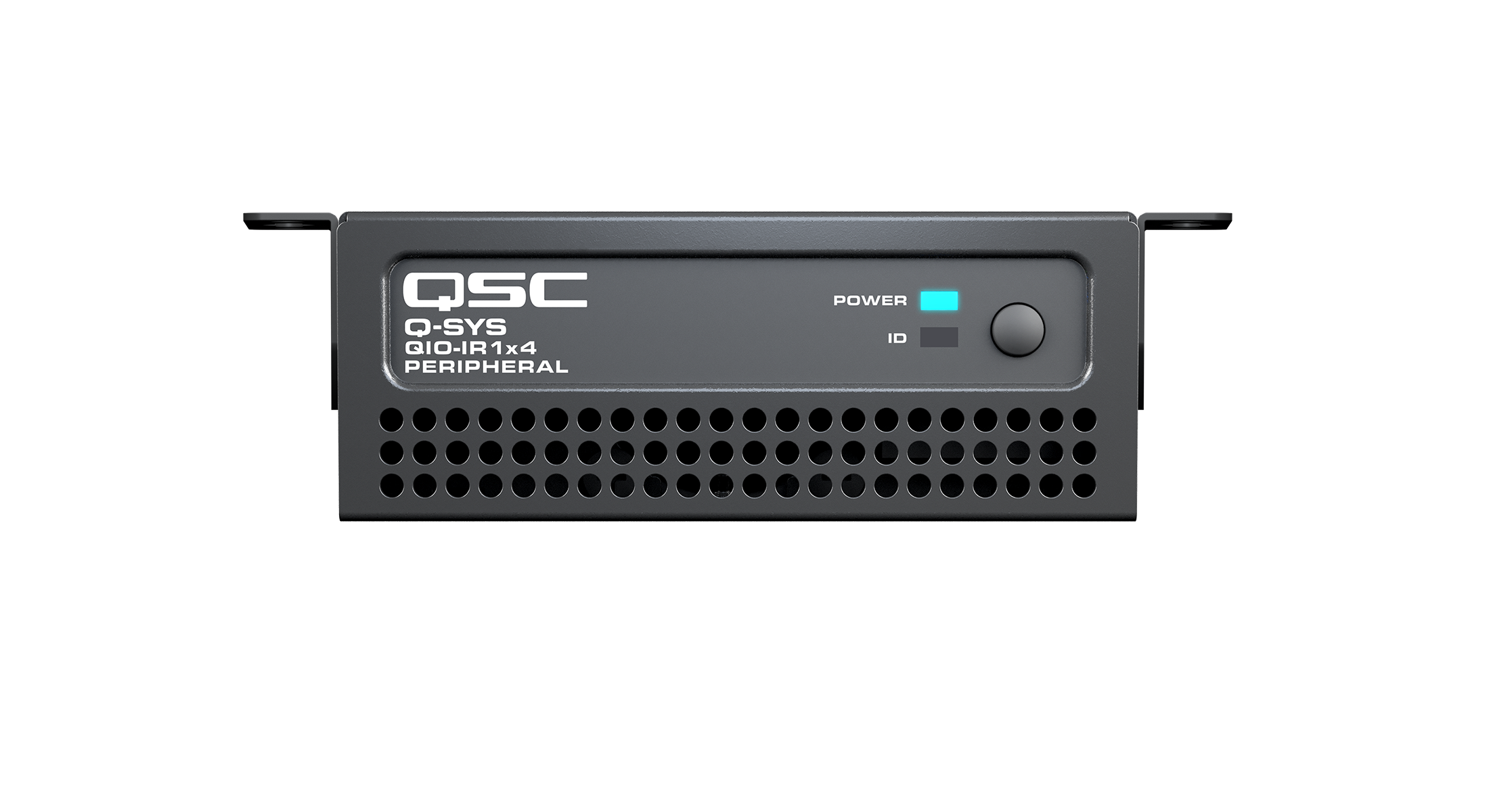

  • Front image of QIO-IR1x4

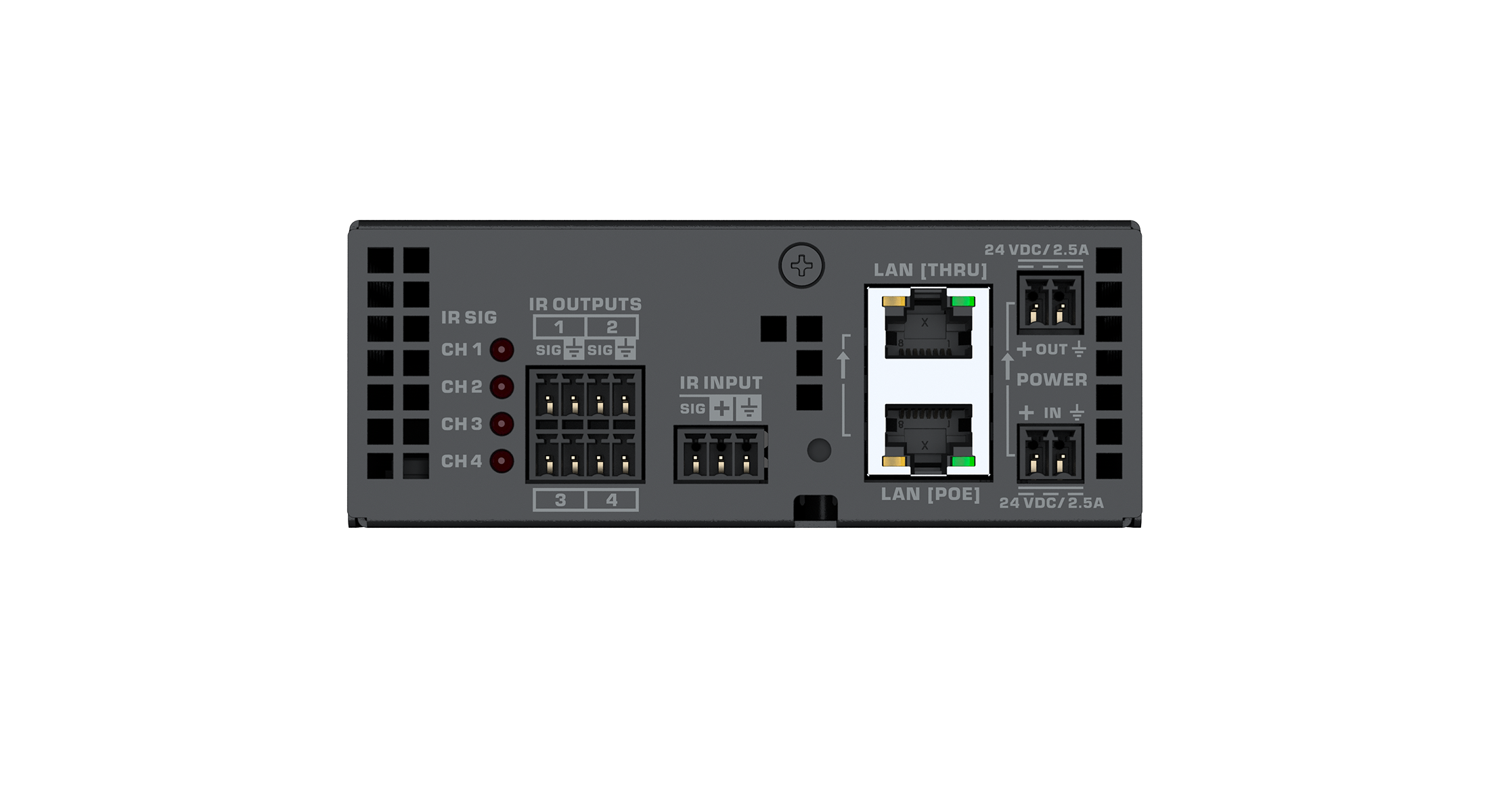

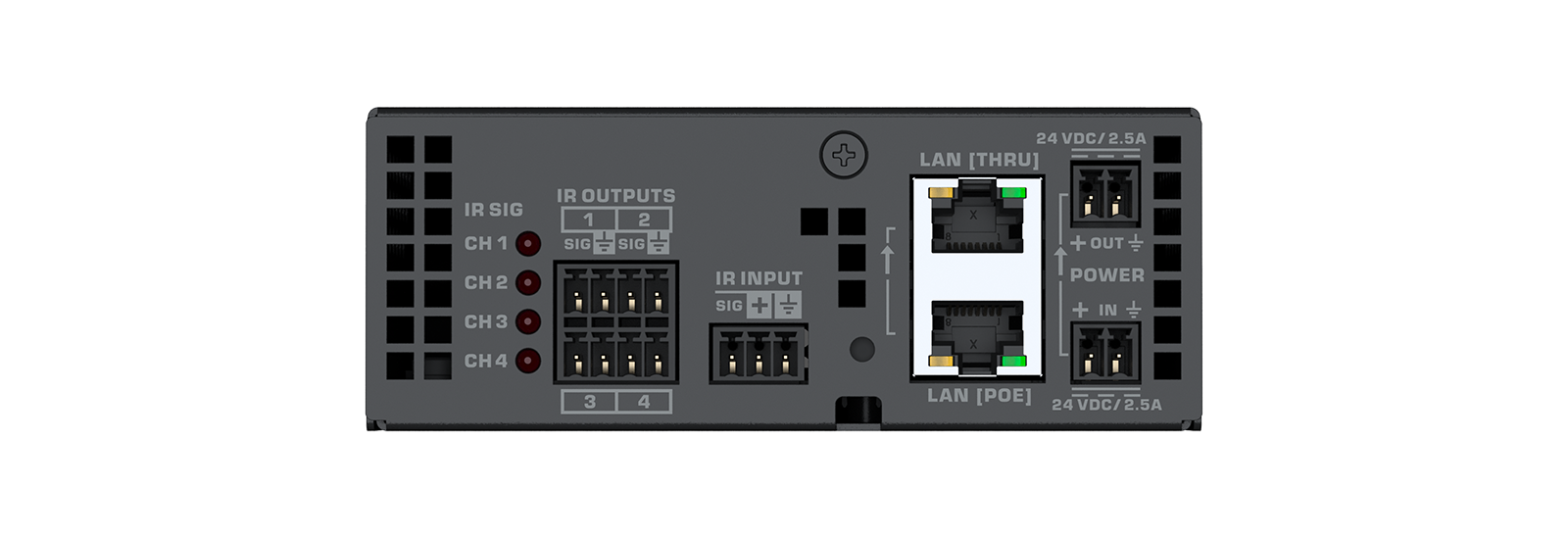

  • Rear image of QIO-IR1x4

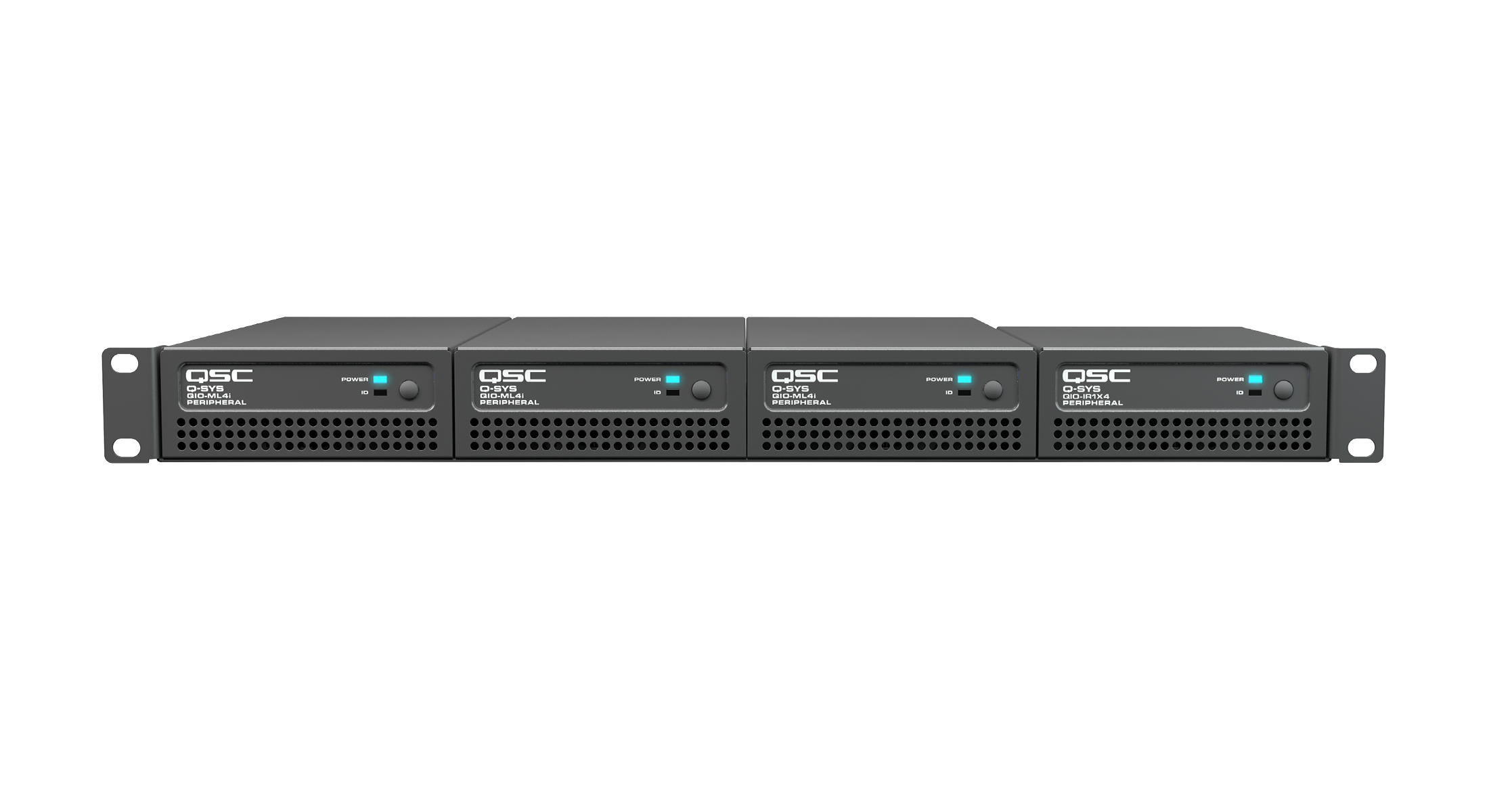

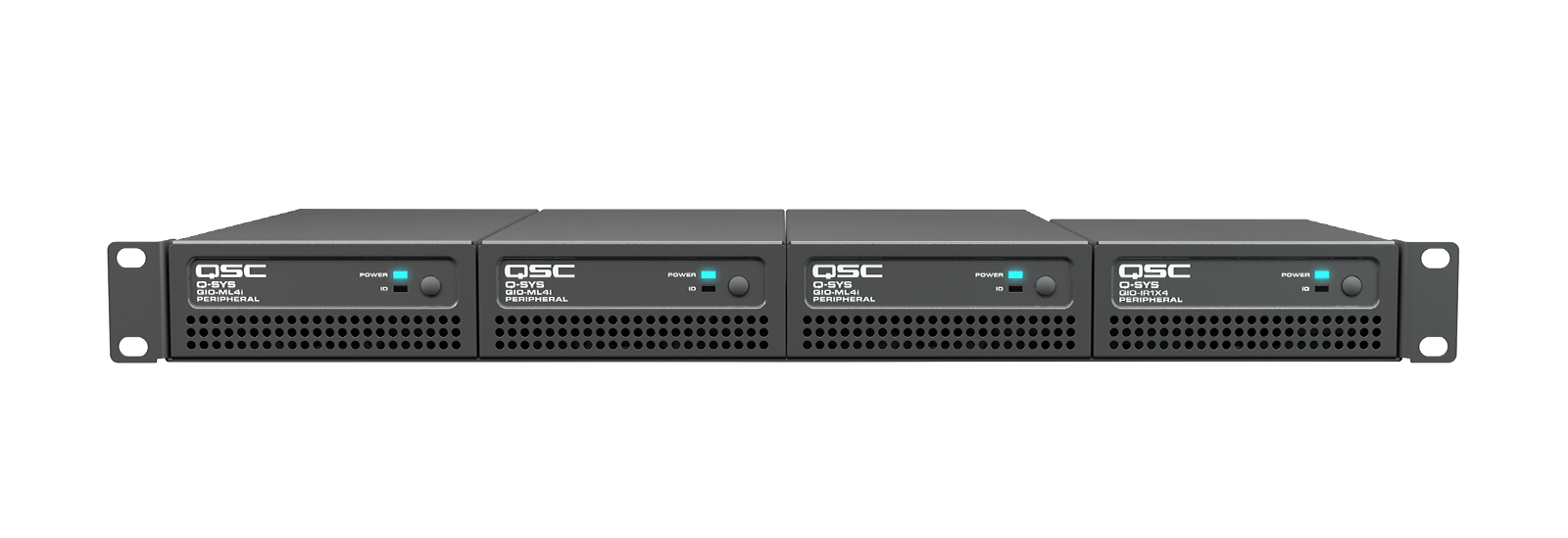

  • Image of rack of QIO-IR1x4
Q-SYS Control logo

The Q-SYS QIO-IR1x4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via IR connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

Features & Benefits

  • The first native network IR connectivity solution for Q-SYS
  • One (1) IR receiver input and four (4) IR emitter outputs
  • Power over Ethernet (PoE) capable
  • Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
  • Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
  • Surface- or rack-mountable (1RU, quarter width)
  • Includes surface mounting hardware
  • The first native IR connectivity solution for Q-SYS
    The QIO-IR1x4 allows you to provide your Q-SYS system with greater flexibility to deploy IR control connectivity where it’s most convenient. The QIO-IR1x4 features one (1) IR receiver input and four (4) IR emitter outputs, enabling Q-SYS control for a broad range of professional/consumer devices including video displays, media players and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.
  • Expanded I/O customization
    QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).
  • Simplicity & scalability
    Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).
  • Designed for Q-SYS
    The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future.  Learn more about Q-SYS.

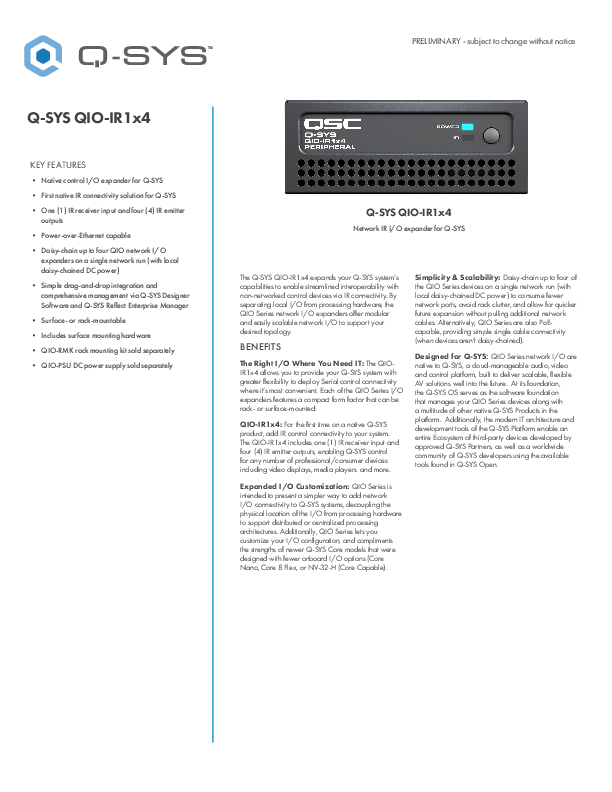

Click to Enlarge

Specificiations QIO-IR1x4
IR/Serial Output Ports
IR output or RS-232 (transmit only) Four (4) configurable ports
IR Configurable carrier frequency and drive strength
RS232 Configurable baud rate
LED indicators IR transmit activity
IR Input Ports
IR Input Ports One (1) port, bandwidth TBD
Other Connectors
External power supply 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
LAN (PoE) Gigabit LAN connection for Q-LAN, PoE
PoE specification Conforms to IEEE 802.3af Type 1
LAN (Thru) Ethernet daisy-chaining
Dimensions 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
Weight 1.18 lb (0.54 kg)
Mounting options Surface- and wall-mountable (hardware included)
Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)
Ambient operating temperature range 0°C to +50°C
Humidity 0%-85% through 30°C non-condensing
Storage temperature -20°C to +70°C
Compliance FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, UL, C-UL, NOM-019


All specifications are subject to change without notice.
