High-Power, 10-inch 2-way, 105˚ conical DMT™

This product has been discontinued. Please check with your Q-SYS regional sales representative for remaining stock availability.

Consider the PL Series performance loudspeakers as a replacement:

  • PL-DC: two-way, passive point source loudspeakers with directivity control that deliver premium sound for a broad range of venue types
  • PL-CA: two-way, full-range coaxial loudspeakers that offer wide, symmetrical coverage in a compact enclosure
  • PL-SUB: passive, installation subwoofers that feature a weatherized wooden enclosure in a compact form factor suited for a broad range of applications


  • Directivity Matched Transition® (DMT) ensures smooth, coherent power response across the listening plane
  • 3” diaphragm compression delivers a clean and powerful high frequency response
  • M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
  • Clean industrial design with unadorned grilles complement most decors and settings

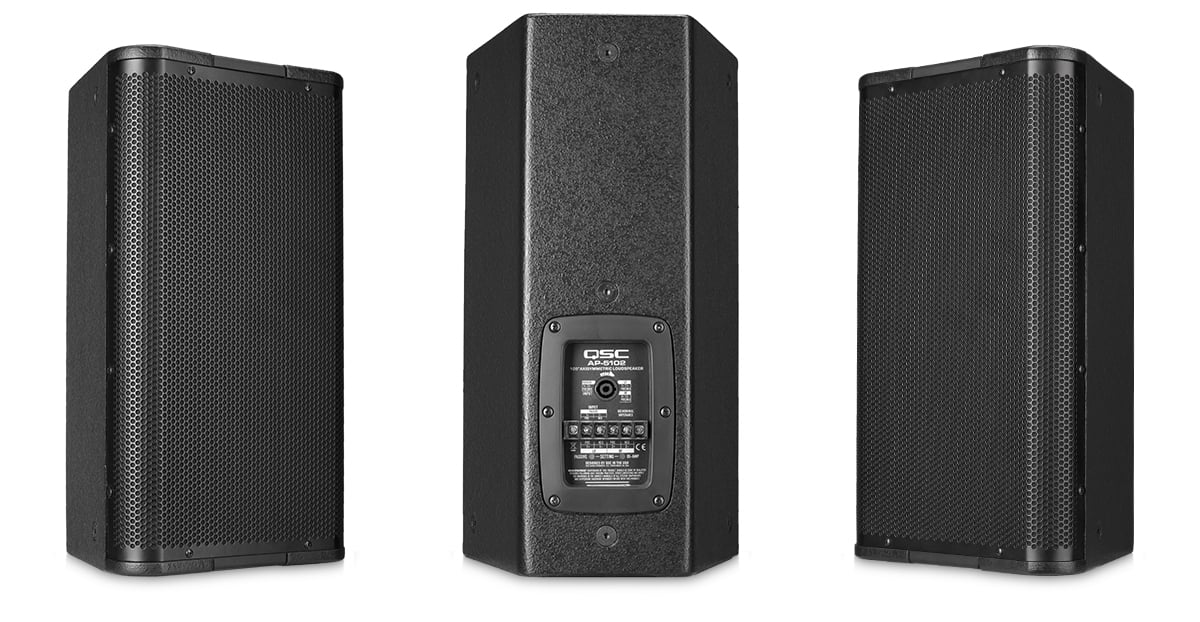

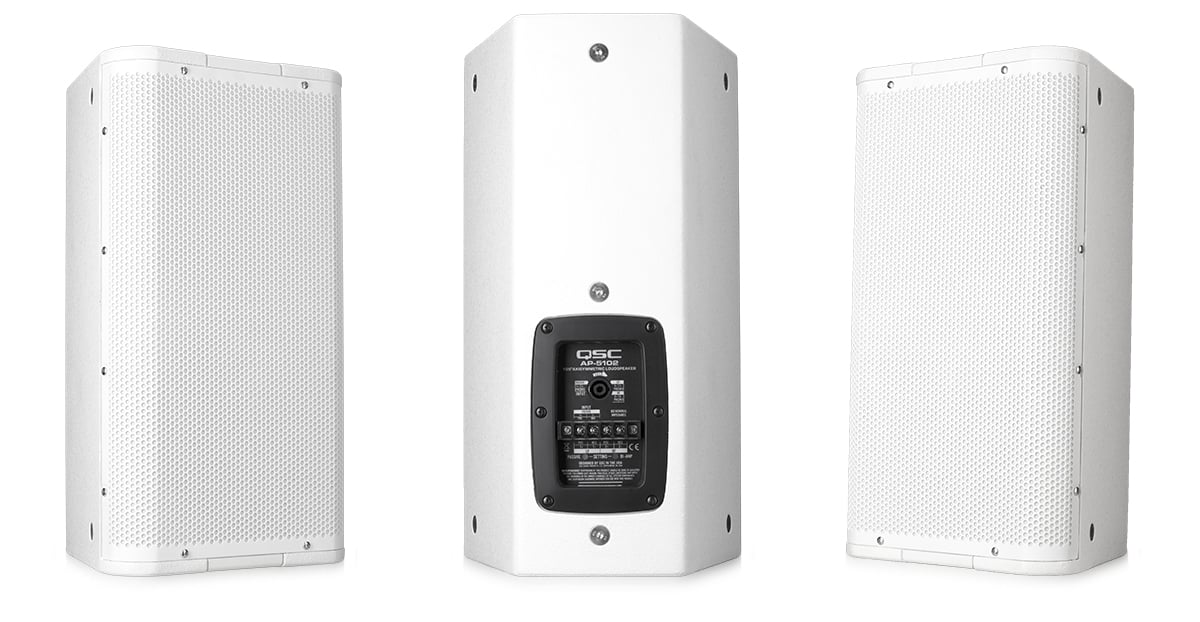

  • NL4 Speakon connector and covered barrier strip terminals
  • Bi-amp / passive switchable
  • Constructed from 15-ply Baltic birch plywood
  • 16-gauge powder coated steel grilles

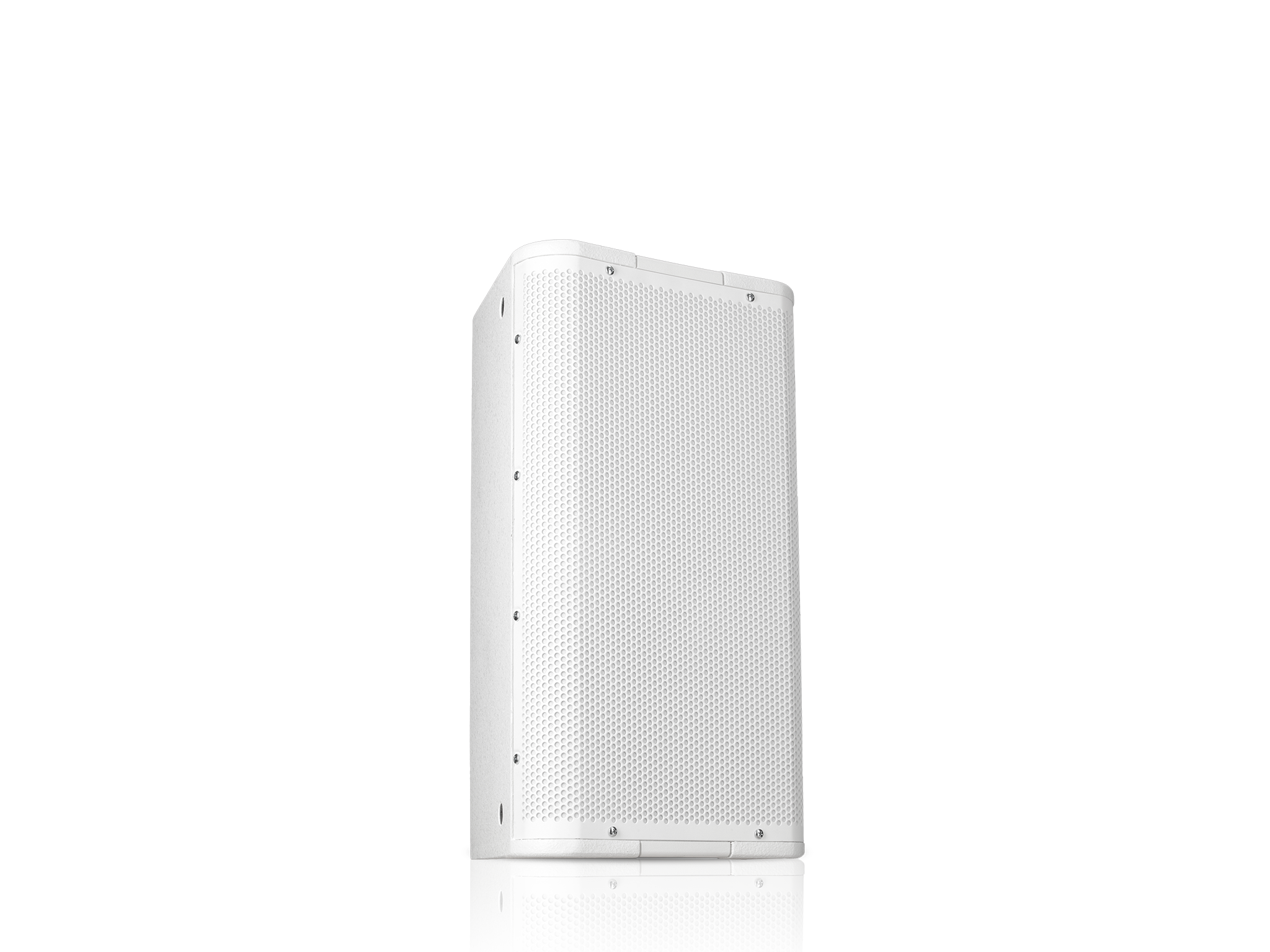

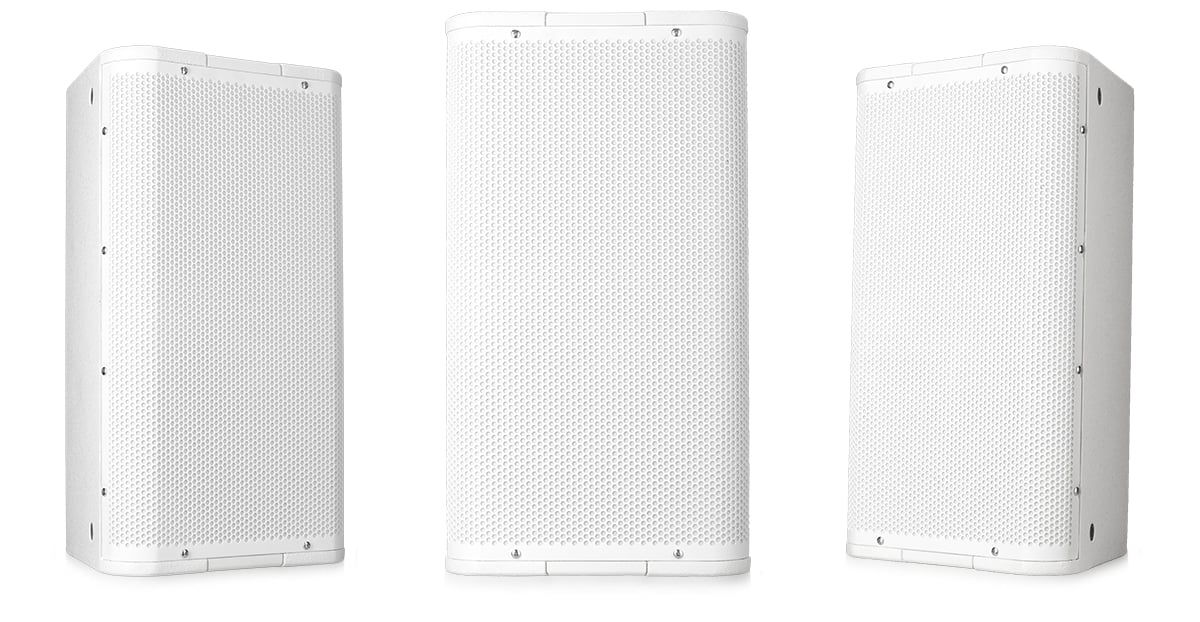

  • Available in black (RAL 9011) and white (RAL 9010)
  • Complete EASE, CAD & BIM information available online
  • Can also be as a high-power cinema surround
Frequency response (-10 dB) 60 Hz - 18 kHz
Rated noise power / voltage1 450 watts / 54 volts rms
Broadband sensitivity2 94 dB SPL
Coverage angle 105˚ conical DMT™
Directivity factor (Q) 4.6
Directivity index (DI) 6.6
Recommended crossover 950 Hz, 48 dB/octave
Maximum SPL at 1 m (passive) 121 dB continuous3
127 dB peak4
Rated impedance
HF transducer 76 mm (3-inch) voice coil, compression driver;
72 W / 24 V (2 hours)
LF transducer 254 mm (10-inch) driver with 76 mm (3-inch) voice coil;
450 W / 54 V (2 hours)
Optional accessories AP-YM10 Yoke mount
M10 Kit-W
Enclosure details
Input connector Covered barrier strip, NL4 connector
Enclosure material 15-ply Baltic birch plywood
Attachment points Fifteen M10 threaded inserts
Color Black (RAL 9011), White (RAL 9010)
Grille 16-gauge powder coated steel
Dimensions (HWD) inches 22 × 12 × 10.5
Dimensions (HWD) mm 559 x 305 x 267
Net weight 48 lb / 21.7 kg

Two hour rating using IEC60268 noise based on minimum impedance
2 Mid-band based on nominal impedance; 2.83 V at 1 m
3 Calculated as the nominal sensitivity plus 10× the log of continuous rated power in volts squared divided by nominal impedance
4 Calculated as the continuous calculated max output plus 6 dB

All specifications are subject to change without notice.
