In-Wall Touch Screen Controller (Discontinued)

  • Front image of TSC-55w-G2

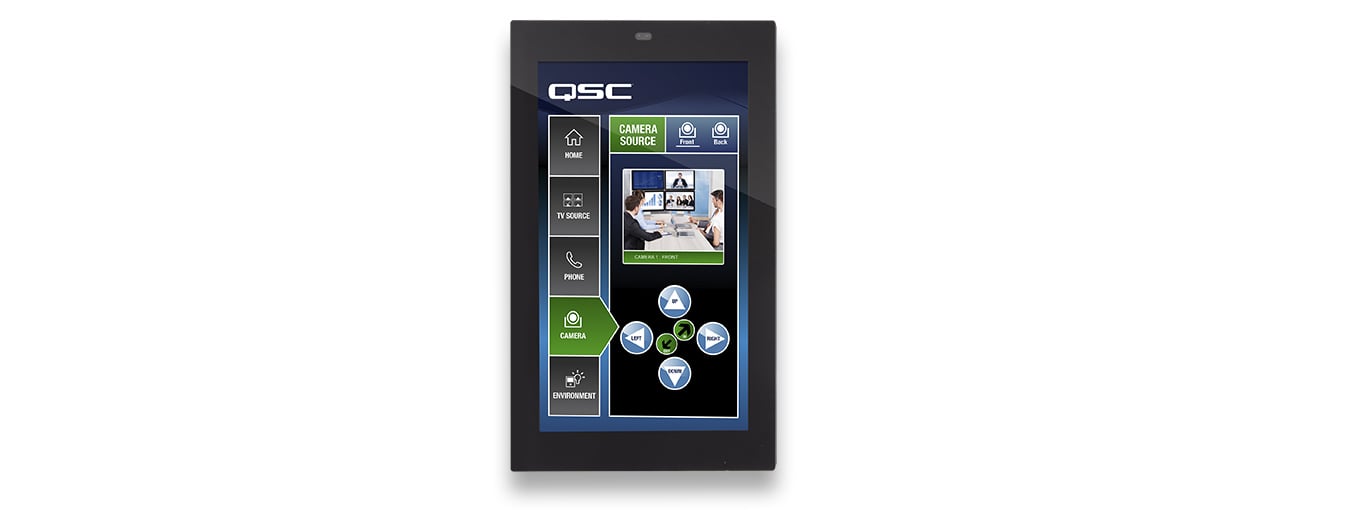

  • Vertical image of TSC-55w-G2
Q-SYS Control logo

Image of screen displays

This product has been discontinued. Consider the new Q-SYS TSC Series G3 network touchscreens.

  • Next-generation Q-SYS PoE touch screens offer a complete redesign, built for higher performance and modern aesthetics.
  • The TSC-50-G3 offers a 5-in, high-resolution (1280 x 720 px) display coupled with significantly improved screen transition
  • Ability to operate in portrait or landscape orientation


  • Capacitive LCD Touch Surface: In-plane switching (IPS) technology
  • High Resolution Display: 1280x720 pixels with 400 Nits (brightness)
  • Power Over Ethernet: Allows for simplified single cable installation
  • Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
  • Versatile: Ability to operate in portrait or landscape orientation
  • Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor, add UCI PIN protection as an addition layer of protection and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
Specifications                                                                    TSC-55w-G2
Description Capacitive Touch Surface, In-Plane Switching (IPS) technology. 16M colors.
Panel Dimensions (H×W×D) 148.5 × 87.5 × 33.7 mm
5.85 × 3.44 × 1.33 in
Viewable Screen Dimensions (diagonal) 127 mm / 5.5 in
Resolution 1280 × 720
Wallmount Option Yes
Table Top Option No
Panel Orientation Vertical / Horizontal
Brightness 400 Nits
PoE (Power over Ethernet) IEEE PoE 802.3af class 3 device via LAN port
2-pos Euro +24VDC @ 0.5A, locking 2-pos Euro style terminal bloc
Product Weight (net) 179 g / 6.31 oz.
Operating Temperature 0°-50° C (32°-122° F)
BTUs 17 typical
Humidity 5-85rh non-condensing
Rear Panel LAN, 1000 Mbps full-duplex RJ-45

All specifications are subject to change without notice.
