High-Power, 15-inch 2-way, 75˚ conical DMT™

This product has been discontinued. Please check with your Q-SYS regional sales representative for remaining stock availability.

Consider the PL Series performance loudspeakers as a replacement:

  • PL-DC: two-way, passive point source loudspeakers with directivity control that deliver premium sound for a broad range of venue types
  • PL-CA: two-way, full-range coaxial loudspeakers that offer wide, symmetrical coverage in a compact enclosure
  • PL-SUB: passive, installation subwoofers that feature a weatherized wooden enclosure in a compact form factor suited for a broad range of applications


  • Directivity Matched Transition® (DMT) ensures smooth, coherent power response across the listening plane
  • 3” diaphragm compression delivers a clean and powerful high frequency response
  • M10 fittings offer flexible deployment options for a variety of applications
  • Clean industrial design with unadorned grilles complement most decors and settings

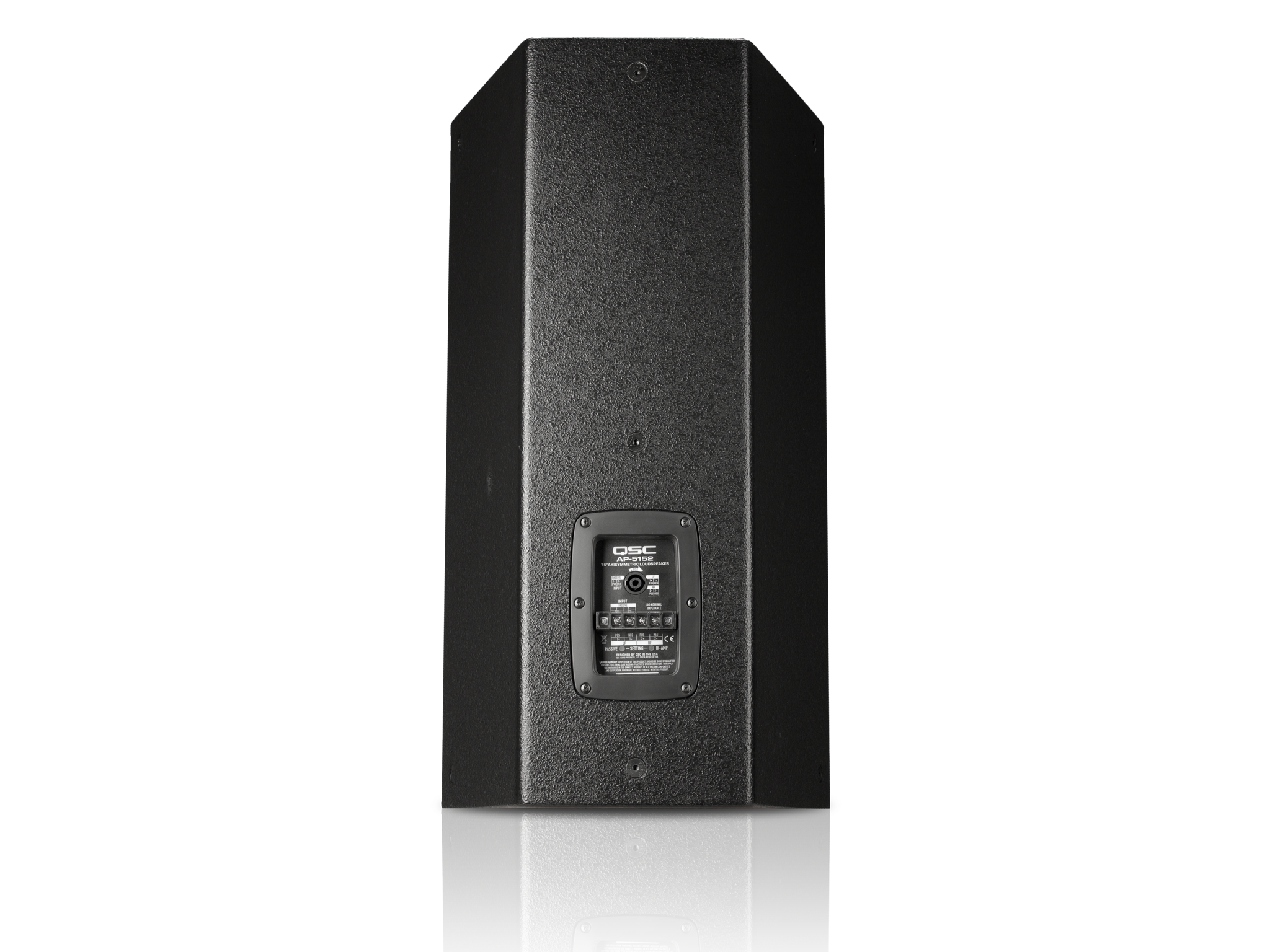

  • NL4 Speakon connector and covered barrier strip terminals
  • Bi-amp / passive switchable
  • Constructed from 15-ply Baltic birch plywood
  • 16-gauge powder coated steel grilles

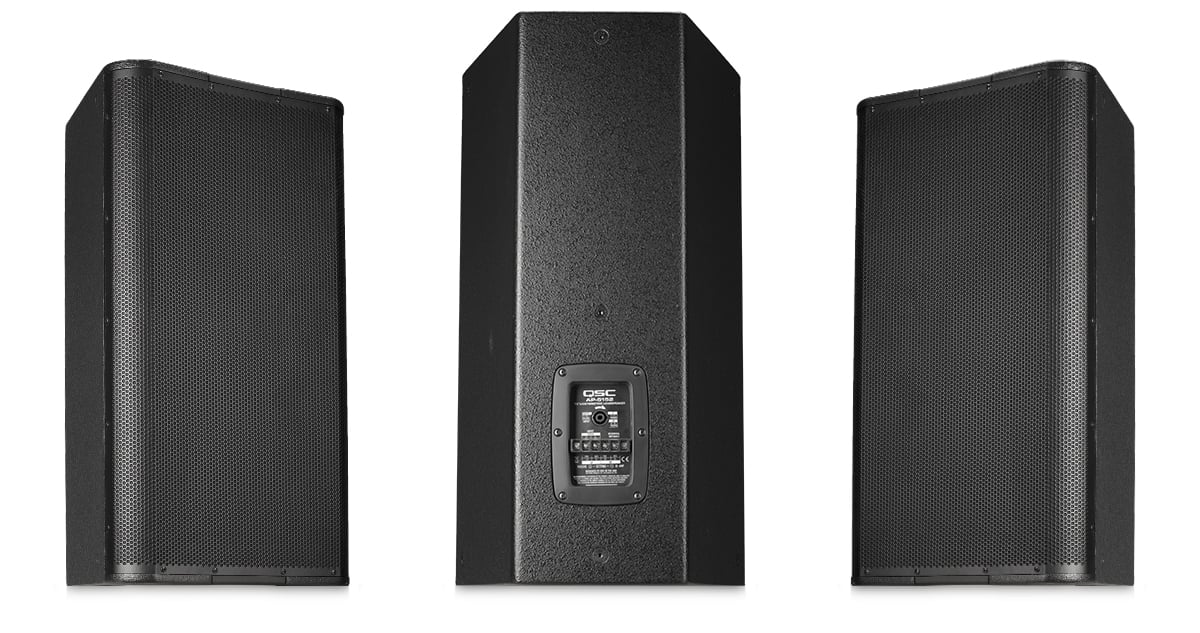

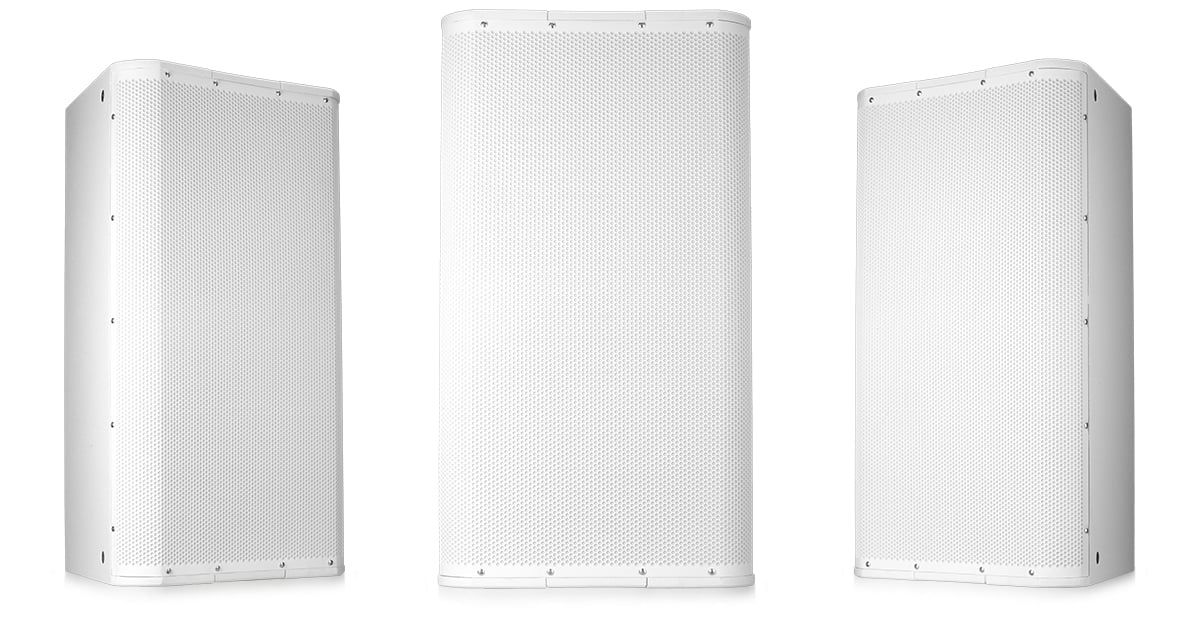

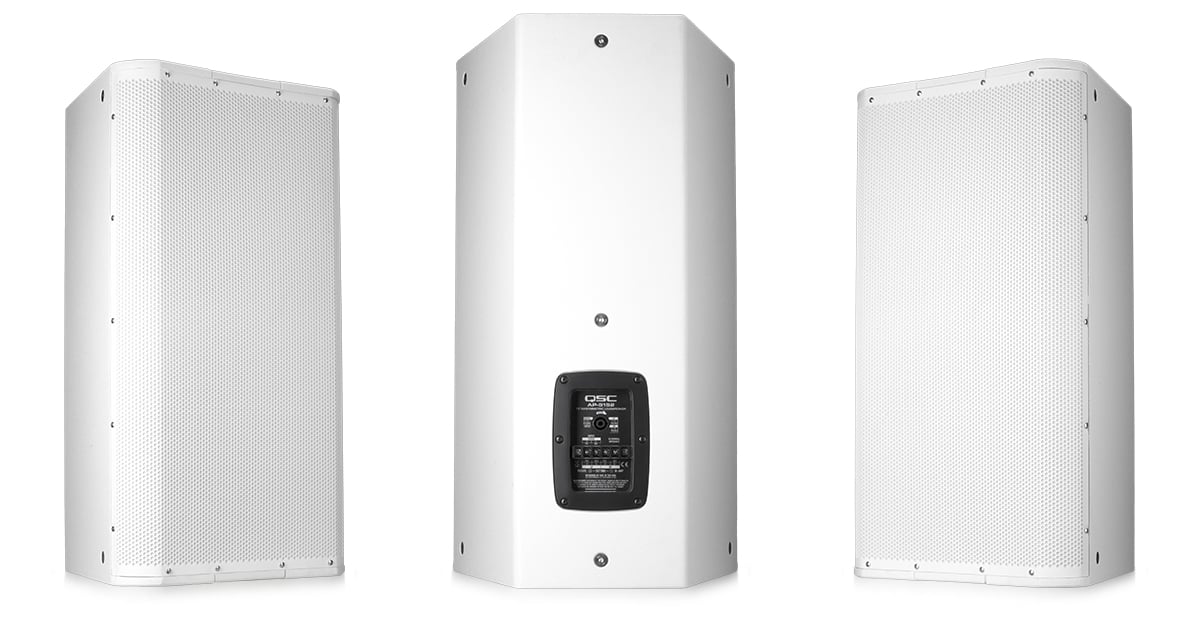

  • Available in black (RAL 9011) and white (RAL 9010)
  • Complete EASE, CAD & BIM information available online
  • Can also be used as a high-power cinema surround
Frequency response (-10 dB) 44 Hz - 18 kHz
Rated noise power / voltage1 625 watts / 65 volts rms
Broadband sensitivity2 96 dB SPL
Coverage angle 75˚ conical DMT™
Directivity factor (Q) 8.3
Directivity index (DI) 9.2
Recommended crossover 950 Hz, 48 dB/octave
Maximum SPL at 1 m (passive) 123 dB continuous3
129 dB peak4
Rated impedance
HF transducer 76 mm (3-inch) voice coil, compression driver;
72 W / 24 V (2 hours)
LF transducer 381 mm (15-inch) driver with 102 mm (4-inch) voice coil;
525 W / 65 V (2 hours)
Optional accessories M10 Kit-W
Enclosure details
Input connector Covered barrier strip, NL4 connector
Enclosure material 15-ply Baltic birch plywood
Attachment points Fifteen M10 threaded inserts
Color Black (RAL 9011), White (RAL 9010)
Grille 16-gauge powder coated steel
Dimensions (HWD) inches 32 × 17.5 × 15.2
Dimensions (HWD) mm 813 x 445 x 386
Net weight 36.2 kg (80 lb)

1 Two hour rating using IEC60268 noise based on minimum impedance
2 Mid-band based on nominal impedance; 2.83 V at 1 m
3 Calculated as the nominal sensitivity plus 10× the log of continuous rated power in volts squared divided by nominal impedance
4 Calculated as the continuous calculated max output plus 6 dB

All specifications are subject to change without notice.
