High-Power, 12-inch 2-way, 90˚ conical DMT™

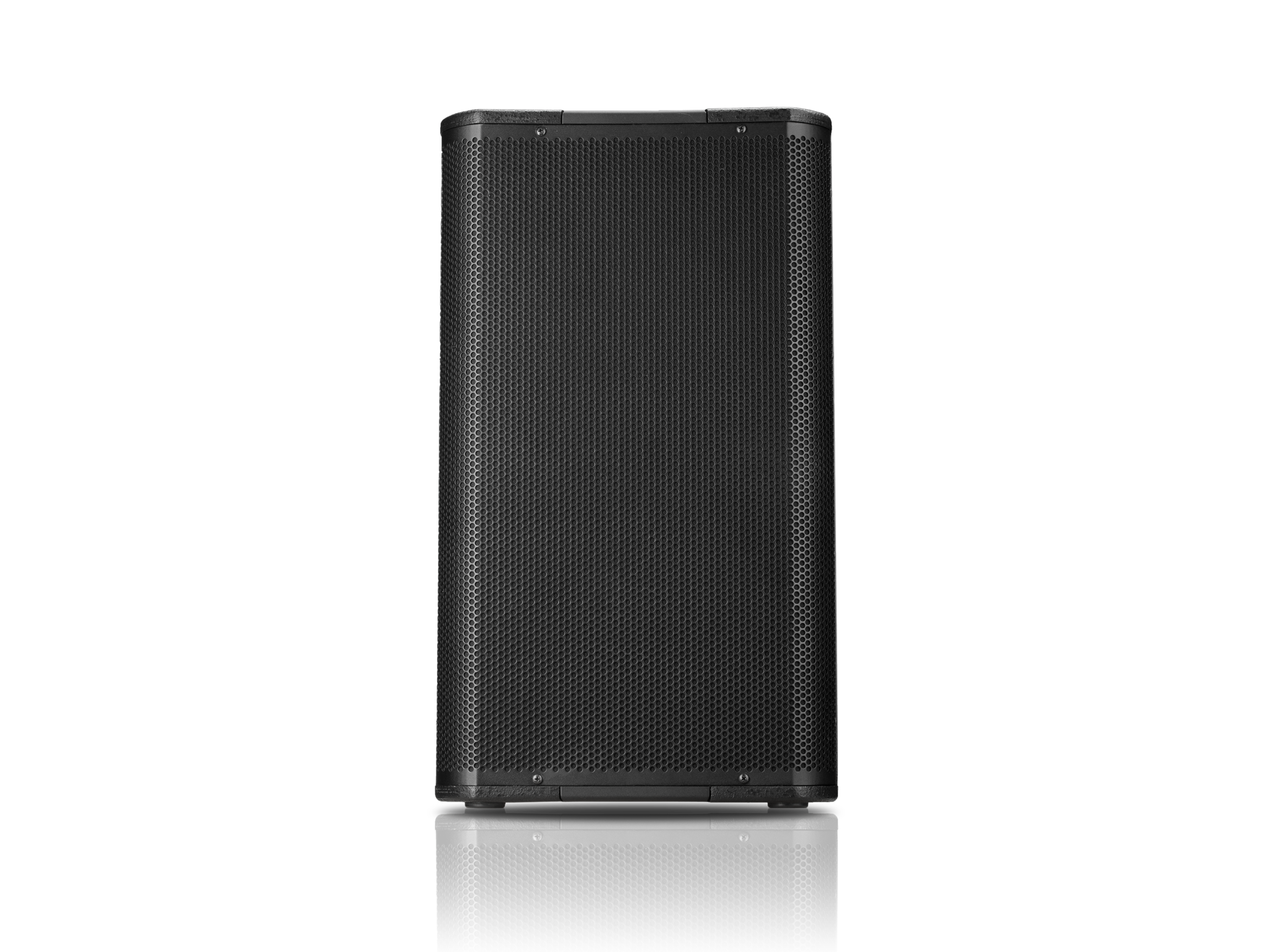

  • Hero front and angled view of the AP-5122m High SPL loudspeaker

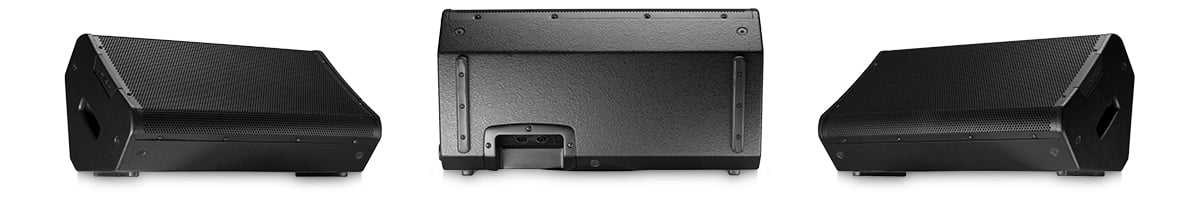

  • Hero rear and angled view of the AP-5122m High SPL loudspeaker


  • Directivity Matched Transition® (DMT) ensures smooth, coherent power response across the listening plane
  • 3” diaphragm compression delivers a clean and powerful high frequency response
  • M10 fittings and yoke mount fittings offer flexible deployment options for a variety of applications
  • Pole cup (AP-5122m)
  • Clean industrial design with unadorned grilles complement most decors and settings
  • NL4 Speakon connector and covered barrier strip terminals
  • Bi-amp / passive switchable
  • Constructed from 15-ply Baltic birch plywood
  • 16-gauge powder coated steel grilles
  • Available in black only (RAL 9011)
  • Complete EASE, CAD & BIM information available online
Frequency response (-10 dB) 55 Hz - 18 kHz
Rated noise power / voltage1 550 watts / 60 volts rms
Broadband sensitivity2 95 dB SPL
Coverage angle 90˚ conical DMT™
Directivity factor (Q) 6.0
Directivity index (DI) 7.8
Recommended crossover 950 Hz, 48 dB/octave
Maximum SPL at 1 m (passive) 122 dB continuous3
128 dB peak4
Rated impedance  8Ω
HF transducer 76 mm (3-inch) voice coil, compression driver;
72 W / 24 V (2 hours)
LF transducer 305 mm (12-inch) driver with 102 mm (4-inch) voice coil;
450 W / 60 V (2 hours)
Optional accessories AP-YM12M Yoke mount
M10 Kit-W
Enclosure details
Input connector Covered barrier strip, NL4 connector
Enclosure material 15-ply Baltic birch plywood
Attachment points Eleven M10 threaded inserts
Color Available in black only (RAL 9011)
Grille 16-gauge powder coated steel
Dimensions (HWD) inches 26 × 15 × 13
Dimensions (HWD) mm 660 x 381 x 330
Net weight 29.5 kg (65 lb)

1 Two hour rating using IEC60268 noise based on minimum impedance
2 Mid-band based on nominal impedance; 2.83 V at 1 m
3 Calculated as the nominal sensitivity plus 10× the log of continuous rated power in volts squared divided by nominal impedance
4 Calculated as the continuous calculated max output plus 6 dB

All specifications are subject to change without notice.
