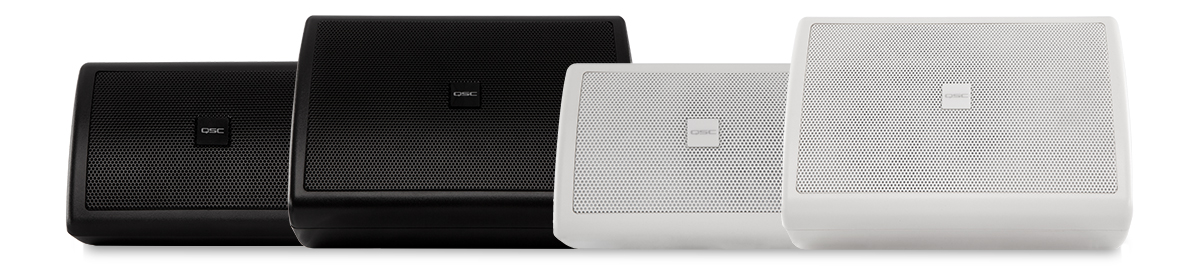

AcousticCoverage Series

AcousticCoverage™ is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.  Applications for AcousticCoverage™ speakers include wide area paging systems and background music and more.





SELECT A MODEL

  AC-S4T AC-S6T

Effective frequency range1

 70 Hz–20 kHz  60 Hz–20 kHz

Nominal Coverage

  130° conical  130° conical

Rated noise power / voltage2

 16 W / 11.3 V RMS  30 W / 15.5 V RMS

Broad-band sensitivity3

 85 dB 86 dB

Driver

 LF: 4-inch (100 mm) Polypropylene woofer with 1-inch (25 mm) voice coil
HF: 1-inch (25 mm) Aluminium dome tweeter with 1-inch (25 mm) voice coil 		 LF: 6.5-inch (165 mm) Polypropylene woofer with 1-inch (25 mm) voice coil
HF: 1-inch (25 mm) Aluminium dome tweeter with 1-inch (25 mm) voice coil

Input Connectors

 Euroblock connector with parallel output  Euroblock connector with parallel output

Dimensions (HWD) inches

 9.1 × 6.3 × 5.9 11.9 × 8.5 × 7.8

Dimensions (HWD) mm

 230 × 160 × 150 303 × 215 × 197

Net Weight

 5.3 lb / 2.4 kg 8.3 lb / 3.8 kg
  Details Details

1 Free-field, -10 dB from on-axis sensitivity.
2 IEC60268-1 noise signal for 2 hours.
3 On-Axis, free-field sensitivity, 2.83V, 1 m

Specifications are subject to change without notice.
