NM-T1 Tabletop Beamforming Microphone
Q-SYS network microphone
The Q-SYS NM Series NM-T1 is a tabletop network PoE microphone native to Q-SYS and ideal for the collaboration space. The microphone features advanced beamforming technology that ensures optimal clarity and separation for all surrounding talkers. It also offers onboard call controls, programmable user button and touchless muting capability, which lets users mute or unmute with the wave of a hand. As a native Q-SYS Product, the NM-T1 integrates seamlessly into your Q-SYS system without the need for complex programming.
Connect to Q-SYS Reflect Enterprise Manager
This Q-SYS Product can be connected to our powerful monitoring and management solution.
Features & Benefits
- Native Q-SYS beamforming tabletop microphone
- Four software-configurable zones provide up to 360° coverage
- Power over Ethernet (PoE)
- Touchless mute via proximity motion sensor
- Onboard call controls, including a programmable user button customizable in Q-SYS Designer Software
- Programmable RGB light ring for fully customizable color, pattern, speed
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
- Includes table-mounting accessories
Advanced Beamforming Technology: The Q-SYS NM-T1 features four software-configurable zones that can be activated based on where coverage is (or isn’t needed) to reduce echo and ensure clarity for far end callers. This also enables flexible seating arrangements and provides up to 360° coverage.
Intuitive UI with touchless muting: Easily manage your meetings with the Q-SYS NM-T1 onboard call controls, including a programmable user button and programmable RGB light ring status indicator, both of which are fully customizable within Q-SYS Designer Software. The microphone also features a built-in proximity motion sensor that allows for a simple hand wave to mute/unmute for users that are nearby.
In Sync with Q-SYS Call Sync: Automatically sync onboard controls and LED status indicators on select Q-SYS device (NM-T1 microphone, TSC Series Gen 3 touchscreens & NL-SB42 PoE speakerbar) keeping the state of all in-room endpoints in sync. Additionally, it provides mute sync for UC platforms via the Q-SYS HID controller, as well as ringing and hook state for Q-SYS softphone and POTS controller.
Managing AEC with NM Series: Q-SYS Cores feature dedicated AEC resources for NM Series microphones while also reserving AEC resources for third-party microphones (or additional NM Series microphones). Each Core has a recommended "Maximum NM-T1 Capacity" along with a total "AEC Channel" specification.

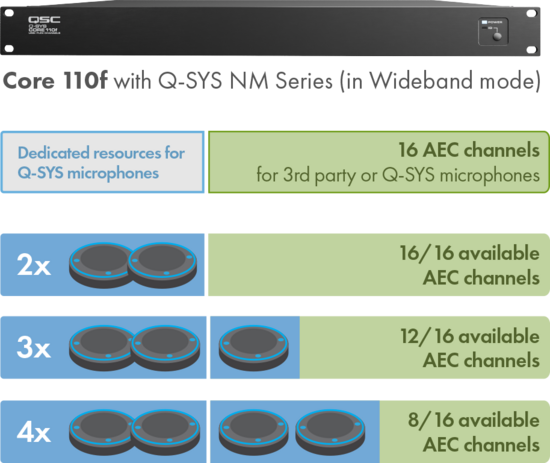

Below is an illustration of the AEC resources that the Q-SYS Core 110f offers and how those resources are affected based on the number of Q-SYS microphones that are deployed. For more information on NM Series capacity, choose your Q-SYS Core.
Q-SYS Scaling Licenses: Enable additional AEC/NM-T1 capacity on the Q-SYS Core Nano and Core 8 Flex. Learn more.
Designed for Q-SYS: The Q-SYS NM-T1 is the first native network microphone solution for Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future. Learn more about Q-SYS.
Click to Enlarge
Click to Enlarge
|Specifications||Q-SYS NM-T1 Tabletop Microphone|
|Pickup Range||3-9 ft (1-3 m)|
|Microphone elements||16x MEMS microphone elements|
|Frequency response||100 Hz - 16 kHz, +/-3 dB|
|Sampling rate||16 kHz wideband / 48 kHz fullband|
|Bit depth||24 bit|
|Sensitivity||-36 dBFS (94 dB SPL)|
|Maximum SPL (1 kHz @ 1% THD)||118 dB SPL|
|Dynamic range||95 dB|
|Signal-to-Noise ratio||65 dB (48 kHz) |
66 dB (16 kHz)
|Self noise||28 dB SPL (48 kHz) |
28 dB SPL (16 kHz)
|Power requirements||Power over Ethernet (PoE),Type 1 Class 2|
|Power consumption||<6.5 W|
|Dimensions||4.21 x 1.1 in (107 x 28 mm)|
|Weight||1.5 lbs (0.68 kg)|
|Included accessories||Mounting stem, Strain relief cap, CAT6 cable (10 ft / 3 m)|
*All specifications are subject to change without notice.
