In-Wall or Table Top Touch Screen Controller (Discontinued)

  • Front image of TSC-80w-G2
  • Right image of TSC-80w-G2

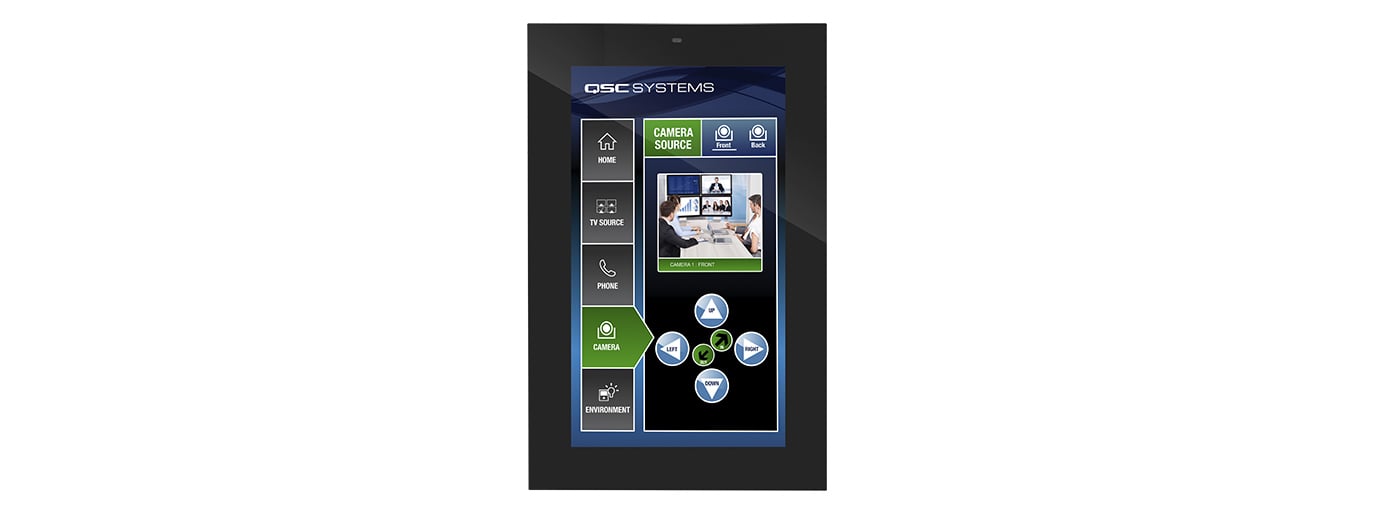

  • Vertical image of TSC-80w-G2

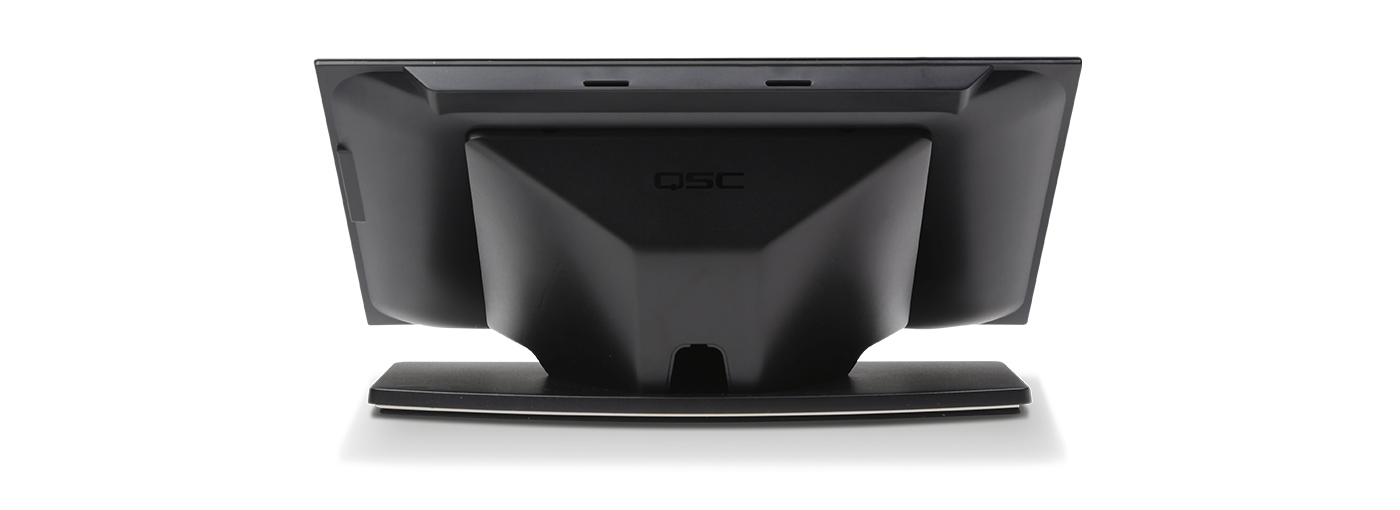

  • Back image of TSC-80w-G2
Q-SYS Control logo

Image of screen displays

This product has been discontinued. Consider the new Q-SYS TSC Series G3 network touchscreens.

  • Next-generation Q-SYS PoE touch screens offer a complete redesign, built for higher performance and modern aesthetics.
  • The TSC-70-G3 offers a 7-in, high-resolution (1280 x 800 px) display coupled with significantly improved screen transition
  • Ability to operate in portrait or landscape orientation


  • Capacitive LCD Touch Surface: In-plane switching (IPS) technology
  • High Resolution Display: 1280x800 pixels with 400 Nits (brightness)
  • Power Over Ethernet: Allows for simplified single cable installation
  • Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes
  • Versatile: Ability to wall mount in portrait or landscape orientation; optional table top mount accessory is available
  • Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor, add UCI PIN protection as an addition layer of protection and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
Specifications                                                                    TSC-80w-G2
Description Capacitive Touch Surface, In-Plane Switching (IPS) technology. 16M colors.
Panel Dimensions (HWD) 223.5 × 148.4 × 36.3 mm
8.8 × 5.8 × 1.4 in
Viewable Screen Dimensions (diagonal) 8.0" (203 mm)
Resolution 1280 × 800
Wallmount Option Yes
Table Top Option Optional table top stand accessory
Panel Orientation Vertical / Horizontal
Brightness 400 Nits
PoE (Power over Ethernet) IEEE PoE 802.3af class 3 device via LAN port
Barrel +24VDC @ 1.0 A, Barrel Connector
Product Weight (net) 500 g / 17.64 oz.
Operating Temperature 0°-50° C (32°-122° F)
BTUs 23 typical
Humidity 5-85rh non-condensing
Rear Panel LAN, 1000 Mbps full-duplex RJ-45

All specifications are subject to change without notice.
