Licencias de característica de software

Expanded software-based functionality

Expand functionality at the software-level

Anticipate changing requirements and leverage additional features via a simple license activation, powered by the holistic Q-SYS OS. Q-SYS Scaling Licenses (currently available for Q-SYS Core Nano or the Q-SYS Core 8 Flex) offer expanded functionality in alignment with your collaboration or commercial AV requirements, while Q-SYS Feature Licenses (available on all Cores) enable features like intuitive drag-and-drop UCI development and deployment, as well as access to a full-featured scripting engine and Dante network integration.


Q-SYS Scaling Licenses

Q-SYS Collaboration Bundle Scaling License

Enable your Core Nano or Core 8 Flex processors to scale into larger, high impact spaces with increased processing capabilities, additional AEC channels and expanded NM Series microphone support.

Commercial AV Scaling License

Enable your Core Nano or Core 8 Flex processors to serve areas that previously required higher tier Core processors. Increase processing power, total network channel capacity and peripheral count.

Q-SYS Feature Licenses

Q-SYS AV Bridging Feature License

Expand the functionality of the TSC Series Gen 3 network touchscreens to allow users to connect their device via USB directly to the network touch screen controller to integrate Q-SYS audio and camera feeds for remote meetings.

Q-SYS Scripting Engine Feature License

Integrate third party hardware and software solutions into Q-SYS. Draw upon a growing library of Q-SYS Partner plugins, take full advantage of easy drag-and-drop scripting tools, or use full-featured LUA scripting capabilities.

Q-SYS UCI Deployment Feature License

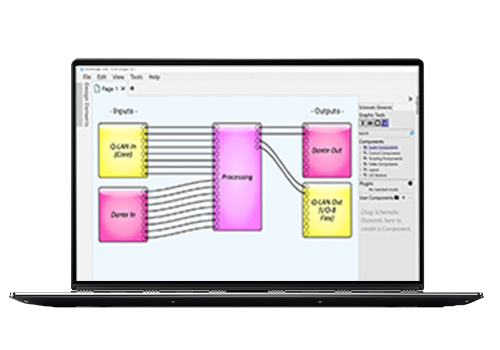

Build robust UCI screens by simply dragging any Q-SYS audio, video or control component
from the Q-SYS design schematic into the UCI Editor, or take full advantage of cascading style sheets
which govern the aesthetic across all Q-SYS user control devices.

Software Based Dante for the Q-SYS Ecosystem
Feature License

Integrate Dante network audio into the Q-SYS AV&C Ecosystem workflow.

                     SELECT A LICENSE

Scaling Licenses

 Features Collaboration
Scaling License
Commerical AV  Bundle Scaling License
Applicable Hardware Applies to the Q-SYS Core Nano and Q-SYS Core 8 Flex Applies to the Q-SYS Core Nano and Q-SYS Core 8 Flex
Type Perpetual, Node Locked Perpetual, Node Locked
Supported QDS Version v9.4 or higher v9.4 or higher
Q-LAN/AES67 network channels 128 x 128 (2x from standard) 128 x 128 (2x from standard)
Additional DSP processing power Approx. 2x from standard Approx. 2x from standard
Softphones 4 (2x from standard) -
AEC Processors @ 200 ms 16 (2x from standard) -
Additional NM-T1 Support Up to 6 (2x from standard) -
Media/WAN network channels - Increased to 24 x 24 (2x from standard)
Q-SYS peripheral count - Increased to 48 (16 additional from standard)



All specifications are subject to change without notice.

Download Features Comparison Table

Feature Licenses

 Features Q-SYS AV Bridging Q-SYS Scripting Engine Q-SYS UCI Deployment Software Based Dante
for Q-SYS
Applicable Hardware Q-SYS TSC-70-G3
Q-SYS TSC-101-G3
Yes Yes Yes
Type Perpetual, Node Locked Perpetual, Node Locked Perpetual, Node Locked Perpetual, Node Locked
Supported QDS Version v9.7 and higher v7.0 and higher only on all new systems released after February 26, 2018 v7.0 and higher only on all new systems released after February 26, 2018 Core 110f: v8.3.1 or higher; all other Cores: v9.0 or higher
Q-SYS AV Bridging Yes - - -
Block Controller (Visual Coding Tool) - Yes - -
Full-Featured Lua Scripting - Yes - -
Third Party Device Plugin Deployment - Yes - -
Drag and Drop UCI Design Deployment - - Yes - no programming required -
CSS-based UCI Deployment - - Yes - easily apply global styles -
Expanded Dante Channel Count - - - Core8Flex/Nano/110f: up to 32 x 32
Core 510i: up to 128 x 128
Core 5200: up to 512 x 512



All specifications are subject to change without notice.

Download Features Comparison Table
