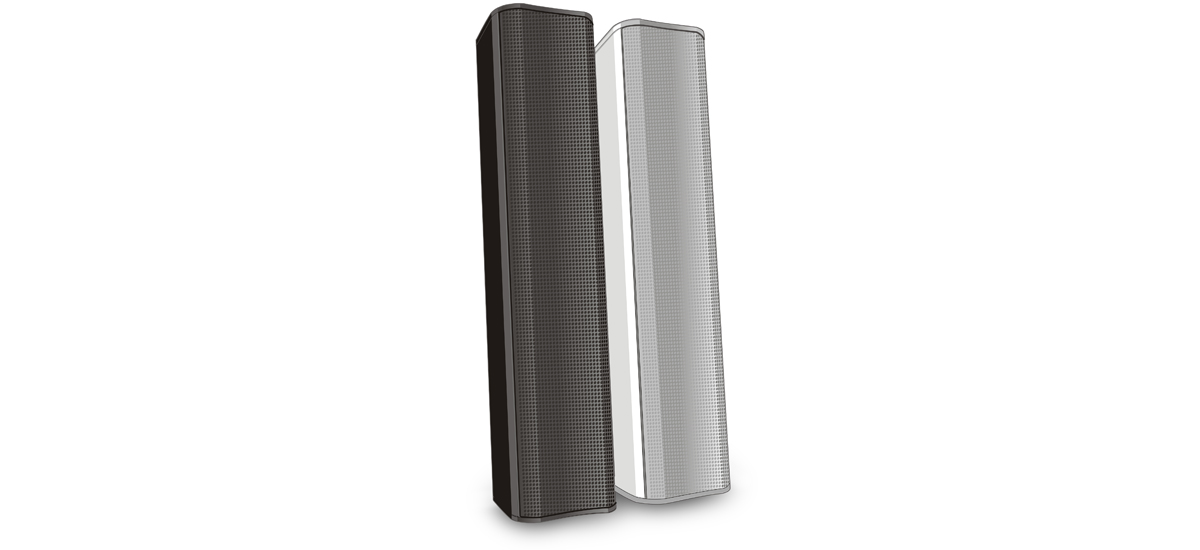

AD-S802T

Column Surface-Mount Loudspeaker

The all-new AcousticDesign™ Series AD-S802T is a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.

Features

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grill.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grills and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70/100V transformers.
  • 8 ohm low impedance bypass.
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup – keeps moisture away from wiring.

System Details

AD-S802T

Effective frequency range 1

200 Hz – 17K Hz

Power Capacity 2

120 W

System Sensitivity

89 dB

Coverage Angle Horizontal  (-6dB)

150°  (800 Hz - 5K Hz)

Coverage Angle Vertical (-6 dB)

15° (3.5 Hz - 17K Hz)

Output 4
(Peak SPL @ 1M)

116

Driver Information

(x8) 2.5-inch weather resistant paper cone woofer

Rated Impedance

8 ohm

Input Connectors

4-pin Euro terminal

Enclosure

Aluminum

Ingress Protection

IP-54

Net Weight

TBD

1 Free-field, -10 dB from on-axis sensitivity
2  IEC60268-1 noise signal for 2 Hrs
3  On-axis, field-fre sensitivity, 2.83V, 1 m
4 Calculated from rated noise voltage and sensitivity

All specifications are subject to change without notice.
