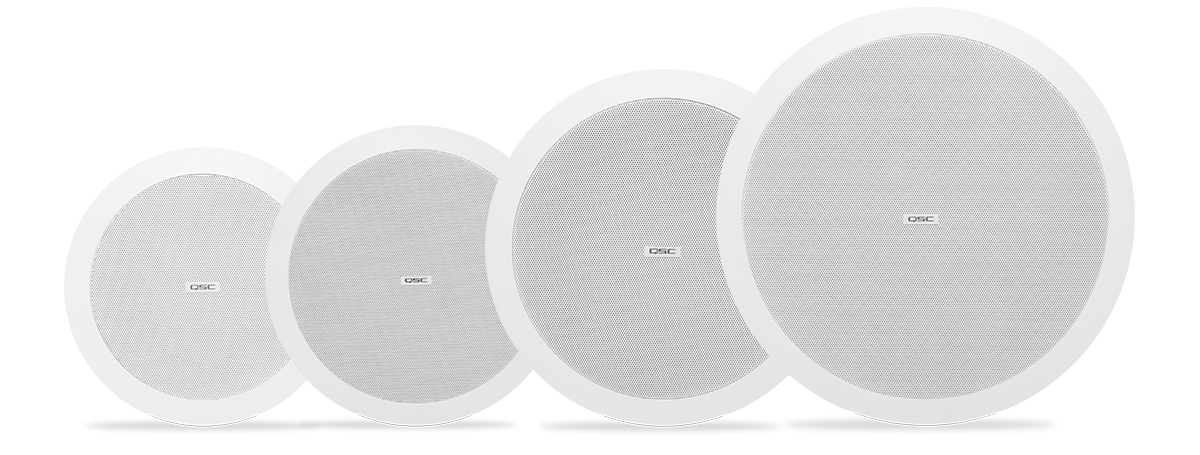

Serie AcousticDesign™ - Montaje en techo
Los altavoces de techo AcousticDesign™ ofrecen una variedad de modelos diseñados a la medida de las demandas de aplicaciones de más alta fidelidad. Diseñados para una mayor claridad y precisión, estos sistemas de altavoces ofrecen una perfecta reproducción de audio para instalaciones que requieren una experiencia de audio refinada.
SELECCIONA UN MODELO
Small Format
| AD-C4T | AD-C4T-LP | AD-C6T | AD-C6T-LP | AD-C6T-HC | AD-C6T-HP | |
| Systems Type | 2-way | 2-way, shallow can | 2-way | 2-way, shallow can | 2-way | 2-way |
| Frequency Range, -10dB(Hz) | 70Hz–20kHz | 70Hz–20kHz | 65Hz–20kHz | 65Hz–20kHz | 45Hz–20kHz | 58Hz–20kHz |
| Nominal Coverage | 150° conical DMT™ | 150° conical DMT™ | 140° conical DMT™ | 140° conical DMT™ | 75° conical | 120° conical |
| Output (PeakSPL@1M) | 108dB | 108dB | 112dB | 112dB | 116 dB | 115 dB |
| Rated noise power¹ | 30 | 30 | 60 | 60 | 120 W | 120 W |
| Sensitivity² | 87.5 dB | 87 dB | 88 dB | 88 dB | 90 dB | 89 dB |
| LF Driver | 4.5in (114mm) | 4.5in (114mm) | 6.5in (152mm) | 6.5in (152mm) | 6.5in (165mm) | 6.5in (165mm) |
| HF Driver | 0.75in (19mm) | 0.75in (19mm) | 0.75in (19mm) | 0.75in (19mm) | 1.4in (35.6mm) | 1.4in (35.6mm) |
| Transformer Taps | 70V:30,15,7.5,3.75W and 16 bypass 100V:30,15,7.5W and 16 bypass | 70V:30,15,7.5,3.75W and 16 bypass 100V:30,15,7.5W and 16 bypass | 70V:60,30,15,7.5W and 16 bypass 100V:60,30,15W and 16 bypass | 70V:60,30,15,7.5W and 16 bypass 100V:60,30,15W and 16 bypass | 70V:60,30,15,7.5W and 16 bypass 100V:60,30,15W and 16 bypass | 70V:60,30,15,7.5W and 16 bypass 100V:60,30,15W and 16 bypass |
| Input Connectors | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals |
| Dimensions (W x D) inches | 9.06 x 6.94 | 11.02 x 3.93 | 11.02 x 9.32 | 13.37 x 3.95 | 12 x 13.4 x 13.4 in | 9.3 x 11 x 11 in |
| Dimensions (W x D) mm | 230 x 176 | 280 x 100 | 280 x 237 | 340 x 100 | 313 x 340 x 340 mm | 235 x 280.5 x 280.5 mm |
| Net Weight | 6.4lb (2.9kg) | 6.6lb (3kg) | 9.5lb (4.3kg) | 9.3lb (4.2kg) | 19 lb (8.58 kg) | 13.39 lb (6.07 kg) |
| Details | Details | Details | Details | Details | Details | |
¹ Continuous IEC specified test signal, 2 hours unless otherwise stated.
| ||||||
Large Format
| AD-C820 | AD-C821 | AD-C1200 | |
| System Type | 2-way ported | 2-way ported | 2-way ported |
|---|---|---|---|
| Frequency Range, -10 dB (Hz) | 52 Hz - 18 kHz | 52 Hz - 18 kHz | 37 Hz - 18 kHz |
| Nominal Coverage | 90° conical | 90° conical | 90° conical |
| Power Capacity1 | 200 W (100 hrs) | 200 W (100 hrs) | 300 W (100 hrs) |
| Sensitivity2 | 91 dB | 91 dB | 93 dB |
| LF Driver | 8" weather resistant, treated paper cone woofer | 12" weather resistant, treated paper cone woofer, 75 mm voice coil, ferrite magnet | |
| HF Driver | 1.4" co-axial compression driver | 1.75" co-axial compression driver | |
| Controls / Selectors | 70 V: 100, 50, 25, 12.5 W 100 V: 100, 50, 25 W 16Ω Externally Selectable | 70 V: 150, 75, 37.5 W 100 V: 150, 75, 37.5, 18.2 W 16Ω Internally Selectable | |
| Input Connectors | AD-C820: Ceramic block AD-C821: 4-pin Euro terminals Fire protective sub-chamber | Ceramic block terminals Fire protective sub-chamber | |
| Suspension / Attachment Point | AD-C820: Pre-installed back box with 4 mounting straps AD-C821: Captive, integral mounting clamps | Pre-installed back box with 4 mounting tabs | |
| Dimensions (HWD) inches | 14.9 x 14.9 x 8.3 | 23 x 18 x 15.5 | |
| Dimensions (HWD) mm | 379 x 379 x 211 | 584 x 454 x 393 | |
| Net Weight | 17.5 lb / 7.9 kg | 78 lb / 35.3 kg | |
| Details | Details | Details | |
1 Continuous IEC specified test signal, 2 hours unless otherwise stated.
| |||
Subwoofer
| AD-C81Tw | |
| System Type | Ported subwoofer |
|---|---|
| Frequency Range, -10 dB (Hz) | 28 Hz - 208 Hz |
| Nominal Coverage | N/A |
| Power Capacity1 | 100 W (100 hrs) |
| Sensitivity2 | 92 dB |
| LF Driver | 8" weather resistant, polypropylene cone woofer, rubber surround |
| HF Driver | N/A |
| Controls / Selectors | 70 V: 60, 30, 15, 7.5 W 100 V: 60, 30, 15 W 8Ω Externally Selectable |
| Input Connectors | Ceramic block or 4-pin Euro terminals, fire protective sub-chamber |
| Suspension/Attachment Point | N/A |
| Dimensions (W x D) inches | 12.6 x 14.5 |
| Dimensions (W x D) mm | 321 x 368 |
| Net Weight | 20 lb / 9.1 kg |
| Details | |
1 Continuous IEC specified test signal, 2 hours unless otherwise stated. | |
All specifications are subject to change without notice.
SUB/SAT
| AD-C.SUB | AD-C.SAT | |
| Systems Type | Subwoofer | Satellite loudspeaker |
|---|---|---|
| Frequency Range, -10dB(Hz) | 45 Hz - 150 Hz | 150 Hz - 20 kHz |
| Nominal Coverage | N/A | 170° Conical |
| Output (Peak SPL @ 1M) | 106 dB | 96 dB |
| Rated noise power | 100 W | 25 W |
| Sensitivity | 86 dB | 82 dB |
| LF Driver | 6.5 in (165 mm) dual voice-coil | N/A |
| HF Driver | N/A | 2.75 in (70 mm) |
| Transformer Taps | 70 V : 100, 50, 25, 12.5 W and 4 Ω bypass 100V : 100, 50, 25 W and 4 Ω bypass | 16 Ω |
| Connectors | Mono Input: 4-pole Euroblock with thru output Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites | 2-pole Euroblock |
| Dimensions (W x D) inches | Ø13.4 x 10 | Ø5.9 x 3.4 |
| Dimensions (W x D) mm | Ø340 x 254 | Ø150 x 86 |
| Net Weight | 19.2 lb (8.7 kg) | 1.39 lb (0.6 kg) |
| Details | Details |
All specifications are subject to change without notice
